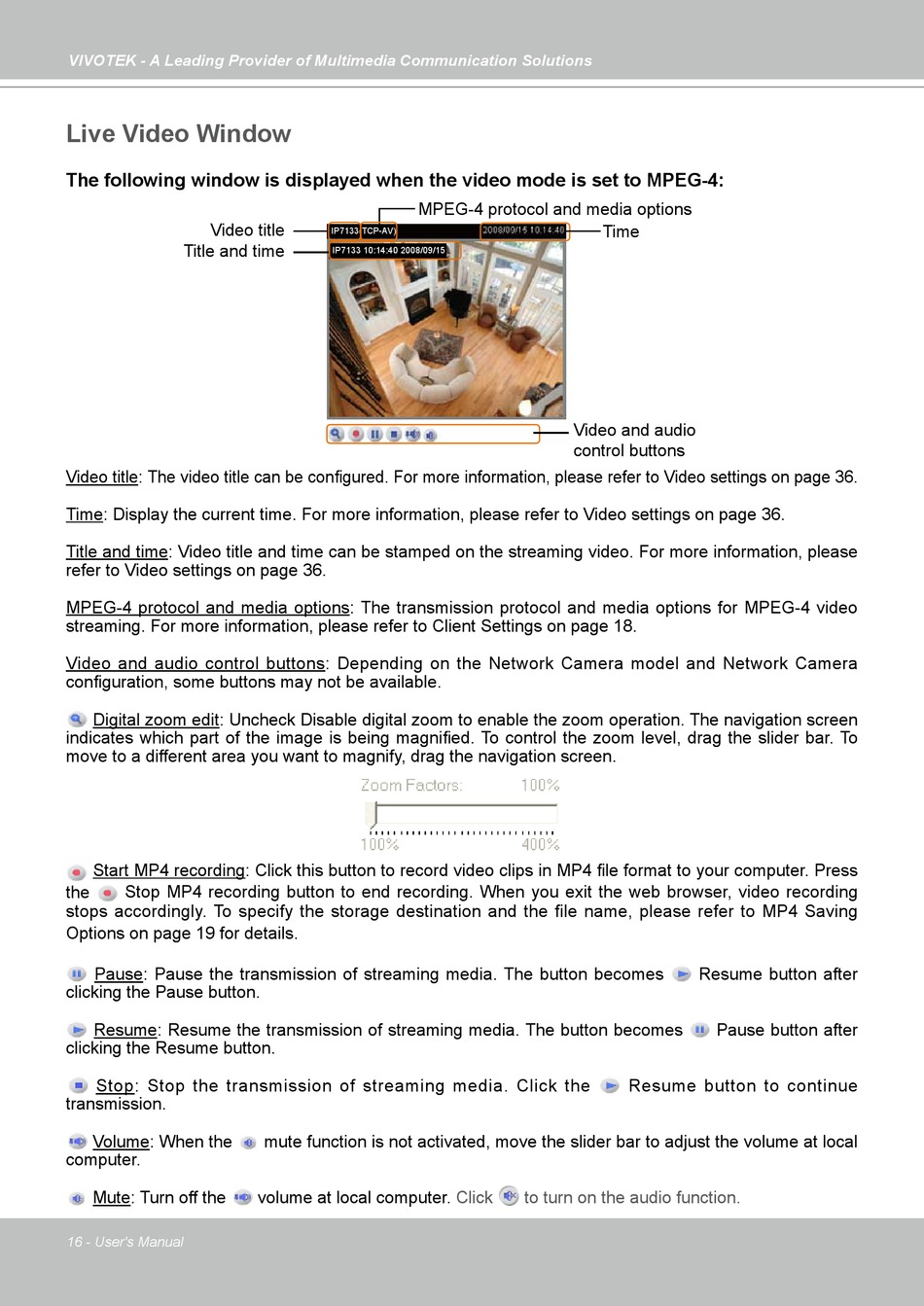

Live Video Window
The following window is displayed when the video mode is set to MPEG-4:
Video title
Title and time
Video title: The video title can be configured. For more information, please refer to Video settings on page 36�
Time: Display the current time� For more information, please refer to Video settings on page 36�
Title and time: Video title and time can be stamped on the streaming video� For more information, please
refer to Video settings on page 36�
MPEG-4 protocol and media options: The transmission protocol and media options for MPEG-4 video
streaming� For more information, please refer to Client Settings on page 18�
Video and audio control buttons: Depending on the Network Camera model and Network Camera
configuration, some buttons may not be available.
Digital zoom edit: Uncheck Disable digital zoom to enable the zoom operation� The navigation screen
indicates which part of the image is being magnified. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen�
Start MP4 recording: Click this button to record video clips in MP4 file format to your computer. Press
the Stop MP4 recording button to end recording� When you exit the web browser, video recording
stops accordingly� To specify the storage destination and the file name, please refer to MP4 Saving
Options on page 19 for details�
Pause: Pause the transmission of streaming media� The button becomes
clicking the Pause button�
Resume: Resume the transmission of streaming media� The button becomes
clicking the Resume button�
Stop: Stop the transmission of streaming media� Click the
transmission�
Volume: When the
computer�
Mute: Turn off the
16 - User's Manual
MPEG-4 protocol and media options
IP7133(TCP-AV)
IP7133 10:14:40 2008/09/15
mute function is not activated, move the slider bar to adjust the volume at local
volume at local computer�
Time
Video and audio
control buttons
Resume button to continue
Click to turn on the audio function�
Resume button after
Pause button after
