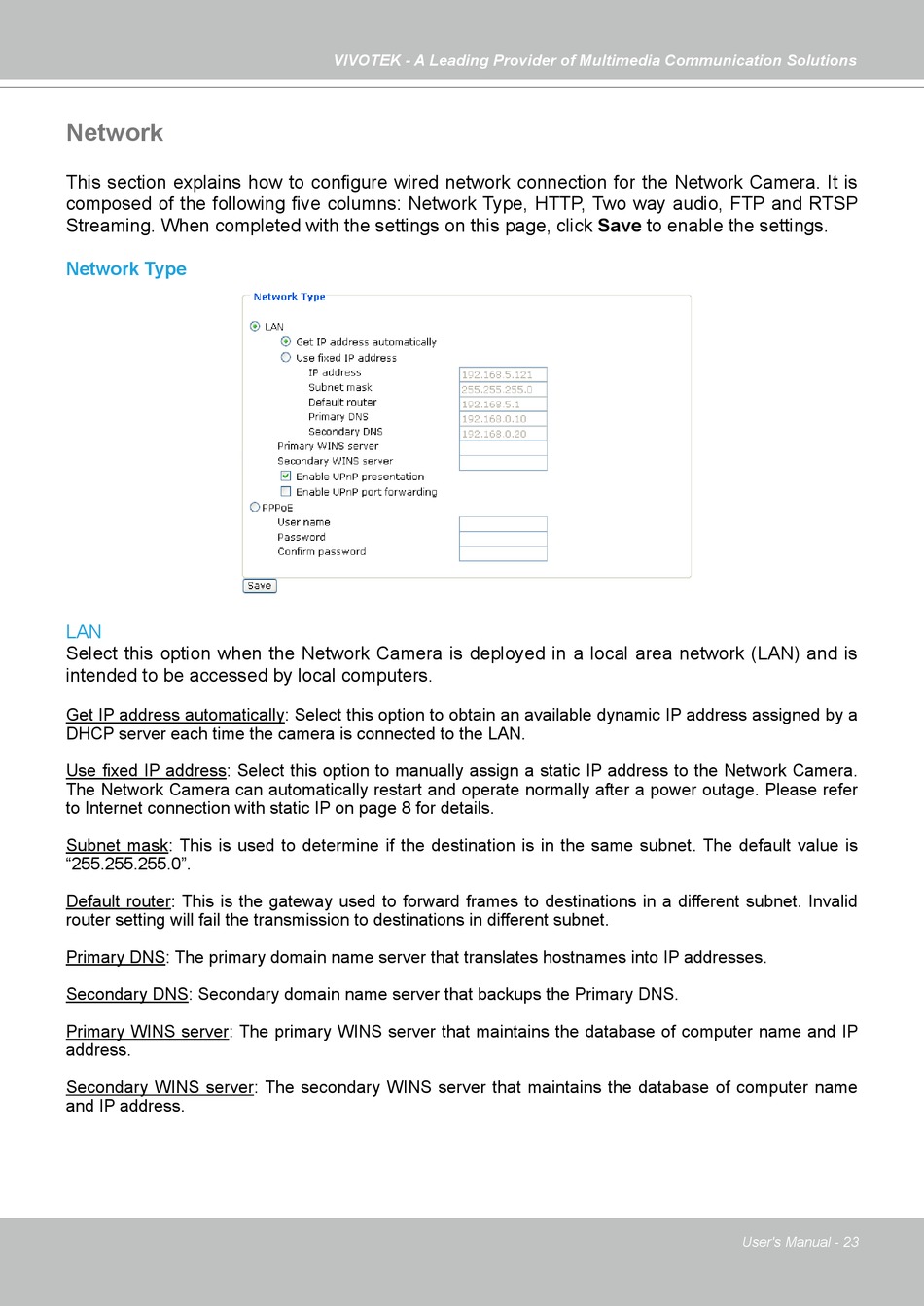

Network

This section explains how to configure wired network connection for the Network Camera. It is
composed of the following five columns: Network Type, HTTP, Two way audio, FTP and RTSP
Streaming� When completed with the settings on this page, click Save to enable the settings�
Network Type
LAN
Select this option when the Network Camera is deployed in a local area network (LAN) and is
intended to be accessed by local computers�
Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by a
DHCP server each time the camera is connected to the LAN.
Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera�
The Network Camera can automatically restart and operate normally after a power outage� Please refer
to Internet connection with static IP on page 8 for details�
Subnet mask: This is used to determine if the destination is in the same subnet� The default value is
"255�255�255�0"�
Default router: This is the gateway used to forward frames to destinations in a different subnet� Invalid
router setting will fail the transmission to destinations in different subnet�
Primary DNS: The primary domain name server that translates hostnames into IP addresses�
Secondary DNS: Secondary domain name server that backups the Primary DNS�
Primary WINS server: The primary WINS server that maintains the database of computer name and IP
address�
Secondary WINS server: The secondary WINS server that maintains the database of computer name
and IP address�
User's Manual - 23
