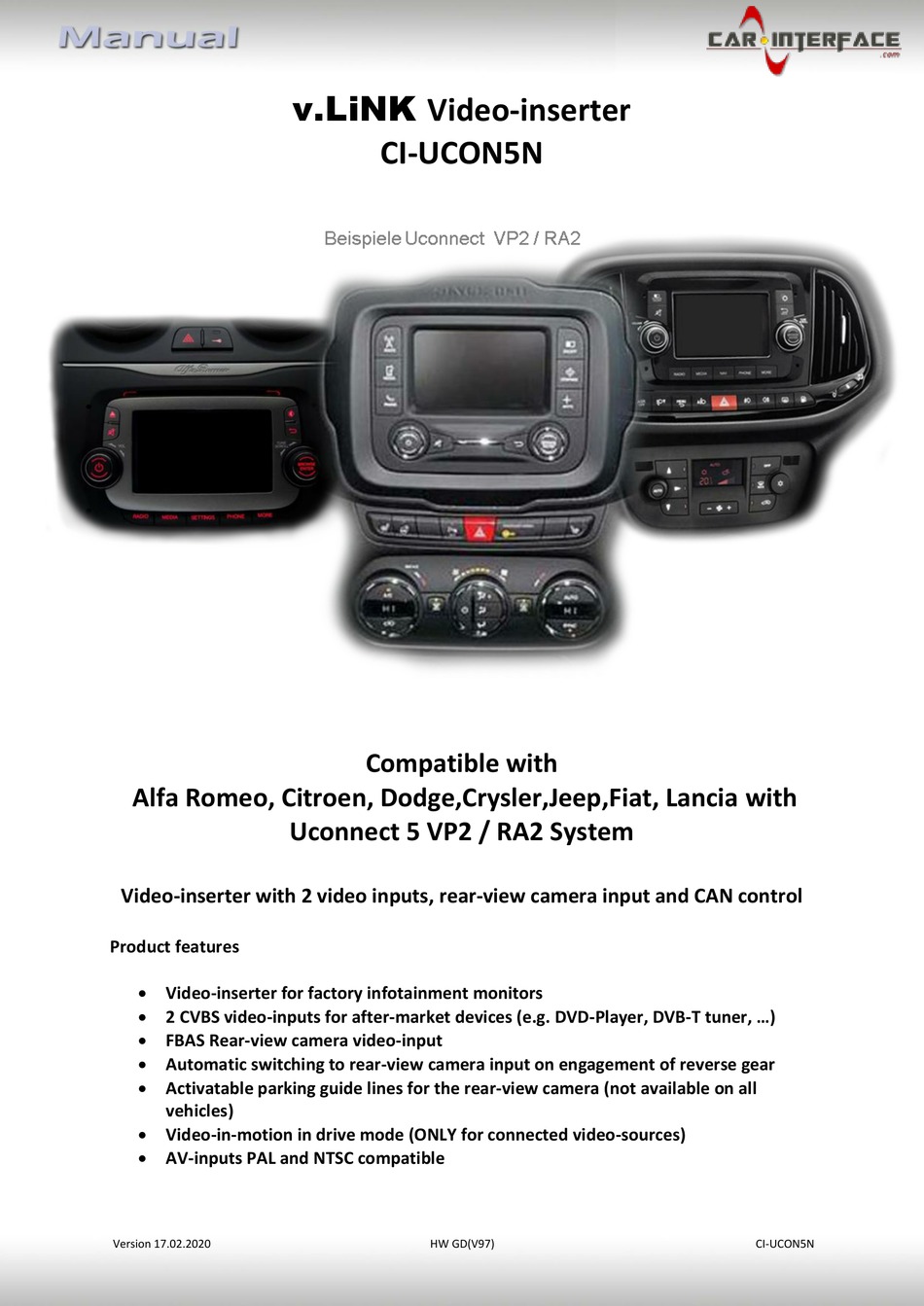

Video-inserter CI-UCON5N Compatible with Alfa Romeo, Citroen, Dodge,Crysler,Jeep,Fiat, Lancia with Uconnect 5 VP2 / RA2 System Video-inserter with 2 video inputs, rear-view camera input and CAN control Product features Video-inserter for factory infotainment monitors 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …) ...
Case 2: Video interface does not receive the reverse gear signal 2.7.3.3. Video signal connection 2.8. Connecting video-interface and keypad 2.9. Picture settings and guide lines 3. Interface operation 3.1. By voice key button 3.2. By keypad 4. Specifications 5. FAQ – Trouble shooting Version 17.02.2020 HW GD(V97) CI-UCON5N...

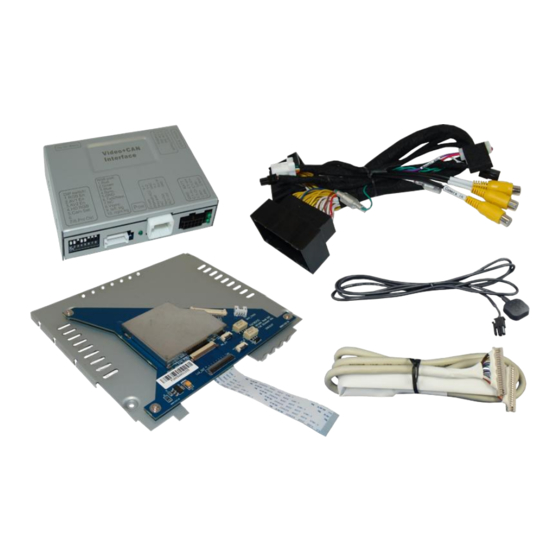

Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 17.02.2020 HW GD(V97) CI-UCON5N...
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back, an additional electronic part is required. Version 17.02.2020 HW GD(V97) CI-UCON5N...
No function set to OFF Rear-view cam type after-market factory or none No function Set to Off No function set to OFF No function set to OFF See the following chapters for detailed information. Version 17.02.2020 HW GD(V97) CI-UCON5N...
Dip 4 FIAT Uconnect 5 VP2 / RA2 For Fiat vehicles, use the OFF position of all the 4 dip switches. Different vehicle manufacturers require trying out other dip switch positions for a possible CAN communication. Version 17.02.2020 HW GD(V97) CI-UCON5N...
2.1. Place of installation – video-interface The video-interface is installed on the backside of the head-unit. 2.1.1. Place of installation - Exchange housing base plate with daugter PCB Version 17.02.2020 HW GD(V97) CI-UCON5N...
Note: The connected ribbon cables have to be handled with care to avoid each damage of the sensitive electrical inducters. Position the Exchange housing base plate with the daugter PCB in place of the original base plate Version 17.02.2020 HW GD(V97) CI-UCON5N...
Page 10
After a check of the perfect ribbon cable connection, in reverse order fold back and clip in the head-unit housing to the head-unit control panel and fix the exchange housing base plate to the head-unit’s housing. Version 17.02.2020 HW GD(V97) CI-UCON5N...
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the connector, concerning the mounting position. 3) Avoid cable contusion or cable injury caused by sharp-edged metal. Version 17.02.2020 HW GD(V97) CI-UCON5N...
Connect the male beige-coloured 20pin connector of the 20pin RGB digital cable to the female 20pin connector of the daughter PCB. Pay special attention to the cable’s direction because its connectors both seem to be identical. (Strictly respect the lables „MONITOR SIDE“ „BOX SIDE“). Version 17.02.2020 HW GD(V97) CI-UCON5N...
Head-unit and connect it to the male Quadlock connector of the Quadlock cable. Connect the female Quadlock connector of Quadlock harness to the male Quadlock connector of the head-unit. Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of the video interface. Version 17.02.2020 HW GD(V97) CI-UCON5N...
Page 14
ACC-out (max 3A) and the purple coloured wire Manual ACC of the 12pin interface cable both have to be connected additionately to +12V S-contact terminal 86s (e.g. glove compartment illumination). Version 17.02.2020 HW GD(V97) CI-UCON5N...
Connect the video RCA of the AV-source 1 to the female RCA connector “VideoIN1” of the video cable. Connect the video RCA of the AV-source 2 to the female RCA connector “Video -IN2” of the video cable. Version 17.02.2020 HW GD(V97) CI-UCON5N...
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the green wire of the 20pin cable to avoid an unnecessary permanent power supply to the camera electronic. For the operation, both green cables “Reverse IN” “Reverse OUT” have to stay connected. Version 17.02.2020 HW GD(V97) CI-UCON5N...
Page 17
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 17.02.2020 HW GD(V97) CI-UCON5N...
2.7.3.3. Video signal connection for the rear-view camera Connect the video-RCA of the after-market rear-view camera to the female RCA port “Camera-IN” of the video-cable. Version 17.02.2020 HW GD(V97) CI-UCON5N...
Connect the keypad’s female 4pin connector to the video-interface’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 17.02.2020 HW GD(V97) CI-UCON5N...
Position V (vertical) For the rearIR-AV1 (out of function) IR-AV2 (out of function) Guide-lines left Guide-lines right Guide lines (ON/OFF) Note: If the CAN-box does not support the vehicle’s CAN, the guide-lines cannot be used. Version 17.02.2020 HW GD(V97) CI-UCON5N...
Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. 3.2. By keypad Alternatively or additionally to the steering wheel’s voice key button, the interface’s enabled inputs can also be switched by the external keypad. Version 17.02.2020 HW GD(V97) CI-UCON5N...
0.24A @12V Video input 0.7V – 1V Video input formats PAL/NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions Video-Box 118 x 25 x 86 mm (W x H x D) Version 17.02.2020 HW GD(V97) CI-UCON5N...
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 17.02.2020 HW GD(V97) CI-UCON5N...
Page 24
Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 17.02.2020 HW GD(V97) CI-UCON5N...
