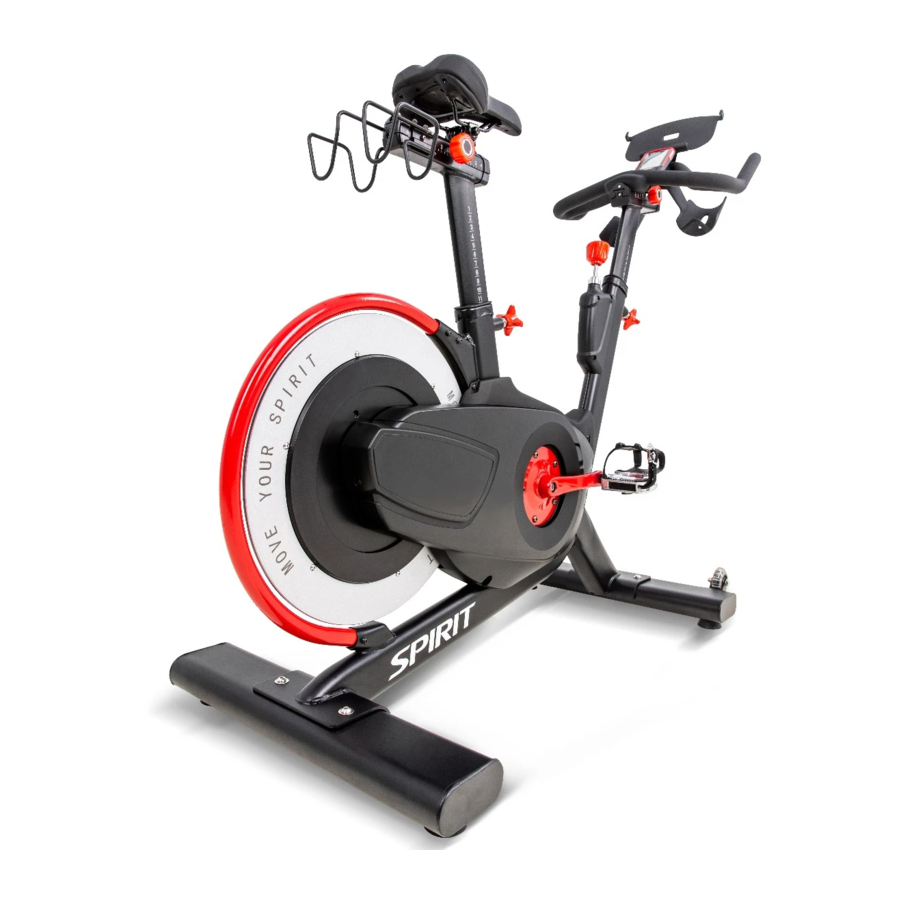

Spirit Commercial CIC850 Owner's Manual

Hide thumbs Also See for CIC850:

Advertisement

Quick Links

Download this manual
CIC850
FITNESS BIKE
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CIC850 and is the answer not in the manual?

Questions and answers

Related Manuals for Spirit Commercial CIC850

Summary of Contents for Spirit Commercial CIC850

  • Page 1 CIC850 FITNESS BIKE OWNER’S MANUAL...
  • Page 2 Spirit Fitness...
  • Page 3 TABLE OF CONTENTS PRODUCT REGISTRATION IMPORTANT SAFETY INSTRUCTIONS IMPORTANT OPERATION INSTRUCTIONS CIC850 ASSEMBLY INSTRUCTIONS GENERAL MAINTENANCE MANUFACTURER’S LIMITED WARRANTY Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing, adjustments, repair or maintenance that is not described in this manual.
  • Page 4 Congratulations on your new Indoor Cycle and welcome to the Spirit Fitness family! Thank you for your purchase of this quality group indoor cycle from Spirit Fitness. Your new indoor cycle was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
  • Page 5 RECORD YOUR SERIAL NUMBER Please record the serial number of this fitness product in the space provided below. Serial Number Location Serial Number: REGISTER YOUR PURCHASE The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can also go to https://www.spiritfitness.com/ residentialwarrantyregistration.html under the Support tab to register online.
  • Page 6 IMPORTANT SAFETY In a home setting, keep children away from the bike • when it is not in use. Keep children and pets away INSTRUCTIONS from the unit while it is in use. Do not attempt to perform dip movements on •...
  • Page 7 Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and • possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! IMPORTANT OPERATION INSTRUCTIONS NEVER expose the bike to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa, or in any other high humidity environment.
  • Page 8 SEAT HANDLEBAR FORWARD/AFT ADJ. SEAT FORWARD/AFT ADJ. SEAT HEIGHT ADJ. RESISTANCE ADJUSTMENT REAR STABILIZER HANDLEBAR ADJUSTMENT PEDALS MAIN FRAME FLYWHEEL LEVELERS FRONT STABILIZER TRANSPORT WHEELS Spirit Fitness...
  • Page 9 CIC850 PRE-ASSEMBLY UNPACKING TOOLS INCLUDED: 1. Cut the straps, then along the dotted line on the bottom of the box; ‰ 4mm Allen Wrench A lift the box over the unit and unpack. ‰ 5mm Allen Wrench B ‰ 13/17mm Combination Wrench C 2.
  • Page 10 CIC850 STEP ONE HARDWARE FOR STEP 1 PART TYPE DESCRIPTION SCREW M5X1.25X55L FLAT WASHER 1. Gather HARDWARE FOR STEP 1. 2. Position the FRONT STABILIZER (1) on the FRAME BRACKET as shown in the figure. Make sure the TRANSPORT WHEELS are facing up and toward the front of the bike.
  • Page 11 CIC850 STEP TWO HARDWARE FOR STEP 2 PART TYPE DESCRIPTION SCREW M8X1.25X55L FLAT WASHER 1. Gather HARDWARE FOR STEP 2. 2. Position the REAR STABILIZER (2) on the FRAME BRACKET as shown in the figure. 3. Attach the STABILIZER with 2 HEX SCREWS (3) and 4 FLAT WASHERS (4).
  • Page 12 CIC850 STEP THREE NO HARDWARE FOR STEP 3 1. Remove the L-POP PIN from the components box and turn clockwise to tighten firmly into the FRAME with the WRENCH (D). Spirit Fitness...
  • Page 13 CIC850 STEP FOUR HARDWARE FOR STEP 4 PART TYPE DESCRIPTION SCREW M6X1.0”X15L FLAT WASHER Gather HARDWARE FOR STEP 4. Remove the battery cover from the back of the CONSOLE (6). Insert 2 AA batteries into the battery compartment and reinstall the battery cover.
  • Page 14 CIC850 STEP FIVE NO HARDWARE FOR STEP 5 1. Pull out the SAFETY PIN (14) and slide the HANDLEBAR onto the POST (15). 2. Insert the HANDLEBAR ASSEMBLY into the FRAME TUBE and tighten firmly with the L-POP PIN. Spirit Fitness...
  • Page 15 CIC850 STEP SIX NO HARDWARE FOR STEP 5 1. Remove pedals from the components box. 2. Look at the end of the pedal axle and notice each pedal is marked with an R and L on the spindle. It is indicated which side of bike the pedal is intended to assemble.
  • Page 16 CONSOLE INSTALLATION: 1. Ensure the Console Clamp is securely mounted on the back of the console. Insert the mounting screw through the Console Clamp into the Console. 2. Place the CONSOLE BRACKET on the back of the console and secure using the 1 SCREW . Tighten with Combination Cross Wrench (C).
  • Page 17 CT800 CONSOLE OPERATION www.spiritfitness.com...
  • Page 18 Spirit Fitness...
  • Page 19 CONSOLE BATTERY INSTALLATION: 1. Remove the battery cover from the back of the computer. 2. Insert 2 AAA batteries into the battery compartment and reinstall the battery cover. 3. When battery voltage is low, the ‘Low battery’ indicator will show up on the Console display. SPEED SENSOR TRANSMITTER BATTERY INSTALLATION 1.
  • Page 20 In Power Saving Mode”, pressing Page key will bring the console to “Quick Start” active state. MODE SELECT Press MODE key to select the DIST, KCAL display. RESETTING ALL MEASURED VALUE To clear all the measured values, press and hold key under the TIME Mode for 3 seconds. All the measured value for AVG SPEED, AVG PULSE, TIME, DIST, KCAL will reset to zero.
  • Page 21 HEART RATE TARGET ZONES Hold the PAGE key for 3 seconds to enter the settings screen. Press MODE and choose the heart rate icon, then press the PAGE key to select the heart rate target zones window. Press the MODE key to increase the maximum heart rate limit.
  • Page 22 PAIRING CONSOLE TO BION FITNESS APP 1. Download the Bion Fitness App (Google Play) 2. Open the app and press the smartphone icon on your bike console. 3. The app will search for the console, and the bike console will display the pairing interface. 4.
  • Page 23 PAIRING THE CONSOLE AND TRANSMITTER NOTE: ALL TRANSMITTERS ARE PAIRED WITH THE CONSOLE BEFORE SHIPPING. THESE STEPS SHOULD ONLY NEED TO BE USED IN CIRCUMSTANCES WHERE THE DEVICES HAVE BEEN UN- PAIRED. 1. Hold both MODE and SET keys on the console for 3 seconds. 2.
  • Page 24 TROUBLESHOOTING Cadence number jumps high or low 1. Separate bikes that may be paired to the same No Display on Console console code and are cross-talking, or simply run 1. Press any key to bring the console to ‘Quick Start’ transmitter pair stage again on the bike.
  • Page 25 The pitch of the saddle can be adjusted to accommodate all users. Loosen the horizontal bolt under the seat to adjust the pitch, then retighten. TRANSPORTATION The indoor cycle is equipped with two transport wheels, which are engaged when the rear of the CIC850 indoor cycle is lifted. www.spiritfitness.com...
  • Page 26 Take some time to learn how to properly adjust the bike to your body; it will make your workouts more pleasant and a safer experience too. Riding the bike when it is incorrectly adjusted can result in discomfort and increase your risk of injury.
  • Page 27 HANDLE BAR ADJUSTMENT HANDLEBAR HEIGHT ADJUSTMENT 1. The handlebar height is a matter of preference. Start with a handlebar height that is the same as the seat’s height. Adjusting the handlebar higher will give the rider a more upright posi- tion;...
  • Page 28 RESISTANCE ADJUSTMENT Resistance can be adjusted easily at any time while riding to change the intensity of workout. Turn the knob clockwise (+) to increase resistance. Turn the knob counterclockwise (-) to decrease resistance. EMERGENCY BRAKE In case of emergency or before dismounting the indoor cycle, presses directly DOWN on the resistance knob to stop the flywheel and pedal.
  • Page 29 BELT TENSION ADJUSTMENT The belt tension had been set before shipping. It should not need to be adjusted when first using. However, you may need to make the minor tension adjustment over time. NOTE: Make sure you adjust both side equally, either tighten or loosen the belt tension so that the flywheel keep in alignment with the frame.
  • Page 30 GENERAL MAINTENANCE 1. Wipe down all areas in the sweat path with a damp cloth after each workout. 2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: a. The hardware was not sufficiently tightened during assembly. All bolts that were installed during assembly need to be tightened as much as possible.
  • Page 31 INDOOR CYCLE WARRANTY – EFFECTIVE OCTOBER 28, 2020 Spirit Fitness warrants all its Indoor Cycle parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date.
  • Page 32 EXCLUSIONS This warranty does not cover the following: 1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
  • Page 33 SERVICE Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written warranty gives you specific legal rights.
  • Page 34 Spirit Fitness...
  • Page 35 www.spiritfitness.com...
