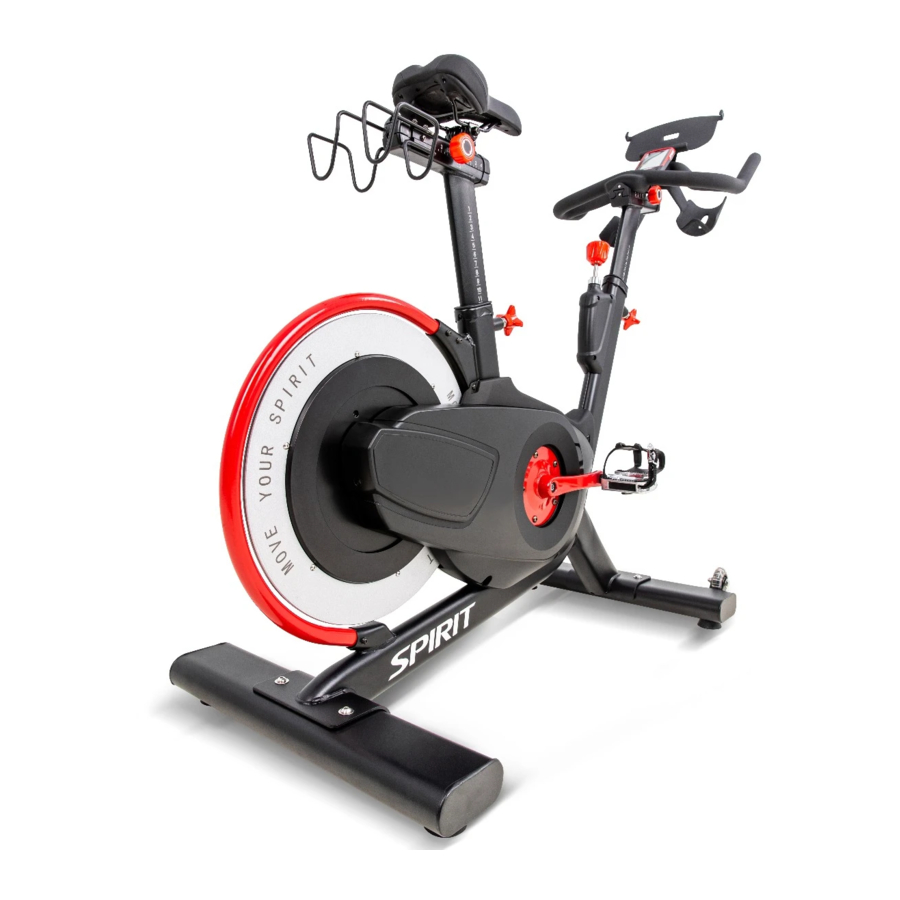

CIC850
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CIC850 and is the answer not in the manual?

Questions and answers

Related Manuals for Spirit Commercial CIC850

Summary of Contents for Spirit Commercial CIC850

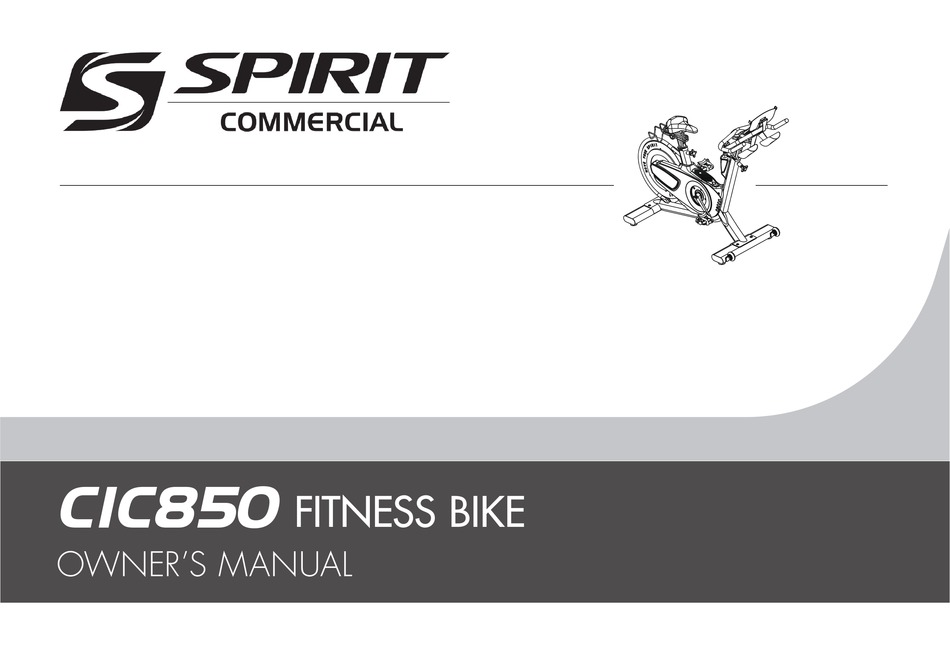

  • Page 1 CIC850 OWNER’S MANUAL...
  • Page 3 TABLE OF CONTENTS PRODUCT REGISTRATION IMPORTANT SAFETY INSTRUCTIONS IMPORTANT OPERATION INSTRUCTIONS CIC850 ASSEMBLY INSTRUCTIONS CONSOLE INSTRUCTIONS TROUBLESHOOTING GENERAL MAINTENANCE MANUFACTURER’S LIMITED WARRANTY EXPLODED DRAWING PARTS LIST Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any...
  • Page 4 Congratulations on your new Indoor Cycle and welcome to the Spirit Fitness family! Thank you for your purchase of this quality group indoor cycle from Spirit Fitness. Your new is backed by one of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come.
  • Page 5 product in the space provided below. Serial Number Location...
  • Page 6 In a home setting, keep children away from the bike • when it is not in use. Keep children and pets away from the unit while it is in use. Do not attempt to perform dip movements on • handlebars. Never drop or insert any object into any opening of Use this equipment only for its intended use as •...
  • Page 7 Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and • possibly others) to injury, and reduce the longevity of the equipment.
  • Page 9 CIC850 13/14/15/17mm...
  • Page 10 CIC850 0...
  • Page 12 CIC850 0 KNOB STAR-POP-PIN (104)
  • Page 13 CIC850 0 CONSOLE DT-3268F CONSOLE BRACKET SCREW M5*15L HANDLEBAR WATER BOTTLE HOLDER BLACK TABLET HOLDER BLACK SCREW M6*P1.0*20L FLAT WASHERS M6(D16*d6.5*1.0t)
  • Page 14 CIC850 0 SAFETY PIN HANDLEBAR POST Flat cross head screw M5*P0.8*8L Spring Washer SW5*1.0t Left dumbbell Holder Right dumbbell Holder Remove the 3 SCREWS (27) with 3 SPRING WASHERS (28) from the seat slider assembly. 27 27 27 Attach the LEFT DUMBBELL HOLDER (113) to...
  • Page 15 CIC850 0 136R/L PEDAL JD-304 1. Remove pedals from the components box. 2. Look at the end of the pedal axle and notice each pedal is marked with an R and L on the spindle. It is indicated which side of bike the pedal is intended to assemble.
  • Page 16 CIC8 C C 50 STEP HARDWARE FOR STEP PART TYPE DESCRIPTION SCREW Loosen the SCREW (119) using the Wrench (C). Remove the (118). Insert Replace and secure with the SCREW.

  • Page 17: Adjusting The Pedal Straps

    ADJUSTING THE PEDAL STRAPS Place your feet in between the aluminum surface of the pedal and the nylon foot strap that wraps around it. To adjust the fit, pull the end of the adjustable strap down to tighten, or pull the strap up to loosen.

  • Page 18: Console Operation

    CIC850 CONSOLE OPERATION Spirit Fitness...
  • Page 19 WATTS SPEED HEART RATE TIME DISTANCE LOW BATTERY KCAL PAGE/ RECORD SMARTPHONE MODE BUTTON Cadence Bar Graphic: 0 - 199RPM RPM: 0 - 199RPM SPEED: 0 - 99 KM/H PULSE: 30 - 240BPM TIME: Count Down Range 1 - 99 Minutes Count Up Range 00:01 - 99:59 Protocol: BLE4.0...

  • Page 20: Heart Rate

    TIME Time is the length of time (min. / sec.) The time will count up or count down during user peddling. When peddling stopped, the time will stop to count up or count down after 3 seconds. CADENCE & SPEED Cadence is the measurement of how fast the cranks are rotating in RPM’s.

  • Page 21: Quick Start

    QUICK START In Power Saving Mode, Press Page Key will bring the CONSOLE to ‘QUICK Start’ active state. Power Saving Mode Quick Start Mode MODE SELECT Press ‘MODE’ key to select the TIME, DIST, KCAL display.

  • Page 22: Timer Setting

    RESETTING ALL MEASURED VALUE To clear all the measured values, press and hold the Page key under the TIME Mode for 3 seconds. All the measured value for AVG SPEED, AVG PULSE, TIME, DIST, KCAL will reset to zero. TIMER SETTING The TIMER displays users’...
  • Page 23 HEART RATE TARGET ZONES Under the DIST or KCAL, hold the Page Key for 3 seconds to go into the settings. Press MODE to go to the heart rate icon then press Page to go to the heart rate target zone window. Press the MODE key to increase the maximum heart rate limit.

  • Page 24: Bluetooth Pairing

    PERSONAL DATA SETTINGS Accurate personal data will make your calories burned more accurate. Under KCAL or DISTANCE MODE, Hold Page key for 3 seconds to go into the setting, continually press ‘MODE’ key to get to the heart rate windows. 1.
  • Page 25 CONNECTING TO ZWIFT 1. Log in to Zwift. 4. Select ride to start 2. Select the power source and cadence, the system will prompt you to select machine. 5. Enjoy the ride!
  • Page 26 CONNECTING TO KINOMAP 5. Select “sensor” at the very bottom 1. Select “More” on the bottom right corner 2. Select equipment management 6. Select machine you wish to connect SPIRIT BIKE 3. Select “+” on the top right corner 7. Successfully paired machine will show up on this page 4.
  • Page 27 8. Go to browse to select a video you would Press start on the console when kinomap like to play ask you to start pedaling Enjoy the ride! 9. Select Start The console is compatible with most virtual active apps available.
  • Page 28 Cadence number jumps high or low 1. Separate bikes that may be paired to the same No Display on Console console code and are cross-talking, or simply run 1. Press any key to bring the console to ‘Quick Start’ transmitter pair stage again on the bike. mode.
  • Page 29 The pitch of the saddle can be adjusted to accommodate all users. Loosen the horizontal bolt under the seat to adjust the pitch, then retighten. The indoor cycle is equipped with two transport wheels, which are engaged when the rear of the CIC850 indoor cycle is lifted.
  • Page 30 Take some time to learn how to properly adjust the bike to your body; it will make your workouts more pleasant and a safer experience too. Riding the bike when it is incorrectly adjusted can result in discomfort and increase your risk of injury.
  • Page 31 1. The handlebar height is a matter of preference. Start with a handlebar height that is the same as the seat’s height. Adjusting the handlebar higher will give the rider a more upright posi- tion; lower will result in a more crouched position. 2.
  • Page 32 Resistance can be adjusted easily at any time while riding to change the intensity of workout. Turn the knob clockwise (+) to increase resistance. Turn the knob counterclockwise (-) to decrease resistance. In case of emergency or before dismounting the indoor cycle, presses directly DOWN on Place the ball of you feet in the toe clip till the front of the shoe is snugly in the cage.
  • Page 33 you may need to make the minor tension adjustment over time. NOTE: keep in alignment with the frame. Remove the 2 Guard (Top) Cover (122) on the Guard (top) (121) . Remove 4 Screws (125) and 2 Screws (126) . Remove the Guard (top) (121). Remove the 7 (125) and remove the Right guard (120) .
  • Page 34 1. Wipe down all areas in the sweat path with a damp cloth after each workout. 2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: during assembly need to be tightened as much as possible. It may be necessary to use a larger wrench than the one department for noise issues can be traced to loose hardware.
  • Page 35 – EFFECTIVE OCTOBER 28, 2020 Dyaco Canada Inc. warrants all it’s bike parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt. Dyaco Canada Inc.’s responsibilities include providing new or remanufactured parts, at Dyaco Canada Inc.’s option, and technical support to our independent dealers and servicing organizations.
  • Page 36 This warranty does not cover the following: 1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
  • Page 37 CIC850 19 23 20 72 26 125 28 128 118 119 71 71 71 135L 125 123 25 25 120 59 136R 64 67...
  • Page 38 DESCRIPTION DESCRIPTION Frame Brake knob--cover Outer circle tube assembly Flat cross head screw (UCP)M4*P0.7*10L Front stabilizer assembly Knob bolt block Transportation wheel Pop pin knob( short) Flat washer SUS304 M8(D19*d8.5*1.0t) Flat cross head screw SUS304 M3*P0.5*6L Nylon nut SUS304 M8*P1.25 Flat cross head screw SUS304 M4*P0.7*8L Hex screw M8*1.25*45L Flat cross head screw M5*P0.8*8L...
  • Page 39 DESCRIPTION DESCRIPTION Bearing-6203ZZ Flat cross head screw SUS304 M8*P1.25*12L Flywheel set C type clip Aluminum Ring Idler pully adjust screw Flywheel AXIS Idler pully positioning nut Flat cross head screw SUS304 M5*P0.8*16L M8*P1.25*55L Flat cross head screw M8*P1.25*10L Flat washer M8(D16*d8.2*1.0t) Permanent magnet Idler pully casing Sprocket / pulley...
  • Page 40 DESCRIPTION DESCRIPTION Brake Spring Square plastic bushing Brake line Flat washer SUS304 M8(D16*d8.1*1.6t) PE Wahser Flat cross head screw SUS304 M6*P1.0*20L Nylon nut SUS304 M8*P2.0 Star-type pop pin knob Water bottle holder Slider block Nylon nut SUS304 M5*P0.8 Tablet Holder Fixed pulley Fixed base assembly Nylon bushing (black)
  • Page 41 DESCRIPTION Ch n guard up Cha n guard up cover Brake guard right Brake guard left Flat cross head screw M5*P0.8*14L Flat cross head screw M5*P0.8*25L Round head Phillips tapping screws Flat washer M5(φ5.3*φ10*1t) Nylon nut SUS304 M10*P1.5 Flat washer (D16*d10.2*1.0t) Hex screw M6*P1.0*20L Hex nuts (UCP)M6*P1.0*5.0t Hex nuts (UCP)M16*P1.5*7.8t...
  • Page 42 1.888.707.1880 Dyaco Canada Inc. sales@dyaco.ca 5955 Don Murie St. www.spiritfitness.ca Niagara Falls, ON L2G0A9 Canada CIC850 Owners Manual © 2020 All Rights Reserved...
