TABLE OF CONTENTS PRODUCT REGISTRATION IMPORTANT SAFETY INSTRUCTIONS IMPORTANT OPERATION INSTRUCTIONS CIC850 ASSEMBLY INSTRUCTIONS CONSOLE INSTRUCTIONS CONNECTING TO APPS GENERAL MAINTENANCE TROUBLESHOOTING MANUFACTURER’S LIMITED WARRANTY EXPLODED DRAWING PARTS LIST Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing, adjustments, repair or maintenance that is not described in this manual.
Page 4

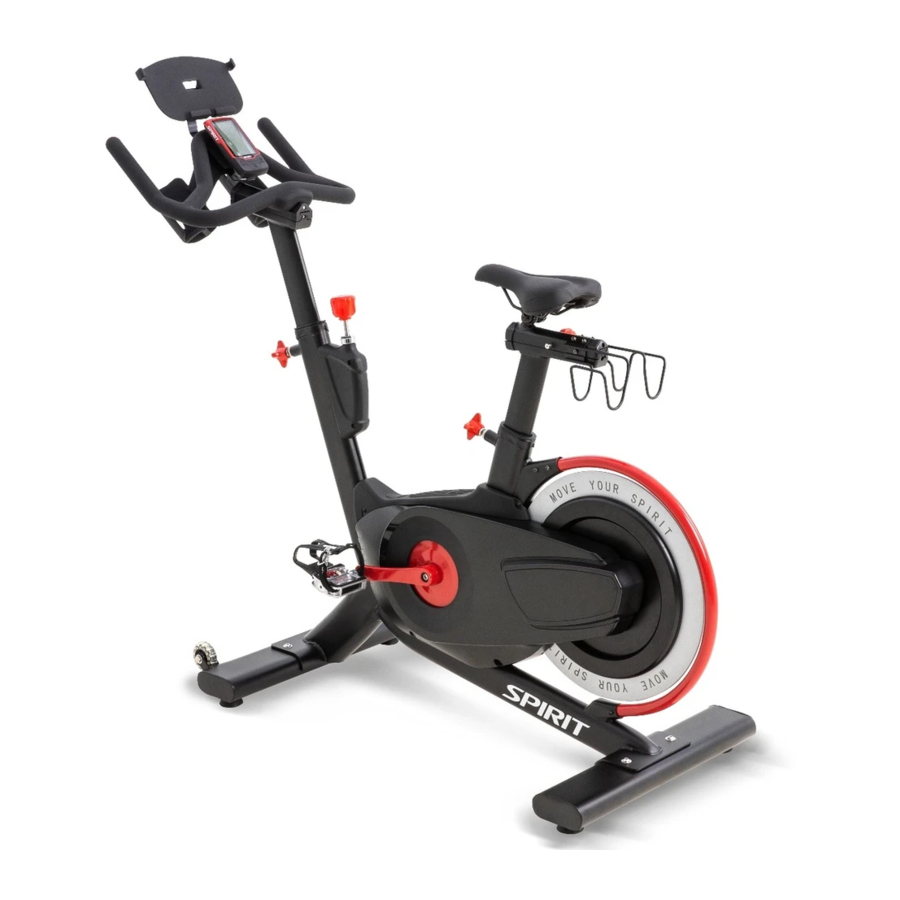

Congratulations on your new Indoor Cycle and welcome to the Spirit Fitness family! Thank you for your purchase of this quality group indoor cycle from Spirit Fitness. Your new indoor cycle was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
Page 5
RECORD YOUR SERIAL NUMBER Please record the serial number of this fitness product in the space provided below. Serial Number: REGISTER YOUR PURCHASE The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can also go to http://www.spiritfitness.com/warranty under the Support tab to register online.
IMPORTANT SAFETY In a home setting, keep children away from the bike • when it is not in use. Keep children and pets away INSTRUCTIONS from the unit while it is in use. Do not attempt to perform dip movements on •...
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and • possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! IMPORTANT OPERATION INSTRUCTIONS NEVER expose the bike to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa, or in any other high humidity environment.
Page 9
CIC850 PRE-ASSEMBLY UNPACKING TOOLS INCLUDED: 1. Cut the straps, then along the dotted line on the bottom of the box; 4mm Allen Wrench A lift the box over the unit and unpack. 5mm Allen Wrench B 13/17mm Combination Wrench C 2.
Page 10
CIC850 STEP ONE HARDWARE FOR STEP 1 PART TYPE DESCRIPTION M8 X 1.25 X 55L SCREW FLAT WASHER 1. Gather HARDWARE FOR STEP 1. 2. Position the FRONT STABILIZER (3) on the FRAME BRACKET as shown in the figure. Make sure the TRANSPORT WHEELS are facing up and toward the front of the bike.
Page 11
CIC850 STEP TWO HARDWARE FOR STEP 2 PART TYPE DESCRIPTION M8 X 1.25 X 55L SCREW FLAT WASHER 1. Gather HARDWARE FOR STEP 2. 2. Position the REAR STABILIZER (10) on the FRAME BRACKET as shown in the figure. 3. Attach the STABILIZER with 2 HEX SCREWS (65) and 2 FLAT WASHERS (5).
Page 12
CIC850 STEP THREE HARDWARE FOR STEP 3 PART TYPE DESCRIPTION KNOB STAR POP-PIN 1. Remove the STAR-POP PIN (104) from the components box and turn clockwise to tight- en firmly into the FRAME with WRENCH (D). 2. Insert the HANDLEBAR POST (37) into the FRAME TUBE and tighten firmly with the STAR-POP PIN.
Page 13
CIC850 STEP FOUR HARDWARE FOR STEP 4 PART TYPE DESCRIPTION M5*15L PHILIPS HEAD SCREW 1. Remove the pre-installed SCREW (137) from the back of the console. This screw will be used to secure the console to the console bracket later on.
Page 14
CIC850 STEP FIVE HARDWARE FOR STEP PART TYPE DESCRIPTION CONSOLE DT-3268F CONSOLE BRACKET SCREW M5*15L HANDLEBAR WATER BOTTLE HOLDER BLACK TABLET HOLDER BLACK SCREW M6*P1.0*20L FLAT WASHERS M6(D16*d6.5*1.0t) Remove the battery cover from the back of the CONSOLE (110). Insert 2 AAA batteries into the battery compartment and reinstall the battery cover.
Page 15
CIC850 STEP SIX HARDWARE FOR STEP PART TYPE DESCRIPTION SAFETY PIN HANDLEBAR POST Flat cross head screw M5*P0.8*8L Spring Washer SW5*1.0t Left dumbbell Holder Right dumbbell Holder 1. Remove the 3 SCREWS (27) with 3 SPRING WASHERS (28) from the seat slider assembly.
Page 16
CIC850 STEP SEVEN HARDWARE FOR STEP 7 PART TYPE DESCRIPTION 135/L 136L/R PEDAL 1. Remove pedals from the components box. 2. Look at the end of the pedal axle and notice each pedal is marked with an R and L on the spindle.
Page 17
CIC850 STEP EIGHT HARDWARE FOR STEP 8 PART TYPE DESCRIPTION SCREW 1. Loosen the SCREW (119) using the Wrench (C). Remove the LEFT CHAIN GUARD B (118). 2. Remove the old battery on the sensor board and insert the new battery. Replace the LEFT CHAIN GUARD B (118) and secure with the SCREW.
Page 18
HANDLE BAR ADJUSTMENT HANDLEBAR HEIGHT ADJUSTMENT 1. The handlebar height is a matter of preference. Start with a handlebar height that is the same as the seat’s height. Adjusting the handlebar higher will give the rider a more upright posi- tion;...
Page 19
RESISTANCE ADJUSTMENT Resistance can be adjusted easily at any time while riding to change the intensity of workout. Turn the knob clockwise (+) to increase resistance. Turn the knob counterclockwise (-) to decrease resistance. EMERGENCY BRAKE In case of emergency or before dismounting the indoor cycle, presses directly DOWN on the resistance knob to stop the flywheel and pedal.
Page 20
ADJUSTING THE PEDAL STRAPS Place your feet in between the aluminum surface of the pedal and the nylon foot strap that wraps around it. To adjust the fit, pull the end of the adjustable strap down to tighten, or pull the strap up to loosen.
Page 21
BELT TENSION ADJUSTMENT The belt tension had been set before shipping. It should not need to be adjusted when first using. However, you may need to make the minor tension adjustment over time. NOTE: Make sure you adjust both sides equally - either tighten or loosen the belt tension so that the flywheel maintains alignment with the frame.
Page 22
The pitch of the saddle can be adjusted to accommodate all users. Loosen the horizontal bolt under the seat to adjust the pitch, then retighten. TRANSPORTATION The indoor cycle is equipped with two transport wheels, which are engaged when the rear of the CIC850 indoor cycle is lifted. Spirit Fitness...
Page 24
WATTS SPEED HEART RATE TIME DISTANCE LOW BATTERY KCAL PAGE/ RECORD SMARTPHONE MODE BUTTON Cadence Bar Graphic: 0 - 199RPM RPM: 0 - 199RPM SPEED: 0 - 99 KM/H PULSE: 30 - 240BPM TIME: Count Down Range 1 - 99 Minutes Count Up Range 00:01 - 99:59 Protocol: BLE4.0 Spirit Fitness...
Page 25
TIME Time is the length of time (min. / sec.) The time will count up or count down during user peddling. When peddling stopped, the time will stop to count up or count down after 3 seconds. CADENCE & SPEED Cadence is the measurement of how fast the cranks are rotating in RPM’s.
Page 26
QUICK START In Power Saving Mode, Press Page Key will bring the CONSOLE to ‘QUICK Start’ active state. Power Saving Mode Quick Start Mode MODE SELECT Press ‘MODE’ key to select the TIME, DIST, KCAL display. Spirit Fitness...
Page 27
RESETTING ALL MEASURED VALUE To clear all the measured values, press and hold the Page key under the TIME Mode for 3 seconds. All the measured value for AVG SPEED, AVG PULSE, TIME, DIST, KCAL will reset to zero. TIMER SETTING The TIMER displays users’...
Page 28
HEART RATE TARGET ZONES Under the DIST or KCAL, hold the Page Key for 3 seconds to go into the settings. Press MODE to go to the heart rate icon then press Page to go to the heart rate target zone window. Press the MODE key to increase the maximum heart rate limit.
Page 29
PERSONAL DATA SETTINGS Accurate personal data will make your calories burned more accurate. Under KCAL or DISTANCE MODE, Hold Page key for 3 seconds to go into the setting, continually press ‘MODE’ key to get to the heart rate windows. 1.
Page 30
CONNECTING TO ZWIFT 1. Log in to Zwift. 4. Select ride to start 2. Select the power source and cadence, the system will prompt you to select machine. 5. Enjoy the ride! Spirit Fitness...
Page 31
CONNECTING TO KINOMAP 5. Select “sensor” at the very bottom 1. Select “More” on the bottom right corner 2. Select equipment management 6. Select machine you wish to connect SPIRIT BIKE 3. Select “+” on the top right corner 7. Successfully paired machine will show up on this page 4.
Page 32
8. Go to browse to select a video you would Press start on the console when kinomap like to play ask you to start pedaling Enjoy the ride! 9. Select Start The console is compatible with most virtual active apps available. Spirit Fitness...
GENERAL MAINTENANCE 1. Wipe down all areas in the sweat path with a damp cloth after each workout. 2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: a. The hardware was not sufficiently tightened during assembly. All bolts that were installed during assembly need to be tightened as much as possible.
TROUBLESHOOTING Cadence number jumps high or low 1. Separate bikes that may be paired to the same No Display on Console console code and are cross-talking, or simply run 1. Press any key to bring the console to ‘Quick Start’ transmitter pair stage again on the bike.
Page 35
INDOOR CYCLE WARRANTY – EFFECTIVE JUNE 04, 2021 Spirit Fitness warrants all its Indoor Cycle parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date.
Page 36
EXCLUSIONS This warranty does not cover the following: 1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
Page 37
SERVICE Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined by the serial number establishes the labor warranty period should service be required.
Up sweat guard(front) (wider) CIC850 PARTS LIST Up sweat guard(back) (wider) DESCRIPTION Handlebar adjustment taut block Frame Pop pin knob(long) Outer circle tube assembly Flat hex screw SUS304 M8*P1.25*25L Front stabilizer assembly Handlebar Post assembly Transportation wheel Down sweat guard(front) (wider) Flat washer SUS304 M8(D19*d8.5*1.0t)
Page 40
C type clip Swing arm assembly Idler pully adjust screw Nylon fixed pulley Idler pully positioning nut Handbrake shaft pin B Flat cross head screw SUS304 M8*P1.25*55L Extension spring Flat washer M8(D16*d8.2*1.0t) Brake Knob Idler pully casing Brake knob up cover Flywheel Fixed sheet casing A Brake knob cover Flywheel Fixed sheet Positioning nut...
Page 41
Brake guard left Flat cross head screw M5*P0.8*14L Flat cross head screw M5*P0.8*25L Round head Phillips tapping screws Flat washer M5(5.3*10*1t) Nylon nut SUS304 M10*P1.5 Flat washer (D16*d10.2*1.0t) Hex screw M6*P1.0*20L Hex nuts (UCP)M6*P1.0*5.0t Hex nuts (UCP)M16*P1.5*7.8t Flat cross head screw M8*P1.25*15L Pedal L/R /136 Screw M5*15L...
