Spirit Commercial CU900ENT Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

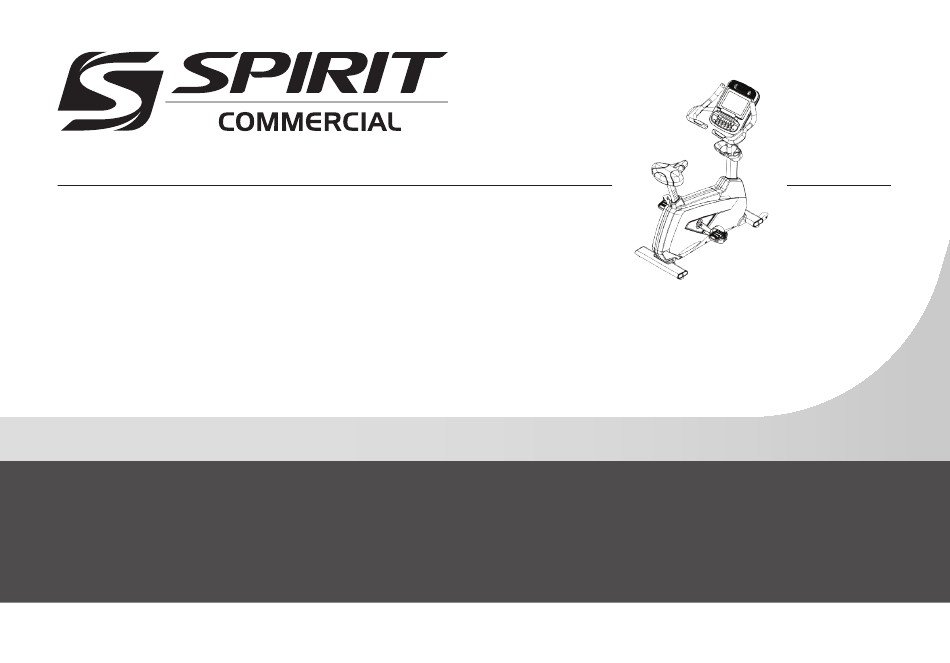

CU900ENT
FITNESS BIKE
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CU900ENT and is the answer not in the manual?

Questions and answers

Related Manuals for Spirit Commercial CU900ENT

Summary of Contents for Spirit Commercial CU900ENT

  • Page 1 CU900ENT FITNESS BIKE OWNER’S MANUAL...
  • Page 2 Spirit Fitness...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INSTRUCTIONS IMPORTANT OPERATION INSTRUCTIONS PRODUCT REGISTRATION CU900ENT ASSEMBLY INSTRUCTIONS CONSOLE OPERATION TOUCH SCREEN OPERATION PROGRAMMING THE CONSOLE GENERAL MAINTENANCE MANUFACTURER’S LIMITED WARRANTY Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing, adjustments, repair or maintenance that is not described in this manual.
  • Page 4 Congratulations on your new fitness bike and welcome to the Spirit Fitness family! Thank you for your purchase of this quality fitness bike from Spirit Fitness. Your new fitness bike was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY Maximum User Weight: 450 lbs • This appliance is not intended for use by persons with • INSTRUCTIONS reduced physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have WARNING been given supervision or instruction concerning use of the appliance by a person responsible for their Before beginning this or any exercise program, •...

  • Page 6: Important Operation Instructions

    IMPORTANT OPERATION RECORD YOUR SERIAL NUMBER Please record the serial number of this fitness product in INSTRUCTIONS the space provided below. The serial number is located at the front of the fitness bike. NEVER operate this fitness bike without reading •...
  • Page 7 CU900ENT PRE-ASSEMBLY UNPACKING TOOLS INCLUDED: 1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over ‰ 13/15mm Wrench ‰ Phillips Screwdriver the unit and unpack. ‰ 5mm Allen Wrench 2. Locate the hardware package. The hardware is separated into four steps. Remove ‰...
  • Page 8 CU900ENT STEP ONE HARDWARE FOR STEP 1 PART TYPE DESCRIPTION BOLT M8XP1.25X20L FLAT WASHER 8.5X18X1.5T M5XP0.8X12L SCREW FLAT WASHER 13X23X2.0T BOLT M10X55L 1. Install REAR STABILIZER (4) to MAIN FRAME (1) with 3 BOLTS (61) and 3 WASHERS (60). 2. Install SEAT (28) to SEAT POST (8) with 4 BOLTS (52) and 4 WASHERS (53).
  • Page 9 CU900ENT STEP TWO HARDWARE FOR STEP 2 PART TYPE DESCRIPTION M8XP1.25X20L BOLT FLAT WASHER 8.5X18X1.5T SCREW M5XP0.8X12L 1. Run the WIRING HARNESS through the CONSOLE MAST (2) and out the top. 2. Install CONSOLE MAST (2) to MAIN FRAME (1) with 6 BOLTS (52) and 6 WASHERS (112).
  • Page 10 CU900ENT STEP THREE HARDWARE FOR STEP 3 PART TYPE DESCRIPTION 8.5x18x1.5T FLAT WASHER BOLT M8xP1.25x65L LOCK WASHER 8x1.5T NYLOCK NUT M8xP1.25x7T SCREW M5xP0.8x6L 1. Install HANDLEBARS (3) to CONSOLE MAST (2) with 4 BOLTS (56), 4 LOCK WASHERS (57), 8 WASHERS (53), and 4 NUTS (58).
  • Page 11 CU900ENT STEP FOUR HARDWARE FOR STEP 4 PART TYPE DESCRIPTION M5xP0.8x12L SCREW SELF-TAPPING SCREW 3.5x12L 1. Attach CUP HOLDER (36) to CONSOLE MAST (2) using 2 SCREWS (54). 2. Attach CONSOLE MAST COVERS (37 & 38) over CONSOLE MAST (2) using 4 SELF-TAPPING SCREWS (55).

  • Page 12: Console Operation

    CU900ENT CONSOLE OPERATION Spirit Fitness...
  • Page 13 www.spiritfitness.com...
  • Page 14 STARTING OPERATION Plug in the power cord located at the front base of the unit. When the power is turned on, the screen will show the initial image and then enter the Home screen. Home screen: Begin operation by touching the icons. Quick operating buttons are convenient for basic bike functions.
  • Page 15 SETTINGS Press the “Home” icon ten consecutive repetitions to enter the Maintenance suite. The two most commonly used menus for setting up the exercise machine are described below; the TV Setup and Maintenance menus. For information on other sections of the Maintenance suite refer to the technical service manual or call Spirit service.
  • Page 16 TV SETUP 1. Begin by selecting either TV or HDMI as the tuner source. 2. Press OSD Menu. The first highlighted item on the menu is Air/Cable and then Cable or Air afterward. Press the OSD Enter to change the selection between Cable and Air Signal source, usually Cable).
  • Page 17 MAINTENANCE MENU The Default language setup allows you to select the main • language that will be shown when the console is turned on. You are able to select the language in the Home menu, but once the user finishes using the machine the console will return to this default language.
  • Page 18 INTERNET MANAGER 1. Remove a link by pressing the icon of the site you want to remove for two seconds. A pop-up window will ask you to confirm the removal. 2. To add a website press the dotted outline box. A pop-up window will ask you to enter the web address and upload a picture for the final button if you wish.
  • Page 19 WIFI/ETHERNET SETUP Press the desired button for setting up Wifi or Ethernet. WIFI SETUP Turn Wifi on and press scan for available Wifi connections. Press desired connection and follow the on-screen directions. ETHERNET SETUP Press Ethernet Configuration to set Select DHCP to search for connection up a new connection.
  • Page 20 BLUETOOTH PAIRING PROCEDURE 1. Press the Blue Tooth (BT) icon on the bottom left of the screen. 2. The BT pop-up screen will appear. Turn on Phone/tablet BT and then press Pair Mode on ENT Menu. 3. The menu with show Entering Pairing mode and the phone will show A2DP as an available device.

  • Page 21: Touch Screen Operation

    TOUCH SCREEN OPERATION LANGUAGE When you press the Language button on Home screen, it enters the menu with all language options. There are 12 languages to choose from. Touch the desired language and the system will return to the Home screen which will now be in the chosen language.
  • Page 22 When the TV button on the Home screen is pressed, it directly enters TV interface. Now you can enjoy TV programs. If you want to enjoy TV while exercising, press Start button at front of the bike to initiate Quick Start or press Programs to select a workout. You can change the TV channels by pressing the channel up/ down buttons on the right side of the screen.
  • Page 23 INTERNET When the Internet button on the Home page is pressed, you are directed to Internet interface. There are 6 basic internet sites to choose from. You may change or add other sites through the Maintenance program (more on this later in the manual in the System Maintenance Suite section).
  • Page 24 FUNCTIONS OF THIS BIKE The Touch-control screen is used for operating all functions of the bike. You can directly touch any button on the screen or through quick button on the bottom to control functions. On the lower portion of the console there is the Start button to begin the workout, Stop button to pause/stop programs, Level button to change workload and a Fan button to turn the fan on or off.
  • Page 25 DISPLAY OPTIONS SIMPLE The default display at the start of a program is a Simple display. The profile window shows the work level graphically. All your workout values are displayed on the bottom of the screen. Some of the data windows have a + sign at the top indication more data available.
  • Page 26 HEART RATE FEATURE The Pulse (Heart Rate) on the screen shows the current value of your heart rate in beats per minute. You must use both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed anytime the computer is receiving a Grip Pulse signal.

  • Page 27: Programming The Console

    PROGRAMMING THE CONSOLE Each of the programs can be customized with your personal information and changed to suit your needs. Some of the information asked for is necessary to ensure the readouts are correct. You will be asked for your Age and Weight. Entering your Age ensures that the Heart Rate bar graph shows the correct number. Your Age is also necessary during the Heart Rate control program to ensure the correct settings are in the program for your Age.
  • Page 28 Message Window. If you start a program without changing the settings, the default, or pre-saved settings will be used. The Spirit Fitness CU900ENT offers ten preset programs: Manual, Hills, Fat Burn, Cardio, Strength, Interval, HR, Custom, Fitness Test, and Constant Power.
  • Page 29 MANUAL The level of resistance is controlled by the user. Increase or decrease levels at any time during your workout. HILL This program follows a triangle or pyramid type of gradual progression from approximately 10% of maximum effort (the level that you chose before starting this program) up to a maximum effort which lasts for 10% of the total workout time, then a gradual regression of resistance back to approximately 10% of maximum effort.
  • Page 30 STRENGTH This program has a gradual progression of resistance up to 100% of maximum effort that is sustained for 25% of the workout duration. This will help build strength and endurance in the lower body and glutes. Cool down follows. INTERVAL This program takes you through high levels of intensity followed by recovery periods of low intensity.
  • Page 31 CUSTOM You will create the desired resistance for each of the 20 segments of the program using the pop-out buttonboard on this screen After the program has started, you still have the ability of changing the resistance levels whenever you desire. 1.
  • Page 32 During The Test: The console must be receiving a steady heart rate for the test to begin. You may use the hand pulse sensors or wear • a heart rate chest strap transmitter. You must maintain a steady 50 rpm pedal speed. If your pedal speed drops below 48 rpm or goes above 52 rpm •...
  • Page 33 What Your Score Means: VO2MAX CHART FOR MALES AND VERY FIT FEMALES VO2MAX CHART FOR FEMALES AND DECONDITIONED MALES www.spiritfitness.com...

  • Page 34: General Maintenance

    CONSTANT POWER A watts program is a controllable constant power whose level adjusts when the speed is changed. Choose either faster pedaling at a lower resistance level or slower pedaling at a higher resistance level. GENERAL MAINTENANCE Wipe down all areas in the sweat path with a damp cloth after each workout. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: 1.
  • Page 35 FITNESS BIKE WARRANTY EFFECTIVE JANUARY 1, 2017 Spirit Fitness warrants this fitness bike for a period of time listed below from the date of sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’...
  • Page 36 EXCLUSIONS This warranty does not cover the following: 1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
  • Page 37 SERVICE Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written warranty gives you specific legal rights.
  • Page 38 NOTES Spirit Fitness...
  • Page 39 NOTES www.spiritfitness.com...
  • Page 40 800.258.4555 Spirit Fitness spiritservice@spiritfitness.com 3000 Nestle Road www.spiritfitness.com Jonesboro, AR 72401 CU900ENT Owners Manual © 2018 All Rights Reserved Revision: 03.05.2018...
