swisherinc.com
OWNER'S
MANUAL
MODEL NO.
STARTING SERIAL # L112-016001
T11544
T11544A
T11544EC
T12544
T12544A
T12544EC
POL11544D
POL11544DEX
IMPORTANT
Read and follow all Safety
Precautions and
Instructions before
operating this equipment.
Rev 12-016
1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
10662

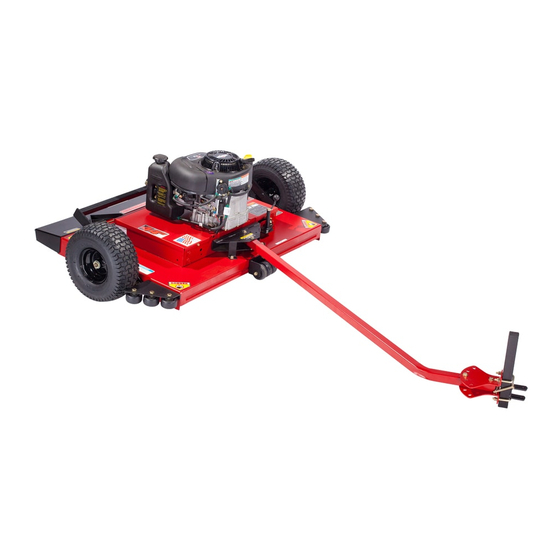

44" FINISH CUT
TRAILMOWER
Assembly
Operation
Service and Adjustment
Repair Parts
FAX 660-747-8650
PHONE 660-747-8183
Made In The
USA
Advertisement
Table of Contents
Related Manuals for Swisher T11544A
Summary of Contents for Swisher T11544A
- Page 1 OWNER’S MANUAL MODEL NO. STARTING SERIAL # L112-016001 T11544 T11544A T11544EC T12544 44” FINISH CUT T12544A T12544EC TRAILMOWER POL11544D POL11544DEX IMPORTANT Assembly Read and follow all Safety Precautions and Operation Instructions before Service and Adjustment operating this equipment. Repair Parts...
-
Page 2: Limited Warranty
Should you have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. This machine can amputate hands, feet, and throw objects. - Page 4 • Turn off the blades when not mowing. Before leaving the machine, turn off the blades and stop the engine. • Watch for traffic when operating near or crossing roadways. • Do not operate the mower if it has been dropped or damaged in any manner or if the mower vibrates excessively.
-
Page 5: Safety Decals
SAFETY DECALS Replace decal immediately if damaged. Order by part number from Swisher OD33-Speed Decal TrailMower Serial # OD55-Triangle Danger Decal (All four deck corners) OD99127-44" Deck White Decal (Not Pictured) OD99127-44" Deck White Decal (Not Pictured) Engine Serial #... - Page 6 OPERATING YOUR TRAILMOWER The operation of any mower can produce foreign objects to be thrown into the eyes, resulting in severe eye damage. Always wear certified safety glasses or wide-vision safety goggles over spectacles before staring any cutting machine and while operating such a machine. The operation of any cutter produces sound waves that are damaging to the human ear.
-
Page 7: Starting The Engine
See engine manufacturer’s recommendations for the type and amount of oil and fuel used. Trail Mowers equipped with an electric start engine will need a battery (sold separately). Swisher recommends using a standard “12N12A” battery. • Make sure the tow vehicle parking brake is set, mower is level, and blades are disengaged. - Page 8 When offsetting the mower do so to the side opposite the discharge of the tow vehicle. • Swisher recommends if the tow vehicle is equipped with a mid-mount mower to overlap the cut approximately 6”. This may vary depending on mowing terrain, obstacles, and/or tow vehicle.
-
Page 9: General Troubleshooting
SUGGESTED MOWING PRACTICES • Operate mower engine at full throttle to assure the best cutting performance and maximum material discharge. • Allow wet grass to dry. Wet grass will clump and collect under the mowing deck. • Mowing should be started with tow vehicle in low gear and increased only as safe mowing conditions permit. -
Page 10: Mower Maintenance
MOWER MAINTENANCE GENERAL RECOMMENDATIONS The warranty on this TrailMower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain unit as instructed in this manual. Some adjustments will need to be made periodically to maintain your unit properly. All adjustments in this manual should be checked at least once each season. -
Page 11: Repair Parts
BLADE CARE AND SERVICE For best results cutter blades must be kept sharp. The blades can be sharpened with a few strokes of a file or grinding wheel. Do not attempt to sharpen blades while they are on the cutter. Disconnect spark plug wire before servicing unit. Important: Replace blades that have been damaged or deeply nicked. - Page 12 Rotate Fan Plates as needed. Fig. 1 FRONT LEFT RIGHT REAR Slide plastic tube snug against Fig. 2 toggle switch. (Fig. 5 FOR DETAILS)
-
Page 13: Wiring Configurations
12 VOLT MODELS BATTERY (12N12A) RECOMMENDED SOLD SEPARATELY SOLENOID 1002004 BATTERY CABLE - POSITIVE BCSR BATTERY CABLE - NEGATIVE EXTRAS VELCRO STRAPS 7033 SWISHER DECAL OD99125 44" DECAL OD99127 INTERLOCK MODULE MOD1 BATTERY BOX 10231 BATTERY PAD BATPAD BATTERY CABLE... - Page 14 SEE DETAILS 34, 35, 36 Fig. 4 SEE DETAIL SINGLE POINT HEIGHT ADJUST ITEM # DESCRIPTION PART # ITEM # DESCRIPTION PART # Roller - Anti-Scalp 1/2 AS003 Cover - Belt 10599* Nut - Jam Lock, 1/2-13 2-Way NB121 Base - Motor 4517* Bolt - Serr Flange, 5/16-18 X 3/4 NB596...
-
Page 15: Engine Set-Up
Fig. 5 Fig. 6 ENGINE SET-UP BLADE SET-UP ITEM # DESCRIPTION PART # ITEM # DESCRIPTION PART # Engine - 11.5HP 14468 Nut - Jam 3/4-16 NB175 Engine - 12.5HP 14469 Washer - Belleville .760 X 1.5 AS155 Module - Engine MOD1* Pulley - Blade 4 1/2"... - Page 16 Fig. 7 Fig. 8 STANDARD ENGAGE HEIGHT ADJUSTMENT ITEM # DESCRIPTION PART # ITEM # DESCRIPTION PART # QTY Bolt - 1/2-13 X 5 NB155 Rod - Crank ES214 Bolt - Spade, 5/16-18 X 10.5 NB260 Nut - Push, 5/16 NB117 Nut - Nyloc 5/16-18 NB181...
- Page 17 ITEM # DESCRIPTION PART # Nut - 2 Way Lock 3/8-16 NB280 Washer - 3/8 NB272 Pulley - Idler B527 Washer - 5/16 NB556 Bolt - Serr Flange 5/16-18 X1 1/4 NB253 Spring - Idler Tension 4422 Nut - Serr Flange 5/16-18 NB170 Brake - Link 4532...
- Page 18 RIGHT ASSEMBLY PART # 10590 Fig. 11 Item # Description Part # BRAKE ARM CONFIGURATIONS Arm - Brake 10589TK Eyebolt - 1/4-20 X 3/4 V139EB Nut - Nylock 1/4-20 NB180 Nut - Serr Flange 1/4-20 NB524 Bolt - HTC 1/4-20 X 1 1/2 NB162 Nut - Kep 10-24 NB172...
-
Page 19: Hitch Assembly
Fig. 12 HITCH ASSEMBLY ITEM # DESCRIPTION PART # Bolt - U, Sq 3/8-16 x 1 5/8" x 2 3/4" 9855 Weldment - "L" Hitch 18353TK Pin - Safety Hitch 3/8 X 2 1/2 Plug - L Hitch Nut - Nyloc 3/8-16 NB182 Tube - Hitch 18347*... - Page 20 Notes: ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________...
- Page 21 Notes: ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________...
- Page 22 Notes: ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________...
-
Page 24: How To Order Repair Parts
The serial number for the engine will be found on the top of the blower fan housing. All TrailMower parts listed herein may be ordered directly T11544 from Swisher, your nearest Swisher dealer, or from our T11544A website. www.swisherinc.com T11544EC...
