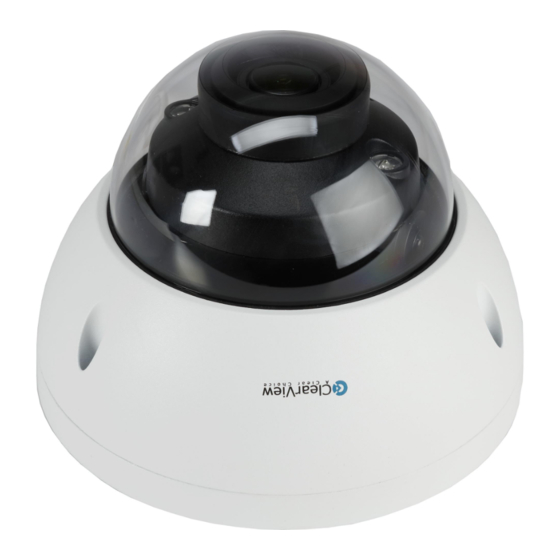

ClearView IPD-93A Operation Manual
  1. Manuals
  2. Brands
  3. ClearView Manuals
  4. Security Camera
  5. IPD-93A
  6. Operation manual

ClearView IPD-93A Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network Camera Web3.0 Operation Manual
Version 1.1.0 H
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPD-93A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearView IPD-93A

Summary of Contents for ClearView IPD-93A

  • Page 1 Network Camera Web3.0 Operation Manual Version 1.1.0 H...

  • Page 2: Table Of Contents

    Table of Contents Network Config ..........................1 Network Connection ..................... 1 Log in ..........................1 Live ..............................6 Encode Setup ........................ 6 System Menu ......................... 7 Video Window Function Option .................. 7 Video Window Setup ....................8 2.4.1 Image Adjustment ..................... 9 2.4.2 Original Size ......................
  • Page 3 5.1.1 Conditions ....................... 29 5.1.2 Zoom and Focus ......................35 5.1.2 Video ........................36 5.1.3 Audio ........................45 Network ......................... 47 5.2.1 TCP/IP ........................47 5.2.2 Connection ......................48 5.2.3 PPPoE ........................51 5.2.4 DDNS ........................52 5.2.5 IP filter ........................53 5.2.6 SMTP （e-mail) .....................
  • Page 4 5.5.6 Auto Maintenance ....................102 5.5.7 Upgrade ........................ 103 Information ......................... 103 5.6.1 Version ........................103 5.6.2 Log ........................104 5.6.3 Online User ......................104 Alarm ............................106 Log out ............................108 Important The following functions are for reference only. Some series products may not support all the functions listed below.

  • Page 5: Network Config

    1 Network Config 1.1 Network Connection Network camera and PC connection mainly has two ways, see Figure 1- and Figure 1-2. Figure 1- 1 Figure 1-2 Before you access network camera via the Internet, you need to have its IP address. User can use quick config tool to search IP of the network camera.
  • Page 6 After successful connection, the login interface is shown as in Figure 1-3; input your user name and password. Default factory username is admin and password is admin. Figure 1-3 The system will display “Modify Password” prompt box for your first login, users need to modify the password and save it properly.
  • Page 7 Figure 1-5 Click on “Please click here to download and install the plug-in”. The system pops up warning information to ask you whether run or save this plug-in. See Figure 1-6. Figure 1-6...
  • Page 8 You must either run or save the file to local and install it. Follow the following steps. Click on run, you will see Figure 1-7and Figure 1-8. Figure 1-7...
  • Page 9 Figure 1-8 When plug-in installation completes, the installation page closes automatically. The web-end will refresh automatically, and then you can view video captured by the camera. Figure 1-9...

  • Page 10: Live

    2 Live After you logged in, you can see the live monitor window. See Figure 2-1. Figure 2-1 There are four sections:  Section 1: Encode setup bar  Section 2: System menu  Section 3: Window function option bar ...

  • Page 11: System Menu

    Parameter Function Streaming media protocol connection, under main stream config, Main stream monitor video or not. Generally for storage and monitor. Streaming media protocol connection, under sub stream 1 Sub (Extra) config, monitor video or not. When network bandwidth is stream 1 insufficient, it substitutes main stream for monitoring.

  • Page 12: Video Window Setup

     When the video is in the original status, click it you can Zoom in select any zone to zoom in. In the non-original status, you can drag the zoom-in zone in specified range. Right click mouse to restore previous status. ...

  • Page 13: Image Adjustment

    2.4.1 Image Adjustment See Figure 2-6 for image adjustment. Figure 2-6 Click this button to display/hide image control interface. Click it to open picture setup interface. This interface is on the top right pane. Please refer to the following sheet for detailed information. Parameter Function Video...

  • Page 14: Full Screen

    2.4.3 Full Screen Click it to go to full-screen mode. Double click the mouse or click the Esc button to exit the full screen. 2.4.4 Width and Height Ratio Click it to restore original ratio or suitable window. 2.4.5 Fluency Adjustment There are three levels of fluency for you to select (real-time, normal, fluent).
  • Page 15 Parameter Function Adjust the focal length of the lens by clicking or long pressing “+”“-”buttons. Zoom Step length is used to adjust the length of one step with one click. Adjust the sharpness of the lens by clicking or long pressing“+”、“-” buttons. Focus Step length is used to adjust the length of one step with one click.
  • Page 16 parameter Note Installation Mode Three modes which are ceiling mount, wall mount and ground mount. It represents the display mode of the current image (default supports original image mode), the display modes may be different according to different installation modes. It is shown as follows: Ceiling: 1P+1、2P、1+2、1+3、1+4、1P+6、1+8。...
  • Page 17 parameter Note Original image + 8 independent sub images, both the sub image and the subbox in the original image support zoom and movement. The original image also supports changing starting point by rotation From left right 180° expanded rectangular panorama, which supports up and down movement and changes vertical angle of view.

  • Page 18: Ptz Control

    3 PTZ Control Here you can view direction keys, speed, zoom, focus, iris, preset, tour, pan, scan, pattern, aux on, off and PTZ setup button. See Figure Note: Before PTZ operation, please make sure you have properly set PTZ protocol. (Please refer to Ch 5.5.3). Currently only ICIP Pxxx series product can support PTZ function.

  • Page 19: Scan

    Figure 3-2 PTZ setting interface is shown as in Figure 3-3. Here you can set scan, preset, tour, pattern, assistant function and light and wiper plus view coordinate. Figure 3-3 3.1 Scan Scan interface is shown in Figure 3-4.

  • Page 20: Preset

    Figure 3-4 Steps to scan are: Step 1. Click on Set button, display icon. Step 2. Move via direction key to select left, click on Set Left to set left border of camera Step 3. Move via direction key to select right, click on Set Right to set right border of camera. Step 4.

  • Page 21: Tour

    3.3 Tour Tour interface is shown in Figure 3-6. Figure 3-6 Steps to tour are: Step 1. In tour box, input tour path value. Step 2. Click on Add. Range of tour relates to PTZ protocol. Step 3. In preset box, input preset value. Step 4.

  • Page 22: Assistant

    3.5 Assistant Assistant interface is shown in Figure 3-8. Figure 3-8 Steps to assistant are: Step 1. In assistant box input assistant value. Step 2. Click on Aux On to turn on aux function. Click on Aux off to turn off aux function. 3.6 Light Wiper Light wiper interface is shown in Figure 3-9.

  • Page 23: Playback

    4 Playback Web client playback supports video playback and picture playback. Note: Before playback, user shall set storage management as in Ch 5.4. 4.1 Playback The playback interface is shown as in Figure 4- 1. Figure 4- 1 There are four sections: ...

  • Page 24: Function Of Play

    4.1.1 Function of Play The function of play is shown as in Figure 4- 2. Figure 4- 2 Parameter Function When you see this button, it means pause or not played record. Click on this ① Play button, switch to normal play status. ②...
  • Page 25 Figure 4-3 Parameter Function Select “dav”, as video playback.  File Type Select “jpg” as picture playback.  Data Source Default is SD card. Step 1. Click on data in blue, time axis displays record file progress bar in color. While, green represents normal record, yellow represents motion detect record, red represents alarm record, and blue represents manual record.
  • Page 26 Figure 4-5 Parameter Function It means records within searched start time and end time on the date. Search Record Download There are two formats: dav, mp4. Format...

  • Page 27: Playback Cut

    Parameter Function Record type is “dav”, click on download button to download file to local.  Record type is “mp4”, click on download button and download file to path in  Ch 5.1.2.5. Download Note: System does not support download and playback of MP4 file. Click on back button to go to calendar interface.

  • Page 28: Assistant Function

    Figure 4- 8 Parameter Function Click on it, means video in past 24 hours. 24 hours Click on it, means video in past 2 hours. 2 hours Click on it, means video in past 1 hour. 1 hour Click on it, means video in past 30 min. 30 min 4.1.6 Assistant Function Video playback assistant function is shown in Figure 4- 9.

  • Page 29: Play

    See Figure 4-10. Figure 4-10 4.2.1 Play Figure 4-11 Default icon is and it means pause or not played picture. Click on play button to switch to normal play status. Icon become Click on it to pause. 4.2.2 Playback File...
  • Page 30 Figure 4-12 Step 1. Click on file list , select snapshot file of the date. Step 2. Double click on file in list, to play this snapshot. Parameter Function It means all snapshot files within the start time and end time of selected date. Search...

  • Page 31: Snapshot Type

    Parameter Function Click on download button to download snapshot file to local. Download Click on back button to return to calendar interface and re-select time. Back Figure 4-13 4.2.3 Snapshot Type...
  • Page 32 After checking snapshot file type, in file list only display file of selected type. Users can also select the snapshot type to be displayed via the dropdown box above the file list. See Figure 4-14. Figure 4-14...

  • Page 33: Setup

    5 Setup Web client setup support camera, network, time, storage, system and system info view. 5.1 Camera 5.1.1 Conditions Here you can view device property information. Slight differences may be found due to different network camera series. The setups become valid immediately after you set. See Figure 5-1. Note: Only motorized zoom lens device has zoom and focus function.
  • Page 34 Contrast It is to adjust monitor window contrast. The larger the number, the higher the contrast is. You can use this function when the whole video bright is OK but the contrast is not proper. Please note the video may become hazy if the value is too low. If this value is too high, the dark section may lack brightness while the bright section may over exposure.
  • Page 35 Note: Exposure Only when anti-flicker is outdoor, exposure mode is available.  Auto:  The video whole brightness can automatically change within the proper exposure range according to the different environments. The higher the gain max value is, the lower the noise is. ...
  • Page 36 It is to set the white balance mode. It has effect on the general White Balance hue of the video. This function is on by default. You can select the different scene mode such as auto, sunny, cloudy, home, office, night, disable and etc to adjust the video to the best quality.
  • Page 37 BLC Mode BLC is used for backlight situation.   For backlight scene, SSA can automatically lower the brightness of high brightness area and increase the brightness of low brightness area according to the environmental brightness, and try to make it clear to see what is in the picture.
  • Page 38 Defog Mode The image quality will be lower when the device is exposed to the environment with fog and haze, the image can operate auto de-warp. It can also select different intensity manually according to the fog density to adjust the image definition. The default is off.

  • Page 39: Zoom And Focus

    Figure 5-4 Figure 5- If you select schedule, you can decide detained day time interval and night time interval as in . You can set 0:00 ~ 12:00 as day, and 12:00 ~ 24:00 as night. Figure 5-5 Important  The setup becomes immediately effective after you click on OK.

  • Page 40: Video

    Figure 5- 6 Parameter Function Adjust the focal length of the lens by clicking or long press “+” or “-“. Speed can be used to adjust the length of one step by single Zoom click. Note: After adjusting zoom, device will focus automatically.
  • Page 41 The video bit stream interface is shown as below. See Figure 5-7. Figure 5-7 Please refer to the following sheet for detailed information. Parameter Function Please check the box here to enable extra stream Sub Stream Enable function. This function is enabled by default. ACF means using different fps to record.
  • Page 42 Parameter Function Resolution There are multiple resolutions. You can select from the dropdown list. For each resolution, the recommended bit stream value is different. Note: When video is under rotating status, you cannot set resolution higher than 1080P (excluding 1080P). Frame Rate (FPS) PAL: 1～25f/s，1-50f/s NTSC: 1～30f/s or 1~60f/s.
  • Page 43 Figure 5- 8 Please refer to the following sheet for detailed information. Parameter Function There are two modes: general (schedule) and Event (activation). Snapshot type Image size It is the same with the resolution of snapshot (main stream or sub stream).
  • Page 44 Figure 5- 10 Figure 5-11...
  • Page 45 Figure 5-12 Figure 5-14...
  • Page 46 Figure 5-15 Please refer to the following sheet for detailed information. Parameter Function  Here you can privacy mask the specified video in the Privacy mask monitor video.  System max supports 4 privacy mask zones.  You can enable this function so that system overlays time Time Title information in video window.
  • Page 47  Check “Enable” to display the counting statistics data in Counting the video monitoring window; check “Disable” not to display.  There are enter number and leave number for statistics type and left align and right align for OSD info. ...
  • Page 48 Figure 5-17 Parameters Note Check “Enable”, then it will display the ROI in the video monitoring window; Enable Check “Disable”, then it won’t display.  Set the image quality of ROI, ranging from 1～6, default is 6. Note: Image Quality For fisheye device, it ranges from 1~6 (best), default is 6 (best) Able to set area block, max 4 areas.

  • Page 49: Audio

    Admin is locally logged in PC account. Please click the Save button to save current setup. Figure 5-18 5.1.3 Audio Please note some series devices do not support audio function. 5.1.3.1 Audio The audio interface is shown as below. See Figure 5-19. Figure 5-19 Please refer to the following sheet for detailed information.
  • Page 50 Microphone Adjust microphone volume from 0～100. Volume Note: Supported by some devices. Speaker Volume Adjust speaker volume from 0～100. Note: Supported by some devices. Audio enable Check Enable: the stream is A/V composite stream, otherwise it contains video only. Audio is available only when this function is enabled. Encode mode The encode mode of the main stream and extra stream include G.711A, G.711Mu and ACC.

  • Page 51: Network

    The way to download the web alarm playback audio file into local is as follows: in the “choice” column on the left, Step 1 Use the left mouse button to click the hollow circle ，which means effective choice of alarm audio. and shows ，select “save target as”...

  • Page 52: Connection

    Mode There are two modes: static mode and the DHCP mode. Select DHCP mode, it auto searches IP, and you cannot set IP/subnet mask/gateway. Select static mode, you must manually set IP/subnet mask/gateway. Mac Address It is to display hose Mac address. IP Version It is to select IP version.
  • Page 53 Figure 5-23 Please refer to the following sheet for detailed information. Parameter Function It is the max Web connection for the same device. The value ranges from 1 connection to 20. Default connection amount is 10. TCP port Port range is 1025~65534. The default value is 37777. You can input the actual port number if necessary.
  • Page 54  RTSP port The default value is 554. Please leave blank if use default. User uses QuickTime or VLC can play the following formats. BlackBerry can play too.  Real-time monitoring URL format, please require real-time RTSP media server, require channel no., bit stream type in URL. You may need username and password.

  • Page 55: Pppoe

    Figure 5-24 5.2.3 PPPoE The PPPoE interface is shown as in Figure 5-25. Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated. Device connects to the internet via PPPoE after reboot.

  • Page 56: Ddns

    Figure 5- 25 5.2.4 DDNS The DDNS interface is shown as in Figure 5-26. The DDNS is to set to connect the various servers so that you can access the system via the server. Please go to the corresponding service website to apply a domain name and then access the system via the domain.

  • Page 57: Ip Filter

    Parameter Function Username The user name you input to log in the server. Password The password you input to log in the server The refresh period of the connection between the device IP and Refresh Period the server, default is 10 minutes. The ICDDNS interface is shown as in Figure 5-27.

  • Page 58: Smtp （E-Mail)

    You can add IP address or IP address section. If you do not check the box here, it means there is on access limit. Here you can add IP address and MAC address. You must add these addresses before enabling the trusted sites.
  • Page 59 Figure 5-29 Please refer to the following sheet for detailed information. Parameter Function Input server address and then enable this function. SMTP Server Port Default value is 25. You can modify it if necessary. Anonymity For the server supports the anonymity function. You can auto login anonymously.

  • Page 60: Upnp

    Parameter Function The send interval ranges from 0 to 3600 seconds. 0 means Interval there is no interval. Please note system will not send out the email immediately when the alarm occurs. When the alarm, motion detection or the abnormity event activates the email, system sends out the email according to the interval you specified here.

  • Page 61: Snmp

    Figure 5-30 5.2.8 SNMP The SNMP interface is shown as in Figure 5-31 and Figure 5-32. The SNMP allows the communication between the network management work station software and the proxy of the managed device. Please install the software such as MG MibBrowser 8.0c software or establish the SNMP service before you use this function.
  • Page 62 Please refer to the following sheet for detailed information. Parameter Function  SNMP Version Check SNMP v1, device only process v1 info.  Check SNMP v2, device only process v2 info.  Check SNMP v3, can set username, password and encryption method.
  • Page 63 Figure 5-32 Check SNMP v3 version and SNMP port, read community, write community, Trap address, Trap port are same with SNMP v1 and SNMP v2 versions. Only when SNMP version is SNMP v3, users need to configure parameter in chart. Parameter Function SNMP Version...

  • Page 64: Bonjour

    5.2.9 Bonjour The Bonjour interface is shown as below. See Figure 5-33. Bonjour is based on the multicast DNS service from the Apple. The Bonjour device can automatically broadcast its service information and listen to the service information from other device. You can use the browse of the Bonjour service in the same LAN to search the network camera device and then access if you do not know the network camera information such as IP address.
  • Page 65 Figure 5-34 Please refer to the following sheet for detailed information. Parameter Function Enable Select to enable multicast function. Main stream and sub stream cannot be used at the same time. Multicast address Main/sub stream multicast default address is 224.1.2.4 and its range is 224.0.0.0～239.255.255.255.
  • Page 66 Figure 5-35 Parameter Function Wireless connection The default is auto and it supports dial-up, sms and type incoming call. Enable Check to enable 3G module. Authentication mode The authentication mode is CHAP for Telecom common card, both Mobile and Unicom have no authentication mode; for designed network card, it is different according to different cards.

  • Page 67: Wifi

    Time range You can set dial-up interval. You also can dial if you enable dial-up/sms. The dial-up/sms and dial-up interval is related. IP address It displays received IP when 3G dial-up succeeds. 5.2.11.2 Mobile Setting Figure 5- 36 Please refer to the following sheet for detailed information. Parameter Function SMS sending...
  • Page 68 Some series devices don’t support WIFI and WPS function. Only cube cameras support WPS function. 5.2.12.1 WIFI WIFI work information column can show the name, status, IP information of the Current Hot Spot. Usually please “refresh” WIFI work information after reconnection to ensure the real-time display of the work status, because it often takes some time to connect WIFI Hot Spot, which depends on the network signal strength.
  • Page 69 Figure 5- 38 Click “add a wireless network ID” when need to add a wireless network manually，pop out Step 3 an interface in the figure below, and enter network ID in the dialog box. Figure 5- 39 Step 4 Click “wireless network ID search”，if can search the wireless network hot spot, it means the network ID is available.
  • Page 70 · Please click “connect” if it is unnecessary to enter the password. 5.2.12.2 WPS Figure 5- 40 PIN Number and SSID are both acquired from the router, please “refresh” the work information of WIFI to ensure the real-time display of work state after filling in correctly. 5.2.13 802.1x 802.1x (port based network access control protocol) supports manual selection of authentication method to control if device connected to LAN can join the LAN.

  • Page 71: Qos

    Figure 5-41 Please refer to the following sheet for detailed information. Parameter Function Authentication PEAP (protected EAP protocol). Username It needs the username to login, which is authenticated by the server. Password Please input password here. 5.2.14 QoS The QoS interface is shown as below. See Figure 5-42. Qos (Quality of Service) is network security mechanism.

  • Page 72: Event

    Figure 5-42 Please refer to the following sheet for detailed information. Parameter Function Real-time The value ranges from 0 to 63. The router or the switcher can monitor provide different service for various data packets. Command The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets.
  • Page 73 Figure 5-43 Figure 5- 44...
  • Page 74 Figure 5- 45 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. Enable video You need to check the box to enable video mask detection alarm. mask detection Enable defocus You need to check the box to enable defocus detection alarm.
  • Page 75 Parameter Function Here you can set motion detection region and its sensitivity and area. (The Area higher the sensitivity is, the easier to trigger motion detect; the smaller the area, the easier to trigger motion detect.) The default covers all regions. You must click on save before enabling your setup.
  • Page 76 Figure 5-46 Different colors represent different areas. Each area can set different detection zones. Detection zone can be irregular and discontinuous. Please refer to the following sheet for detailed information. Parameter Function Default area name includes Region1, Region2, Region3, Name Region4 and custom.

  • Page 77: Audio Detect

    Delete Delete selected area. 5.3.2 Audio Detect Figure 5-47 Parameter Note 1~100 level adjustable, only when the volume change of input sound surpasses the volume of continuous environment, then it can be judged as audio abnormity when Sensitivity the value is smaller. Users need to adjust according to the actual environmental test.

  • Page 78: Ivs Analyse

    5.3.3 IVS Analyse Figure 5-48 Figure 5-49...
  • Page 79 Figure 5-50 Figure 5-51 Parameter Note Can detect if there is any object crosses the set warning line in the video, Tripwire trigger alarm according to the judgment Can detect if there is any object intrudes the set forbidden zone, trigger alarm Intrusion according to the judgment...

  • Page 80: Face Detect

    Parameter Note Can detect if there is any object abandoned/missing in the set forbidden zone Abandoned/Missing in the video, trigger alarm according to the judgment Can be used to detect if there is any change to the video scene, trigger alarm Scene Change according to the judgment.

  • Page 81: People Counting

    Parameter Note Enable Check, it will trigger alarm when detecting face. Enable Face Check, it enables face enhancement effect. Enhancement Note: Please refer to Chapter 5.3.1 Video Detect for other parameters. 5.3.5 People Counting 5.3.5.1 Entrance / Exit Figure 5-53 Parameter Note Enable...

  • Page 82: Heat Map

    Note: Please refer to Chapter 5.3.1 Video Detect for other parameters. 5.3.5.2 Report Make flow statistics display as the form of report. Figure 5-54 Parameter Note Can select day report, month report and year report; also can select bar chart or line Report Type chart to display the report.

  • Page 83: Alarm

    Figure 5-55 Figure 5-56 Statistics of the monitoring view heat, which can form report. The color range is from blue to red, blue means the min heat value; red means the max heat value. Original data of the heat map will be removed if mirror, angle of view changes.
  • Page 84 Please note some series products do not support this function. 5.3.2.1 PIR alarm The alarm activation interface PIR alarm is shown as in figure 5-57. Figure 5-57 Please refer to the following sheet for detailed information. Parameter Function Enable After enabled, relay activation will work. Check it and enable the PIR alarm.
  • Page 85 Parameter Function Record System auto activates motion detection channel to record once alarm occurs (working with motion detection function). Record Delay System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s. Enable alarm activation function. You need to select alarm output Relay out port so that system can activate corresponding alarm device when alarm occurs.
  • Page 86 Parameter Function Two types of sensor which are normally open (NO) and normally closed (NC), Sensor Type switch from normally open to normally closed, open the alarm. Switch from normally closed to normally open, shut the alarm. Check it and set PTZ movement when alarm occurs. Such as go to preset x when there is an alarm.

  • Page 87: Abnormity

    Figure 5-60 parameter Function Enable Check it and enable audio detection. It will trigger alarm and set up a series of linkage when volume exceeds the set Threshold threshold. 5.3.8 Abnormity Abnormity includes No SD Card, Capacity Warning, SD Card Error, Disconnection, IP Conflict and Unauthorized Access.
  • Page 88 Device without SD card function does not have the above three statuses. See Figure 5-61 to Figure 5- Figure 5-61 Figure 5-62...
  • Page 89 Figure 5-63 Please refer to the following sheet for detailed information. Parameter Function Check to alarm when SD card is abnormal. Enable Check to enable relay-out alarm. Relay-out Relay out The alarm output can delay for the specified time after alarm stops. The delay value ranges from 10s to 300s.

  • Page 90: Storage Management

    Figure 5-64 When login password keep been wrong for a few times, unauthorized access alarm occurs. This operation is similar to SD card error. Allow login error times as when it exceeds this limit, user account will be locked. Figure 5-65 5.4 Storage Management 5.4.1 Schedule...
  • Page 91 Figure 5-66 Step 2. From Monday to Sunday select record time, click on setup on the right, see Figure 5-67.  Set period according to actual need. There are six periods available each day.  By checking or unchecking, you can add or delete three types of record schedule: General, Motion, and Alarm.
  • Page 92 Figure 5-68 Step 4. In record schedule interface, click on OK. System prompts it is successfully saved. 5.4.1.2 Snapshot Schedule Snapshot setup as: Step 1. Click on Snapshot Schedule tab, see Figure 5-69. Figure 5-69 Step 2. From Monday to Sunday select snapshot time, click on setup on the right. See Figure 5-...
  • Page 93  Set snapshot period according to actual need. There are six periods available each day.  By checking or unchecking, user can add or delete three types of snapshot schedule: General, Motion and Alarm. Note: Period setup can be done by dragging in snapshot schedule interface while not releasing left mouse.

  • Page 94: Destination

    Figure 5-71 Step 5. In snapshot interface, click on OK. System prompts it is successfully saved. 5.4.1.3 Holiday Schedule Holiday schedule can set specific date as holiday. Step 1. Click on Holiday Schedule tab, see Figure 5-72. Figure 5-72 Step 2. Select date to set as holiday. The selected date will be highlighted in yellow. Step 3.
  • Page 95 Figure 5-73 Please refer to the following sheet for detailed information. Parameter Function Event It includes: scheduled, motion detect and alarm. Type Local It saved in the SD card. It saved in the FTP server. It saved in NAS disk. 5.4.2.2 Local The local interface is shown as in Figure 5- 74.

  • Page 96: Record Control

    You need to check the box to enable the FTP function. When network disconnect occurred or there is malfunction. Emergency storage can save the record/snapshot picture to the local SD card. Figure 5- 75 5.4.2.4 NAS You need to check the box to enable the NAS function. Select NAS storage, fill in NAS server address and corresponding store path, then you can store video file or pictorial information in the NAS server.

  • Page 97: System

    The record control interface is shown as in Figure 5- 77. Figure 5- 77 Please refer to the following sheet for detailed information. Parameter Function Here you can select file size within 1min~120min. Default setup is 8 Pack minutes. Duration Pre-record Please input pre-record value here.
  • Page 98 Figure 5- 78 Please refer to the following sheet for detailed information. Parameter Function It is to set device name. Device Note: Different devices have different names. Name Video This is to display video standard such as PAL. Standard Language You can select the language from the dropdown list.

  • Page 99: Account

    Figure 5-79 Please refer to the following sheet for detailed information. Parameter Function Here you can select date format from the dropdown list. Date format There are two options: 24-H and 12-H. Time Format The time zone of the device. Time zone It is to set system time.
  • Page 100  Password can be 0~32 characters in number and letter only. User can modify other user’s password.  The user amount is 18 and the group amount is 8 when the device is shipped out of the factory. The factory default setup includes two levels: user and admin. You can set the corresponding group and then set the rights for the respective user in the specified groups.
  • Page 101 Figure 5- 81 Modify user It is to modify the user property, belonging group, password and rights. See Figure 5-82. Modify password It is to modify the user password. You need to input the old password and then input the new password twice to confirm the new setup.
  • Page 102 Figure 5-82 5.5.2.2 Group The group management interface can add/remove group, modify group password and etc. The interface is shown as in Figure 5- 83. Figure 5- 83 Add group: It is to add group and set its corresponding rights. See Figure 5- 84.

  • Page 103: Ptz

    Please input the group name and then check the box to select the corresponding rights. It includes: preview, playback, record control, PTZ control and etc. Figure 5- 84 Modify group Click the modify group button, you can see an interface is shown as in Figure 5-85. Here you can modify group information such as remarks and rights.

  • Page 104: Default

    The PTZ interface is shown as in Figure 5-86. Figure 5-86 Please refer to the following sheet for detailed information. Parameter Function Select the corresponding dome protocol. Protocol Set corresponding dome address. Default value is 1. Address Please note your setup here shall comply with your dome address; otherwise you cannot control the speed dome.

  • Page 105: Import/Export

    Figure 5- 87 5.5.5 Import/Export The interface is shown as in Figure 5- 88. Figure 5-88 Please refer to the following sheet for detailed information. Parameter Function It is to import the local setup files to the system. Import It is to export the corresponding system setup to your local PC. Export 5.5.6 Remote control Note:...

  • Page 106: Auto Maintenance

    Figure 5-89 Parameter Function Learn Bind remote control or wireless alarm with equipment. Clear Unbind remote control with equipment. Start arm after the time you choose, disarm comes into effect immediately. Note: Arm/Disarm With disarm status, all the following alarms won’t trigger: motion detect alarm, masking alarm, local alarm, PIR alarm, wireless alarm.

  • Page 107: Upgrade

    Parameter Function Auto Reboot Check it and set auto reboot time. Auto Delete Old Check it and set period within 1~31 days. Files 5.5.7 Upgrade The upgrade interface is shown as in Figure 5-91. Please select the upgrade file (file extension is “.bin”) and then click the update button to begin firmware update.

  • Page 108: Log

    Figure 5-92 5.6.2 Log Here you can view system log. See Figure 5-93. Figure 5-93 Please refer to the following sheet for log parameter information. Parameter Function Set the start time of the requested log. (The earliest time is 2000/1/1) Start time Set the end time of the requested log.
  • Page 109 The online user interface is shown as in Figure 5-94. Here you can view current online user, group name, IP address and login time. Figure 5-94...

  • Page 110: Alarm

    6 Alarm Please note some series product does not support this function. Figure 6-1 Click alarm function, you can see an interface is shown as in Here you can set device alarm type and alarm sound setup. Figure 6-1 Please refer to the following sheet for detailed information. Type Parameter Function...
  • Page 111 Type Parameter Function Alarm Audio When alarm occurs, system auto generates alarm audio audio. The audio supports customized setup. Path Here you can specify alarm sound file.

  • Page 112: Log Out

    7 Log out Click log out button, system goes back to log in interface. See Figure 7- 1. Figure 7- 1 Note:  This manual is for reference only. Slight difference may be found in user interface.  All the designs and software here are subject to change without prior written notice. ...
