ClearView PTZ Series Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTZ Series and is the answer not in the manual?

Questions and answers

Related Manuals for ClearView PTZ Series

Summary of Contents for ClearView PTZ Series

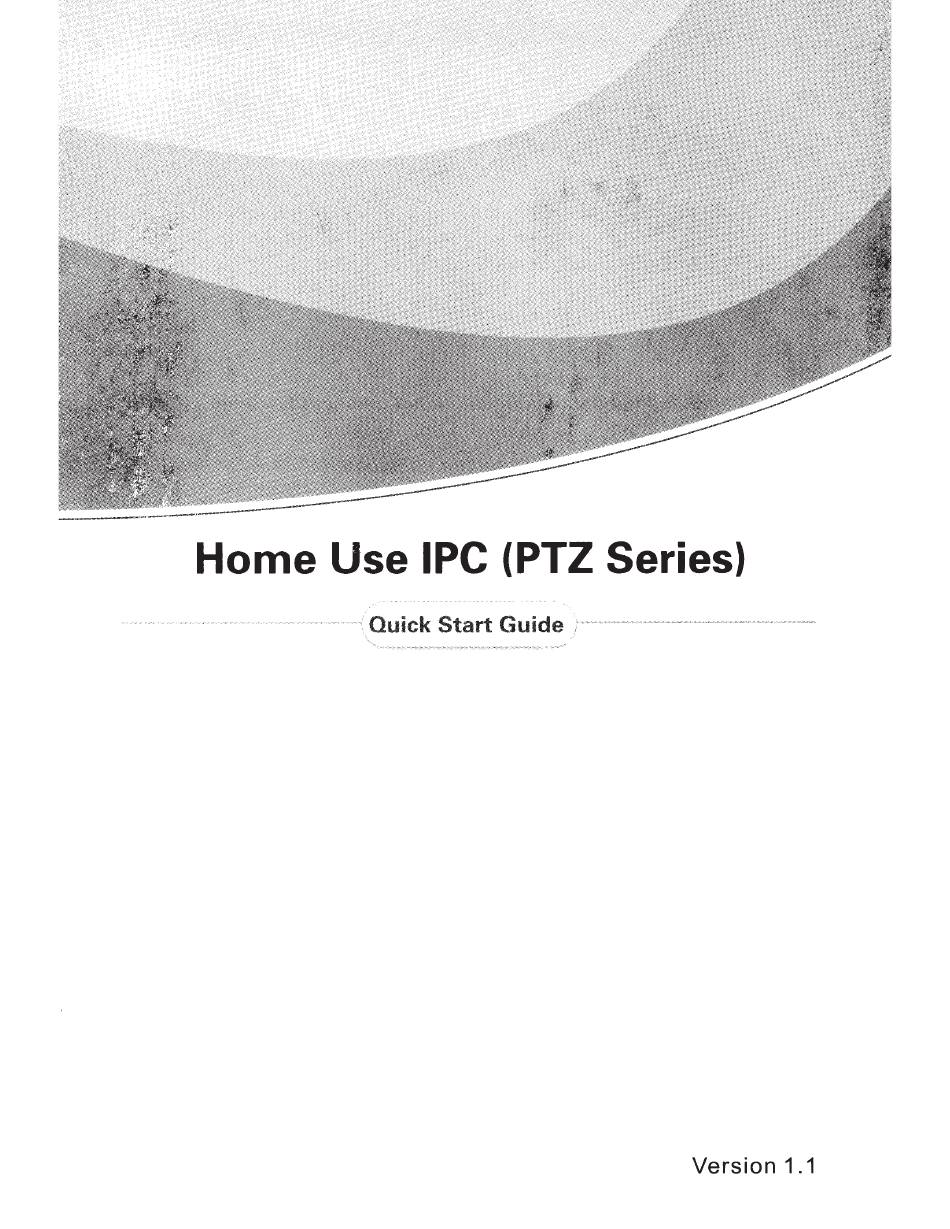

  • Page 19 Home Use IP Camera (PTZ Series) Quick Start Guide Version 1.2...
  • Page 20 Table of Contents ......................1 ......................1 ......................2 ................3 ......................4 ......................6 .....................6 ...................6 ....................7 ....................9 ......................9 ......................9 ........................12 ..................12 ................12 .............15...
  • Page 21 Welcome Thank you for purchasing our home use IP camera! This quick start guide is designed to be a reference tool for your system. Please keep this start guide well for future reference. Please open the accessory bag to check the items one by one in accordance with the list below. Contact your local retailer ASAP if something is missing or damaged in the bag.
  • Page 22 We are not liable for any problems caused by unauthorized modifications or attempted repair.
  • Page 23 You can refer to the following figure for IP camera front panel information. See Figure 1-1 Figure 1-1 Please refer to the following sheet for detailed information. Port Port Name Function Power indication light. When system is recording, the green light flashes. The interval is 0.5s. When system is running: Port 1 POWER...
  • Page 24 Port Port Name Function remote It is to receive the IR remote control signal. Current device does not Port 6 control signal support this function. receiver Network status indication light. It becomes red when network Port 7 NETWORK connection is OK. Micro phone Port 8...
  • Page 25 Port Name Function AUDIO OUT Audio output 3.5mm JACK port. Output audio signal to the device such as sound box. Connect to SD card. Note When you install the SD card, please make sure current card is not in write mode and then you can install it to the camera.
  • Page 26 Port Name Cable Function Color Port 1 Black CS. Current device does not support this function. Port 2 Brown VSS. The positive end of the 5V power. Port 3 IN1. Alarm input port 1. Port 4 Orange IN2. Alarm input port 2. Port 5 Green NC.
  • Page 27 Figure 1-5 The device pedestal dimension is shown as in Figure 1-6. The unit is mm. Figure 1-6...
  • Page 28 This series IP camera can be placed on the table directly, or use the wall mount bracket to install in the wall or ceiling. You can refer to the steps listed below: Bracket installation interface is shown as below. See Figure 2-1. Dig two holes in the wall or the surface, and then input the plastic bolt to the hole and secure.
  • Page 29 Figure 2-2 Figure 2-3 Please refer to the steps listed below to remove the 3G card. See Figure 2-4. Use the screwdriver to loosen the screw of 3G card protection cap in the rear panel. Remove the cap from the camera. Follow the 3G card direction to remove the 3G UIM card.
  • Page 30 Figure 2-4...
  • Page 31 Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. Double click the ConfigTools.exe icon, you can see an interface is shown as in Figure 3-1.
  • Page 32 Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 3-3. Figure 3-3 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set. In the configuration tool search interface (Figure 3-1), please select a device IP address and then double click it to open the login interface.
  • Page 33 Figure 3-5...
  • Page 34 This series IPC product support the Web access and management via PC. Web includes several modules: monitor channel list, record search, alarm setup, system configuration, PTZ control, monitor window and etc. IP camera factory default setup: User name: admin Password: admin Please follow the steps listed below for network connection.
  • Page 35 Figure 4-2 After installation, the interface is shown as below. See Figure 4-3. Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. Figure 4-3 After you logged in, you can see the main window.
  • Page 36 Figure 4-4 Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.
  • Page 37 Component Name Toxic or Hazardous Materials or Elements Cr VI PBDE Circuit Board Component Device Construction Material Wire and Cable Packing Components Accessories O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the SJ/T11363-2006 standard. X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
  • Page 38 Home Use IP Camera (PTZ Series) User’s Manual Version 1.2...

  • Page 39: Table Of Contents

    Table of Contents ........................1 ........................1 ...........................1 ........................2 1.3.1 Performance......................2 1.3.2 Function Specification ..................3 1.3.3 Factory Default Setup ...................5 ...........................9 ........................9 ........................10 ...................11 ........................12 ......................13 2.5.1 Device-end to PC-end ..................13 2.5.2 PC-end to the device-end ..................14 ......................14 ....................15 2.7.1 Version ........................15 2.7.2 RS232 ........................16 2.7.3 Alarm Setup......................16 2.7.4 Motion Detect .......................19...
  • Page 40 ......................24 ........................24 ........................24 ..........................27 ....................27 ...................27 .........................30 ......................30 ................30 ............................31 ...............32...
  • Page 41 Welcome Thank you for purchasing our IP camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
  • Page 42 Important Safeguards and Warnings 1 Electrical safety All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. We are not liable for any problems caused by unauthorized modification or attempted repair. 2 Installation Please note current product does not have the power button.
  • Page 43 Important We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. We are not liable for any problems caused by unauthorized modifications or attempted repair.
  • Page 44 This series IP camera integrates the traditional camera and network video technology. It adopts audio video data collection, transmission, storage together. It can connect to the network directly without any auxiliary device. This series IPC uses standard H.264 video compression technology and AMR, G.711a audio compression technology, which maximally guarantee the audio and video quality.

  • Page 45: Performance

    Adopt the following audio and video transmission protocols: TCP, UDP, MULTICAST and etc. Support web access, widely used in WAN. Network Realize IPC configuration and management via Ethernet. Support device management via web or client-end. Management Support peripheral equipment management via RS232 port, each Peripheral peripheral equipment control protocol and interface can be set freely.

  • Page 46: Function Specification

    Power DC 5V Working environment temperature -10 Chassis internal rising temperature is less than <20 When IPC is Temperature working ,the chassis internal temperature deducts environment original temperature. Working Environment 10% 90 Humidify Dimension(H*W*D 106mm*102mm*127mm Weight 340g 1.3.2 Function Specification Please refer to the following sheet for function specification information.
  • Page 47 O is the bottom layer and 255 is the highest layer. O means completely transparent and 255 is opaque. Channel Title Display Please refer to the above information. Privacy Mask Max supports 8 zones. Network storage based on SDK Storage Local SD card storage 2-ch local alarm/network alarm input, 8-ch wireless alarm input Alarm...

  • Page 48: Factory Default Setup

    One audio output port One network interface RJ45 10M/100M self-adaptive Ethernet port One wireless network antenna port /one 3G network antenna port One SD card port One 3G card port One power status indication light. One network connection indication light Others IR light.
  • Page 49 Watermark Enable Watermark: all Watermark type: character Watermark: DigitalCCTV Privacy Mask Never Time title Enable. OSD transparent :128 Channel title Enable. OSD transparent :128 Record Setup Channel Ch01 Pre-record 5 seconds. Time Setup Start Time 0:00:00 End Time 23:59:59 Record Period 1:Enable motion detection/alarm Snapshot...
  • Page 50 Record latch 10 seconds Send email Disable PTZ activation Disable Event type: never Address: 0 Snapshoot Disable Video Detection Event type Motion detection Channel Ch01, Disable Sensitivity Time period setup Period: Start time 0:00:00 End time:23:59:59 Period 1:enable Week: Sunday Anti-dither 5 seconds General output...
  • Page 51 mode Frame rate 1f/s Resolution Quality Auto maintain Auto reboot 2.00 each day Auto delete Never old files Camera Property Channel Exposure Mode Auto Day/Night Mode Color Backlight Compensation Disable Auto Aperture Disable Disable White Balance Signal Type Internal input Mirror Disable Flip...
  • Page 52 You can refer to the following figure for IP camera front panel information. See Figure 2-1. Figure 2-1 Please refer to the following sheet for detailed information. Port Port Name Function Power indication light. When system is recording, the green light flashes. The interval is 0.5s. When system is running: Port 1 POWER...
  • Page 53 Port Port Name Function remote It is to receive the IR remote control signal. Current device does not Port 6 control signal support this function. receiver Network status indication light. It becomes red when network Port 7 NETWORK connection is OK. Micro phone Port 8...
  • Page 54 Port Name Function AUDIO OUT Audio output 3.5mm JACK port. Output audio signal to the device such as sound box. Connect to SD card. Note When you install the SD card, please make sure current card is not in write mode and then you can install it to the camera.
  • Page 55 Port Name Cable Function Color Port 1 Black CS. Current device does not support this function. Port 2 Brown VSS. The positive end of the 5V power. Port 3 IN1. Alarm input port 1. Port 4 Orange IN2. Alarm input port 2. Port 5 Green NC.

  • Page 56: Device-End To Pc-End

    Figure 2-5 The device pedestal dimension is shown as in Figure 2-6. The unit is mm. Figure 2-6 2.5.1 Device-end to PC-end Device Connection...

  • Page 57: Pc-End To The Device-End

    Please connect the speaker or the pickup to the first audio input port in the device rear panel. Then connect the earphone or the sound box to the audio output port in the PC. Login the Web and then enable the corresponding channel real-time monitor. Please refer to the following interface to enable bidirectional talk.

  • Page 58: Version

    Figure 2-8 2.7.1 Version After you connected the wireless alarm box, you can view the wireless port information. 2/4 means there are two wireless alarm input channels and four wireless alarm output channels. See Figure 2-9. Figure 2-9...

  • Page 59: Rs232

    2.7.2 RS232 Please go to the RS232 interface to set the corresponding information. See Figure 2-10. The setup is shown as below: RS232 COM: COM01 Function: COM_Exalarm Baud rate:9600 Data bit:8 Stop bit:1 Parity: None Figure 2-10 2.7.3 Alarm Setup Important Before you enable the wireless alarm function, please implement the successful coding of the wireless alarm input device.
  • Page 60 Figure 2-11 Wireless Setup In Figure 2-11, click wireless Set button, you can see an interface is shown as in See Figure 2-12. Please follow the steps listed below. 1) Alarm input: Please select the corresponding alarm input port. System max supports 8 alarm devices.
  • Page 61 Figure 2-12 Copy In Figure 2-11, click Copy button, you can see the following dialogue box. You can copy current setup to more channel(s). See Figure 2-13. Figure 2-13 Period In Figure 2-11, click period set button and then click set button. You can select the corresponding period(s) in the following interface.

  • Page 62: Motion Detect

    Figure 2-14 2.7.4 Motion Detect Here you can select the wireless port for the motion detect operation. There are four options (wireless output 1 to output 4). Then you can check the box to enable wireless output function. Now you have enabled the wireless alarm output function. See Figure 2-15. Figure 2-15 2.7.5 Alarm Output...
  • Page 63 After you selected the wireless alarm and emergency alarm type, you can see the wireless alarm information in the following interface once the device activated the corresponding alarm. See Figure 2-16. Figure 2-16...
  • Page 64 This series IP camera can be placed on the table directly, or use the wall mount bracket to install in the wall or ceiling. You can refer to the steps listed below: Bracket installation interface is shown as below. See Figure 3-1. Dig two holes in the wall or the surface, and then input the plastic bolt to the hole and secure.
  • Page 65 Figure 3-2 Figure 3-3 Please refer to the steps listed below to remove the 3G card. See Figure 3-4. Use the screwdriver to loosen the screw of 3G card protection cap in the rear panel. Remove the cap from the camera. Follow the 3G card direction to remove the 3G UIM card.
  • Page 66 Figure 3-4...
  • Page 67 Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. Double click the ConfigTools.exe icon, you can see an interface is shown as in Figure 4-1.
  • Page 68 Figure 4-2 Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 4-3. Figure 4-3 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set.
  • Page 69 Figure 4-5...
  • Page 70 This series IPC product support the Web access and management via PC. Web includes several modules: monitor channel list, record search, alarm setup, system configuration, PTZ control, monitor window and etc. IP camera factory default setup: IP address: 192.168.1.108. User name: admin Password: admin Please follow the steps listed below for network connection.
  • Page 71 Figure 5-2 After installation, the interface is shown as below. See Figure 5-3. Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. Figure 5-3 After you logged in, you can see the main window.
  • Page 72 Figure 5-4 Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.
  • Page 73 Please refer to the following figure for 3G cable connection. See Figure 6-1. Figure 6-1 Please refer to the following figure for WiFi and common connection. See Figure 6-2. Figure 6-2...
  • Page 74 I can not boot up Please click RESET button for at least five seconds to restore the device. factory default setup. SD card hot swap Before draw out SD card, please stop record or snapshot first and then wait for at least 15 seconds to remove the SD card. All the operations before is to maintain data integrity.
  • Page 75 Component Name Toxic or Hazardous Materials or Elements Cr VI PBDE Circuit Board Component Device Construction Material Wire and Cable Packing Components Accessories O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the SJ/T11363-2006 standard. X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
  • Page 76 Home Use IP Camera (PTZ Series) Web Operation Manual Version1.2...
  • Page 77 Table of Contents ........................1 ......................2 ..........................2 ..................4 .........................7 ....................7 ....................7 ........................8 ....................10 ............................12 .....................12 3.1.1 Version Information....................12 3.1.2 HDD information....................12 3.1.3 Log..........................13 ....................14 3.2.1 General Setup ......................14 3.2.2 Encode........................16 3.2.3 Schedule........................19 3.2.4 RS232 ........................21 3.2.5 Network........................23 3.2.6 Alarm........................29 3.2.7 Detect........................33 3.2.8 PTZ.........................36 3.2.9 Default &...
  • Page 78 ........................38 3.3.1 HDD Management ....................38 3.3.2 Alarm I/O .......................39 3.3.3 Record ........................40 3.3.4 Account........................41 3.3.5 Auto Maintenance ....................42 3.3.6 Snapshot .......................42 3.3.7 Abnormity ......................43 .....................45 3.4.1 Configure .......................45 3.4.2 Auto Register ......................46 3.4.3 Talk Encode ......................47 3.4.4 Wireless Network ....................47 3.4.5 CDMA/GPRS (For –T/E/C series only) ............49 3.4.6 Mobile Configuration (For –T/E/C series only) ..........51 ............................54...
  • Page 79 This series IPC product support the Web access and management via PC. Web client end includes several modules includes monitor channel list, record search, alarm setup, system configuration, PTZ control, monitor window and etc. IP camera factory default setup: IP address: 192.168.1.108. User name: admin Password: admin Please follow the steps listed below for network connection.
  • Page 80 Open IE and input IPC IP address in the address column. For example, if your IP camera is 192.168.1.108, then please input http:// 192.168.1.108 in IE address column. See Figure 2-1 Input your IP address here. Figure 2-1 System pops up warning information to ask you whether install webrec.cab control or not. Please click yes button.
  • Page 81 Figure 2-2 After installation, the interface is shown as below. See Figure 2-3. Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. Figure 2-3...
  • Page 82 After you logged in, IPC web main interface is shown as in Figure 2-4 Figure 2-4 Web Main Interface There are six sections: Section 1: Monitor channel menu tree Section 2: System menu Section 3: PTZ control Section 4: Video setup and other setup Section 5: Preview window Section 6: Monitor window switch The monitor channel menu tree is shown as in Figure 2-5.
  • Page 83 Figure 2-5 Monitor Channel Menu Tree Please refer to the following sheet for detailed information. Parameter Function Channel 1 Monitor channel 1 IPC supports main stream and extra stream. Main stream: In normal network width environment, main stream can record video and audio and realize network monitor.
  • Page 84 Refresh Click this button to refresh monitor channel name. Please left click one monitor to view real-time video, the monitor window is shown as in Figure 2-6. 5 6 7 8 910 Figure 2-6 Real-time Monitor Please refer to the following sheet for monitor window parameter information. Parameter Function 1: IPC IP address.
  • Page 85 When you click local record button, the system begins Local recording. The recorded file is saved to system folder: \ record RecordDownload(default). You can snapshoot important video. All images are memorized Capture in system folder: \ picture download (default). picture Turn on or off audio.(It has no relationship with system audio Audio setup )
  • Page 86 Before PTZ operation, please make sure you have properly set PTZ protocol. . Here you can view direction keys, speed, zoom, focus, iris, preset, tour, pan, scan, pattern, aux close, and PTZ setup button. Please note: open menu/close menu/up/down/left/right/confirm/cancel buttons are for speed dome only. Current IPC series products do not support this function.
  • Page 87 Figure 2-11 PTZ Setup Please refer to the following sheet for PTZ setup information. Parameter Function Move the camera to you desired location and then click left limit Scan button. Then move the camera again and then click right limit button to set a right limit.
  • Page 88 Parameter Function Please select the matrix X, and then input the corresponding monitor Matrix output number, video input channel number, then you can click video switch button to complete the operation/ Light/wiper You can control the light and wiper of the peripheral device via RS485.
  • Page 89 Parameter Function More Picture Click picture path button, system pops up an interface for you Path to modify path. Record Click record path button, system pops up an interface for you Path to modify path. Reboot Click this button, system pops up a dialogue box, please click OK button to reboot device.

  • Page 90: Version Information

    3.1.1 Version Information Here you can view device hardware feature and software version information. See Figure 3-1. Figure 3-1 Version Information 3.1.2 HDD information The device supports the SD card storage. Here you can view local storage status and network status including, free capacity and total capacity.

  • Page 91: Log

    Figure 3-2 HDD Information 3.1.3 Log Here you can view system log. See Figure 3-3. Figure 3-3 Log Click backup button, the interface is shown as in Figure 3-4.

  • Page 92: General Setup

    Figure 3-4 Save Log Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type management, alarm event, record operation, user management, log clear and file operation. You can select log type from the drop down list and then click search Search button to view the list.
  • Page 93 Figure 3-5 General Setup Figure 3-6 DST Figure 3-7 DST Please refer to the following sheet for detailed information.

  • Page 94: Encode

    Parameter Function Here is for you to modify system time. Please click Save button after System your completed modification Time Sync PC You can click this button to save the system time as your PC current time. Here you can select data format from the dropdown list. Data Format Please select separator such as –...
  • Page 95 Figure 3-8 Encode Figure 3-9 Color Setting Click watermark button, you can see an interface is shown as below.
  • Page 96 Figure 3-10 Watermark Please refer to the following sheet for detailed information. Parameter Function Here is for you to select a monitor channel. Channel Here is to display current channel name. You can modify it . Channel Name Compression H.264 Main Stream It includes main stream, motion stream and alarm stream.

  • Page 97: Schedule

    Parameter Function Bit Rate In CBR, the bit rate here is the max value. In dynamic video, system needs to low frame rate or video quality to guarantee the value. The value is null in VBR mode. Please refer to recommend bit rate for the detailed information. Recommended Recommended bit rate value according to the resolution and frame rate you have set.
  • Page 98 Figure 3-11 Schedule Figure 3-12 Storage Set...

  • Page 99: Rs232

    Figure 3-13 Schedule Time Please refer to the following sheet for detailed information. Parameter Function Please select a channel first. Channel Pre-record Please input pre-record value here. System can record the three to five seconds video before activating the record operation into the file. (Depends on data size). Right now the system supports local storage mode for the record file Storage and snapshot picture.
  • Page 100 The RS232 interface is shown as in Figure 3-14. Figure 3-14 RS232 Please refer to the following sheet for detailed information. Parameter Function RS232 There is only one option COM 01, corresponding to RS232. Console is for debug. Function Control keyboard: Switch between RS232 and control keyboard.

  • Page 101: Network

    Parameter Function Baud Bit You can select corresponding baud bit here. Default value is 115200. There are five options: none/odd /even/mark/space. Parity 3.2.5 Network Network interface is shown as in Figure 3-15. Figure 3-15 Network Please refer to the following sheet for detailed information. Parameter Function Ethernet...
  • Page 102 Parameter Function Max Connection Network user max amount. The value ranges from 1 to 10. Network You can set the priority between fluency and video quality or transmission QoS self-adaptive. System can automatically adjust the bit stream or lower the resolution according to the network bandwidth. Advanced Set The advanced set interface is shown as in Figure 3-16.
  • Page 103 Email The email interface is shown as in Figure 3-17. Figure 3-17 Email Please refer to the following sheet for detailed information. Parameter Function Input server address and then enable this function. SMTP Server Port Default value is 25. You can modify it if necessary. The sender email account user name.
  • Page 104 Figure 3-18 DDNS Please refer to the following sheet for detailed information. You can refer to the Appendix for NO-IP DDNS setup information. Parameter Function Server Type You can select DDNS protocol from the dropdown list and then enable DDNS function. The private DDNS protocol means you use your self-defined private protocol to realize DDNS function.
  • Page 105 Parameter Function Interval Device sends out alive signal to the server regularly. You can set interval value between the device and DDNS server here. NAS interface is shown as in Figure 3-19. Figure 3-19 NAS Please refer to the following sheet for detailed information. Parameter Function Please select network storage protocol (FTP) and then...
  • Page 106 Parameter Function Refresh Click this button to get device latest configuration information. The NTP interface is shown as in Figure 3-20. Here you can realize network time synchronization. Please enable current function and then input server IP, port number, time zone and time. Figure 3-20 NTP Please refer to the following sheet for detail information.

  • Page 107: Alarm

    IP Filter You can enable IP filter function so that some specified IP user can access the IPC. See Figure 3-21. Please note you can not set white list and black list function at the same time. Figure 3-21 IP Filter 3.2.6 Alarm Alarm setup interface is shown as in Figure 3-22 and Figure 3-23.
  • Page 108 Figure 3-23 General Alarm Setup Figure 3-24 Wireless setup...
  • Page 109 Figure 3-25 PTZ Setup Please refer to the following sheet for detailed information. Parameter Function Event Type It includes local input/network input/IR input. Local input: Device detects alarm from local alarm input port. Network input: Device detects alarm from network. IR input: It is the alarm generated from the wireless alarm box.
  • Page 110 Parameter Function System only memorizes one event during the anti-dither Anti-dither period. The value ranges from 0 to 15s. Alarm Output It is to enable local alarm activation function. You need to select local alarm output port so that system can activate corresponding local alarm device when an alarm occurs.

  • Page 111: Detect

    Parameter Function Save You can click save button after you complete setup for one channel, or you can complete the whole setups and then click save button. Refresh Click this button to get device latest configuration information. 3.2.7 Detect Analysis the video, system enable motion detection alarm when it detects the motion signal reached the specified sensitivity.
  • Page 112 Figure 3-27 Detect (with wireless setup ) Figure 3-28 Motion Detection Zone Setup Please refer to the following sheet for detailed information. Parameter Function Event There are three types: Motion detection/video loss/Camera Masking. Type Channel Select channel name from the dropdown list.
  • Page 113 Parameter Function Enable You need to draw a circle to enable motion detection function. There are six levels. The sixth level has the highest sensitivity. Sensitivity Region There are six levels. The sixth level has the highest sensitivity. Region: If you select motion detection type, you can click this button to set motion detection zone.

  • Page 114: Ptz

    Parameter Function Capture It is to enable the motion detect capture function. Please check the box here to enable this function. Save You can click save button after you complete setup for one channel, or you can complete the whole setups and then click save button. Refresh Click this button to get device latest configuration information.

  • Page 115: Default & Backup

    Parameter Function Select the dome baud rate. Default setup is 9600. Baud Rate Data Bit Default setup is 8. Please set according to the speed dome dial switch setup. Default setup is 1. Please set according to the speed dome dial switch Stop bit setup.

  • Page 116: Hdd Management

    Please refer to the following sheet for detailed information. Parameter Function Select All Restore factory default setup. Export Export system configuration to local PC. Configuration Import Import configuration from PC to the system. Configuration 3.3.1 HDD Management HDD management includes net storage management and local storage management. Please note, if you want to use local storage function, your storage device need to support current function.

  • Page 117: Alarm I/O

    Parameter Function Read/write Set current disk as read/write Read only Set current disk as read. Hot swap You can remove or insert the new disk when system is running. Now the system software and hardware will maintain proper operation and there is no devastating disaster. Execute Click this button to save disk current status.

  • Page 118: Record

    Figure 3-33 Wireless Alarm I/O Configuration Please refer to the following sheet for detailed information. Parameter Function Alarm output For the local alarm output, there is only one output channel. See Figure 3-32. Please click the button 1. You can see the wireless output channel if you have connected to the wireless alarm box and have enabled the wireless alarm function.

  • Page 119: Account

    Figure 3-34 Record Please refer to the following sheet for detailed information. Parameter Function System enables auto record function as you set in record schedule Auto setup. Enable corresponding channel to record no matter what period Manual applied in the record setup. Stop current channel record no matter what period applied in the Stop record setup.

  • Page 120: Auto Maintenance

    Figure 3-35 Account 3.3.5 Auto Maintenance Here you can select auto reboot and auto delete old files interval from the dropdown list. See Figure 3-36. Figure 3-36 Auto Maintenance 3.3.6 Snapshot Snapshot interface is shown as in Figure 3-37.

  • Page 121: Abnormity

    Figure 3-37 Snapshot Please refer to the following sheet for detailed information. Parameter Function Channel It is the monitor channel. There are two modes: Timing and activation. Snapshot mode Frame rate You can select from the dropdown list. The value ranges from 1f/s to 8f/s.
  • Page 122 Figure 3-38 Abnormity Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: no disk, no space, disk error, net error, Type offline, IP conflict. Threshold: You can set the minimum percentage value here. The device can alarm when capacity is not sufficient.

  • Page 123: Configure

    Parameter Function Send If you enable this function, system can send out email to alarm the email specified user. This function is invalid when network is offline or IP conflict occurs. 3.4.1 Configure Here you can set camera property parameter. See Figure 3-39. The following interface may vary due to different IPC series.

  • Page 124: Auto Register

    Scene Mode You can select the corresponding mode for various environments so that you can get the best video effect. The option includes: disable/auto/sunny/cloudy/home/office/night. Signal Standard Video input mode: internal input. Mirror It is to switch video left and right limit. Flip It is to switch video up and bottom limit.

  • Page 125: Talk Encode

    Device ID Device ID in the device management server. 3.4.3 Talk Encode Here you can set AMR audio compression bit rate. See Figure 3-41. Right now system supports G771a only. Figure 3-41 Talk Encode 3.4.4 Wireless Network After you connected to the WiFi module, you can use WEB to set wireless router setup. Please follow the steps listed below: Click SSID search button to search wireless router available.
  • Page 126 Figure 3-42 Search wireless router Figure 3-43 wireless router setup Please refer to the following sheet for detailed information. Parameter Function SSID search Click this button to search the wireless router available.

  • Page 127: Cdma/Gprs (For -T/E/C Series Only)

    Enable Enable wireless configuration function. SSID ID Corresponding wireless router ID Wireless network mode. It includes auto, Adhoc and Infrastructure. Mode Enable WEP encryption or not. Encryption If you select to disable encryption, you can not see the following items (WEP, Key Type, and ID). Select WEP encryption mode.
  • Page 128 Figure 3-45 Schedule Setup Please refer to the following sheet for detail information. Parameter Function Wireless type You can select from the dropdown list. Enable Please check the box to enable the selected function. Please input the connection name here. There are two types for the device to connect to the 3G.

  • Page 129: Mobile Configuration (For -T/E/C Series Only)

    status IP address After the Radius server verification, you can see the device IP address the DHCP server allocated to. Subnet After the Radius server verification, you can see the device subnet mask mask the DHCP server allocated to. Gateway After the Radius server verification, you can see the device gateway the DHCP server allocated to.
  • Page 130 Figure 3-46 Mobile Configuration Please refer to the following sheet for detail information. Parameter Function Send event Device can send the event message (alarm information, motion detection message and etc) to the mobile user. You can check the box to enable the function. Receiver You can input one or more mobile number(s) here to receive the message.
  • Page 131 There are two types: SMS and MMS. Message type Right now system supports SMS only. Title You can input message subject here. Event message System can save the message receiver number so that device can send save out alarm (motion detect) message to the specified mobile phone(s). SMS save System can save the mobile phone number which can send out the message to activate the device.
  • Page 132 Click search button, you can see an interface is shown as in Figure 4-1. Please note right now, current series product supports open local record and play function only. Click the open local record button, system pops up a dialogue box for you to select the file to playback. Then click playback button to view it in the web monitor window.
  • Page 133 Click alarm function, you can see an interface is shown as in Figure 5-1. Here you can set device alarm type and alarm sound setup. Figure 5-1 Alarm Please refer to the following sheet for detailed information. Type Parameter Function Alarm Video loss System alarms when video loss occurs.
  • Page 134 Type Parameter Function Video When alarm occurs, system auto enables video monitor. This function only applies to video detection alarm (motion detection, video loss and camera masking). This function is not valid in external alarm mode. Prompt Automatically pops up alarm dialogue box. Sound pop up System sends out alarm sound when alarm occurs.
  • Page 135 Click about button, you can view current web client information. See Figure 6-1. Figure 6-1...
  • Page 136 Click log out button, system goes back to login interface. See Figure 7-1. Figure 7-1...
  • Page 137 Please double click DDNS to go to the configuration interface. You can see an interface is shown as in Figure 8-1. Figure 8-1 DDNS Type: You can select from the dropdown list. There are five options: No-IP, DynDNS, CN99, Private and Oray. Server IP: You can use ping command to get server’s IP Port: input server port here.
  • Page 138 It’s a system of dynamic DNS service. If you do not have a Static IP address on the Internet, you need to have a dynamic IP. It is to say your IP address changes after a certain period of time. You can follow the steps listed below to display image on your device even your IP is dynamic.
  • Page 139 Figure 8-3 Fill in the requested fields and click I Accept button. Then you can get an email containing username and password. You can use this account to access the service. Open the e-mail sent by trusted rmação No-IP and double-click the link that is below the phrase "To activate your account please click the following URL:"...
  • Page 140 Now you can see an interface is shown as in Figure 8-5. You have successfully created an account. Figure 8-5 In Figure 8-5, click to sign and enter the email address and password you get earlier. Click “login” to sign up, you can see the welcome interface and configuration option of account.
  • Page 141 Figure 8-7 In Figure 8-8, input corresponding host name in the filed. You can use this name to access device from an external network. In the field to the right of the name, select the desired area. This is your domain name for access to the device.
  • Page 142 Figure 8-9 10. Now you need to define the definition of the server's IP in IP-device able to access this service DDNS. To get DDNS service, you need to have a computer connected to the Internet on the same network with device. Then please type the command dynupdate.
  • Page 143 • Domain Name: Enter the domain name created in step 8. • User: Enter your username (email address) created in step 3. • Password: Enter the password created in step 3. 12. Now you have completed device setup. Open Internet Explorer ® in another foreign network with Internet access, unlike the network where the device is connected to, you need to follow the steps listed below: 1.
  • Page 144 Note This manual is for reference only. Slight difference may be found in the user interface. All the designs and software here are subject to change without prior written notice. If there is any uncertainty or controversy, please refer to the final explanation of us. Please visit our website or contact your local service engineer for more information.
  • Page 146 Pompano Beach, FL 33064 5. ClearView CCTV Inc assumes no risk and shall be subject to no liability for damages or loss resulting from the specific use or application made of the Products. ClearView CCTV’s liability for any claim, whether based on breach of contract, negligence, infringement of any rights of any party or product liability, relating to the Products shall not exceed the price paid to ClearView CCTV Inc for such Products or the published MSRP, whichever is less.
