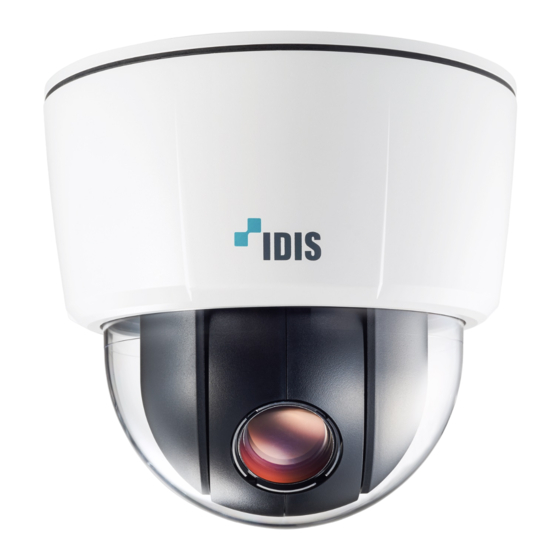

- Page 1 DC-S Series Installation Manual DC-S3283X / DC-S3283WHX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 © 2018 IDIS Co., Ltd. IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Network bandwidth limitation and MAT features for ethernet. more efficient use of network bandwidth You can use the IDIS Discovery program to change • Easy network access via UPnP (Universal Plug and network camera settings or the IDIS Solution Suite... -
Page 7: Accessories
Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Indoor Outdoor DC-S3283WHX DC-S3283X Network Camera Screws (4 ea.) Quick Guide DC-S3283X The screws are not provided for model. -
Page 8: Overview
Part 1 – Introduction Overview Product color and design may vary depending on the model. Indoor and Outdoor Body • To remove/insert the SD memory card or perform the factory reset, make sure that the waterproof sealing is screwed to the dome cover tightly when reconnecting the dome cover. - Page 9 Part 1 – Introduction • M3 Screw Hole Body – Bottom Side View When installing an outdoor camera, use the provided M3 screws to secure the sun shield on to the camera body. (frame ground) is marked beside the M3 screw hole of the camera body.
- Page 10 Part 1 – Introduction Outdoor Sun Shield Wall/Ceiling Installation Hole Install Screw Hole Safety Wire M4 Screw Hole M5 Screw Hole Pipe Hole • Wall/Ceiling Installation Hole Used to screw the camera in place on a wall or a ceiling. •...
-
Page 11: Flushed
You can configure, manage, and upgrade this camera and monitor its images from a remote computer over the network. For more information on network connection setup, refer to the IDIS Discovery operation manual. • Power Cable Grand Connect the 24VAC power. -
Page 12: Factory Reset
It's also possible to do a factory reset by pressing and releasing underneath carpet or a rug or plug the cable the reset switch while the camera is turned on or using the IDIS into a power outlet shared by a number of other Discovery program from a remote location. -
Page 13: Installation
Part 1 – Introduction Installation Screw the indoor bracket to the wall or ceiling by using the wall/ceiling mounting screws provided with the camera. Installation of this product does not require the use of special tools. Make a cable hole in the wall or ceiling. For more information on other devices comprising the overall system, refer to their respective installation manuals. -
Page 14: Outdoor
Part 1 – Introduction Outdoor Use the provided M5 screws to secure the outdoor bracket on to the sun shield. Connect the cable from the camera to the pipe. In case that a universal nut is attached to a pipe Connect the sun shield and outdoor bracket first, then Turn the universal nut to connect the camera to the connect it to the pipe as follows:... -
Page 15: Flushed
Part 1 – Introduction Remove the install screw from the camera body. Remove the ceiling tile from the ceiling. Draw circle whose diameter is 7.87" (200 mm on the tile. Cut the circle out of the ceiling tile. Screw the sun shield to the camera body by using the M3 screws provided with the camera. -
Page 16: Dimensions
Part 1 – Introduction Dimensions Flushed DC-S3283X model Ø200 mm(7.87”) Indoor Ø180 mm(7.09”) DC-S3283WHX model Ø226.5 mm(8.92”) Ø200 mm(7.87”) Outdoor DC-S3283WHX model Ø230 mm(9.06”) -
Page 17: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out... -
Page 18: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 19: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 20: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/3" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type AF Zoom Lens Focal Length f=4.3mm ~ 129.0mm Aperture F1.6 ~ 5.0 Iris Control DC Auto Iris Angular Field of View... - Page 21 Vandal Resistance Out-door Ready IP67, Heater, IK10 Operating DC-S3283WHX -40°C ~ +60°C (-40°F ~ +140°F) Temperature DC-S3283X -10°C ~ +60°C (-40°F ~ +140°F) Boot Up DC-S3283WHX -20°C ~ +60°C (-4°F ~ +140°F) Temperature DC-S3283X 0°C ~ +60°C (32°F ~ +140°F)
- Page 22 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
