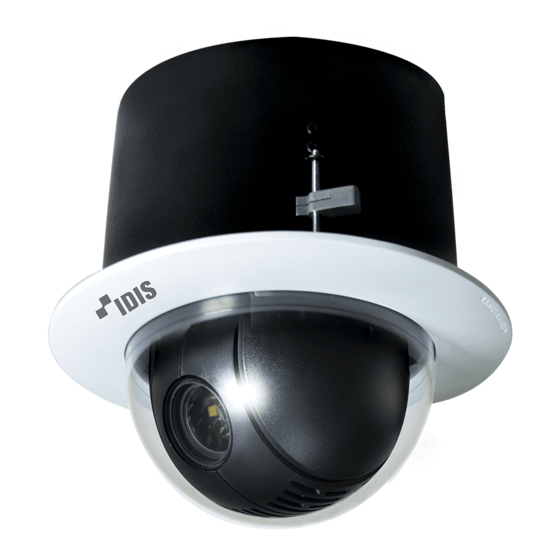

- Page 1 DC-S Series Installation Manual DC-S1163F / DC-S1263F DC-S1163W / DC-S1263W DC-S1163WH / DC-S1263WH Powered by...
-
Page 2: Safety Symbols
Before reading this manual This is a basic installation manual for use of an IDIS netework camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product. -
Page 3: Safety Precautions
Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. -
Page 4: Fcc Compliance Statement
© 2014 IDIS Co., Ltd. IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements. -
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Easy network access via UPnP (Universal Plug and You can use the IDIS Discovery program to change Play) function and embedded mDNS (Multicast DNS) network camera settings or the IDIS Solution Suite... -
Page 7: Accessories
Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. DC-S1163W / DC-S1263W / DC-S1163WH / DC-S1263WH DC-S1163F / DC-S1263F Network Camera Open Source Guide Quick Guide Screws (4 ea.) -
Page 8: Overview
Part 1 – Introduction Overview Product color and design may vary depending on the model. Indoor and Outdoor Body • To remove/insert the SD memory card or perform the factory reset, make sure that the waterproof sealing is screwed to the dome cover tightly when reconnecting the dome cover. - Page 9 Part 1 – Introduction • M3 Screw Hole Body – Bottom Side View When installing an outdoor camera, use the provided M3 screws to secure the sun shield on to the camera body. (frame ground) is marked beside the M3 screw hole of the camera body.
- Page 10 Part 1 – Introduction Outdoor Sun Shield Wall/Ceiling Installation Hole Install Screw Hole Safety Wire M4 Screw Hole M5 Screw Hole Pipe Hole • Wall/Ceiling Installation Hole Used to screw the camera in place on a wall or a ceiling. •...
-
Page 11: Flushed
You can configure, manage, and upgrade this camera and monitor its images from a remote computer over the network. For more information on network connection setup, refer to the IDIS Discovery operation manual. • Power Connect the power adapter. Cable Grand •... -
Page 12: Factory Reset
It's also possible to do a factory reset by pressing and releasing power source, the system will be rebooted once the reset switch while the camera is turned on or using the IDIS the power adapter is disconnected. Discovery program from a remote location. A factory reset will •... -
Page 13: Installation
Part 1 – Introduction Installation Screw the indoor bracket to the wall or ceiling by using the wall/ceiling mounting screws provided with the camera. Installation of this product does not require the use of special tools. Make a cable hole in the wall or ceiling. For more information on other devices comprising the overall system, refer to their respective installation manuals. -
Page 14: Outdoor
Part 1 – Introduction Outdoor Use the provided M5 screws to secure the outdoor bracket on to the sun shield. Connect the cable from the camera to the pipe. In case that a universal nut is attached to a pipe Connect the sun shield and outdoor bracket first, then Turn the universal nut to connect the camera to the connect it to the pipe as follows:... -
Page 15: Flushed
Part 1 – Introduction Remove the install screw from the camera body. Remove the ceiling tile from the ceiling. Draw circle whose diameter is 7.87" (200 mm on the tile. Cut the circle out of the ceiling tile. Screw the sun shield to the camera body by using the M3 screws provided with the camera. -
Page 16: Dimensions
Part 1 – Introduction Dimensions Flushed DC-S1163F / DC-S1263F models Ø200 mm(7.87”) Indoor Ø180 mm(7.09”) DC-S1163W / DC-S1263W models Ø226.5 mm(8.92”) Ø200 mm(7.87”) Outdoor DC-S1163WH / DC-S1263WH models Ø230 mm(9.06”) -
Page 17: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Power Alarm Out Sensor In Network Camera Monitor Out... -
Page 18: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 19: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 20: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Lens Lens Type Varifocal optical zoom Focal Length F1.6 to F2.8, f=4.7 mm to 84.6 mm Viewing Angle 64.9° (Wide) to 4.7° (Tele) – Diagonal Lens Iris Control DC auto-iris Day &... - Page 21 Signal Format NTSC or PAL (selectable) Compression Algorithm H.264, M-JPEG (supports 4-stage image compression rate) Compression Resolution DC-S1163F / DC-S1163W / DC-S1163WH models 352x240, 704x480, 1280x720 DC-S1263F / DC-S1263W / DC-S1263WH models 352x240, 704x480, 1280x720, 1920x1080 Bitrate Control DC-S1163F / DC-S1163W / DC-S1163WH models H.264 –CBR / VBR (up to 8 Mbps)
- Page 22 Weight (Main Unit) 5.40 lbs. (2.45kg) Weight (Packaging) 7.94 lbs. (3.6kg) Working Temperature DC-S1163F / DC-S1263F / DC-S1163W / DC-S1263W models : 14°F ~ 122°F (-10°C ~ 50°C) (Starting Temperature: 32°F ~ 122°F (0°C ~ 50°C)) DC-S1163WH / DC-S1263WH models -22°F ~ 122°F (-30°C to 50°C)
- Page 23 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
