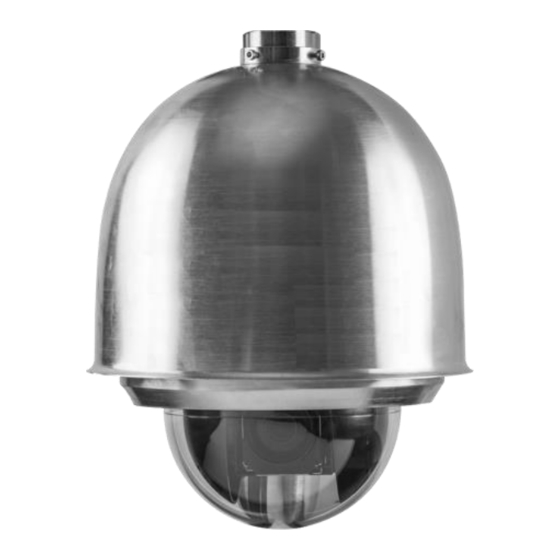

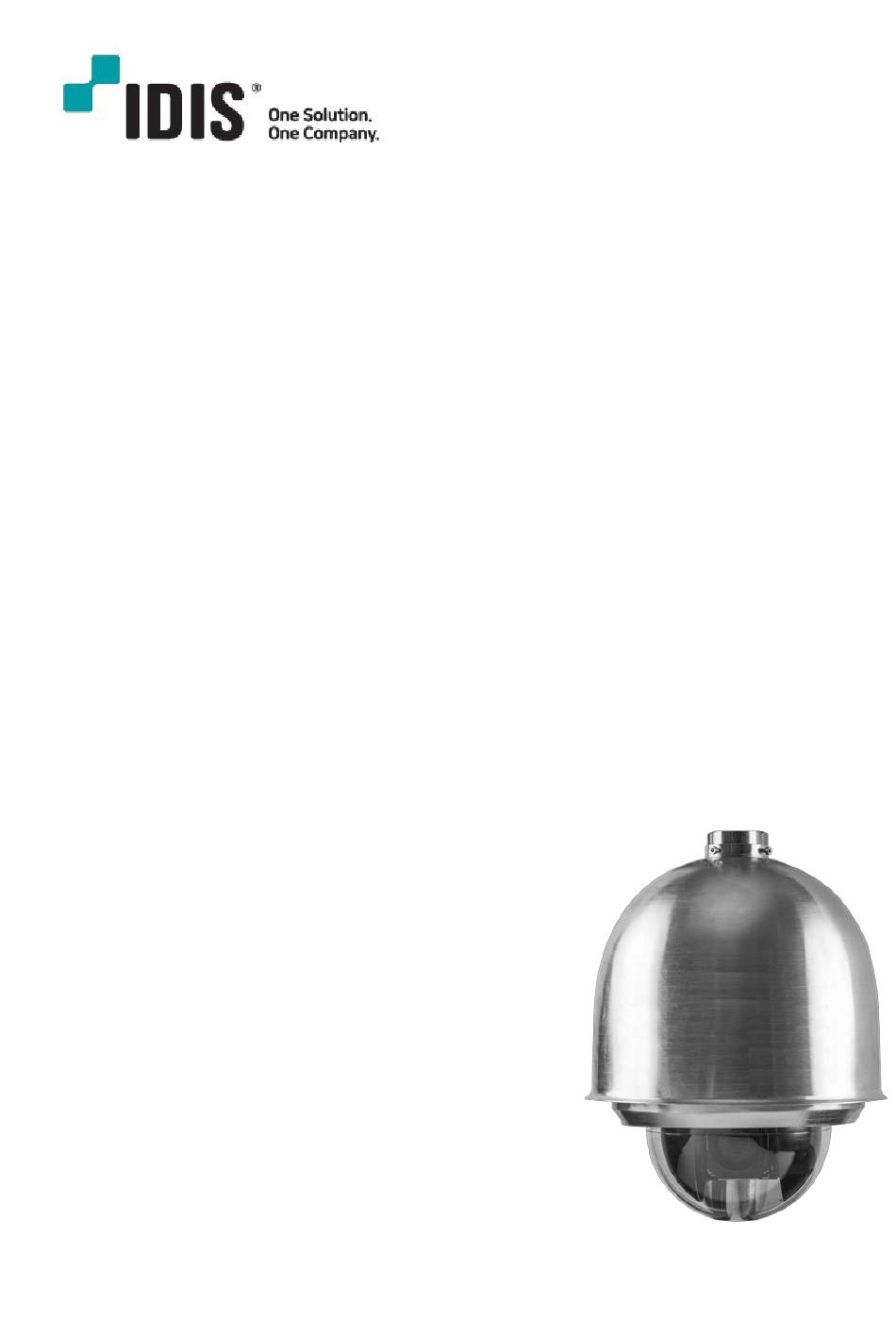

- Page 1 Explosion-proof Speed Dome camera Instruction Manual DC-S3283EX...
- Page 2 Safety Requirements ....................III How to move this product ..................VIII Thank you for choosing IDIS Ex products！ Please read this Instruction Manual carefully before installation and operation of this product, following the instructions and keep this instruction manual properly.
- Page 3 IDIS. IDIS remains the right to modify the content and technical specifications of the product in this Instruction Manual without any form of notification, to provide the newest and most advanced product.
- Page 4 DC-S3283EX Explosion-proof Speed Dome camera Notice The user shall not disassemble this product optionally, such as removal of top cover or bolts may cause leakage of water or creepage. Please operate the product according to the requirements in this Instruction Manual;...
- Page 5 DC-S3283EX Explosion-proof Speed Dome camera Please read this Instruction Manual carefully before installation and operation of this product. The safe service period is 1 years after date of manufacture, see nameplate of the date of manufacture. Please read and understand associate knowledge, safety notices and cautions before put into service.
- Page 6 DC-S3283EX Explosion-proof Speed Dome camera 3. Power supply requirements Local electrical safety standard shall be followed in installation and service of this product. Convenient de-energizing device shall be adopted for emergency cutting off. Check if the power supply is suitable for operation before start.
- Page 7 DC-S3283EX Explosion-proof Speed Dome camera 4. Operation & maintenance requirements Do not dismantle this product; there is no user serviceable part inside. Do not touch the CCD (or COMS) directly; a proper way is to blow away the dust with a blower on the lens.
- Page 8 DC-S3283EX Explosion-proof Speed Dome camera 7. Special announcement Pictures in this manual is a diagram for reference only. We remain the right to modify the content and technical specifications of the product in this Instruction Manual without any form of notification when the product updates, there may exist ...
- Page 9 DC-S3283EX Explosion-proof Speed Dome camera Ex structure instruction We have made adequate consideration in flameproof enclosure design of the explosion-proof camera to prevent explosive gases getting into the inner volume, the explosion inside the enclosure cannot cause the explosion of the external explosive gases.
- Page 10 DC-S3283EX Explosion-proof Speed Dome camera De-energize the product, holding the upper cover to move it; no dragging or knocking allowed. Sun shade Light transmitting When the product is energized: it’s NOT allowed to open, move, knock or drag this product.
-
Page 11: Table Of Contents
DC-S3283EX Explosion-proof Speed Dome camera Content 1. General ........................3 1.1. Specification ......................4 1.2. Characters ......................5 1.3. Scope ........................5 1.4. Mechanical parameters ..................5 1.5. Electrical parameters .................... 6 1.6. Service condition ....................7 1.7. Electrical safety (in normal atmosphere) .............. 7 1.8. -
Page 12: General
DC-S3283EX Explosion-proof Speed Dome camera General DC-□ Explosion-proof Speed Dome Camera (hereinafter referred to as camera) is a new generation of Explosion-proof monitoring device, it adopts advanced manufacturing process, with a mature quality management system as a guarantee, the quality, performance and appearance are in leading position. The product can be used in flammable and explosive gas or flammable dust environment, to achieve the purpose of monitoring the hazardous area. -
Page 13: Specification
3: Legacy Model S: Speed-dome PTZ C: Camera D: Direct IP Model： DC-E2M4Z, DC-E2M12Z, DC-E2M30Z , DC-E2M32Z, DC-S3263EX , DC-S3283EX . Ingress Protection Level: IP66,IP68(2m/2h) Ex marking: Ⅱ 2 G Ex db ⅡC T6 Gb 2877 Ⅱ 2 D Ex tb ⅢC T80 ºC Db... -
Page 14: Characters
DC-S3283EX Explosion-proof Speed Dome camera 1.2. Characters This camera integrated a variety of communication protocols and speed, it plays an important role in security systems. This camera can work at wide voltage range and its self-adaptation function will satisfy most brands of the video camera. The surge protection device provided with the camera will make it safer and more reliable. -
Page 15: Electrical Parameters
DC-S3283EX Explosion-proof Speed Dome camera Figure 1.4.1 Dimensions of DC-□ Explosion-proof Speed Dome Camera 1.5. Electrical parameters 100-240V(36W)a.c. or 24V a.c. 50/60Hz or 24V d.c. Voltage and current or 12V d.c. or PoE++(48V d.c.) ≤3A ≤20W(without heater and fan) Consumption... -
Page 16: Service Condition
DC-S3283EX Explosion-proof Speed Dome camera 1.6. Service condition Atmosphere pressure: 80～110kPa Ambient temperature: -40ºC～+60ºC Relative humidity: no more than 95% (+25ºC) 1.7. Electrical safety (in normal atmosphere) Insulation resistance: the insulation resistance between power terminal and the enclosure shall be no less than 50 MΩ;... -
Page 17: Installation & Debugging
DC-S3283EX Explosion-proof Speed Dome camera 2. Installation & debugging 2.1. Cautions before installation It’s Prohibit customer to disassemble the camera. Otherwise dangerous； Check whether it has the explosion proof certificate； Check whether it has the explosion proof marking, it should fit the explosion proof environment；... -
Page 18: Cable Entry
DC-S3283EX Explosion-proof Speed Dome camera Cautions in service: It’s not suggested for users to dismantle this product at will, please follow the Instruction for operation. The power must comply with requirements specified in 1.5. Please use this product in conditions (atmosphere pressure, temperature and humidity) specified in chapter 1.6. -
Page 19: Preparation Of Brackets Before Installation
After you are familiar with Ex product’s operation, then do the site installation. The debugging is done before package, only installation in the intended location is required. We strongly suggest you select brackets from IDIS , it will ease your installation process significantly. -
Page 20: On-Spot Installation And Fixing
DC-S3283EX Explosion-proof Speed Dome camera Figure 2.3.1.2 wall mounting bracket fix holes Figure 2.3.1.3 ceiling mounting bracket fix holes 2.4. On-spot installation and fixing Since Ex product is very special, adjust with power indoors before installation in the intended locations if available. - Page 21 DC-S3283EX Explosion-proof Speed Dome camera Figure 2.4.1.2 camera and safety rope Figure 2.4.1.3 installation diagram...
- Page 22 DC-S3283EX Explosion-proof Speed Dome camera 2.4.2 Instruction for installation of camera and ceiling mounting bracket The cable of the camera is pulled into the inner cavity of the hanger, and the bracket rotates clockwise so that the hole is placed on the screw. Finally, the hanger and the camera are fixed with four M5*12 inner hexagonal combination screws.
-
Page 23: Adjusting And Operation
DC-S3283EX Explosion-proof Speed Dome camera Firstly, the safety rope on the camera is hung on the safety hook of the ceiling mounting bracket. Then, the mounting bracket is tightened and fixed by M8X20 bolt, as shown in Figure 2.4.2.3. Finally, the protective film on the transparent cover is torn off. -
Page 24: Cable Specification
DC-S3283EX Explosion-proof Speed Dome camera network (WAN), such as internet. Analog system is controlled by Explosion-proof control keyboard and Explosion-proof control box, it’s available for user to monitor the scene condition 2.5.2 Cable specification A comprehensive cable is provided on packaged product (see Table 2.5.2 for cable specification), the cable is lead out from the side of the base bottom with minimum length of 1m;... -
Page 25: Inspection And Examination Before Power On
DC-S3283EX Explosion-proof Speed Dome camera (optional)24V a.c. or thick brown 100-240V a.c. 24V+/12V+ d.c. thick yellow-green grounding Power (optional)24V a.c. or thick blue 100-240V a.c. 24V-/12V- d.c. Tips：The color of the cable depends on the configuration. The actual tail cable label shall prevail. The above colors are for reference only. -
Page 26: Trouble-Shooting
DC-S3283EX Explosion-proof Speed Dome camera 3. Trouble-shooting Phenomenon Analysis Solution No power supply Check the power supply Check the video signal No image Poor connection of video signal cable cable Remove the strong light Cannot switch to Strong light in optical angle/... -
Page 27: Maintenance
DC-S3283EX Explosion-proof Speed Dome camera 4.3 Maintenance Six months after putting into service: Check all the fasteners; Inspect the cables ensure the protective sheath are not damaged and the cables will not affect other objects during rotation. Five years after putting into service: the rubber sealing ring need to be replaced if the camera was installed in severe conditions, please contact the local distributor for this work. -
Page 28: Declaration
DC-S3283EX Explosion-proof Speed Dome camera 6. Declaration We always tried to make this instruction manual as perfect as we can, but we cannot include all the possible problems may raise in installation and maintenance, please contact us for detailed information on problems not included in this instruction manual. - Page 29 DC-S3283EX Explosion-proof Speed Dome camera...
