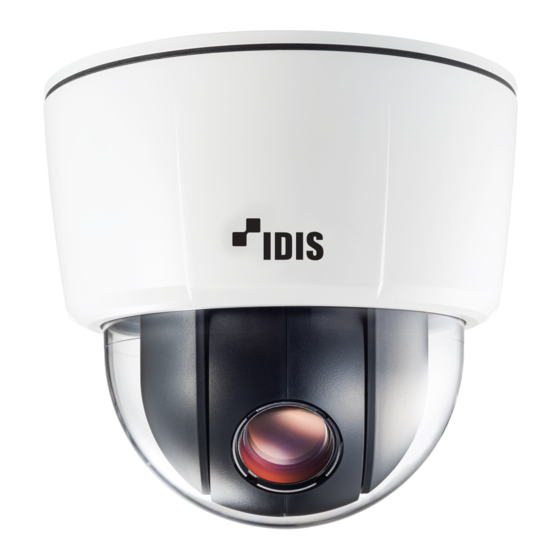

- Page 1 DC-S Series Installation Manual DC-S6281FX DC-S6281HX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 © 2022 IDIS Co., Ltd. IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Network bandwidth limitation and MAT features for ethernet. more efficient use of network bandwidth You can use the IDIS Discovery program to change • Easy network access via UPnP (Universal Plug and network camera settings or the IDIS Solution Suite... -
Page 7: Accessories
Indoor Outdoor DC-S6281HX DC-S6281FX Network Camera Screws and Anchors (4 ea.) DC-S6281HX model only Quick Guide DC-S6281FX model only Guide Pattern Ferrite Core Indoor Bracket, Screw DC-S6281HX model only Grounding Cable, Screw DC-S6281HX model only... -
Page 8: Overview
Part 1 – Introduction Overview Product color and design may vary depending on the model. Indoor and Outdoor Body • To remove/insert the SD memory card or perform the factory reset, make sure that the waterproof sealing is screwed to the dome cover tightly when reconnecting the dome cover. - Page 9 Part 1 – Introduction Outdoor Bracket Cable Safety Wire Ring Install Screw M3 Screw Hole • Cable Refer to the Cable. • Safety Wire Ring Secures the body to the bracket or the bracket to the body. Prevents the body or bracket from falling on to The outdoor bracket is purchased separately.
-
Page 10: Flushed
Part 1 – Introduction Flushed Outdoor Sun Shield Housing The outdoor sun shield is purchased separately. Ask your dealer or distributor about purchasing it. M5 Screw Hole M3 Screw Hole • M5 Screw Hole When installing an outdoor camera, it secures the sun shield to the outdoor bracket. -
Page 11: Cable
For more information on network connection setup, • Organize the power cable so that it will not refer to the IDIS Discovery operation manual. cause people to trip over or become damaged from chairs, cabinets, desks, and other objects •... -
Page 12: Factory Reset
Reconnect the dome cover. It's also possible to do a factory reset by pressing and releasing the reset switch while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS Discovery operation manual. -
Page 13: Outdoor
Part 1 – Introduction Outdoor Screw the indoor bracket to the wall or ceiling by using the wall/ceiling mounting screws provided with the camera. In case that a universal nut is attached to a pipe Make a cable hole in the wall or ceiling. Connect the sun shield and outdoor bracket first, then Hook the safety wire of the bracket on the safety connect it to the pipe as follows:... -
Page 14: Flushed
Part 1 – Introduction Flushed In case that a universal nut is not attached to a pipe Connect the sun shield to the outdoor bracket as follows: The camera is mounted in the housing. Refer to the installation guide pattern provided with the product to drill a hole for flushing the camera in the ceiling tile. -
Page 15: Dimensions
Part 1 – Introduction Dimensions Flushed DC-S6281FX model Indoor DC-S6281HX model Ø200 mm(7.87”) Outdoor DC-S6281HX model Ø230 mm(9.06”) -
Page 16: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP® NVR or non DirectIP® NVR, VMS such as IDIS Solution Suite Compact. With DirectIP® NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out... -
Page 17: With Non Directip® Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP® NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 18: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 10 or below. -
Page 19: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type AF Zoom Lens Focal Length f=5.2mm ~ 156mm Aperture F1.33 ~ F4.95 Iris Control DC Auto Iris Angular Field of View... - Page 20 Vandal Resistance Out-door Ready** IP67, Heater, IK10 Operating DC-S6281HX -40°C ~ +55°C (-40°F ~ +131°F) Temperature DC-S6281FX -10°C ~ +50°C (14°F ~ +122°F) Boot Up DC-S6281HX -20°C ~ +55°C (-4°F ~ +131°F) Temperature DC-S6281FX 0°C ~ +50°C (32°F ~ +122°F)
- Page 21 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
