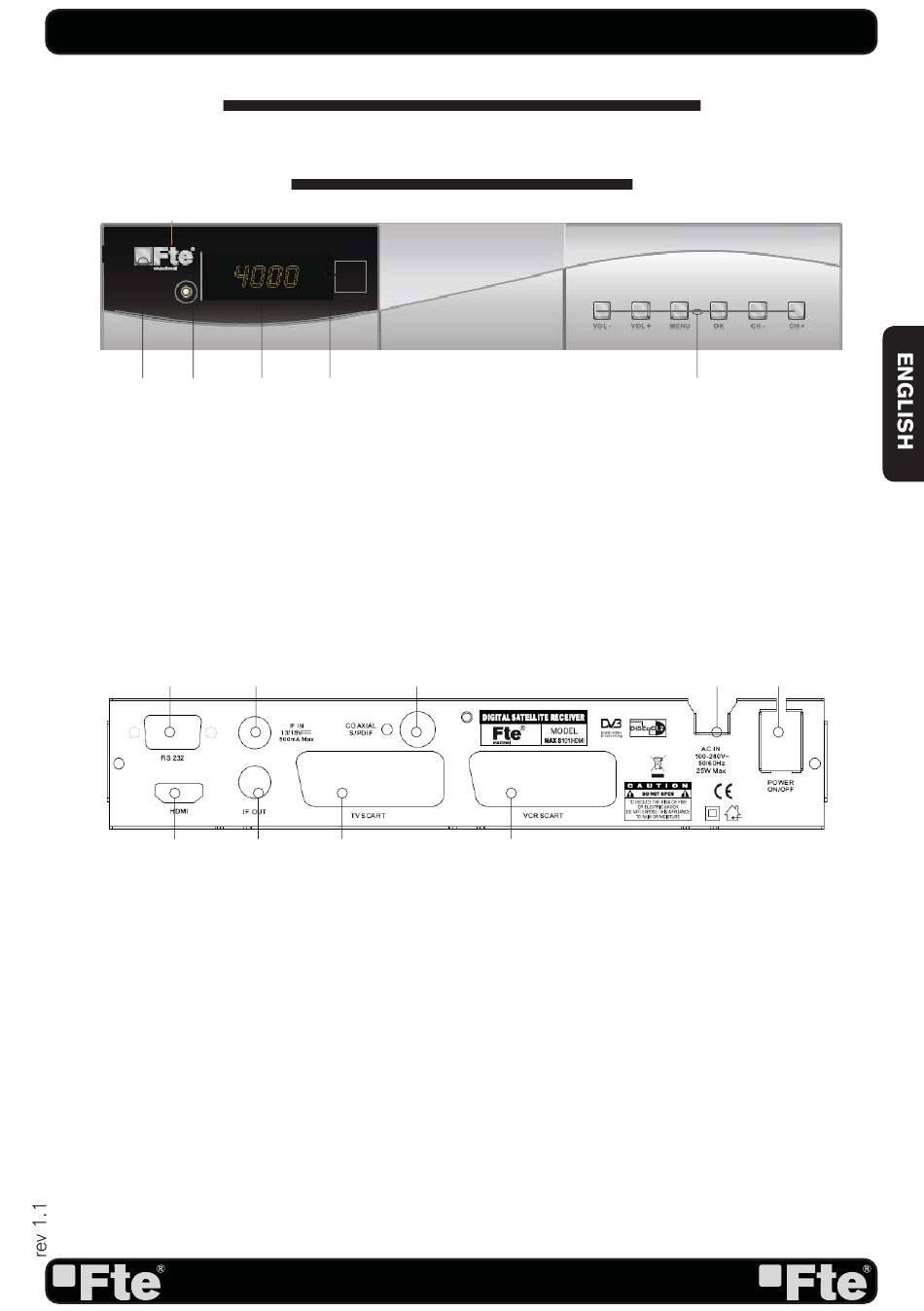

PANEL & REMOTE CONTROL DESCRIPTION
1. PANEL & REMOTE CONTROL DESCRIPTION
1 2
1. POWER: Switches the receiver on, or enters standby mode. To completely switch off the receiver,
you have to use the switch on the back of the receiver.
2. LOCK LED: Indicates a suffi cient signal level at the IF IN input.
3. DISPLAY: 4 Digits to display the program numbers.
4. IR-SENSOR: Reception sensor for the IR remote control signals.
5. BUTTONS: These buttons allow controlling the main functions of the receiver, and
provide the same functionality as the remote control ones.

1.2. REAR PANEL DESCRIPTION

1
6
1. RS-232: Serial Port allowing software upgrades.
2. IF IN: Satellite input.
3. S/PDIF: Coaxial output for digital audio (AC3).
4. AC IN: Mains input cable.
5. POWER ON/OFF: Allows to completely switching off the receiver.
6. HDMI: HDMI Output
Note: If you have the HDMI output connected and you select the progressive mode, the SCART
output is automatically disabled.
7. IF OUT: Satellite output for cascading to other devices.
Note: The operation of another receiver at the same time is only possible with limited channel
selection.
8. TV SCART: Output SCART for the connection to a TV set.
9. VCR SCART: Output SCART for the connection to a VCR set.

1.1. FRONT PANEL DESCRIPTION

3 4
2 3
7 8
PAG. 13
9
5
4 5
