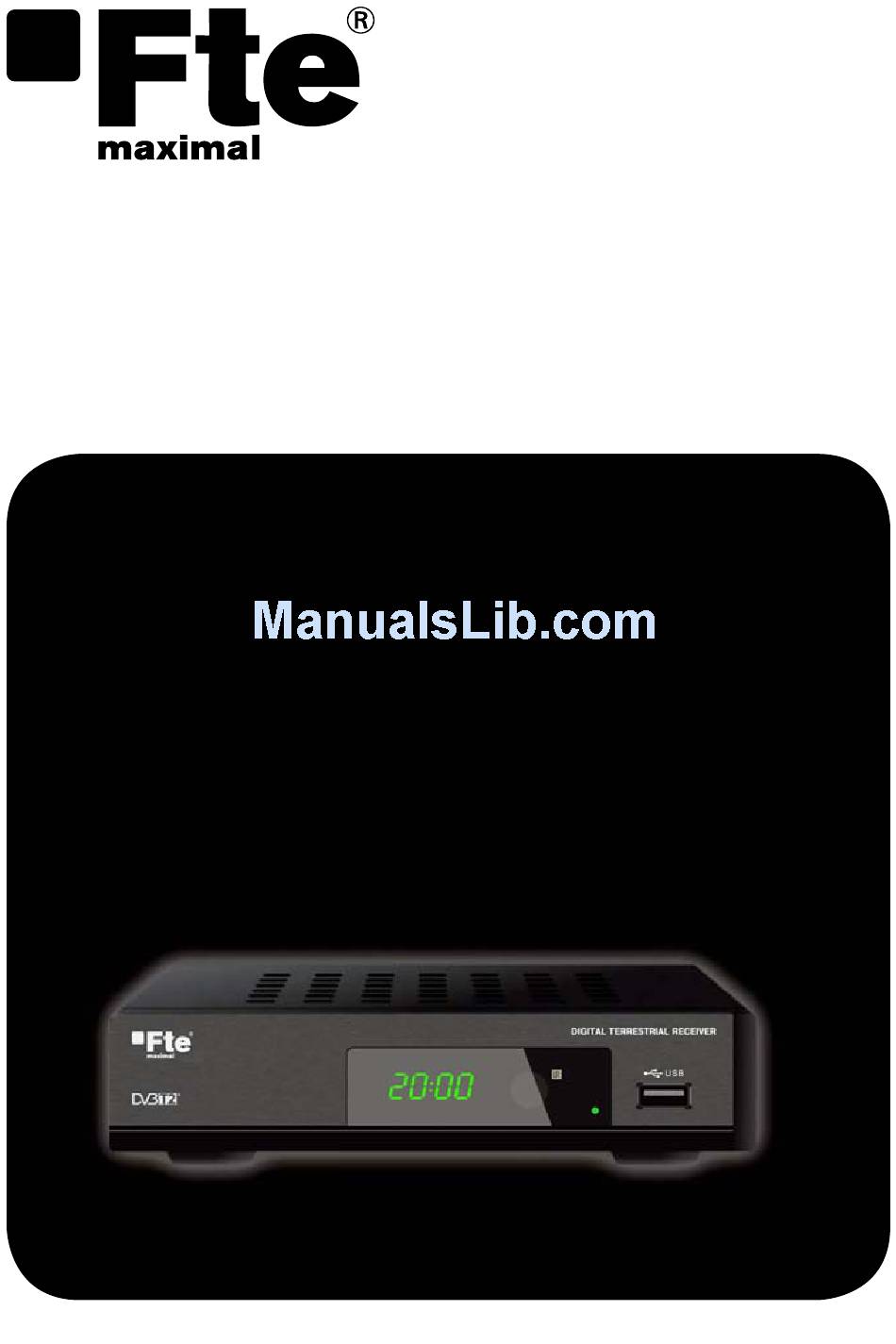

- Page 1 MAX T200 HD QUICK INSTALLATION GUIDE...
- Page 2 MAX T200 HD eNGlIsH QuicK installatiOn Guide...
-
Page 3: Remote Control
cONTeNT receIVer BATTerIeS x 2 reMOTe cONTrOL QuIck INSTALLATION GuIde PAG. ... - Page 4 QuIck INSTALLATION GuIde The lightning flash with The exclamation point Warning: To reduce the risk of electric shock, arrowhead symbol, within an within an equilateral triangle don’t open the cabinet. Refer servicing to equilateral triangle, is intended is intended to alert the user qualified personnel only.
-
Page 5: Step : Connections
QuIck INSTALLATION GuIde QuIck INSTALLATION GuIde Follow next steps for the correct installation of this receiver. STeP : cONNecTIONS Connect a coaxial cable from the output socket to the “RF IN” connector. Connect a coaxial cable from the “RF OUT” connector at the receiver to your TV input connector as it is shown in Scheme1. This receiver has not built in modulator so it has to be connected to the TV through a HDMI or SCART cable. - Page 6 QuIck INSTALLATION GuIde STeP 2: OuTPuT VIdeO cONFIGurATION The HDMI output of receiver will start in 720p mode by default, This mode should be supported by your TV HDMI input. Please verify in your TV manual that the HDMI input supports this video mode.
-
Page 7: Edit Channel
QuIck INSTALLATION GuIde edIT chANNeL TV Channel List: This option shows the list of TV stored channels. Radio Channel List: This option shows the list of Radio stored channels. Delete All: This option deletes all TV and Radio stored channels. INSTALLATION Auto Scan: This option make a full scan of all TV and Radio channels received. -
Page 8: Media Player
QuIck INSTALLATION GuIde TOOLS Information: This option shows the software information of the receiver Load Factory Settings: If this option is selected, a reset of the receiver will be done and it will load the factory default values. Software Upgrade by OTA: To update the receiver by OTA. Software Upgrade by USB: To update the receiver by USB Remove USB device safely: Allows remove USB device of safety way. -
Page 9: Panel & Remote Control Description
reMOTe cONTrOL & PANeL deScrIPTION . PANeL & reMOTe cONTrOL deScrIPTION .. FrONT PANeL deScrIPTION 1. DISPLAY: 4 Digits to display the program numbers. 2. Remote Sensor: Detects the infrared signals from the remote control unit. 3. STAND BY LED: Shows the state of the receiver 4. - Page 10 reMOTe cONTrOL & PANeL deScrIPTION . reMOTe cONTrOL deScrIPTION 1. STANDBY: Switches receiver ON or in stand-by-mode. 2. MUTE: Switches audio on and off. 3. Numeric keys: For direct typing values and names. 4. EPG: Shows the EPG information. 5. AUDIO: Opens audio menu. 6.
- Page 11 ESPAÑA UNITED ARAB EMIRATES Agustí Pi i Sunyer, 15 P.O.Box 262442 08192 Sant Quirze del Vallès BOUTIQUE VILLA #06, (Barcelona) España 2nd Floor Tel. +34 93 729 27 00 BEHIND KNOWLEDGE Fax. +34 93 729 30 73 VILLAGE MEDIA CITY info@ftemaximal.com Dubai - UAE Tel.
