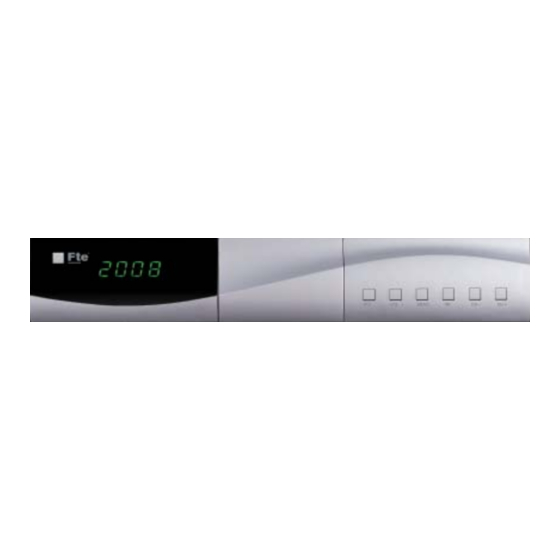

Summary of Contents for FTE Maximal MAX S101 HDMI

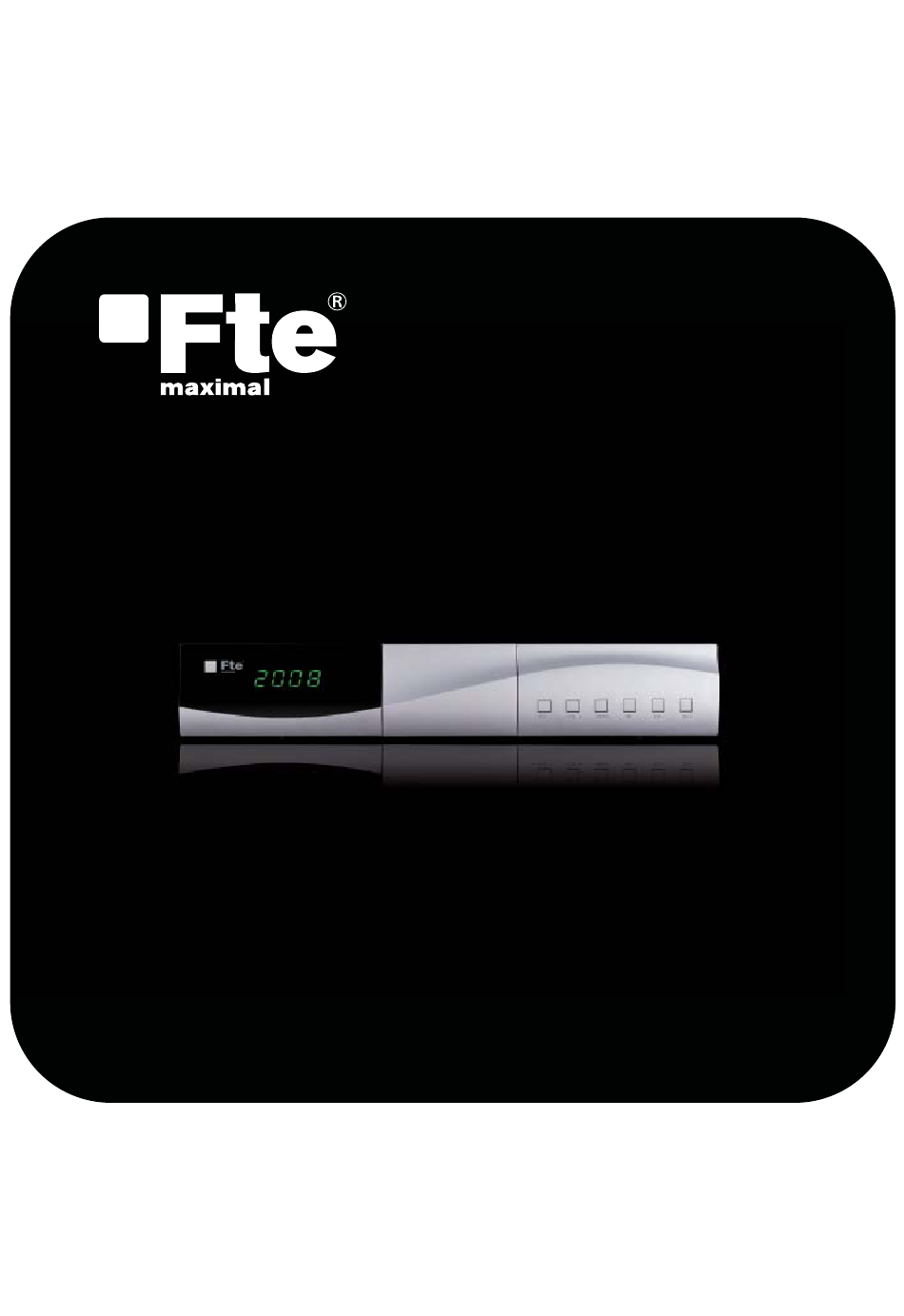

  • Page 1 MAX S101 HDMI...
  • Page 2 SAFETY PRECAUTION Warning: The lightning fl ash with The exclamation point arrowhead symbol, within To reduce the risk of electric shock, within equilateral don’t open the cabinet. Refer servicing an equilateral triangle, is triangle intended intended to alert the user to qualifi...
  • Page 3 QUICK INSTALLATION GUIDE QUICK INSTALLATION GUIDE FOLLOW NEXT STEPS FOR THE CORRECT INSTALLATION OF THIS RECEIVER. STEP 1: CONNECTIONS The coaxial cable, with satellite signal, must be connected to the “IF IN” connector. The “TV SCART” connector must be connector to the TV set. Depending on the type of installation, the receiver should be connected and confi...
  • Page 4 QUICK INSTALLATION GUIDE STEP 2: BASIC CONFIGURATION OF THE RECEIVER The receiver includes an installation assistant (Quick Setup) that will help you to setup the different parameters. When the receiver is turned on at fi rst time (using the button at the rear panel of the receiver), the next menu is shown on the TV (Image 1): The receiver is programmed with all the channels of Astra (at...
  • Page 5 QUICK INSTALLATION GUIDE recommend you to contact your installer or to refer to the user manual of this system to get the correct information. Single search : You can edit the following items (Image 2): 1. Satellite: Press [ ] to switch Satellites or press [OK] to enter satellite list to select directly.
  • Page 6 QUICK INSTALLATION GUIDE Multi search : You can edit the following items (Image 4): 1. On “Satellite” item press [OK] to open the satellite list. Then press [ ] to move the highlight and press [OK] to mark/unmark and [EXIT] to fi nish the selection. You can select several satellites in this menu.
  • Page 7 QUICK INSTALLATION GUIDE GMT has to be turned off. NOTE: If the current channel provides the correct time information, you will see the current time after you entered “Time” menu. If the channel doesn’t provide time information, you have to input the date and time information manually. The most channels support the time signal.
  • Page 8 QUICK INSTALLATION GUIDE TV Channel List: This option shows the list of TV stored channels. Radio Channel List: This option shows the list of Radio stored channels. Channel Setup: This option allows setting the receiver to start in a predefi ned channel. Favourite Channel List Name: It allows changing the name of the favourite groups.
  • Page 9 QUICK INSTALLATION GUIDE Language: This option allows choosing the language of the menus. TV System: This option allows choosing the video Standard and other parameters of the screen. Time & Timer Setting: Timer setting menu. OSD Setting: This option allows confi guring the subtitles of the channel information. Parental Lock: In this option, user can lock the access to the menu and change the password of the receiver.

  • Page 10: Table Of Contents

    INDEX Safety Precaution Caution…..………………….......………………………………………………12 1. Panel & Remote Control Description 1.1. Front Panel Description……........…………………………13 1.2. Rear Panel Description……........………….…………………..13 1.3. Remote Control Description…..........…………………………..14 2. Basic Operations 2.0. Switch on STB………………………........………………………………...14 2.1. Standby ……………………..........…………………………………...15 2.2. TTX …………..........……………………………………..15 2.3. Mute……………..........………………………………………..15 2.4. Channel Number…………......……………………………………………………15 2.5.
  • Page 11 INDEX 3.3 Channel Setup…………........………………………………..22 3.3.1. Start-up Channel……………........……………………………..22 3.3.2. Channel Play Type………......…………………………………..22 3.4. Favourite Channel List Name……..……………………………………..22 3 . 5 . D e l e t e A l l … … ....… … … … … … … … … … … … … … … … … … . 2 2 3.6.

  • Page 12: Safety Precaution

    SAFETY PRECAUTION The lightning fl ash with Warning: The exclamation point To reduce the risk of electric shock, arrowhead symbol, within within equilateral an equilateral triangle, is don’t open the cabinet. Refer servicing triangle intended to qualifi ed personnel only. intended to alert the user to alert the user to to “dangerous voltage”...

  • Page 13: Panel & Remote Control Description

    PANEL & REMOTE CONTROL DESCRIPTION 1. PANEL & REMOTE CONTROL DESCRIPTION 1.1. FRONT PANEL DESCRIPTION 1. POWER: Switches the receiver on, or enters standby mode. To completely switch off the receiver, you have to use the switch on the back of the receiver. 2.

  • Page 14: Remote Control Description

    PANEL & REMOTE CONTROL DESCRIPTION 1.- Power 2.- Text 3.- Mute 4.- Numbers 5.- “0” 6.- CH+/CH- 7.- TV/R 8.- VOL+/VOL- 9.- Exit 10.- Menú 11.- Back 12.- OK 13.- EPG 14.- List 15.- Fav 16.- Audio 17.- Info 18.- Fav+/Fav- 19.- Pup/Pdw 20.- Zoom 21.- Sub...

  • Page 15: Standby

    BASIC OPERATIONS 2.1. STANDBY 1. Press [Power] button to switch from TV mode to Standby mode. 2. In Standby mode press [Power] button again to switch back to TV mode. The last active channel will be showed. 3. To switch off the STB complete press the main power button (placed at the rear panel of the receiver).

  • Page 16: Vol+/Vol

    BASIC OPERATIONS 2.8. VOL+/VOL- In TV mode, press [Vol+/Vol-] to adjust volume. 2.9. EXIT Press [Exit] button to exit the current menu. 2.10. MENU Press [Menu] button to enter or exit the current menu. 2.11. RECALL Pressing the [Back] button allows you to toggle between the actual and the last selected channel.

  • Page 17: Epg

    BASIC OPERATIONS 2.13. EPG 1. The STB supports Electronic Program Guides (EPG) to give you information about the actual programs of certain channels like event name, subtitle, description, start and fi nish time. This feature is depending on the service of the channel provider. Press [EPG] to open the EPG window (OSD 7).

  • Page 18: Information

    BASIC OPERATIONS 2.17. INFORMATION In TV mode, press [INFO] button can open information screen (OSD 12), in the window shows the parameters of current channel. 2.18. FAV +/- 1. In TV mode press the [FAV+/FAV-] buttons to switch between the favourites channels in the current Favourite Group OSD 12 directly.

  • Page 19: Channel

    CHANNEL 3. CHANNEL Press [Menu] in the TV mode to enter the main menu (OSD 15). 1. Press [ ] to select the Channel item. 2. Press [OK] to enter the selected item. In the Channel menu (OSD 16): 3. Press [ ] to select the wanted menu item.

  • Page 20: Move

    CHANNEL 3.1.2. MOVE 1. To move/change channels: Pushing the [Red] button, you will see a picture like OSD 19. You will be able to move or change the position of the channels: - Push again the [Red] button to move the channel. - Push the [Green] button to change the position of the channel.

  • Page 21: Lock

    CHANNEL 3.1.4.3 LOCK In Channel Edit menu, press [Yellow] button to place a Lock icon behind the name of the highlighted channel. Marked channels OSD 24 (OSD 24) will be locked and displayed only after password has been entered if you confi rm to save the changes when you leave this menu.

  • Page 22: Radio Channel List

    CHANNEL 3.2. RADIO CHANNEL LIST Basically the operation of “Radio Channel List” is same as “TV Channel List”, except that in the small channel window the Fte Logo will be displayed (OSD 29). 3.3. CHANNEL SETUP When you enter the “Channel Setup” menu you will see a OSD 29 screen like beside (OSD 30): 3.3.1.

  • Page 23: Restore Channel List And Settings

    CHANNEL 2. After entering the password correct a safety question will show up where you have to confi rm fi rst (OSD 35 next page). 3. Select “Yes” to delete all channels or “No” to cancel and confi rm with [OK]. 4.

  • Page 24: Installation

    INSTALLATION 4. INSTALLATION Press [Menu] in the TV mode to enter the main menu (OSD 38). 1. Press [ ] to select the Installation item. 2. Press [OK] to enter the selected item. In the Installation menu (OSD 39): OSD 38 3.

  • Page 25: Multi Search

    INSTALLATION 3. DiSEqC1.0: Use [ ] to switch the options of DiSEqC switches. 4. On “TP Index” item use [ ] to select the desired transponder. 5. In the “FTA Only” item, press [ ] to select to scan only free channels or even scrambled channels.

  • Page 26: Tp Scan

    INSTALLATION 4.3. TP SCAN When you enter “TP Scan” menu a window like the one beside will be displayed (OSD 46): 1. On “Satellite” item, press [ ] to select the satellite you want to scan or press [OK] to open the satellite list for selection.

  • Page 27: Satellite Guide

    INSTALLATION will search the selected TP. In case you select “On”, the NIT (Network Identifi cation) will be identifi ed and the receiver will automatically search all the TP of this network. 6. Press [OK] to start scanning. 7. On the “TP Scan” item, press [Exit] to cancel the scanning and saving the found channels.

  • Page 28: System Setup

    SYSTEM SETUP 5. SYSTEM SETUP Press [Menu] in the TV mode to enter the main menu (OSD 55). 1. Press [ ] to select the System Setup item. 2. Press [OK] to enter the selected item. In the System Setup menu (OSD 56): OSD 55 3.

  • Page 29: Time & Timer Setting

    SYSTEM SETUP 1. Display Mode is used to switch the display mode. You can select from Auto / PAL / PAL-M / PAL-N / NTSC 3.58. Press ] to select the desired mode. 2. Aspect Mode is used to switch the screen aspect ratio mode. You can select from Auto / 4:3 PS / 4:3 LB / 16:9.

  • Page 30: Local Time Setting

    SYSTEM SETUP - Wakeup Date: use number buttons to input your wakeup date. - On Time: use number buttons to input your wakeup time. If date and time are reached then no matter if the system is in standby mode or in playing mode, it will automatically switch to the channel you set and start to play.

  • Page 31: S L E E P T I M E

    SYSTEM SETUP 5.3.3. SLEEP TIMER Press [OK] button in this option to set the sleep timer. You will see “SLEEP TIME OFF / SLEEP TIME 10 / SLEEP TIME 30 / SLEEP TIME 60 / SLEEP TIME 90 / SLEEP TIME 120”. (OSD 65) If you set a sleep time, the system will change to Standby mode after the chosen time period.

  • Page 32: Lnb Power

    SYSTEM SETUP by unauthorized persons. To change the password, enter the new password in the “New Password” item and repeat the same one in the “Confi rm Password” item. If the passwords are not identically then you will see a warning message. If you entered the same new password in both fi...

  • Page 33: Tools

    TOOLS 6. TOOLS Press [Menu] in the TV mode to enter the main menu (OSD 71). 1. Press [ ] to select the Tools item. 2. Press [OK] to enter the selected item. In the Tools menu (OSD 72): OSD 71 3.

  • Page 34: Game

    TOOLS 6.3. GAME When you enter “Game” menu, you will see three Games include Tetris, Snake and Othello (OSD 75). 6.3.1. TETRIS 1. Mark “Setup” and press [ ] to select the level (speed). 2. Mark “Start” and press [OK] to start the game. 3.

  • Page 35: Software Update

    TOOLS 6.5. SOFTWARE UPGRADE There are two ways of upgrading the software of the receiver as you can see at OSD 77. 6.5.1. RS232 UPGRADE 1. This function allows you to upgrade the software of the receiver. This can be done from PC to receiver or from a master receiver to a slave receiver.
  • Page 36 TOOLS menu and press [OK]. The screen will show the message “OK to Proceed” (OSD 80). 3. Press [OK] again and you will see the message “Ready to Download” (OSD 81). 4. In the PC application set the Baud Rate to 115200 and start the download procedure.

  • Page 37: Technical Specification

    TECHNICAL SPECIFICATION 7. TECHNICAL SPECIFICATION VIDEO Decoding MPEG-2 & MEPG-1 compatible Bit rate Max 15Mbps Output PAL/NTSC Aspect ratio 4:3, 16:9, Auto Active pixel 720x480 @ 30fps; 720x576 @25fps Output connector Scart / HDMI AUDIO Decoding MPEG-2/MPEG-1 layer I & II Mode Mono, Dual, Stereo, Joint stereo Bit rate...

  • Page 38: Conformity Declaration

    CONFORMITY DECLARATION “WE , FTE MAXIMAL, DECLARE THAT THE PRODUCTS MAX S101 HDMI IS IN CONFORMITY WITH FOLLOWING DIRECTIVES LOW VOLTAGE DIRECTIVE 2006/95/EC EMC DIRECTIVE 2004/108/EC” PAG. 38...
