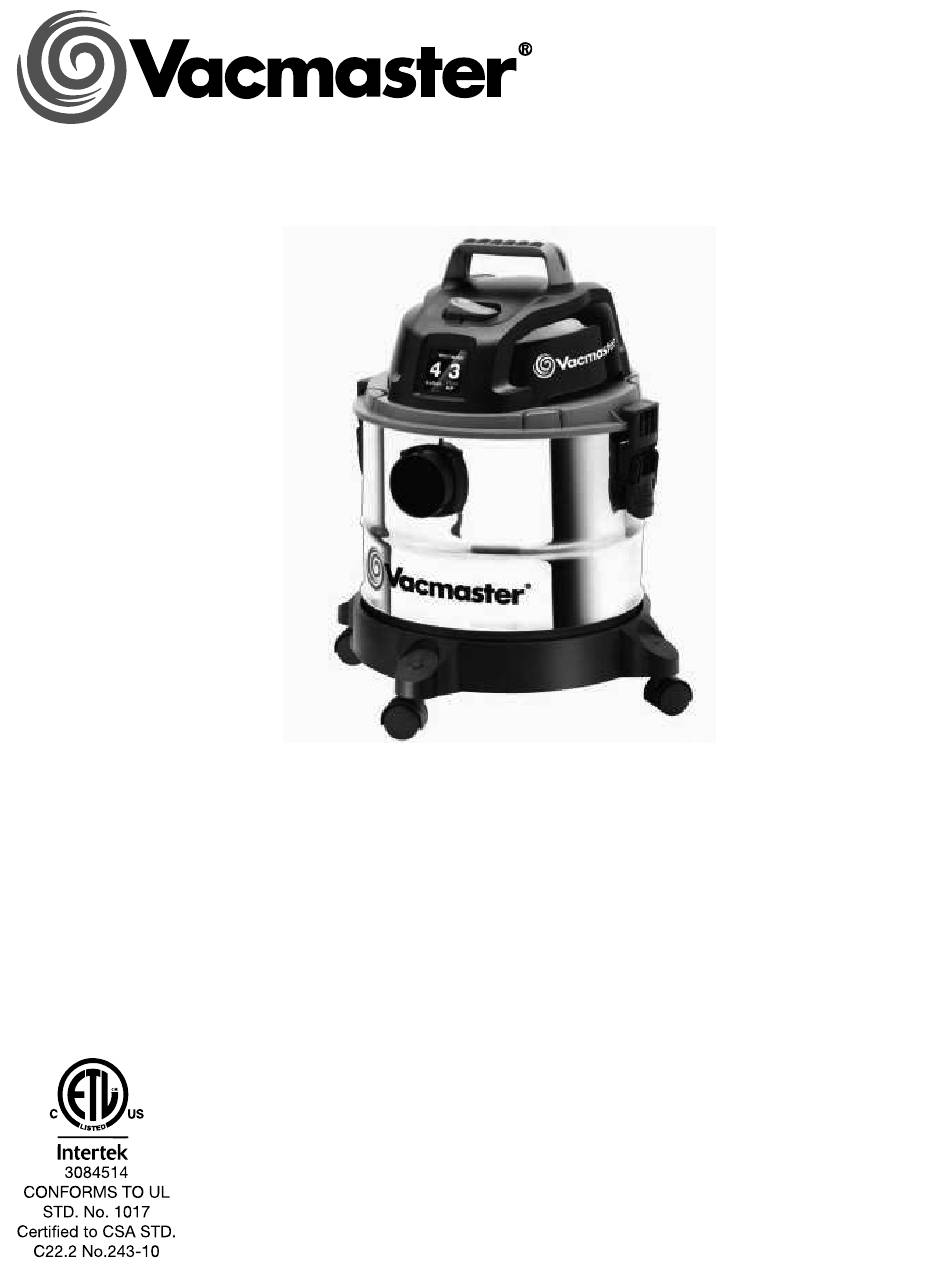

- Page 1 Wet/Dry Vacuums Operator’s Manual 4 Gallon Model No. VQ407S-A FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. www.vacmaster.com Cleva North America 601 Regent Park Court Greenville, SC 29607...
-
Page 2: Table Of Contents
CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS WARRANTY We take pride in producing a high quality, durable product. This Vacmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. -
Page 3: Safety Instructions And Warnings
Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury or damage to your Wet/Dry Vac, use only Vacmaster® recommended accessories. Household Type SAVE THIS MANUAL FOR FUTURE REFERENCE. -
Page 4: Double Insulation Instructions
DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac. -
Page 5: Unpacking And Checking Carton Contents
UNPACKING AND CHECKING CARTON CONTENTS Remove entire contents from carton. Check each item against the contents list. Contents List Description……………………..…….…QTY Vac Assembly…………………………….. Hose…........... Extension Wands..…………………..2-in-1 Utility Nozzle……………………..Crevice Tool……………………………… Multi-Surface Floor Nozzle..….……….. Reusable Cloth Filter….………………... Foam Sleeve Filter……….….…………... Collection Bag……….……….….……..Casters………………………………...….. -
Page 6: General Assembly Instructions
GENERAL ASSEMBLY INSTRUCTIONS A Philips head screwdriver is required for assembly. WARNING : DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC. UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY 1. Verify that the power cord is disconnected from the outlet. (fig.1) 2. -
Page 7: Dry Vacuum Operation
POLARIZED PLUG To reduce the risk of electrical shock, this appliance has a double polarized plug (one with the blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. -
Page 8: Wet Vacuum Operation
6. Plug in the power cord into the outlet. (fig.7) 7. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig.8) 8. Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord from the outlet. -
Page 9: Blower Operation
wet vacuuming, turn the machine off and remove plug from power supply. Empty the container, clean and dry the inside and outside before storage. REMEMBER! The foam filter must be removed after wet vacuuming, and a reusable cloth filter must be installed before dry vacuuming again. -
Page 10: Installing & Cleaning Reusable Cloth Filter
3. Undo the latches and remove the power head from the container. (fig.3) 4. Clear all dirt or debris from the container and hose. (fig.4) 5. Check the hose, attachments, and power cord to verify that they have not been damaged. IMPORTANT! Clean or change the reusable cloth filter regularly for best performance. -
Page 11: Installing Dust Collection Bag
2. Remove power head and place in upside down position. Follow instructions to remove reusable cloth filter, see page 10. 3. Carefully slide foam sleeve filter down over the filter cage making sure the whole cage is covered. (fig.2 & 3) 4. -
Page 12: Exploded View And Parts List
PARTS LIST - EXPLODED VIEW...
