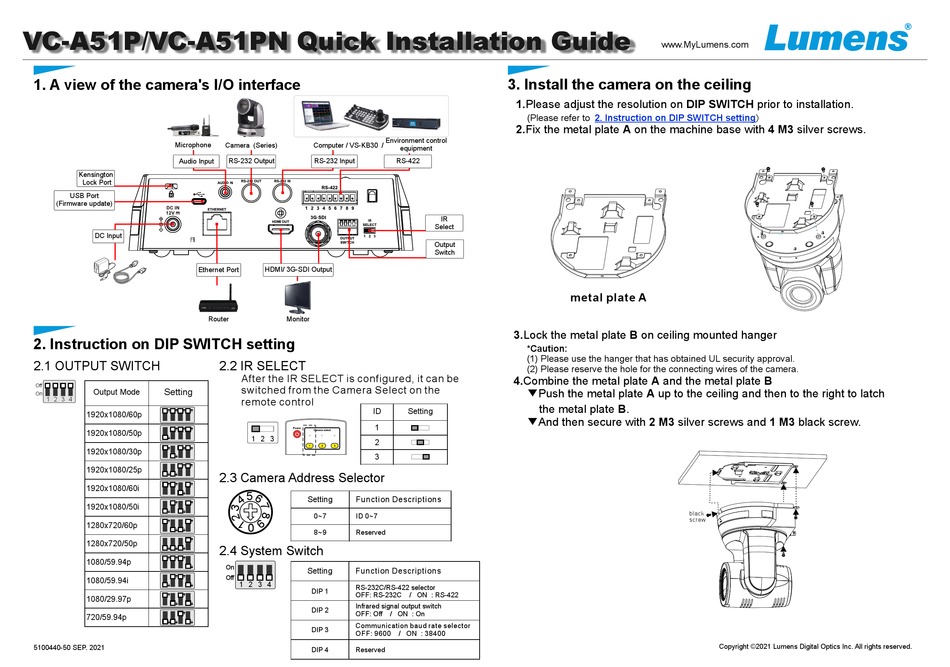

VC-A51P/VC-A51PN Quick Installation Guide

1. A view of the camera's I/O interface

Microphone
Audio Input
Kensington
Lock Port
USB Port
(Firmware update)
DC Input
Ethernet Port

2. Instruction on DIP SWITCH setting

2.1 OUTPUT SWITCH
Off
Output Mode Setting
On
1 2 3 4
1920x1080/60p
1920x1080/50p
1920x1080/30p
1920x1080/25p
1920x1080/60i
1920x1080/50i
1280x720/60p
1280x720/50p
1080/59.94p
1080/59.94i
1080/29.97p
720/59.94p
5100440-50 SEP. 2021
Environment control
Camera (Series) Computer / VS-KB30 /
RS-232 Output RS-232 Input
HDMI/ 3G-SDI Output
Router Monitor
2.2 IR SELECT
After the IR SELECT is configured, it can be
switched from the Camera Select on the
remote control
ID
1
1 2 3
2
3
2.3 Camera Address Selector
Setting Function Descriptions
0~7 ID 0~7
8~9 Reserved
2.4 System Switch
On
Setting Function Descriptions
Off
1 2 3 4
RS-232C/RS-422 selector
DIP 1
OFF: RS-232C
Infrared signal output switch
DIP 2
OFF: Off
Communication baud rate selector
DIP 3
OFF: 9600
DIP 4 Reserved

3. Install the camera on the ceiling

1.Please adjust the resolution on DIP SWITCH prior to installation.
(Please refer to
2.Fix the metal plate A on the machine base with 4 M3 silver screws.
equipment
RS-422
IR
Select
Output
Switch
3.Lock the metal plate B on ceiling mounted hanger
*Caution:
(1) Please use the hanger that has obtained UL security approval.
(2) Please reserve the hole for the connecting wires of the camera.
4.Combine the metal plate A and the metal plate B
▼Push the metal plate A up to the ceiling and then to the right to latch
the metal plate B.
Setting
▼And then secure with 2 M3 silver screws and 1 M3 black screw.
/ ON : RS-422
/ ON : On
/ ON : 38400
www.MyLumens.com
2. Instruction on DIP SWITCH setting
metal plate A
black
screw
Copyright ©2021 Lumens Digital Optics Inc. All rights reserved.
)
