2.5

Installing the Slim FDD (Option)

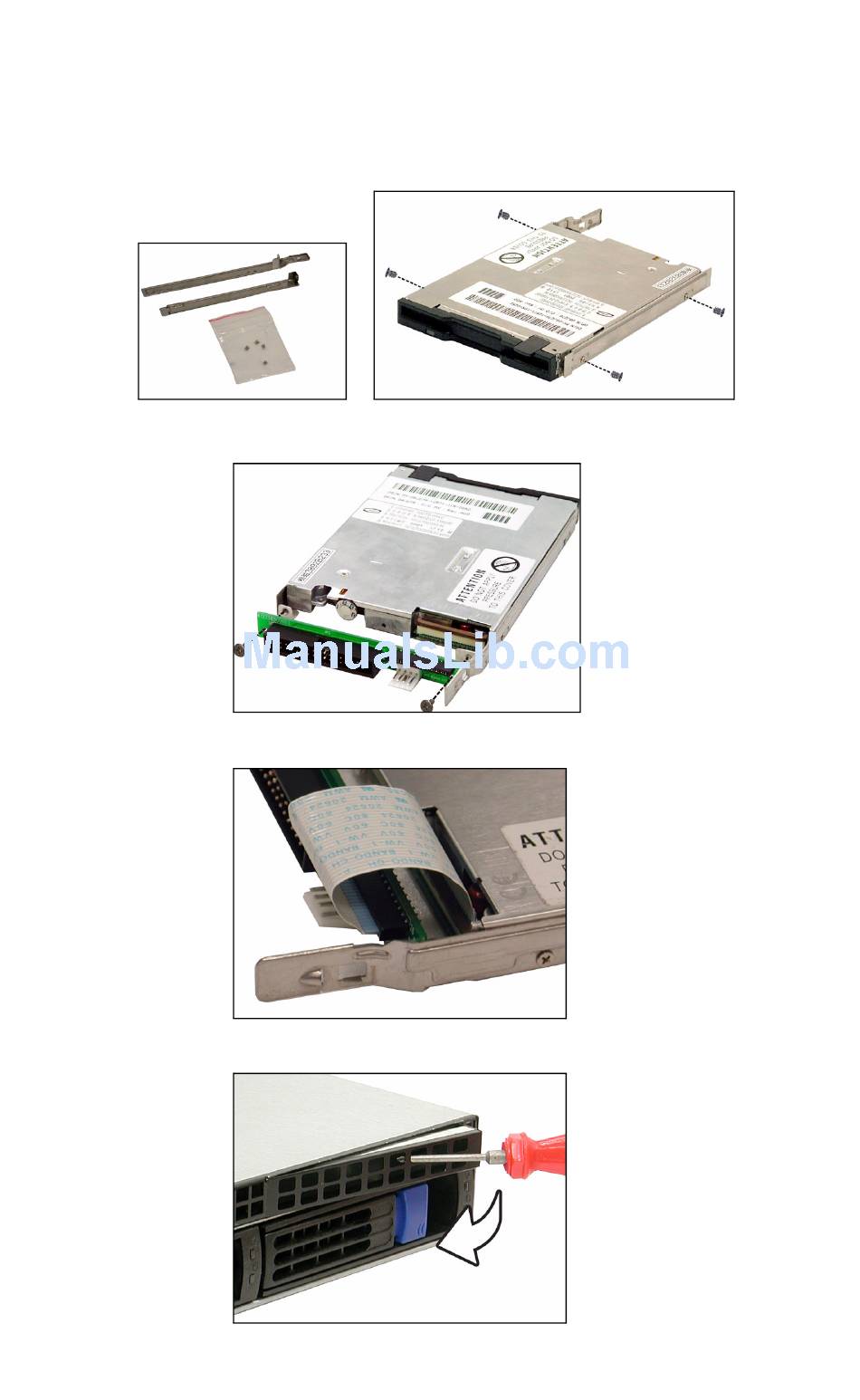

1. Locate the two FDD rails and screws from the FDD kit.
Secure the two rails to FDD using four screws.
FDD Rails & Screws
2. Connect the FDD backplane to FDD using 2 screws.
3. Connect the FFC cable to FDD.
4. Using a screw driver to pull open the door of FDD tray.
34 Chapter 2: Setting Up
