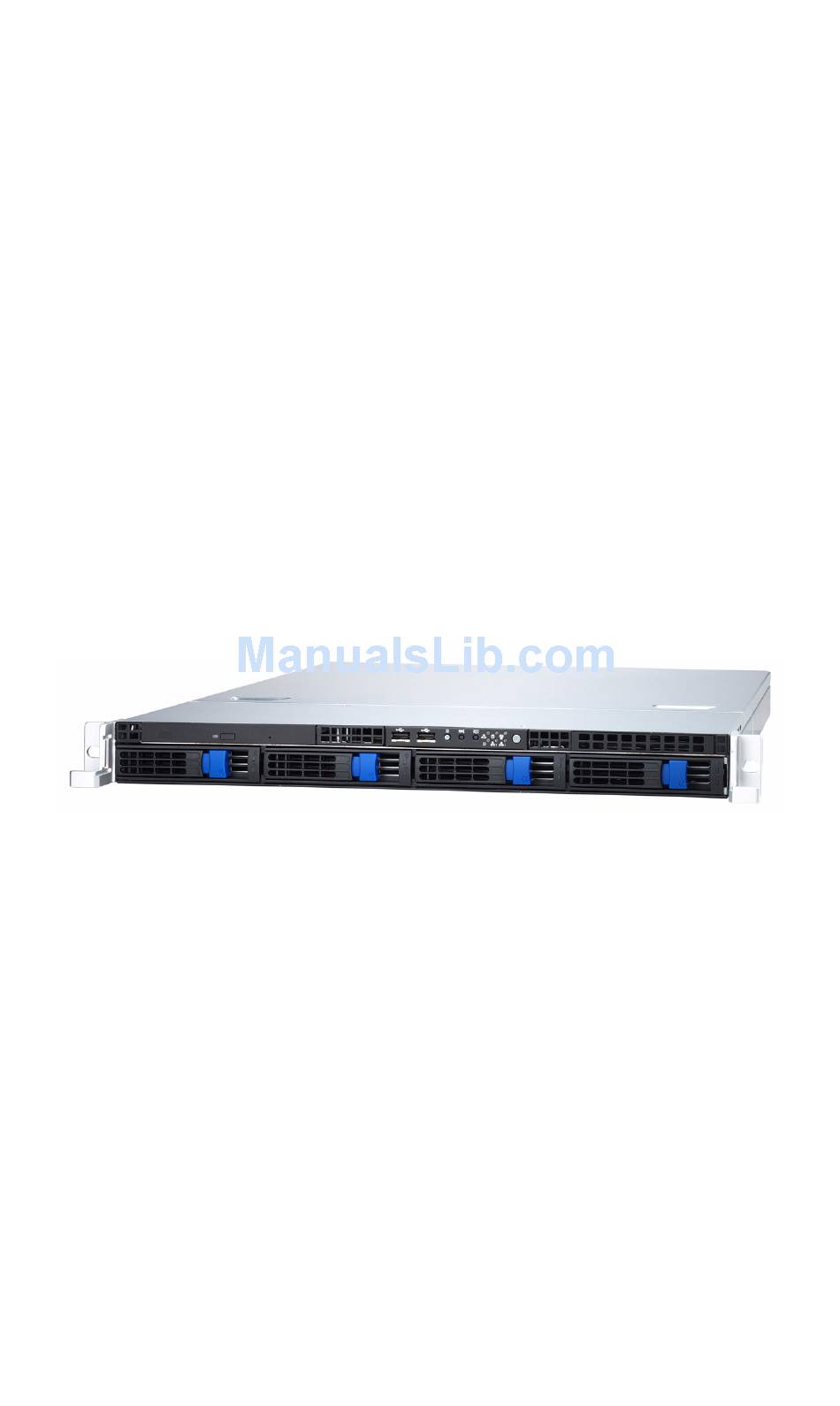

Transport GT20
B5161
Service Engineer's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transport GT20 B5161 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TYAN Transport GT20 B5161

Summary of Contents for TYAN Transport GT20 B5161

  • Page 1 Transport GT20 B5161 Service Engineer’s Manual...
  • Page 3 All registered and unregistered trademarks and company names contained in this manual are property of their respective owners including, but not limited to the following. TYAN and Transport GT20 B5161 are trademarks of TYAN Com- puter Corporation. Intel, Prescott, and combinations thereof are trademarks of Intel Corporation.

  • Page 4: Notice For Canada

    Federal Communications Commission (FCC) Operation is subject to the following conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received including inter- ference that may cause undesired operation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one or more of the following measures:...

  • Page 5: About This Manual

    About this Manual This manual provides you with instructions on installing your Transport GT20. This manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts Chapter 1: Chapter 2: Chapter 3: Appendix: For information on the mainboard, please refer to the attached main-...

  • Page 6: Safety Information

    SAFETY INFORMATION Before installing and using the Transport GT20, take note of the fol- lowing precautions: – Read all instructions carefully. – Do not place the unit on an unstable surface, cart, or stand. – Do not block the slots and opening on the unit, which are pro- vided for ventilation.

  • Page 7: Table Of Contents

    Chapter 1:Overview 1.1 About the Transport GT20 B5161 ......1 1.2 Features ..........2 1.3 Unpacking .
  • Page 8 3.5 Replacing the LED Control Board ......39 3.6 Replacing the M1012 Adapter Board ..... . 41 3.6.1 M1012 Adapter Board Features.

  • Page 9: Chapter 1:Overview

    About the Transport GT20 B5161 Congratulations on your purchase of the TYAN Transport GT20 (B5161), a highly-optimized rack-mountable barebone system. The Transport GT20 (B5161) offers the latest proces- sor server system, providing a rich feature set and incredible performance. Leveraging advanced technology from Intel...

  • Page 10: Features

    Features Enclosure • Industry 19” rack-mountable 1U chassis storage bay • Storage bay – (4) 3.5” HDD bays – (1) slim line CD-ROM bay • Dimension: D 22.4 x W 17.2 x H 1.72 inch (568 x 436 x 43.6mm) Processors •...
  • Page 11 Server Management • System fan speed control and moni- toring • Chassis intrusion alert • Supports Tyan Server Management (TSM) • Tyan SMDC, IPMI 2.0 compliant remote server management kit (optional) Regulatory • FCC Class B (Declaration of Con- formity) •...

  • Page 12: Unpacking

    Unpacking 1.3.1 Opening the Box Open the box carefully and ensure that all components are present and undamaged. The product should arrive pack- aged as illustrated below. Contact your distributor if anything is missing or appears damaged. Packaged box contents Packaged accessories Chapter 1: Overview...

  • Page 13: Box Contents

    1.3.2 Box Contents The box includes the following main units. Component Description Industry standard 1U chassis, (4) hot-swap fixed HDD bays Tyan Tomcat i7230B S5161 motherboard (pre-installed) 24x slim CD-ROM drive (pre-installed) LED and USB control board (pre-installed) EPS 1U, 350W with PFC (pre-installed) (5) Fans (40 mm x 28 mm) Chapter 1: Overview...

  • Page 14: Accessories

    1.3.3 Accessories If any items are missing or appear damaged, contact your retailer or browse to Tyan’s Web site for service. 1 x Tyan driver CD HDD Screws Mounting Ears & Screws Barebone/Mainboard Manual SMDC Kit Power Cords Left to right: Europe, US Heatsink x 1 M2082-2 Riser Card Chapter 1: Overview...
  • Page 15 FDD Kit FDD Cable FDD Rails & Screws FDD Backplane Cable Rail Kit Front Rear Sliding Brackets Front L-Bracket x 2 Mounting Bracket x 4 Rear L-Bracket x 2 Screws Kit Sliding Rails x 2 Chapter 1: Overview...

  • Page 16: About The Product

    About the Product The following views show you the product. 1.4.1 Front View USB Ports CD-ROM Drive 1.4.2 Rear View Power Supply Socket USB Port x 2 Serial Port VGA Port NMI Switch ID Switch ID LED 2x LAN LEDs Hard Drive Bay x 4 PS/2 Mouse/Keyboard Ports LAN Port (NIC3)

  • Page 17: Led Definition

    1.4.3 LED Definition Front Pane Power HDD Activity LAN1/LAN2 Activity Warning Hot Swappable HDD Tray Power LED Hot Swappable HDD Tray Access ID LED Rear I/O LED RJ45 NIC1 Linkage (Left Side) RJ45 NIC1 Mode (Right Side) RJ45 NIC2 Linkage (Left Side) Chapter 1: Overview Color...
  • Page 18 RJ45 NIC2 Mode (Right Side) RJ45 NIC3 Linkage (Left Side) RJ45 NIC3 Mode (Right Side) ID LED NOTE: “Right” or “Left” is viewed from the rear. Amber Green Green Green Blinking Green Blue Gigabit mode 100M mode 10M mode LAN linked LAN accessing No LAN linked 100M mode...

  • Page 19: Internal View

    1.4.4 Internal View 1. PCI-X Slot 2. Link Bar 3. Memory Slots 4. EPS 12V Power Supply 5. CPU Socket 6. System Fans (Left to right: FAN5, FAN4, FAN3, FAN2, FAN1) 7. Adapter Board 8. SATA Backplane Chapter 1: Overview 9.

  • Page 20: Motherboard Block Diagram

    1.4.5 Motherboard Block Diagram Chapter 1: Overview...

  • Page 21: Motherboard Layout

    1.4.6 Motherboard Layout USBx2 LAN3 COM1 LAN1 LAN2 J P1 J P2 COM2 Chapter 1: Overview INTEL E7230 DDRII 4 DDRII 3 DDRII 2 DDRII 1 PCIX-P1 PCIX-P1 BIOS PCIX-E1 PCIX-E1 JP15 J 13 J 11 J 12 J 10 SMDC JP14...
  • Page 22 Jumper /Connector COM2 Header J7/J9 Chassis Fan Connector SO-DIMM Socket J13/J14/J18 Front Fan Connector CPU Fan Connector J21/J22/J24/J25 Serial ATA RAID Connector JP1/JP2 SMDC/ASF2.0 Select Header LAN3 Enable/Disable Jumer PCI-X Speed Select Header JP7/JP9 Front Panel USB2.0 Connector JP14 SMDC Connector JP15 Front Panel Header JP16...

  • Page 23: Chapter 2:Setting Up

    2.0.1 Before You Begin This chapter explains how to install the CPU, CPU heatsink, memory modules, and hard drives. Instructions on inserting a PCI card are also given. Take note of the precautions mentioned in this section when installing your system. 2.0.2 Work Area Make sure you have a stable, clean working environment.

  • Page 24: Precautions

    2.0.4 Precautions Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Transport GT20 or injury to yourself. •...

  • Page 25: Rack Mounting

    Rack Mounting After installing the necessary components, the Transport GT20 can be mounted in a rack using the supplied rack mounting kit. Rack mounting kit Sliding Rails x 2: Sliding Brackets x 4 (Front x 2, Rear x 2) Mounting Ears x 2 Screws Kit x 1 Mounting Brackets x 4 2.1.1 Installing the Server in a Rack...
  • Page 26 Installing the Inner Rails to Chassis 1. Screw the mounting ear to each side of Transport GT20 as shown using 2 screws from the supplied screws kit. 2. Draw out the inner rails from rail assembly. Install inner rails to left and right sides of chassis using 2 M4-5L(D) screws for each side.
  • Page 27 4. Locate the front and rear brackets. Front Bracket x2 5. Reserve 90mm for Transport GT20 on the front bracket. Secure the front bracket to outer rail with 2 M4-4L(C) screws. Chapter 2: Setting Up Rear Bracket x2 M4-4L(C) Screw *Remember to add washer.
  • Page 28 6. Reserve the distance same as in Step 2 on rear bracket. Secure the rear bracket to outer rail with 2 M4-4L(C) screws. Front Side 7. Secure the outer rail to the rack using 2 brackets and 4 M4-8L(E) screws for each side (A). Secure the mounting brackets from inside, not outside, of the rack (B).
  • Page 29 Rackmounting the Server 8. Draw out the middle rail to the latch position. 9. Lift the chassis and then insert the inner slide rails into the middle rails. 10. Push the chassis in and press the latch key (A). Then push the whole system into the rack (B).
  • Page 30 11. Secure the mounting ears of chassis to the rack with 2 M4-15L(F) screws. NOTE: To avoid injury, it is strongly recommended that two people lift the Transport GT20 into the place while a third per- son screws it to the rack. Chapter 2: Setting Up...

  • Page 31: Installing Motherboard Components

    Installing Motherboard Components This section describes how to install components on to the motherboard, including CPU, memory modules and PCI card. 2.2.1 Removing the Chassis Cover Follow these instructions to remove the Transport GT20 chassis cover. 1. Release the screw on the back side. Then slide the chas- sis cover in the direction of arrow.

  • Page 32: Installing The Cpu, Heatsink And Air Duct

    2.2.2 Installing the CPU, Heatsink and Air Duct Follow these instructions to install the CPU, CPU heatsink and air duct. 1. Release the pre-installed air duct. Locate the CPU socket. 2. Remove the cover on the CPU socket. Locate the lever of CPU socket. CPU socket Chapter 2: Setting Up...
  • Page 33 4. Press and pull the lever in the direction as illustrated.. 5. Open the socket in the direction as illustrated. 6. Place CPU on the socket, ensuring that the edge with tri- angle mark aims at the edge of socket with triangle mark. Chapter 2: Setting Up...
  • Page 34 7. Close the cover and secure the CPU socket in the reverse procedures from step 2 to 6. 8. Secure the heatsink with 4 screws. NOTE: Remember to install the washer and nut while installing the screws. 9. Secure the air duct with 2 screws. Chapter 2: Setting Up...

  • Page 35: Installing The Memory

    2.2.3 Installing the Memory Follow these instructions to install the memory modules on the motherboard. 1. Locate the memory slots on the motherboard. 2. Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. 3.

  • Page 36: Installing A Pci Card

    2.2.4 Installing the PCI Card Follow these instructions to install a PCI card. 1. Push the tab of PCI slot on the rear panel in the direction as shown to release the bracket. 2. Move the bracket to right as shown and then take off the bracket (A).

  • Page 37: Installing The Hard Drive

    Installing the Hard Drive The Transport GT20 barebone system supports Serial ATA hard drives. Follow these instructions to install a SATA hard drive. 1. Press the locking lever latch in the direction of arrow (A) and then pull the locking lever open (B). 2.
  • Page 38 4. Using 4 HDD screws to secure the HDD. 5. Reinsert the drive tray into the chassis (A), ensuring that the drive tray is completely inserted into the chassis (B). 6. Pressing the locking lever to secure the hard drive tray. Chapter 2: Setting Up...

  • Page 39: Installing The Slim Fdd (Option)

    Installing the Slim FDD (Option) 1. Locate the two FDD rails and screws from the FDD kit. Secure the two rails to FDD using four screws. FDD Rails & Screws 2. Connect the FFC cable to FDD. 3. Use a screw driver to take off the door of FDD tray. 4.
  • Page 40 5. Connect the FFC cable to the FDD connector on M1012 adapter board. 6. Locate the FDD cable from FDD kit. Connect the wrinkle side to the connector on M1012 adapter board. Refer to the picture below for the correct direction. For Mainboard 7.

  • Page 41: Chapter 3:Replacing Pre-Installed Components

    Chapter 3: Replacing Pre-Installed Introduction This chapter explains how to replace pre installed compo- nents including the motherboard, LED control board, HDD, and CD-ROM drive. Take note of the precautions in this section when installing your system. 3.1.1 Work Area Make sure you have a stable, clean working environment.

  • Page 42: Precautions

    3.1.3 Precautions Components and electronic circuit boards can be damaged by static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Transport GT20 or injury to yourself.

  • Page 43: Disassembly Flowchart

    Disassembly Flowchart The following flowchart outlines the disassembly procedure. Rear Components Chassis rear cover Air duct Mainboard Power supply PCBs Control Board Chapter 3: Replacing Pre-Installed Components DIMMs CPU/heatsink assembly PCI card Mainboard Front Components Chassis rear cover CD-ROM M1012 Adapter Board Backplane...

  • Page 44: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow these instructions to remove the Transport GT20 chassis cover. 1. Release the screw on the back side. Then slide the chas- sis cover in the direction of arrow. 2.

  • Page 45: Replacing Motherboard Components

    Replacing Motherboard Components Follow these instructions to replace motherboard compo- nents, including the motherboard. 3.4.1 Disconnecting All Motherboard Cables Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all motherboard cabling. 1.

  • Page 46: Removing The Motherboard

    3.4.2 Removing the Motherboard Follow these instructions to remove the motherboard from the chassis when all add-on components have been removed. 1. Release the two screws securing the link bar. 2. Remove the link bar. 3. Remove the eleven screws securing the motherboard to the chassis.

  • Page 47: Replacing The Led Control Board

    Replacing the LED Control Board Follow these instructions to remove the LED control board. 1. Remove the 2 screws securing the LED control board to the chassis. 2. Pull the LED control board free from the chassis and unplug the ribbon and USB cables from the connector. 3.
  • Page 48 4. Release the LED control board from the chassis. After replacement, insert and secure the unit to the chassis fol- lowing the reverse procedures from step 1~3. Chapter 3: Replacing Pre-Installed Components...

  • Page 49: Replacing The M1012 Adapter Board

    Replacing the M1012 Adapter Board 1. Before replacing M1012 adapter board, you must discon- nect the four SATA cables connected to the SATA back- plane. After that, disconnect all the cables connected to the M1012 adapter board. 2. Remove the Front Panel, LAN/ID LED and Fan Tach cables.
  • Page 50 4. Remove one power cable connected to M1012 adapter board and two power cables connected to SATA back- plane. 2x power cables on SATA backplane 1x power cable on M1012 5. Remove the 6 screws securing the M1012 adapter board. After that, you can release the M1012 adapter board from the chassis.

  • Page 51: M1012 Adapter Board Features

    3.6.1 M1012 Adapter Board Features J16: LCM Connector J14: Fan Tach Connector J7:Fan Tach & PWM Connector JP1: Fan Input Select Connector J19: CD-ROM Power Connector J5: Fan Connector J9: Fan Connector J11: Fan Connector J10: Fan Connector J2: Front Panel Connector J6: Fan Connector FDD2: Slim FDD Connector JP2: Fan Minimum...

  • Page 52: M1012 Adapter Board Connector Pin Definition

    3.6.2 M1012 Adapter Board Connector Pin Definition J1 TYFP Front Panel Connector HDLED+ HDLED - RESET- RESET+ VOLTAGE5 EXT_INT V5SB ICH_SMBDAT ICH_SMBCLK J2 Front Panel Connector HDLED+ RESET+ PW_LED+ WLED+ ICH_SMBDAT EXT_INT V5SB PWR_SW+ LAN1_LED+ LAN2_LED+ LAN3_LED+ ID_LED+ ID_SW+ KEY PIN PW_LED+ PW_LED - PWR_SW+...
  • Page 53 J3 LAN/ID LED Connector LAN1_LED+ LAN2_LED+ LAN3_LED+ ID_LED+ ID_SW+ KEY PIN FAN Signal Related Connector Pin Definition NOTE: The FAN signal naming is based on HW circuit design only. It might be different from the system fan naming. J4 Fan TACH & PWM Connector J7 Fan TACH &...
  • Page 54 J13 Fan TACH Connector KEY PIN J14 Fan TACH Connector KEY PIN J6 Fan Connector FAN1_TACH FAN2_TACH FAN3_TACH FAN1_TACH FAN2_TACH FAN3_TACH FAN4_TACH FAN5_TACH FAN6_TACH FAN7_TACH FAN8_TACH FAN9_TACH FAN10_TACH FAN1_12VPWM FAN1_TACH FAN2_TACH FAN2_12VPWM Chapter 3: Replacing Pre-Installed Components...
  • Page 55 J10 Fan Connector J11 Fan Connector J9 Fan Connector Chapter 3: Replacing Pre-Installed Components FAN3_12VPWM FAN3_TACH FAN4_TACH FAN4_12VPWM FAN5_12VPWM FAN5_TACH FAN6_TACH FAN6_12VPWM FAN7_12VPWM FAN7_TACH FAN8_TACH FAN8_12VPWM...
  • Page 56 J5 Fan Connector J15 & J16 LCM Connectors LCM_+5V KEY PIN LCM_+5VSB JP1 Fan Input Select Connector Pin1 & Pin2 Close Pin2 & Pin3 Close JP2 Fan Input Select Connector Pin1 & Pin2 Close Pin2 & Pin3 Close FAN9_12VPWM FAN9_TACH FAN10_TACH FAN10_12VPWM LCM_SIN...

  • Page 57: System Fan Layout

    3.6.3 System Fan Layout System Fan Speed Control Signal M1012 Adapter Board Connect to Motherboard J7 PWM Connector J15 Connector System Fan Monitoring Signal Barebone System Fan Connect to Motherboard Fan J14 (Fan 1, 2, 3, 5) J19 (Fan 2, 3, 5) &...

  • Page 58: Replacing The Sata Backplane

    Replacing the SATA Backplane 1. After removing the M1012 adapter board, you can easily grab the two lables to lift the SATA backplane. 2. Remove the ten screws that secure the bracket to the backplane. 3. Release the backplane free from the bracket. 4.

  • Page 59: Sata Backplane Features

    3.7.1 S-ATA Backplane (M1204) Features U4, SATA 4 Connector U3, SATA 3 Connector U2, SATA 2 Connector HDD Power LED HDD Active LED U1, SATA 1 Connector Chapter 3: Replacing Pre-Installed Components...
  • Page 60 J3, SATA 3 Connector Chapter 3: Replacing Pre-Installed Components PW1 Power Connector PW2 Power Connector J4, SATA 4 Connector J2, SATA 2 Connector J1, SATA 1 Connector...
  • Page 61 Replacing the Cooling Fan Follow these instructions to replace the cooling fans in your system. 1. Locate the fan connector on the motherboard and unplug the fan cable. 2. Take the fan away from the chassis. 3. Replace the fan into the chassis following the reverse procedures from 1 to 2 after done.

  • Page 62: Replacing The Cooling Fan

    Replacing the Power Supply 1. Remove the two screws that secure the power supply to the chassis. 2. Remove the screw that secure the fan assembly to the chassis Chapter 3: Replacing Pre-Installed Components...

  • Page 63: Appendix I: Bios Differences

    Appendix I: BIOS Differences The BIOS of B5161 is similar to S5161 while there are some menu different. The following table displays the differences in BIOS between B5161 and S5161. For a complete review of S5161 BIOS, refer to the motherboard manual.. Difference 1: Main Menu/Legacy Diskette A: S5161 PhoenixBIOS Setup-Copyright 1985-2001 Phoenix Technologies Ltd.
  • Page 64 B5161 PhoenixBIOS Setup-Copyright 1985-2001 Phoenix Technologies Ltd. Main System Time: System Date: Legacy Diskette A: IDE Primary/Master IDE Primary/Slave SATA Port 1 SATA Port 2 SATA Port 3 SATA Port 4 Memory Cache Boot Failures Initialled memory Available to OS Used by devices F1: Help : Select Item...
  • Page 65 Difference 2: Advanced/Hardware Monitor S5161 PhoenixBIOS Setup-Copyright 1985-2001 Phoenix Technologies Ltd. Advanced Voltage Monitoring FAN Control Selections CPU Temp. = Ambient Temp = F1: Help : Select Item Esc: Exit : Select Menu F10: Previous Values B6161 PhoenixBIOS Setup-Copyright 1985-2001 Phoenix Technologies Ltd. Advanced Voltage Monitoring FAN Control Selections...
  • Page 66 Difference 3: Advanced/Hardware Monitor/FAN Control Selections S5161 PhoenixBIOS Setup-Copyright 1985-2001 Phoenix Technologies Ltd. Advanced Auto Fan Control J15 number of pins select J14 number of pins select J18 number of pins select J13 number of pins select F1: Help : Select Item Esc: Exit : Select Menu F10: Previous Values...

  • Page 67: Appendix Ii: Cable Connection Tables

    Appendix II: Cable Connection Tables SATA Cable Table 1: B5161G20S4H Model M1204 SATA Backplane SATA 1 SATA 2 SATA 3 SATA 4 FAN Cable Table 2: System Fan to M1012 Adapter Board System Fan Fan 1 Fan 2 Fan 3 Fan 4 Fan 5 Table 3: M1012 Adapter Board to Motherboard...
  • Page 68 Power Supply Cable Table 4: Power Supply to Motherboard Power Supply P1 24-pin power cable P2 8-pin power cable Table 5: Power Supply to M1012 Adapter Board Power Supply P3 4-pin power cable Table 6: Power Supply to M1204 Backplane Power Supply P4 4-pin power cable P6 4-pin power cable...
  • Page 69 Table 9: CD-ROM Related Cable Motherboard PRE-IDE con- nector M1012 J19 power connector Table 10: Chassis Intrusion Cable Chassis intrusion switch Table 11: FDD Related Cable (Option) M1012 FDD1 connector M1012 FDD2 connector CD-ROM Backplane CD-ROM Backplane Motherboard JP15 Pin 16 & Pin 18 Motherboard J5 FDD Slim FDD drive...

  • Page 70: Appendix Iii: Installing Smdc Cards

    Appendix III: Installing SMDC Cards The following provides you with the information on installing SMDC cards. You may refer to the following for installing M3289 or M3290 into HDD tray or chassis. Screws List (including screws for Rail) A: Flat 6#-32 x4~x16 B: B-type 6#-32 x4 C: M4-4L x8 D: M4-5L x4...
  • Page 71 Installing M3289 into HDD Tray 1. Fold up the cable. 2. a: Choose a HDD tray. b: Insert the cable into the rear of HDD tray. c: Pull the cable out. 3. Connect the cable to M3289.
  • Page 72 4. Align M3289 in reverse with 4 “M1” stand-offs. Secure the SMDC with 4 screws as illustrated. 5. Secure M3289 onto HDD tray as illustrated. 6. Insert and secure the HDD tray. NOTE: For internal or dummy HDD tray, secure the HDD tray with 1 or 2 screws.
  • Page 73 Installing M3290/M3291 into HDD tray 1. Secure a removable stand-off of 13.5mm to the location of “M2” stand-off as illustrated on SMDC bracket. 2. Secure M3290 in reverse to 4 “M2” stand-offs on bracket. 3. a: Choose a HDD tray. NOTE: Refer to the location of SMDC connector on mainboard for choosing a HDD tray.
  • Page 74 4. a: Inset the cable into the rear of HDD tray. b: Connect the cable to M3290. c: Insert and secure HDD tray. 5. Arrange and connect the cable to SMDC connector on mainboard. Be careful not to block the air flow. Installing M3290/M3291 into GT24 Chassis NOTE: The products produced now may not support the pro- cedures below.
  • Page 75 3. Align M3290 with 4 “M2” PC stand-offs. Secure M3290 to mainboard with 4 screws. 4. Connect the cable to M3290. Arrange and connect the cable to SMDC connector on mainboard. Be careful not to block the air flow. 5. Reconnect the power connectors on HDD backplane and M1010.

  • Page 76: Technical Support

    (which can have expensive consequences). If these options are not available for you then Tyan Computer Corporation can help.Besides designing innovative and qual- ity products for over a decade, Tyan has continuously offered customers service beyond their expectations.
  • Page 77 3. Contact your dealer for help BEFORE calling TYAN. 4. Check the TYAN user group: alt.comp.periphs.main- board.TYAN Returning Merchandise for Service During the warranty period, contact your distributor or system vendor FIRST for any product problems. This warranty only covers normal customer use and does not cover damages incurred during shipping or failure due to the alteration, mis- use, abuse, or improper maintenance of products.
