Vestil FDA-800 Owner's Manual

Vestil Manufacturing Corporation
2999 North Wayne St., Angola, IN 46703
Phone (260) 665-7586 • Fax (260) 665-1339
sales@vestil.com • www.vestil.com
Drum Handling Equipment

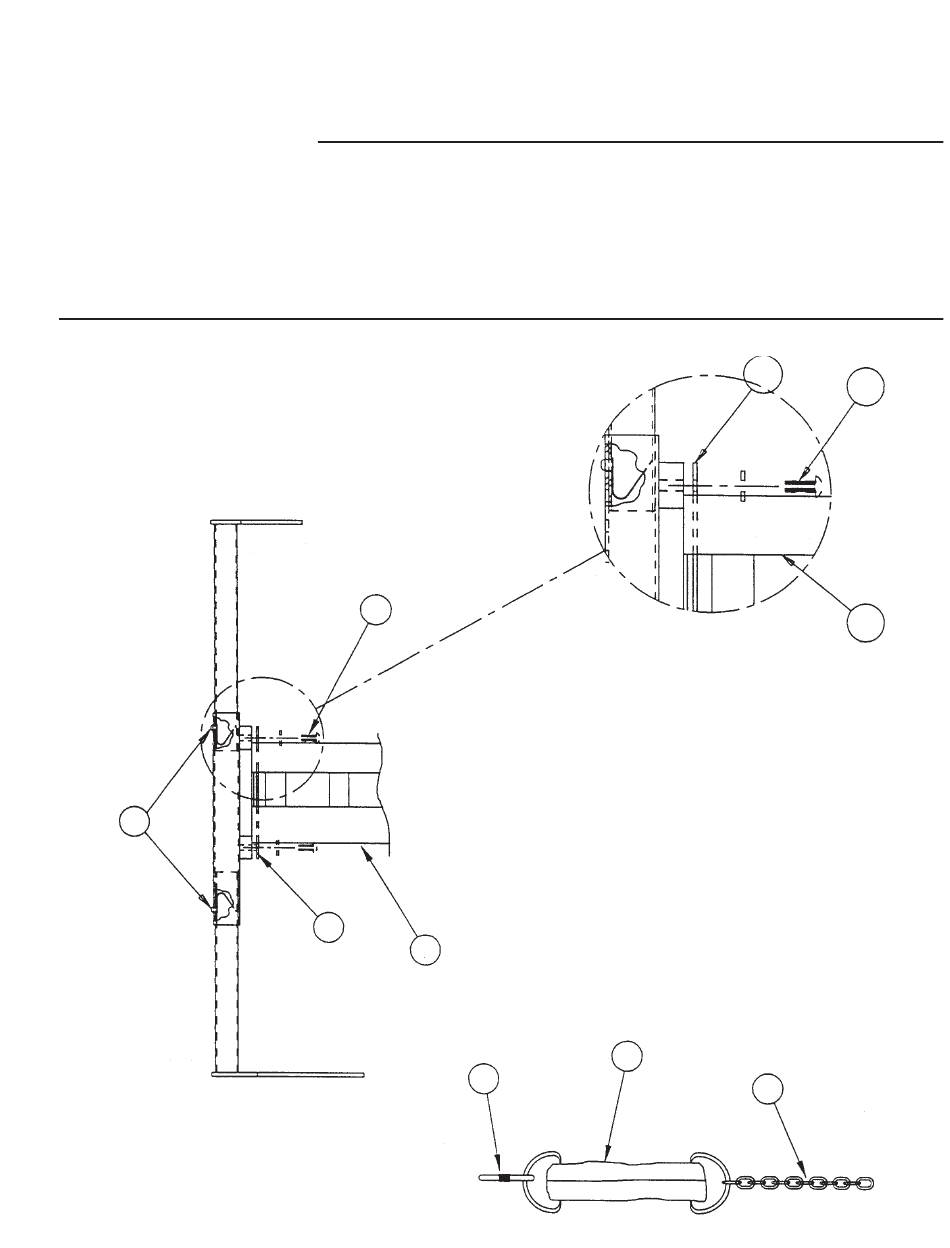

PARTS
1. Allen Screws
2. Metal Strap
3. Snap Buttons
4. Thumb Screw
3
5. Nylon Strap
6. Chain
7. Cradle Assembly
1
2
7
Revised 09-01
A company dedicated to solving ergonomic and material
handling problems since 1955 .
OWNER'S
MANUAL

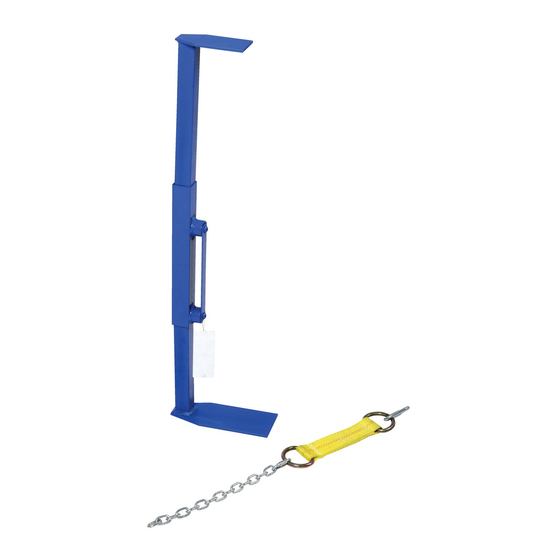

FIBER DRUM ADAPTOR • MODEL FDA-800

INSTRUCTIONS

1. Remove the metal strap along the inside of the drum brace.
2. Place the brace on the back side of the cradle assembly
and reattach the metal strap so that the brace is locked
around the cradle assembly.
3. Insert drum into cradle and use the snap buttons on the
back of the brace to adjust eh brace to the desired height.
4. Attach the nylon strap with the quick link. Attach it to the
chain that is located on the opposite side of the ratchet
assembly.
5. Take the chain link end and attach it to the ratchet
assembly and tighten.
5
4
2
1
3
6
