Vestil Manufacturing Corporation
2999 North Wayne St., Angola, IN 46703
Ph 260-665-7586 Fax: 260-665-1339
www.vestil.com E-mail: sales@vestil.com
Loading Dock Solutions
Contents
Warnings and Safety Instructions.................. 1
Receiving Instructions ................................... 1
Loading Instructions ...................................... 2
Unpacking and Handling Instructions ............ 2
Operating Instructions ................................... 2
Installation Instructions ............................... 3-5
Electrical Schematic ...................................... 6
Power Unit Exploded Parts Drawing ............. 8
WARNINGS & SAFETY INSTRUCTIONS
Read owner's manual completely before operating unit!
• Read and understand the owner's manual before using
or servicing the leveler.
• The lip plate should be secured outward before any work
is preformed on the leveler.
• Ensure that the safety and warning labels stay in place
and are legible. See the labels page in this manual.
• The Edge-O-Dock leveler must be securely welded and
anchored to the dock face. See the installation
instructions.
• Do not use the leveler if any damage or unusual noise is
observed.
• Always watch the leveler carefully when it is in
operation.
• Be sure nothing is on the top of the leveler before
operating it.
• Do not perform any modifications to the leveler without
the manufacturer's approval. Failure to receive
authorization for changes to the equipment could void
the warranty.
• Maintenance and repairs are to be performed only by
personnel qualified to perform the required work.
• Do not use brake fluid or jack oils in the hydraulic
system. If oil is needed, use an antiwear hydraulic fluid
with an SUS viscosity of 150 - 200 at 100°F, (SAE
viscosity grade 32), or Dexron transmission fluid.
• Use only replacement parts either supplied or approved
by the manufacturer.
Revised 06-04
A company dedicated to solving loading dock and
material handling problems since 1955 .
OWNER'S
MANUAL

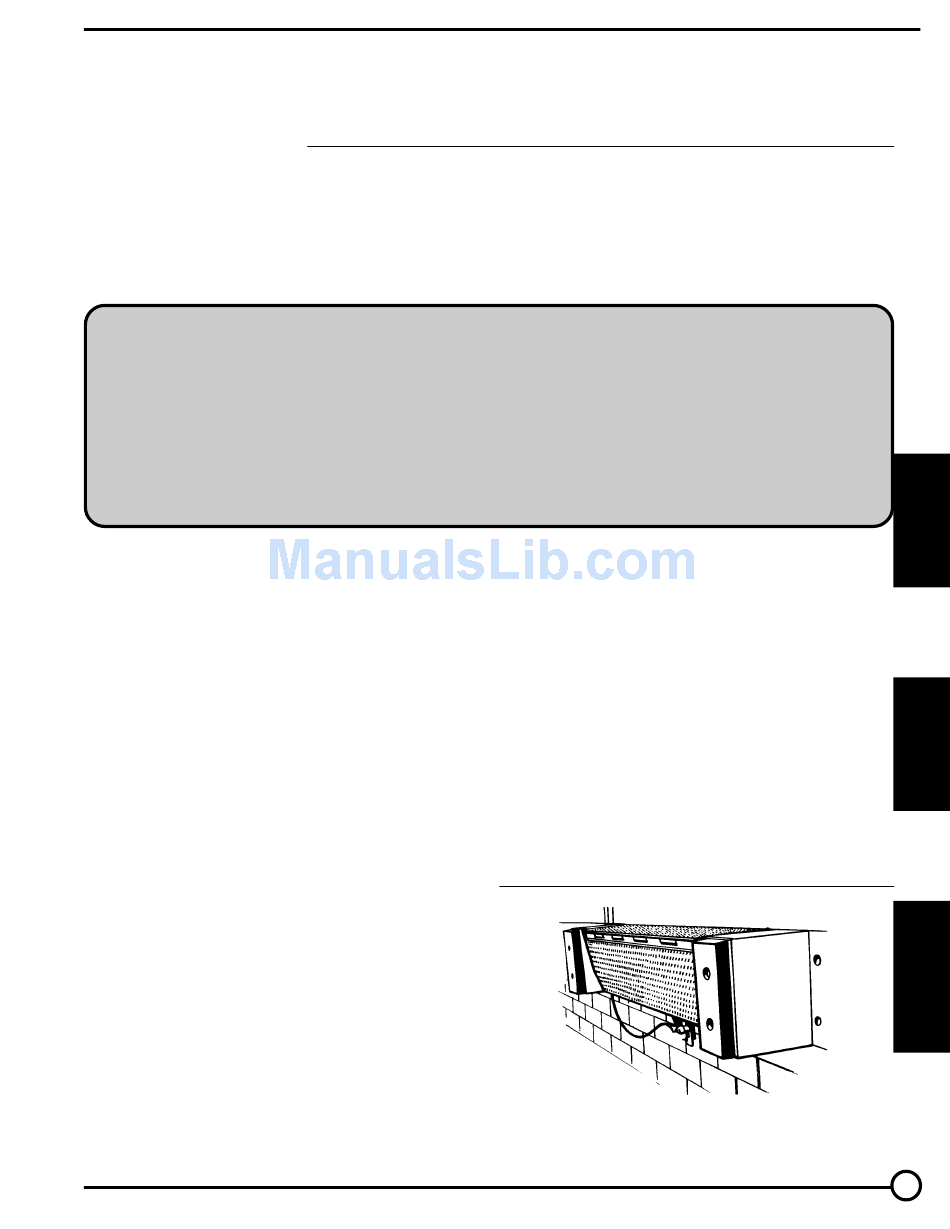

EDGE-O-DOCK • MODEL FM / PP / PE
Spring Adjusting Instructions (FM Series) ..... 6
PE Hydraulic & Troubleshooting Guide
Exploded Parts Drawing (FM Series) ............ 9
Parts List (FM Series) .................................. 10
Exploded Parts Drawing (PP & PE) ............ 11
Parts List ..................................................... 11
Warning Label Identification ........................ 12
Limited Warranty/Service Record ................ 13
RECEIVING INSTRUCTIONS
Every unit is thoroughly tested and inspected
prior to shipment. However, it is possible that the unit
may incur damage during transit. If you see damage
when unloading, make a note of it on the BILL OF
LADING.
Remove all packing and strapping material,
inspect for damage. IF DAMAGE IS EVIDENT, FILE A
CLAIM WITH THE CARRIER IMMEDIATELY! Also,
check the unit size, type of power unit, etc., to see that
the unit is correct for the intended application.
MODEL NUMBER AND CAPACITIES
The model number, serial number and capacities
are inscribed on the nameplate. Please remember to
include these numbers in any correspondence with your
dealer or the factory.
EDGE-O-DOCK
FM / PP / PE SERIES
07-126-101
7
E
N
G
L
I
S
H
E
S
P
A
N
O
L
F
R
A
N
Ç
A
I
S
1
