Summary of Contents for Minka Group Minka-Aire Kewl F833

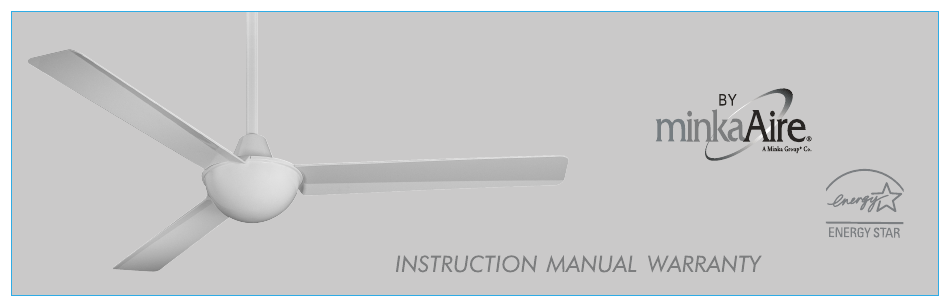

- Page 1 Kewl CERTIFICATE...
- Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship light bulbs excluded for one full year.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES ........... INSTALLING THE WALL CONTROL ............ PACKAGE CONTENTS ........FINISHING THE INSTALLATION ............INSTALLING THE FAN ........OPERATING YOUR FAN ............... BLADE INSTALLATION ........CARE OF YOUR FAN ................HANGING THE FAN .......... TROUBLESHOOTING ................ELECTRICAL CONNECTIONS ...... -
Page 6: Safety Rules
SAFETY RULES Before you begin installing the fan, shut power off the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes. Hire a qualified electrician or consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: A. Mounting hardware: 1. Fan blades(3) 2. Hanger bracket Wire nuts(3) #8x3/4”Machine screws (2) 3. Canopy #10x1.5Wood screws (2) 4. Canopy cover 4mm Star washers (2) 5. -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Philips screw driver, slotted screw driver, step-ladder, wire cutters, electrical tape. PA RALLEL WOOD BRACE CEILING (MIN. 2’’ THICK) JOIST MOUNTING OPTIONS OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Blade Installation
BLADE INSTALLATION Align the 3 holes from the blade to the fan motor. Screw Secure blade with 3 blade screws provided. Follow the same process for the remaining two blades. (Fig. 5) Fan motor All blade sets are grouped together by weight. Because plastic materials vary in density, the fan may wobble even though the blades are weight matched. -
Page 11: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4.Carefully feed fan wires up through the downrod(Fig 9). hanger bracket and hanger ball have been provided for your safety and Thread the rod into the coupling, next line up holes and replace lock the proper installation of your new ceiling fan. - Page 12 DOWNROD OUTLET BOX CANOPY DOWNROD CROSS PIN SET SCREWS CANOPY HITCH COVER LOCK HANGER SUPPLY REGISTRATION BALL SET SCREW COUPLING WIRES SLOT COVER SCREWS DOWNROD HANGER BRACKET Fig. 11 Fig. 6 Fig. 7 Fig. 8 Fig. 9 HITCH PIN LOCK PIN Fig.
-
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS Follow the steps below to connect the fan to your house supply wires. HOUSE WIRE SUPPLY Use the wire nuts supplied with your fan. Secure the wire nuts by wrapping WHITE (NEUTRAL) the connection with electrical tape. GREEN (GROUND) BLACK (HOT) Step 1. -
Page 14: Installing The Wall Control
INSTALLING THE WALL CONTROL Remember to shut the power off at the circuit breaker or fuse box. Wall control Outlet box Screws Screws Wall plate WARNING: HOOK UP IN "SERIES ONLY" DO NOT CONNECT THE HOT AND NEUTRAL WIRES OF ELECTRIC CIRCUIT TO THE WALL CONTROL - DAMAGE TO THE SWITCH AND POSSIBLE FIRE COULD OCCUR. -
Page 15: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Tuck connections neatly into ceiling outlet box. OUTLET BOX Step 2. Remove one screw from the hanger bracket and loosen the other screw around 1/4”. HANGER Step 3. Align the canopy up to ceiling and over the loose screw. Place the canopy into BRACKET key hole and rotate canopy clockwise. -
Page 16: Operating Your Fan
OPERATING YOUR FAN Restore power to ceiling fan and test for proper operation. The fan 4-speed control is used to set the fan speed as follows: = Turns the fan off 1= High Speed Reverse 2= Medium High Speed switch Warm Cool 3= Medium Speed... - Page 17 Warm Weather(forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 16. This allows you to set your air conditioner on a warmer setting without affecting your comfort. Cool Weather(Reverse) An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 17.
-
Page 18: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4.There is no need to oil your fan. The motor has permanently lubricated bearings. 1.Because of the fan’s natural movement some connections may become loose. Check the support connections, brackets and blade 5.If your fan is provided with glass shades, clean with lukewarm soapy water and a soft cloth or sponge. -
Page 19: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan Sounds Noisy Fan will not start SOLUTION SOLUTION Allow a 24 - hour “ break in ” period. Most noises associated Check to make sure the wall switch is turned on. with a new fan will go away during this time. Check circult fuses or breakers. - Page 20 SYMPTOM Fan Wobble SOLUTION NOTE: All blade sets are grouped by weight. Because wood and plastic blades vary in density, the fan may wobble even though blades are matched. Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist. Make sure hanger bracket is secure to the outlet box, screws are tight.
-
Page 21: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light (s). High 0.459 55.0 6304 5.52 6.71 Med. High 0.343 30.1 4561 ” For any additional information about your 1.397’... - Page 22 1540 Medium 17.9 3460 Med. High 4561 30.1 High 6304 55.0...
