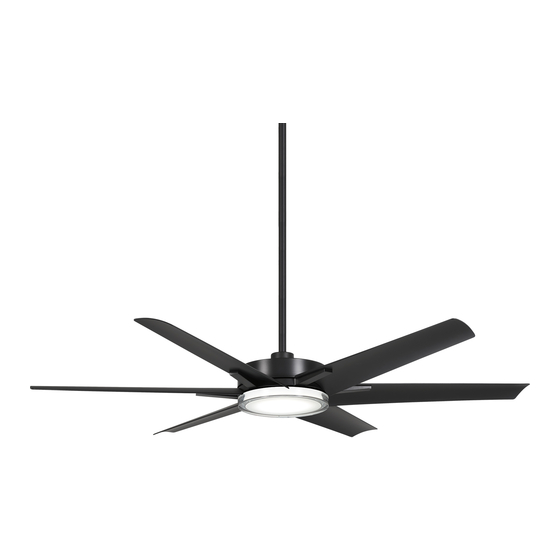

- Page 1 DECO INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 © 2022 Minka Lighting, LLC. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................INSTALLING THE LTGHT KIT PLATE ............. PACKAGE CONTENTS................INSTALLING THE 24W LED ASSEMBLY ..........INSTALLING THE FAN................OPERATING THE REMOTE CONTROL/WALL CONTROL.... HANGING THE FAN................CARE OF YOUR FAN..................ELECTRICAL CONNECTIONS............TROUBLESHOOTING................... FINISHING THE INSTALLATION............. SPECIFICATIONS.................... ATTACHING THE FAN BLADES............1151 W. -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (6 PCs.) Mounting hardware: Blade holders (6 PCs.) #10 x 1.5’’ Wood screws (2 PCs.) Hanger bracket #8 x 3/4’’ Machine screws (2PCs.) Canopy Lock washers (2 PCs.) Canopy cover... -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. MOUNTING OPTIONS PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) If there isn't an existing mounting box, then read the following instructions. Disconnect the JOIST CROSS BRACE OUTLET power by removing fuses or turning off circuit breakers. -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread hanger bracket and hanger ball have been provided for your safety and Downrod into the Coupling until the holes are lined up and secure with the proper installation of your new ceiling fan. - Page 11 DOWNROD RUBBER COVER OUTLET BOX CROSS PIN DOWNROD SET SCREWS DOWNROD CANOPY HITCH COUPLING COVER LOCK HANGER CANOPY COVER BALL SET SCREW SUPPLY SET SCREWS WIRES REGISTRATION SLOT DOWNROD HANGER BRACKET Fig. 10 Fig. 6 Fig. 7 Fig. 8 Fig. 5 LOCK PIN HITCH PIN Fig.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: The use of Dimming devices not compatible with ceiling fans will cause unwanted behavior including loud humming and will cause permanent damage to you fans electrical component. FREQUENCY 1 2 3 4 5 1 2 3 4 5 WARNING: To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before wiring. - Page 13 Step 1. Insert Receiver into Hanger Bracket with the flat side of the Receiver facing the ceiling. (Fig.12) RECEIVER HANGER BRACKET Fig. 12...
- Page 14 Step 2: Connect the male connectors from fan to the female connectors from the receiver. (Fig.13) White Green or Bare Step 3. Receiver to ceiling outlet box Connections: Connect the WHITE wire (Neutral) from the Black Copper(GROUND) outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) Black from the outlet box to the BLACK wire marked "AC in L"...
-
Page 15: Finishing The Installation
FINISHING THE INSTALLATION OUTLET BOX Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the HANGER narrow section of the key holes. -
Page 16: Attaching The Fan Blades
ATTACHING THE FAN BLADES Step 1. Remove the twelve blade holder screws from the fan motor assembly. Keep the screws for subsequent steps (FIG.15) Step 2. Attach the blade holders to the fan motor BLADE HOLDER assembly by using two blade holder screws. Tighten screws securely.(FIG.16) SCREWS SCREWS... - Page 17 SCREW Step 3. Attach the fan blades to the blade holders by using three screws. Tighten screws securely. Repeat process with other blades. (FIG.17 ) BLADE BLADE HOLDER Fig. 17...
-
Page 18: Installing The Ltght Kit Plate
INSTALLING THE LTGHT KIT PLATE Step 1. Remove all 3 screws from the fan motor assembly. Place the light kit plate to the fan motor assembly. Secure by tightening the 3 screws previously removed. (FIG. 18) FAN MOTOR ASSEMBLY LIGHT KIT PLATE SCREWS Fig. -
Page 19: Installing The 24W Led Assembly
INSTALLING THE 24W LED ASSEMBLY NOTE: Before starting installation, make sure power is turned off at the circuit breaker. 24W LED LIGHT KIT CAUTION: The light source is designed for this specific applica- PC LENS tion and can overheat if serviced by untrained personnel. If any servicing is required, the product should be returned to an LIGHT KIT authorized service facility for examination or repair. -
Page 20: Operating The Remote Control/Wall Control
OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install two AAA 1.5 volt batteries (included). To prevent damage to transmitter remove the battery if not used for long periods of time. IMPORTANT: THIS REMOTE CONTROL & DC FAN MOTOR ARE DESIGNED TO PERFORM A ONE TIME SELF CALIBRATION TEST. THIS TEST WILL BEGIN ONCE A NEW CODE HAS BEEN SET, AND WILL LAST APPROXIMATELY ONE MINUTE. - Page 21 NOTE: The auto learning function will only NOTE: During self calibration test, the remote Please remove obstacles before re-set. will be non-function. mandate within 60 seconds when turning the 2. Over 40W protection: When the receiver fan’ s AC power ON. NOTE: The learning frequency function and self detects motor power consumption which is 1.
- Page 22 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 20.
-
Page 23: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose. -
Page 24: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. - Page 25 SYMPTOM SYMPTOM Fan Wobble Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. Because wood and This is caused by interference, Please see "Frequency interference" for steps to change the frequency. plastic blades vary in density, the fan may wobble even though blades are matched.
- Page 26 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 27: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts N.W. G.W. C.F. They do not include amps and wattage used by the light(s). 0.09 3.86 11.4 65’’ 2.662' High 0.50 32.3... - Page 28 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 3980 3.86 1031 High 7978 32.3 Estimated Ceiling fan airflow is measured in cubic feet per minute (CFM). Airflow Yearly Energy Cost Power use is measured in watts. To maximize energy savings: 6,104 •...
