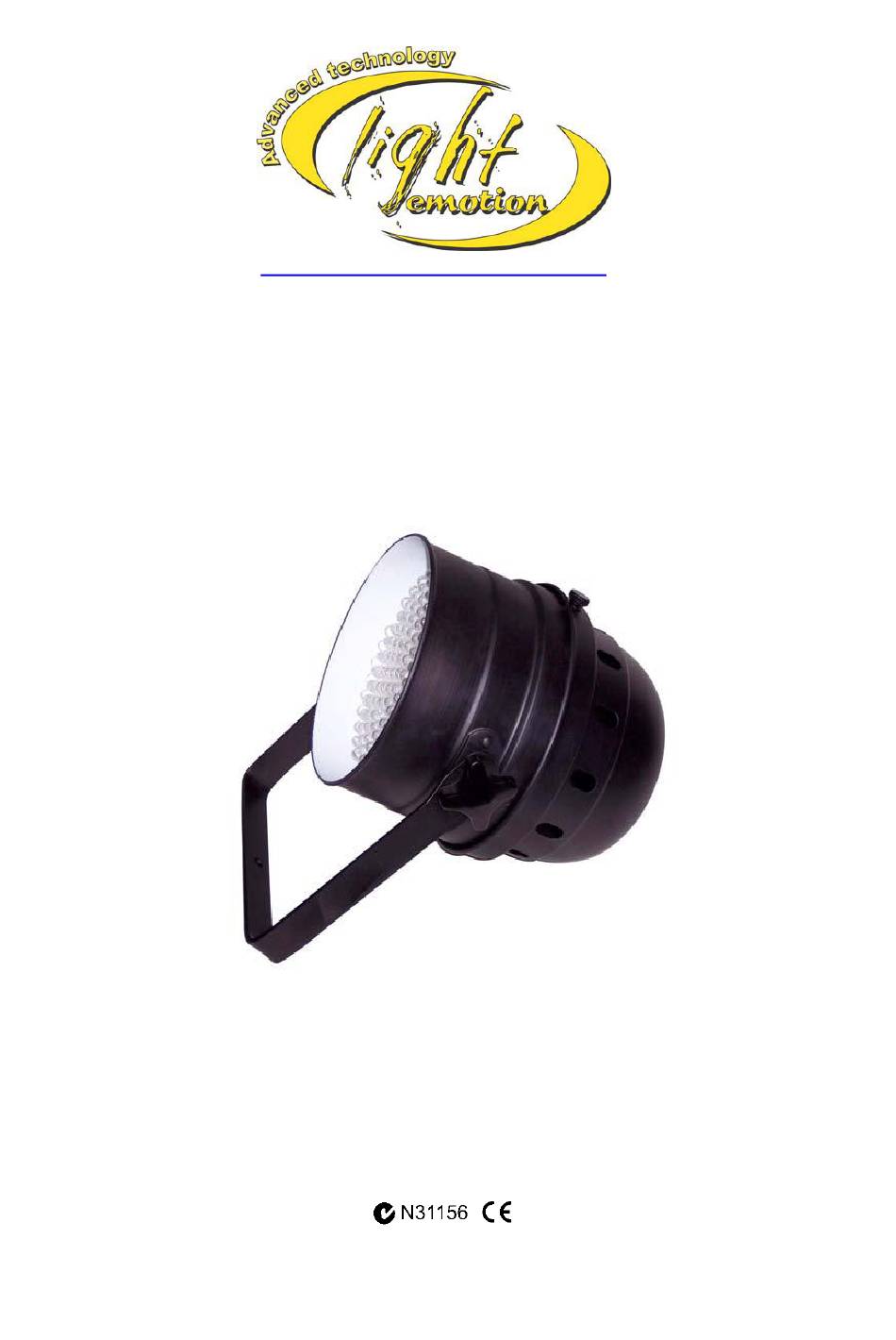

- Page 1 WWW.LIGHTEMOTION.COM.AU P64LEDLITE Red – 60, Green – 60, Blue – 63 User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
-
Page 2: What Is Included
Congratulations on the purchase of your P64LEDlite by Light Emotion. We are confident that you will be satisfied with your purchase. We have prepared this manual to assist you with the care and operation of this item. CONTENTS SECTION Page... -
Page 3: Installation
2. This lighting effect must be 0.5m away from any flammable materials or any walls or ceilings. 3. Do not block or inhibit the air flow from the ventilation holes. Light Emotion have various hook clamps* and safety wires* suitable for your P64LEDlite Please contact your local dealer for more information *Not included. -
Page 4: Connections And Controls
MAINTENANCE & PERIODIC CHECKS CAUTION: Some maintenance and checks may require the product to be opened and should only be done by qualified persons. Warranty may be void if damage has been caused by improper maintenance. Perspex lenses should be wiped with a clean moist cloth to remove dust and residue. CONNECTIONS AND CONTROLS Fig.3 1. -
Page 5: Dmx Terminator
DMX output socket of the 1st slave to the DMX input socket of 2nd slave and so on and so forth. (Refer to Fig 8) SETTINGS You then need to set the P64LEDlite to Master/Slave mode by setting the DIP switch as per the table 5 of 7 pages... -
Page 6: Dmx Channel Information
CONNECTION To connect the P64LEDlite in DMX mode you need to use a 3 pin DMX lead (Refer to Fig 6) from the DMX output socket of the controller to the DMX input socket of the 1st unit, then from the DMX output socket of the 1st unit to the DMX input socket of 2nd unit and so on and so forth. -
Page 7: Specifications
SPECIFICATIONS • Voltage: 240V AC • Power Consumption: 30W • Operating Frequency: 50Hz • Power lead: Fixed 1m • Fuse: M205 0.5A fast blow • Sound activated: Yes • Stand alone mode Yes • DMX: 4 channels • Ch1: Red Ch2: Green, Ch3: Blue, Ch4: Effect •...
