BRUTE

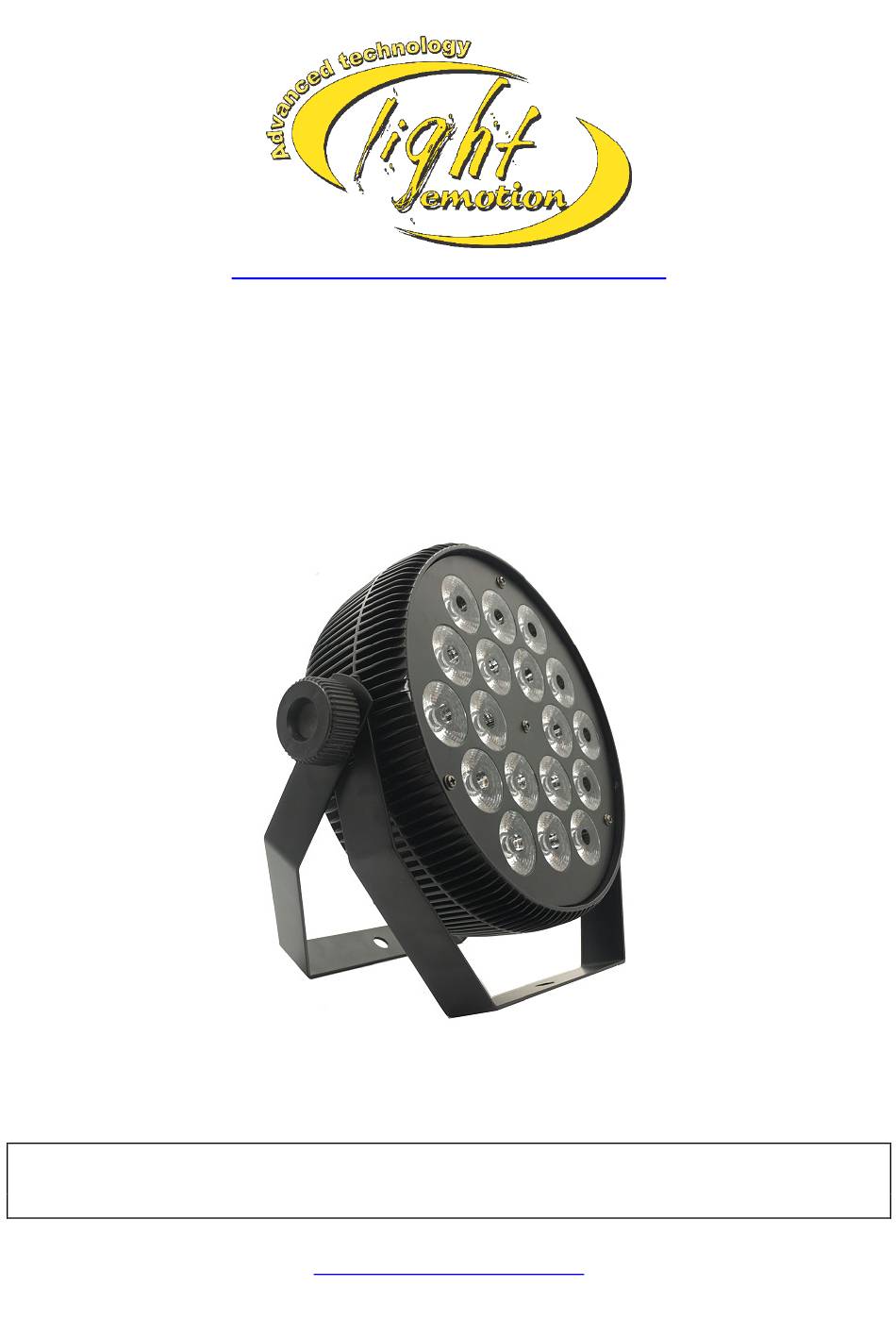

18 x 10Watt 4in1 RGBW LED Flat Par Light
User's Instruction Manual
This manual contains important information about the safe installation and use of this product.
Please read this instruction manual carefully before installing or operating.
Please keep these instructions in a safe place for future reference.
www.lightemotion.com.au
Advertisement
Table of Contents
Related Manuals for Light Emotion BRUTE
Summary of Contents for Light Emotion BRUTE
- Page 1 WWW.LIGHTEMOTION.COM.AU BRUTE 18 x 10Watt 4in1 RGBW LED Flat Par Light User’s Instruction Manual This manual contains important information about the safe installation and use of this product. Please read this instruction manual carefully before installing or operating. Please keep these instructions in a safe place for future reference.
-
Page 2: Security Tips
1 SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: Non-professionals, do not disassemble the light nor access the lighting accessories inside. Rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ The light source should be maintained at least 1M from flammable materials. -
Page 3: Control Panel Instructions
3 Control Panel Instructions Press button A, there will be eight different effects. The first two letters stand for function (refer to Diagram II). The last two letters stand for DMX address, or speed. You can modify it with B or C button. And press D button for confirmation. - Page 4 change (01-99) 1DE99 Color gradate UP, DOWN change the speed (01-99) CP99 Color pulse UP, DOWN change the speed change (01-99) SU01 Color UP,DOWN change the effects soundactive (01-99)
-
Page 5: Dmx Channel Sheet
4 DMX CHANNEL SHEET Explanation Channel Function Dimmer 1channel R, G, B, W dimmer: from dark to bright 2channel R dimmer R dimmer: from dark to bright 3channel G dimmer G dimmer:from dark to bright 4channel B dimmer B dimmer:from dark to bright 5channel W dimmer B dimmer:from dark to bright 6channel Strobe... -
Page 6: Securing Equipment
5 SECURING EQUIPMENT Please fasten the fixture to a clamp before hanging. The clamp can be fastened by the hole in the middle of the bracket, then one hung tie with a safety chain. The loading capacity of the safety chain should be 10 times the weight of the fixture itself. -
Page 7: Maintenance
