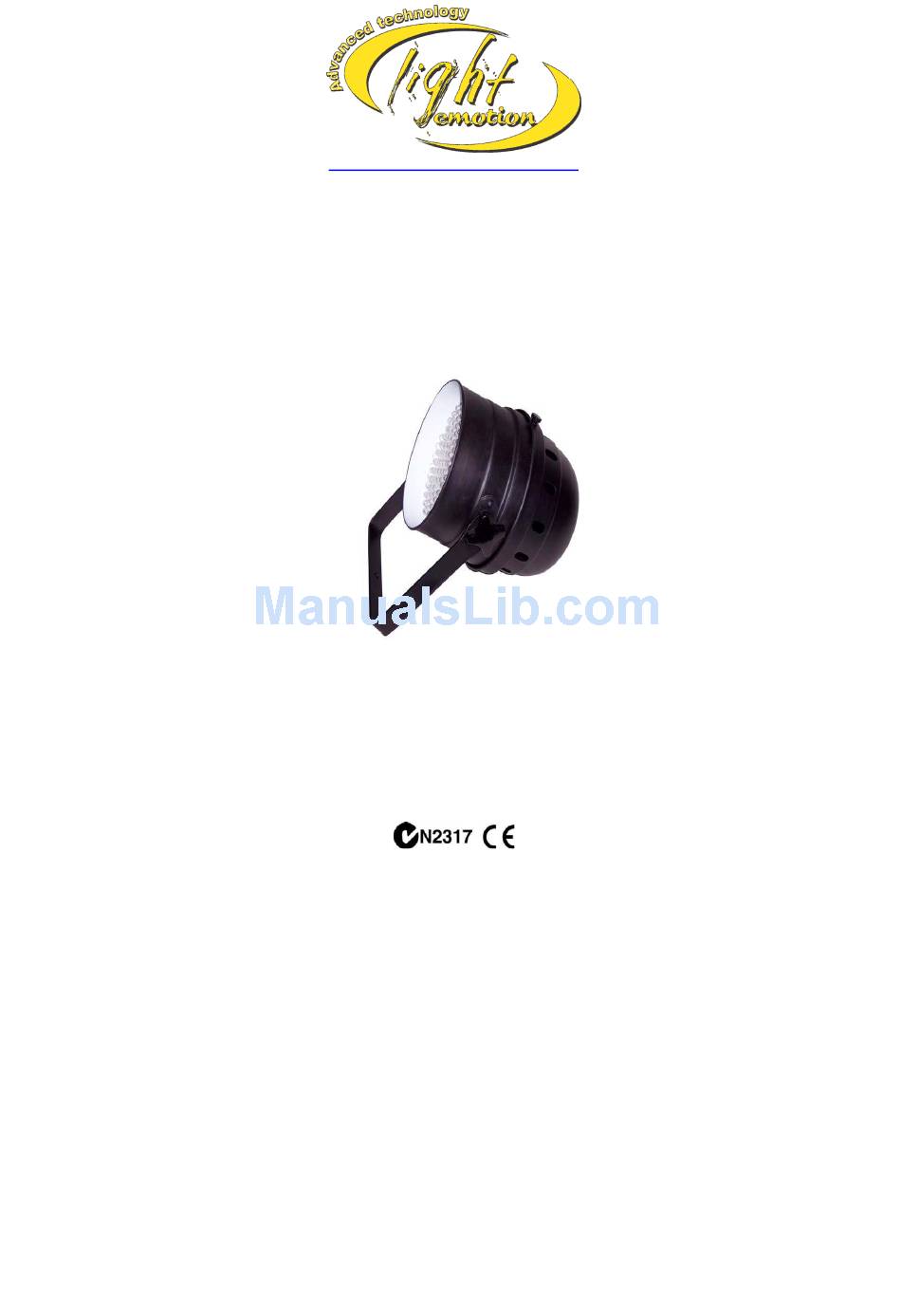

P64LEDLITEWW
183 Warm White LEDs
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
1 of 6 pages
Advertisement
Table of Contents
Related Manuals for Light Emotion P64LEDLITEWW
Summary of Contents for Light Emotion P64LEDLITEWW
- Page 1 WWW.LIGHTEMOTION.COM.AU P64LEDLITEWW 183 Warm White LEDs User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
-
Page 2: What Is Included
Congratulations on the purchase of your P64LEDLITEWW by Light Emotion. We are confident that you will be satisfied with your purchase. We have prepared this manual to assist you with the care and operation of this item. CONTENTS SECTION Page... - Page 3 2. This lighting effect must be 0.5m away from any flammable materials or any walls or ceilings. 3. Do not block or inhibit the air flow from the ventilation holes. Light Emotion have various hook clamps* and safety wires* suitable for your product. Please contact your local dealer for more information *Not included.
-
Page 4: Connections And Controls
MAINTENANCE & PERIODIC CHECKS CAUTION: Some maintenance and checks may require the product to be opened and should only be done by qualified persons. Warranty may be void if damage has been caused by improper maintenance. Perspex lenses should be wiped with a clean moist cloth to remove dust and residue. CONNECTIONS AND CONTROLS Fig.3 1. -
Page 5: Dmx Terminator
Fig. 6 DMX512 FUNCTION DATA DATA + DMX TERMINATOR Fig 7 A DMX terminator helps to reduce ‘noise’ on the DMX chain, and makes the light respond to control more accurately. It should be plugged in to the last fixture in any chain. For Terminator connections refer to Fig 7 STAND-ALONE... -
Page 6: Dmx Mode
021 - 255 Flash speed DMX MODE NOTE: To determine the address required you should refer to your DMX controller’s manual Do not forget to use a DMX terminator Do not forget to turn off the ‘Blackout’ on your controller CONNECTION To connect the P64LEDlite in DMX mode you need to use a 3 pin DMX lead (Refer to Fig 6) from the DMX output socket of the controller to the DMX input socket of the 1st unit, then from... - Page 7 Dimensions: L310mm x W250mm x D250mm • 7 of 6 pages...
