www.lightemotion.com.au

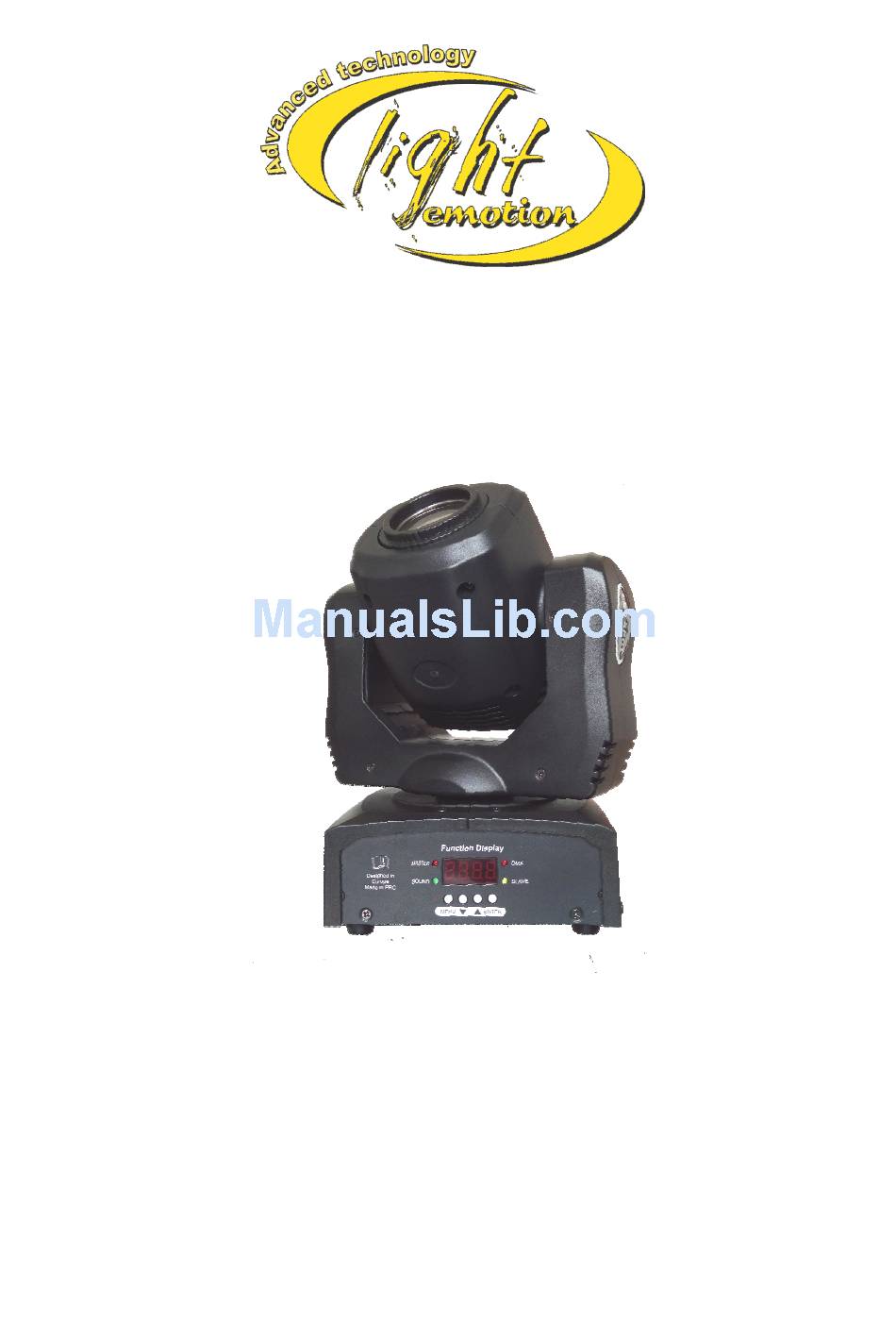

LE60

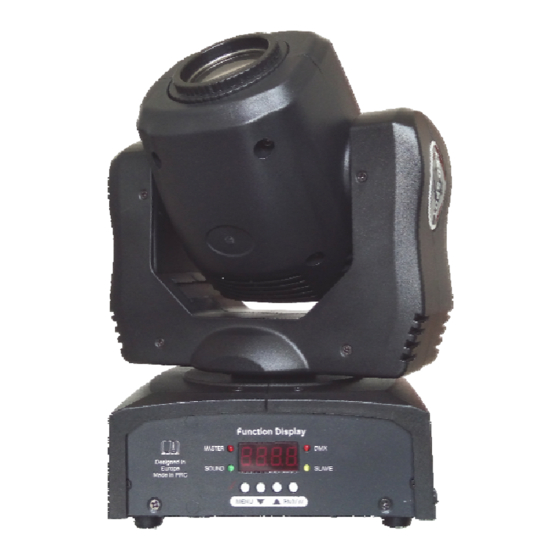

60w LED Moving Head Spot
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.00
Advertisement
Table of Contents
Related Manuals for Light Emotion LE60
Summary of Contents for Light Emotion LE60
- Page 1 LE60 60w LED Moving Head Spot User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions 2. Installation 3. Features 4. Menu Operation 5. Stand Alone Operation 6. Master/Slave Operation 7. DMX Table 8. DMX Connection 9. DMX Address Setting 10. DMX Terminator 11. Cleaning and Maintenance 12. Technical Data 13. Warranty... -
Page 3: Safety Instructions
Introduction Thank you for the purchase of your LE60 LED Moving Head Spot by Light Emotion. We are confident you will be satisfied with your purchase and enjoy many years of use from this Professional Light Emotion product. Please read these instructions carefully to ensure the product is well look after and used correctly to avoid any potential problems. -
Page 4: Installation
- Make sure power cord is never crimped or damaged. - Never disconnect power cord by pulling or tugging on the cord. - Never carry the fixture directly from the cord. Carry by holding the chassis of the unit. - Avoid direct eye exposure to the light source while it is on. 2. -
Page 5: Menu Operation
4. Menu Operation Used for setting up or operating the product without DMX control Menu: Press each time to access features – see table below. UP: Increase setting DOWN: Decrease setting Enter: Confirm and save setting. Menu Table: Show Value Function Addr 001 –... -
Page 6: Stand Alone Operation
Hour Fixture use time over its lifetime rSET Reset Focusing The focus of the beam can be adjusted by twisting the front lens on the moving head. When the beam appears blurry, you can turn the lens to focus the beam. The degree of focus will depend on the distance of the projection. - Page 7 Mode Mode Function Value 11CH 0-255 - 0° to 540° Pan Fine 0-255 Tilt 0-255 - 0° to 230° Tilt Fine 0-255 Pan/Tilt motor speed 0-255 From fast to slow Dimming 0-255 - 0-100% 0-7 - No function 9-99 - Strobe from slow to fast 100-149 - Strobe from fast to slow Strobe 150-199 - Strobe effect 1...
-
Page 8: Dmx Connection
0-127 No function 128 Show 1 Sound activated shows 160 Show 2 196 Show 3 228 Show 4 Speed / Reset 0–235 – Sensitivity and speed of shows 236-255 Reset 8. DMX-512 Control Connection Using a 3 pin XLR cable, you can connect the product to a DMX controller and then to other fixtures with 3 pin XLR inputs and outputs. -
Page 9: Dmx Terminator
channel 1, fixture 2 on channel 17, 3 on 33, and so on. Refer to your DMX controllers’ instruction manual on how best to manage your DMX channel allocation. 10. DMX Terminator: A DMX terminator helps to reduce ‘noise’ on the DMX chain, and makes the light respond to control more accurately. -
Page 10: Technical Data
12. Technical Data - Input voltage: 90-240VAC, 50 or 60Hz - Power consumption: 65W - LEDs: 1 high powered 60W LED with average 50000 hours lifespan - Beam angle: 12º - Control: DMX or on-board built-in programs, sound activation, master/slave - 9 or 11 DMX channel mode - Colour wheel: 7 colours + open (white), rainbow/flow effect - Gobo wheel: 7 gobos + open (clear), gobo shake and gobo flow effect... -
Page 11: Warranty
We recommend you register your warranty online at www.industrygear.com.au. Purchased from:_________________________________________ Contact Details:_________________________________________ Date Purchased:_________________________________________ Invoice/Receipt Number:__________________________________ Copyright Light Emotion 2016. E&OE Exclusively imported by LSW Imports and Distribution PO Box 887, Kingsgrove, NSW, 2208 sales@lswonline.com.au www.lightemotion.com.au 1800 643 111 (within Australia)
