Light Emotion COB150RGBW User Instruction Manual

150w cob led 4-in-1 rgbw wash
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

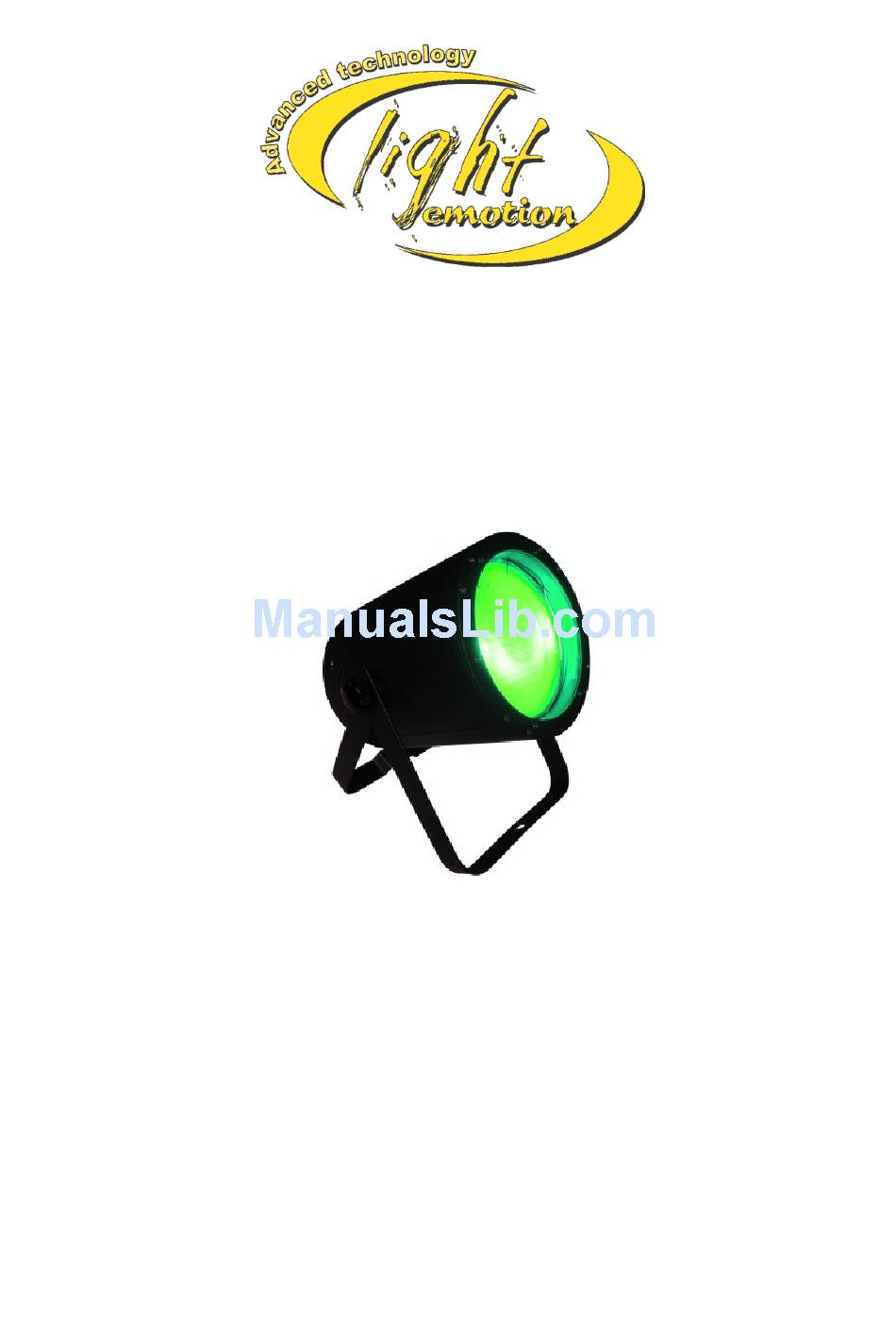

www.lightemotion.com.au
COB150RGBW
150W COB LED 4-in-1 RGBW Wash
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.01

Advertisement

Table of Contents
loading

Related Manuals for Light Emotion COB150RGBW

Summary of Contents for Light Emotion COB150RGBW

  • Page 1 COB150RGBW 150W COB LED 4-in-1 RGBW Wash User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...

  • Page 2: Table Of Contents

    Contents 1. Safety Instructions 2. Installation 3. Features 4. Operation Menu Functions Explanations 5. DMX Profile Charts 5A. Colour Macro Chart 6. DMX Connections 7. DMX Address Setting 8. DMX Terminator 9. Cleaning and Maintenance 10. Technical Data 11. Warranty...

  • Page 3: Safety Instructions

    Introduction Thank you for the purchase of your COB150RGBW COB LED 150W RGBW Wash Fixture by Light Emotion. We are confident you will be satisfied with your purchase and enjoy many years of use from this Professional Light Emotion product. Please read these instructions carefully to ensure the product is well look after and used correctly to avoid any potential problems.

  • Page 4: Installation

    - Weight: 4.1 kg - Size: 415x245x192mm 4. Operation The COB150RGBW has 7 kinds of operation mode which are as follows: Manual dimmer colour mode, Sound active mode, Auto-run program mode, Static colour select mode, Other program select mode, Slave mode, DMX mode...

  • Page 5: Menu Functions

    The modes of operation are selected using the MODE button. Pressing the MODE button repeatly will reach positions as per the table below. Then press SET UP followed by UP / Down to access the attributes of each mode. When you are using the MODE / SET UP / UP / DOWN LED display, the unit will lock the display if there is no input over 30 seconds.

  • Page 6: Explanations

    Display LED digital tube display always on on/off LED digital tube display off OTHER Display LED digital tube display normal MODE normal/inverse LED digital tube display inversion Initialization mode Initialize the unit at the extra factory setting A. Manual dimmer colour mode 1) Manual dimmer colour select Press "MODE"...
  • Page 7 "DOWN" button to select the sixteen colour jumping programs 1-16. 3) Colour dreaming/jumping speed select Press "SET UP" button until the four digital tube displays " ".Press "UP" or "DOWN" button to select the colour dreaming/jumping speed 01-16, 01 is the slowest speed, 16 is the fastest speed.

  • Page 8: Dmx Profile Charts

    G. DMX mode You can control the devices individually via your DMX-controller. 1) DMX address select mode The control Board allows you to assign the DMX address which is defined as the first channel of the COB LED par. Press “...
  • Page 9 : 4 channels mode Channel Value Function 0-255 RED 0% - 100% 0-255 GREEN 0% - 100% 0-255 BLUE 0% - 100% 0-255 WHITE 0% - 100% : 5 channels mode Channel Value Function 0-255 RED 0% - 100% 0-255 GREEN 0% - 100% 0-255 BLUE 0% - 100%...
  • Page 10 : 9 channels mode Green Blue White Strobe Master Mode Multiple Function Speed/S Green Blue White Standard No Function 0-255 0-255 0-255 0-255 (dim→ (dim→ (dim→ (dim→ Mode bright) bright) bright) bright) (0-51) function Colour Colour Macros 0-31 function function function function Macro...
  • Page 11 224-239 Colour Dream15 240-255 Colour Dream16 0-15 Sound Active 1 16-31 Sound Active 2 32-47 Sound Active 3 48-63 Sound Active 4 Sensi- 64-79 Sound Active 5 tiviy 80-95 Sound Active 6 Sound 0-31= 96-111 Sound Active 7 Mode 112-127 Sound Active 8 (Ch8) 32-255=...

  • Page 12: Colour Macro Chart

    5A. Colour macros chart: Colour No. RGBW COLOUR Colour RGBW COLOUR VAULE INTENSITY VAULE INTENSITY Colour0(off) Colour33 129-132 Colour1 Colour34 133-136 Colour2 Colour35 137-140 Colour3 9-12 Colour36 141-144 Colour4 13-16 Colour37 145-148 Colour5 17-20 Colour38 149-152 Colour6 21-24 Colour39 153-156 Colour7 25-28 Colour40...

  • Page 13: Dmx Connections

    6. DMX-512 Control Connection Using a 3 pin XLR cable, you can connect the product to a DMX controller and then to other fixtures with 3 pin XLR inputs and outputs. When not using DMX, multiple fixtures can be connected together and operate under master/slave control.

  • Page 14: Cleaning And Maintenance

    Contact Details:_________________________________________ Date Purchased:_________________________________________ Invoice/Receipt Number:__________________________________ Copyright Light Emotion 2017. E&OE Exclusively imported by LSW Imports and Distribution PO Box 887, Kingsgrove, NSW, 2208 - 1800 643 111 (within Australia) / +612 9718 4900 (outside of Australia) sales@lswonline.com.au - www.lightemotion.com.au...
