DERBY4

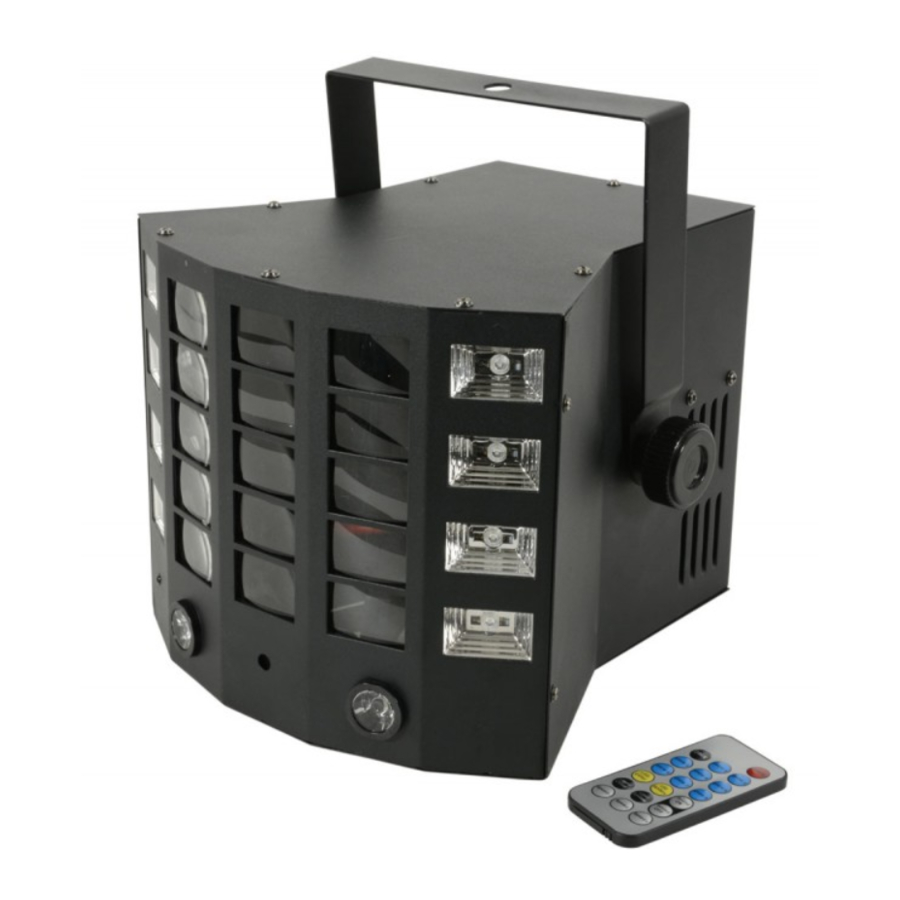

4-in-1 Entertainment Lighting Effect.
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.01
Advertisement
Table of Contents
Related Manuals for Light Emotion DERBY4
Summary of Contents for Light Emotion DERBY4
- Page 1 DERBY4 4-in-1 Entertainment Lighting Effect. User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions 2. Installation 3. Features 4. Menu Operation 5. IR Remote Control 6. DMX Control 7. DMX Connections 8. DMX Address Setting 9. DMX Terminator 10. Cleaning and Maintenance 11. Technical Data 12. Warranty... -
Page 3: Safety Instructions
Introduction Thank you for the purchase of your DERBY4 4-in-1 Lighting Effect by Light Emotion. We are confident you will be satisfied with your purchase and enjoy many years of use from this Professional Light Emotion product. Please read these instructions carefully to ensure the product is well look after and used correctly to avoid any potential problems. -
Page 4: Installation
- Avoid direct eye exposure to the light source while it is on. 2. Installation: Caution: For safe mounting of this product, please read the following carefully. - Use a suitable clamp to attach to lighting stand, trussing or bar, together with safety chain. - When mounting the product, do not stand directly underneath the product - Always use a safety chain when mounting the product on stands, trussing or bars. - Page 5 LED Four Digit Display: Menu Down Enter Using the four button LED menu control, press the menu button repeatedly until you reach your desired mode. You can also scroll though the modes using the up and down buttons. Press enter to access being able to vary the settings for that mode or feature.
- Page 6 Explanation of Menu items. Addr – DMX address ChMd – DMX profile 2 or 10 channel mode ShNd – Built in show SPEE – Speed setting for shows 1-4 if not sound activated SLMD – Chose between master or slave mode SoUn –...
-
Page 7: Ir Remote Control
5. Infra Red remote control. - Page 8 BUTTON FUNCTION Stand By Standby mode – no light output No function Show 1-Show 8 Show 1-Show 4(available) Show 5-Show8(no function) LED Color LED colour choose – press repeatedly to cycle colours LED Random LED colour random Laser Color Laser colour choose Laser Random Laser colour random Sound ON...
-
Page 9: Dmx Control
6. DMX Control Using DMX you can control each of the four effects built into this light individually. You can also use DMX to call upon built in programs and shows. This fixture has 2 DMX profiles – 2 and 10 channels modes. -
Page 10: Dmx Connections
2 channel DMX Chart: DMX value Function No function 10-69 Show 1: Gobo Derby LED show Control mode 70-129 Show 2: White LED + UV show 130-179 Show 3: Laser show 180-255 Show 4: Random effects Show speed/sound 0-247 Show 1-Show 4 Speed from slow to fast control 248-255 Show 1-Show 4 sound control... -
Page 11: Dmx Terminator
Similarly, for 2 channel DMX mode, the DMX channels would be 1,3,5,7 and so on. Some DMX controllers may group fixtures in lots of 16 channels – so in that case, fixture 1 on channel 1, fixture 2 on channel 17, 3 on 33, and so on. Refer to your DMX controllers’ instruction manual on how best to manage your DMX channel allocation. -
Page 12: Technical Data
We recommend you register your warranty online at www.industrygear.com.au. Purchased from:_________________________________________ Contact Details:_________________________________________ Date Purchased:_________________________________________ Invoice/Receipt Number:__________________________________ Copyright Light Emotion 2017. E&OE Exclusively imported by LSW Imports and Distribution PO Box 887, Kingsgrove, NSW, 2208 sales@lswonline.com.au www.lightemotion.com.au 1800 643 111 (within Australia)
