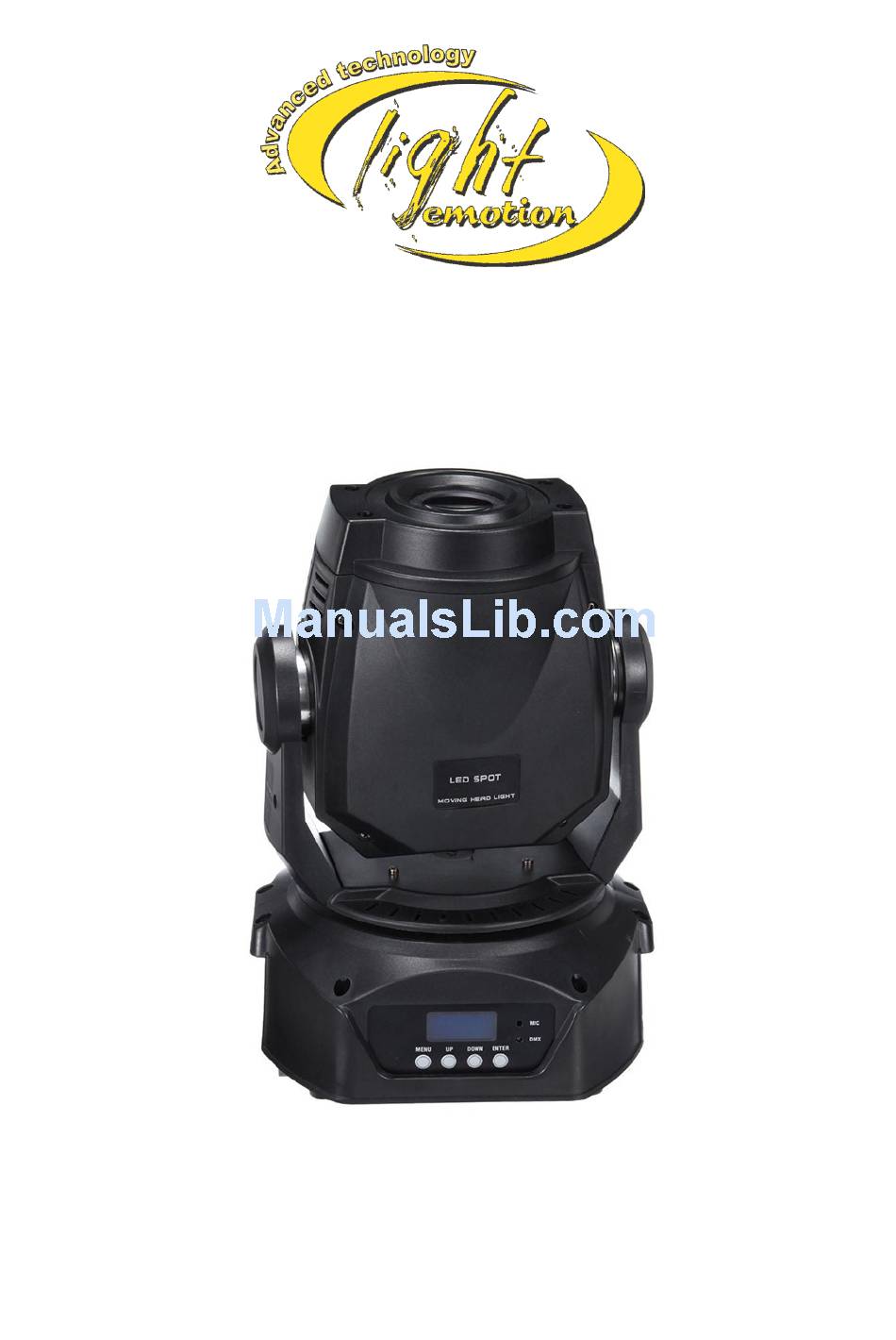

www.lightemotion.com.au
LE90
90w LED Moving Head Spot
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.00
Advertisement
Table of Contents
Related Manuals for Light Emotion LE90
Summary of Contents for Light Emotion LE90
- Page 1 LE90 90w LED Moving Head Spot User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions 2. Installation 3. Features 4. Menu Operation 5. Stand Alone Operation 6. Master/Slave Operation 7. DMX Table 8. DMX Connection 9. DMX Address Setting 10. DMX Terminator 11. Cleaning and Maintenance 12. Technical Data 13. Warranty... -
Page 3: Safety Instructions
Introduction Thank you for the purchase of your LE90 LED Moving Head Spot by Light Emotion. We are confident you will be satisfied with your purchase and enjoy many years of use from this Professional Light Emotion product. Please read these instructions carefully to ensure the product is well look after and used correctly to avoid any potential problems. -
Page 4: Installation
- Make sure power cord is never crimped or damaged. - Never disconnect power cord by pulling or tugging on the cord. - Never carry the fixture directly from the cord. Carry by holding the chassis of the unit. - Avoid direct eye exposure to the light source while it is on. 2. -
Page 5: Menu Operation
4. Menu Operation Used for setting up or operating the product without DMX control Menu or Mode: Press each time to access features – see table below. UP: Increase setting DOWN: Decrease setting Enter: Confirm and save setting. MENU DOWN ENTER Menu Map: DMX SET... -
Page 6: Master/Slave Operation
6. Master/Slave operation To run in Master/Slave mode, chose on of the fixtures to be the master. Connect DMX cable from the output of that fixture to the input of the second. For each additional fixture, connect DMX cable from output of the previous fixture to the input of the next and so on. On the unit deemed to be the Master, chose a show to play like you would in stand/alone mode. - Page 7 144 Ten pointed bicycle wheel-type gobo 180 Three comma-shapes in a circle 216 Eight diamonds gobo 220-255 Gobo flow from slow to fast 0-7 No effect Gobo 8-89 Gobo position indexing Rotation 90-167 Gobo rotation anti clockwise 168-255 Gobo rotation clockwise 0-10 No effect Gobo Shake 11-249 Gobo shake from slow to fast...
-
Page 8: Dmx Connection
8. DMX-512 Control Connection Using a 3 pin XLR cable, you can connect the product to a DMX controller and then to other fixtures with 3 pin XLR inputs and outputs. When not using DMX, multiple fixtures can be connected together and operate under master/slave control. The signal cable should be two core with shielded cable, the signal connectors are XLR input and output connectors. -
Page 9: Dmx Terminator
10. DMX Terminator: A DMX terminator helps to reduce ‘noise’ on the DMX chain, and makes the light respond to control more accurately. It should be plugged in to the last fixture in any chain. For Terminator connections please see below: 11. -
Page 10: Technical Data
12. Technical Data - Input voltage: 90-240VAC, 50 or 60Hz - Power consumption: 95W - LEDs: 1 high powered 90W LED with average 50000 hours lifespan - Beam angle: 12º - Control: DMX or on-board built-in programs, sound activation, master/slave - 16 DMX channels - Colour wheel: 7 colours + open (white), rainbow/flow effect - 2 Gobo wheels: 6 gobos + open (clear), with rotating gobos, gobo shake and gobo flow effect. -
Page 11: Warranty
We recommend you register your warranty online at www.industrygear.com.au. Purchased from:_________________________________________ Contact Details:_________________________________________ Date Purchased:_________________________________________ Invoice/Receipt Number:__________________________________ Copyright Light Emotion 2016. E&OE Exclusively imported by LSW Imports and Distribution PO Box 887, Kingsgrove, NSW, 2208 sales@lswonline.com.au www.lightemotion.com.au 1800 643 111 (within Australia)
