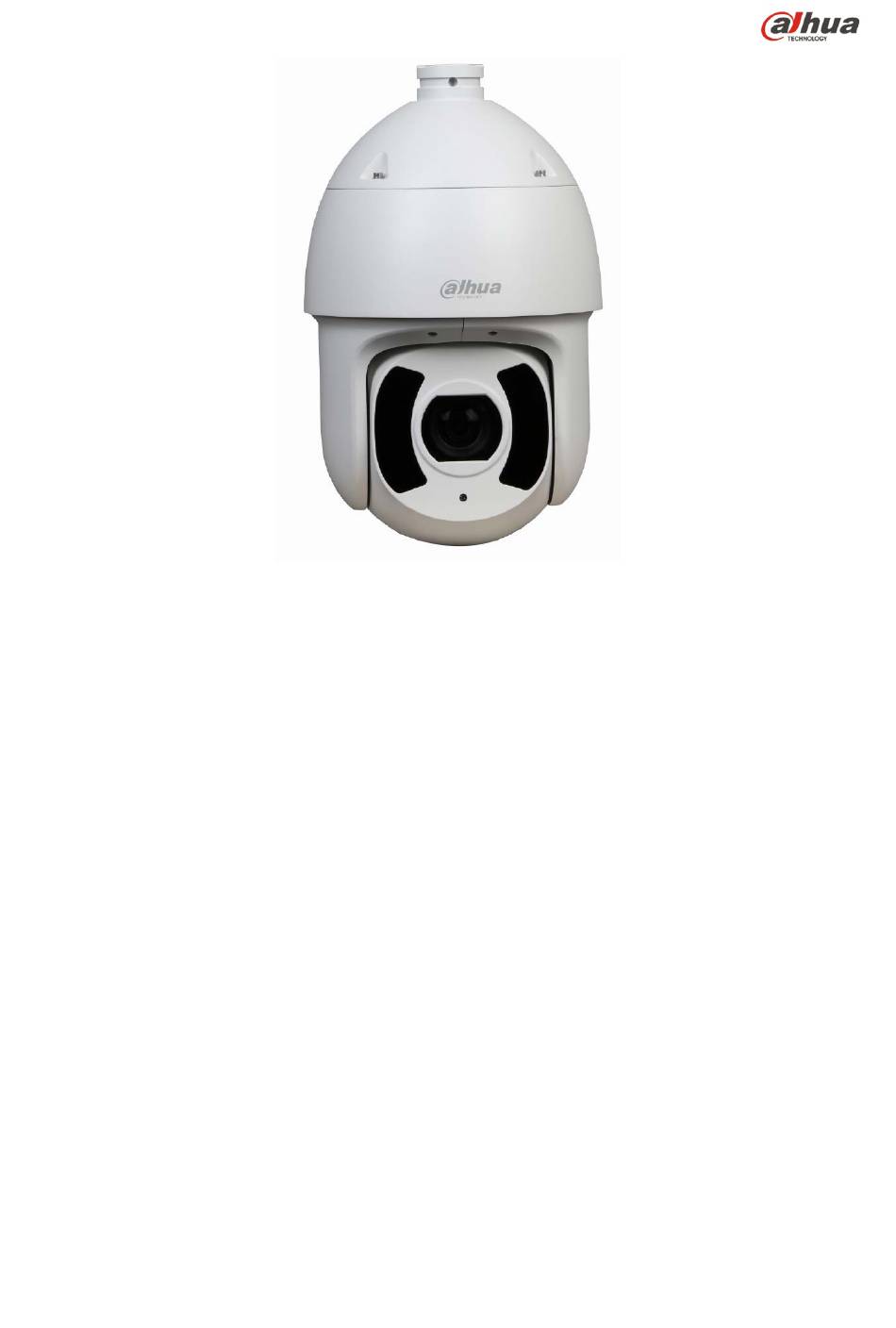

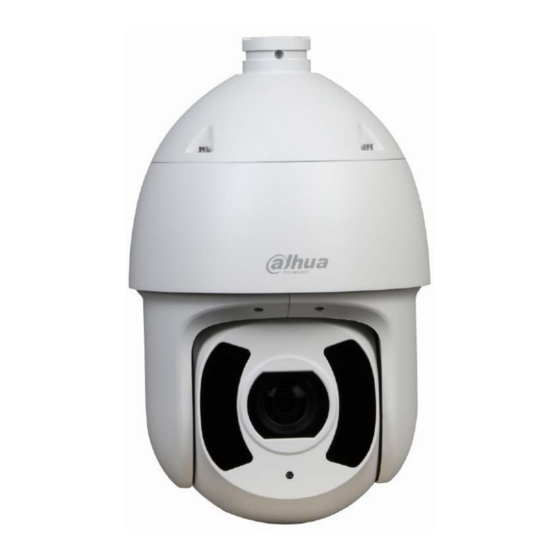

- Page 1 2 MP Network PTZ Camera 6CE230UNI Quick Start Guide Version 001.001 Dahua Technology USA Inc.
-
Page 2: Table Of Contents
Table of Contents Welcome........................1 Important Safeguards and Warnings..............1 Electrical safety ....................1 Environmental Precautions ................2 Operation and Daily Maintenance ..............3 Lifting Appliance Requirement ................3 Warnings ......................3 FCC Information ....................4 FCC compliance： .................... 4 Legal Notices .................... -
Page 3: Welcome
1 Welcome This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting of the Dahua Network PTZ Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit. -
Page 4: Environmental Precautions
• If the unit is damaged and requires service, unplug the unit from the main AC power supply and from the PoE supply and refer to qualified service personnel. Damage may include, but is not limited to: • The power supply cord or plug is damaged. •... -
Page 5: Operation And Daily Maintenance
Operation and Daily Maintenance • Do not touch the heat dissipation component of the unit. This part of the unit is hot and may cause a burn. • Do not open or dismantle the device; there are no components that a user can fix or replace. Opening the unit may cause water leakage or expose components to direct light. -
Page 6: Fcc Information
1.3 Legal Notices Copyright This user guide is ©2017, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered... -
Page 7: Disclaimer
1.4 Disclaimer • This user guide has been compiled with great care and the information it contains has been thoroughly reviewed and verified. The text was complete and correct at the time of printing. This guide may be periodically updated to reflect changes to the product or to correct previous information and the content of this guide can change without notice. -
Page 8: Unpacking
2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts listed below are included. If an item is missing, contact customer support or your local representative. -
Page 9: Installation And Configuration
3 Installation and Configuration 3.1 Framework and Dimensions The following figures show the dimensions of the device in mm (in.). These images are intended as a reference only. Figure 3-1: Dimensions for 6CE230UNI Figure 3-2: PFB30W Wall Mount Dimensions... -
Page 10: Wiring
3.2 Wiring The dome camera includes the following wiring bundles: Wire Bundle Label Function Wire Color Connection Optical Fiber – VDC Power Input – VAC Power 24 VAC Yellow/Green Earth Ground Black 24 VAC RS485 Yellow RS485 A+ Orange RS485 B- BNC (1.0 Vp-p, 75 Ω) Analog Video Output –... -
Page 11: Alarm Setup
3.3 Alarm Setup Certain devices support alarm inputs and outputs, check your specific device for alarm capability. Alarm Input Refer to Figure 3-3 for alarm input configuration. The device collects that status of the alarm input port when the input signal is idle or grounded. If the input signal is connected to the 3.3 V or it is idle then the device receives the alarm input signal. -
Page 12: Alarm Output - Switch Application
Alarm Output – Switch Application The alarm output drives the external circuit, with a maximum current of 30 mA and a maximum voltage of 5 V. It is recommended to add a relay if the circuit exceeds the maximum values. Figure 3-5 3.4 Locally Storing Data Certain cameras include a SDHC card slot for onboard storage that support a 128 GB Micro SD card. -
Page 13: Device Installation
4 Device Installation This section details installing the camera to a solid wall or to a ceiling, in an outdoor or an indoor environment. Note that the wall or ceiling must be capable of supporting a minimum of eight (8) times the weight of the camera and a bracket (if used). -
Page 14: Preparing The Camera
4.1 Preparing the Camera The Network PTZ camera comes with the PFB305W Wall Mount, the installer must supply the following hardware: • Four (4) bolts, washers or other fastening hardware to secure the wall mount to the installation medium. The hardware must be capable of supporting eight (8) times the weight of the camera and mount. -
Page 15: Installing The Camera
7. Secure the wall mount bracket to the wall using four M6 x 15 screws with the four (4) hex screws and four (4) flat washers. 8. Connect the safety tether to the dome and to the hook on the wall mount. Figure 4-3 10. -
Page 16: Network Configuration
5 Network Configuration Dahua IP cameras feature a built-in Web interface to control all aspects of camera operation. This section includes details about the supported network protocols, configuring IP addresses, and configuring alarms and local recording options. Refer to the camera’s Operations Manual for full details. -
Page 17: Modifying The Ip Address
5.2 Modifying the IP Address To operate the camera in your network you must assign it a valid network IP address. The default IP address is 192.168.1.108, but you may have to change this address if it conflicts with another device on the network. -
Page 18: Accessing The Web Interface
5. Click the Net icon at the top of the ConfigTool. 6. Modify the IP Address and any other applicable network parameter. 7. Click Save to finish modification and store the modified network parameters. Figure 5-2 5.4 Accessing the Web Interface Each camera can be accessed directly from the Internet Explorer Web browser. -
Page 19: Configuring Alarms
5.5 Configuring Alarms The device’s Web Interface offers a Relay Activation page to configure alarms and to set alarm responses. Figure 5-4 1. Access the Web Interface for the device and click the Setup tab. Expand the Event menu, then choose the Alarm page. - Page 20 2. Select the recording medium for each event Recorded and Snapshot event, Scheduled, Motion Detect and Alarm. Select the Local check box to record an event to the Micro SD card. 3. Click the Local tab to view the used capacity and the total capacity of the Micro SD card. Figure 5-6 4.
- Page 21 8. Check the Send Email box to send an email to a specified user after the device triggers an alarm. 9. Set the capacity limit for the Micro SD Card (available with the Capacity Warning event type). The device triggers an alarm once the amount of data on the card surpasses this limit. Figure 5-8...
- Page 22 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
