USER GUIDE

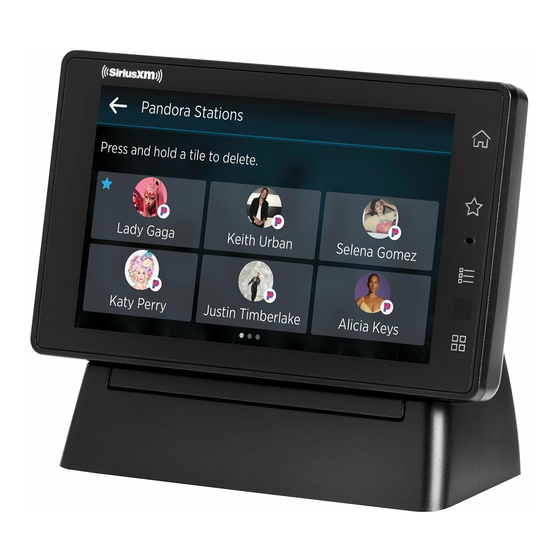

Dock & Play Home Kit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DH4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sirius XM RAdio DH4

  • Page 1 USER GUIDE Dock & Play Home Kit...
  • Page 2: Table Of Contents

    Table of Contents Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Introduction .
  • Page 3: Compatibility

    Compatibility This Home Kit is compatible with the following Dock & Play Radios: SiriusXM: • Tour • Onyx Plus • Edge • Onyx • Onyx EZ • Onyx EZR • XpressRCi • XpressRC • XpressR Sirius: • Sportster 5 • Starmate 8, 5, 4, 3 •...
  • Page 4: Introduction

    Introduction Thank you for purchasing the SiriusXM Dock & Play Home Kit! The Home Kit lets you play your compatible XM or SiriusXM Dock & Play Radio through your home stereo system or powered speakers . • There is no need for a second subscription . Just connect this Home Kit to a stereo system or set of powered speakers - and then simply move your Radio from any location to your home or office .
  • Page 5: Safety And Care Information

    Introduction Safety and Care Information IMPORTANT! Self installation instructions and tips are provided for your convenience . It is your responsibility to determine if you have the knowledge, skills, and physical ability required to properly perform an installation . SiriusXM shall have no liability for damage or injury resulting from the installation or use of any SiriusXM or third party products .
  • Page 6: What's In The Box

    Introduction What’s in the Box? XM & SiriusXM Radio Dock Adapter Home Dock Sirius Radio Dock Adapter Indoor/Outdoor Home Antenna select memo t-mix menu t-scn display mute direct jump bank PULL PULL Home Power Stereo Audio IR Remote Control SXWBR1 (For use with all Remote Control Adapter...
  • Page 7: Home Dock Color-Coded Connections

    Introduction Home Dock Color-Coded Connections The color-coded Home Dock makes it simple to connect the cables to the appropriate connectors at the rear of the dock . Rear View AUDIO ANT (Silver) AUDIO (Green) POWER (Red) Connection for Connection for Connection for the Indoor/ stereo system or...
  • Page 8: Ir Remote Control Functions

    Introduction IR Remote Control Functions For use with all Radios except Tour Power Button Press to turn Radio on and off. Arrow Buttons Up/Down Press to preview and tune to channels through Pause and Replay Buttons the channel lineup; also press to scroll through For Radios which have these features, pause, lists and highlight menu items.
  • Page 9: Sxwbr1 Remote Control Functions

    Introduction SXWBR1 Remote Control Functions For use with Tour Power Button Voice Button Press to turn Radio on and off. Press to enter a voice command such as, search, channel, play, find, go to, listen to, tune, open Previous/Next Channel Press open Linear Tune and to tune to the –...
  • Page 10: Remote Control Battery Replacement

    Introduction Remote Control Battery Replacement The Remote Control has a child resistant battery compartment which requires a pointed object to open the battery compartment . A paper clip is recommended, as shown . To Replace the Battery: 1. 1. Press the paper clip or Paper Clip other object into the lock release opening...
  • Page 11: Home Installation

    Home Installation There are several steps to setting up your Home Kit . Follow these steps for an easy installation . Step 1: Insert the Radio Dock Adapter Into the Dock You’ll need to insert the Radio Dock Adapter that is compatible with your Radio into the Home Dock .
  • Page 12 Home Installation 2. Orient and place the Radio Dock Adapter that you selected into the Home Dock . Be sure the adapter is centered, and is seated all the way down into the dock . 3. 3. Once the adapter is seated correctly in the Home Dock, gently press the top of the adapter against the dock with your finger until it clicks into place .
  • Page 13 Home Installation Should it become necessary to remove the Radio Dock Adapter from the Home Dock, use your fingernail to gently press down on the top of the adapter, and then use a long thin object such as a paper clip, a screw driver or something similar to pry the adapter away until it releases from the dock .
  • Page 14: Step 2: Connect The Home Dock And Dock The Radio

    Home Installation Step 2: Connect the Home Dock and Dock the Radio When installing the Home Dock in your home, choose a location in close proximity to your stereo system or powered speakers, and also where the cable from the Indoor/Outdoor Home Antenna can reach the Home Dock . The location should be easily accessible and provide good visibility of the display, but should not be located where it will be in direct sunlight, which will affect the visibility of the display screen .
  • Page 15 Home Installation B . Connect the Home Power Adapter Connect the Home Power Adapter to the red Power connector at the rear of the Home Dock, and plug it into a wall outlet . AUDIO C . Dock Your Radio Insert your Radio into the Home Dock as shown, and turn the Radio On by pressing the Power button .
  • Page 16: Step 3: Place And Aim The Indoor/Outdoor Home Antenna

    Home Installation Step 3: Place and Aim the Indoor/Outdoor Home Antenna To begin, try experimenting with the Indoor/ Outdoor Home Antenna to get a feel for the reception in your location . In major metropolitan areas, you might find that you 866-635-2349 get great reception in several locations without siriusxm.com...
  • Page 17 Home Installation Other Indoor/Outdoor Home Antenna Installation Suggestions Try moving the Indoor/Outdoor Home Antenna closer to a window, ideally one that is facing due south . Not sure which way is south? Think about where the sun rises (in the east) and sets (in the west) .
  • Page 18 Note that you will want to consider any potential hazards when you choose the mounting location, and possibly consider professional SOUTH installation . Sirius XM Radio Inc . is not liable for any damages . To mount the antenna, you will need four screws (not included)
  • Page 19 Home Installation with a 1/4” head (e .g ., an M3 OUTDOORS screw), and that are suitable for the material onto which you are affixing the antenna, (e .g ., wood, metal, etc .) . The screws should be spaced 1-3/8”...
  • Page 20: Step 4: Connect The Audio

    Home Installation locations until you find one where you are receiving a good signal . The Indoor/Outdoor Home Antenna’s reception can also be tweaked by opening or closing the antenna clamshell, and turning the antenna . While observing the signal strength, make small adjustments to the angle of tilt of the clamshell until the highest possible signal strength is achieved .
  • Page 21 Home Installation To Connect the Home Dock to Your Stereo System The Home Dock can be connected to your stereo system through the Aux In or Line In connection of your stereo system, using the provided Stereo Audio Cable . 1.
  • Page 22 Home Installation To Connect the Home Dock to Your Powered Speakers The Home Dock can be connected directly to a set of powered speakers . 1. Connect the 1/8” (3 .5 mm) connector from the powered speakers to the green AUDIO connector at the rear of the Home Dock . 2.
  • Page 23: Troubleshooting

    Troubleshooting Your Home Kit has been designed and built to be trouble-free, but if you experience a problem, try this: • Check that all connections are firm and secure . • Make sure you have connected the Home Dock as described in this User Guide .
  • Page 24 Troubleshooting If you see this on the screen: Try this: — • No program information, such as artist name, song title, or channel exists . If this happens: • Try this: You do not receive all the • If you have not yet activated your service, refer channels to which you to the Activation or Subscribe section in the subscribed...
  • Page 25 Troubleshooting If this happens: Try this: Traffic and Weather channels • These channels use a different audio technology sound different from other than other channels so they often sound channels different from other channels . The Radio shuts off • If your Radio has these features, check these: unexpectedly –...
  • Page 26: Product Specifications

    Product Specifications System Power Requirements: 110 V AC, 200 mA (max) Operating Temperature: -4°F to +140°F (-20°C to +60°C) Audio Output: 1 .5 V rms (max) Home Dock Dimensions: 4 . 1 in (W) X 1 .8 in (H) X 1 .7 in (D) 105 mm (W) X 45 mm (H) X 44 mm (D) Weight (without adapter): 1 .8 oz (50 g)
  • Page 27: Patent And Environmental Information

    Patent and Environmental Information Patent Information It is prohibited to, and you agree that you will not, copy, decompile, disassemble, reverse engineer, hack, manipulate, or otherwise access and/or make available any technology incorporated in this product . The music, talk, news, entertainment, data, and other content on the Services are protected by copyright and other intellectual property laws and all ownership rights remain with the respective content and data service providers .
  • Page 28: Fcc Statement

    • Consult the dealer or an experienced radio/TV technician for help . WARNING! The FCC and FAA have not certified Satellite Radio Receiver use in any aircraft (neither portable nor permanent installation) . Therefore, Sirius XM Radio Inc . cannot support this type of application or installation .
  • Page 29: Copyrights And Trademarks

    Copyrights and Trademarks © 2020 Sirius XM Radio Inc . SiriusXM, Automatic, Pandora and all related logos are trademarks of Sirius XM Radio Inc . and its respective subsidiaries . All other marks, channel names and logos are the property of their respective owners . All rights reserved .
  • Page 30: Indoor/Outdoor Home Antenna Template

    Indoor/Outdoor Home Antenna Template 1-3/8” 1-1/8”...
