4. NOMENCLATURE AND FUNCTIONS

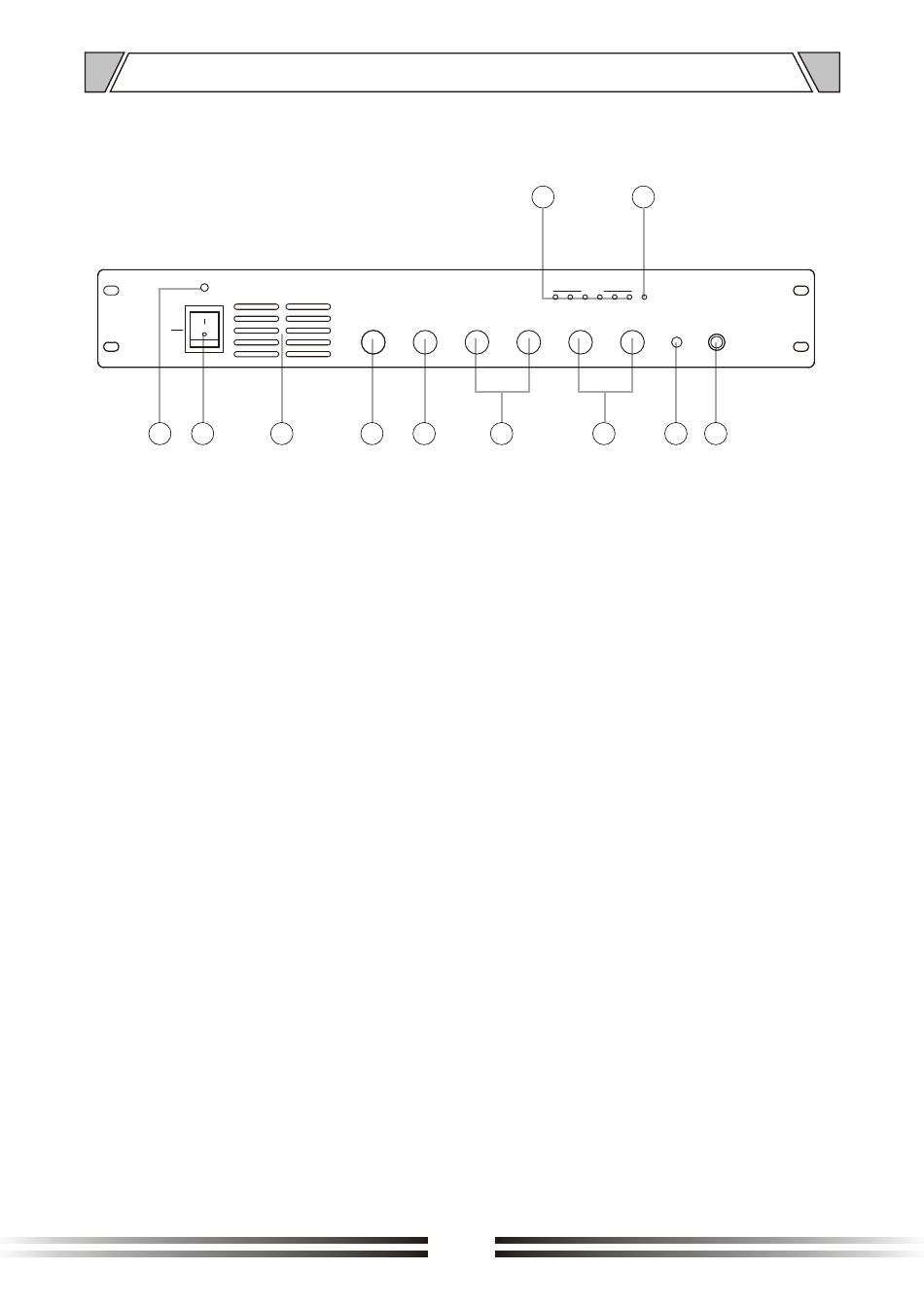

4.1 FRONT PANEL(2U)
POWER
ON
OFF
1 2
1. POWER
Power indicator
2. POWER SWITCH
On top of the opening Power
Press the end, power shut down
3. COOLING FANS
4. BASS
Adjust bass response. Rotate clockwise to increase
bass output and anticlockwise to reduce it.
5. TREBLE
Adjust treble response. Rotate clockwise to increase
treble output and anticlockwise to reduce it.
BASS TREBLE
0 0
-1 +1 -1 +1
-2 +2 -2 +2
-3 +3 -3 +3
-4 +4 -4 +4
-5 +5 -5 +5
3 4 5
11
LEVEL
2 4 6 8 10 PEAK
MIC 1 MIC 2 LINE 1 LINE 2
5 5 5
4 6 4 6 4 6 4
3 7 3 7 3 7 3
2 8 2 8 2 8 2
1 9 1 9 1 9 1
0 10 0 10 0 10 0
6 7
6. MIC1 \ MIC2
MIC volume control (MIC1/MIC2)
7. LINE1 \ LINE2
Line volume control(LINE 1/LINE 2)
8. MUTE
Mute Microphone 1 mute level control
9. MIC
MIC1 input 6.3 Microphone jack input
10.PROTECT
Protection indicator LED
11.LEVEL INDICATORS
Level meters 6 output level indicators
6
10
PROTECT
5
6 MUTE
7
8
9
MIC1
10
8 9
