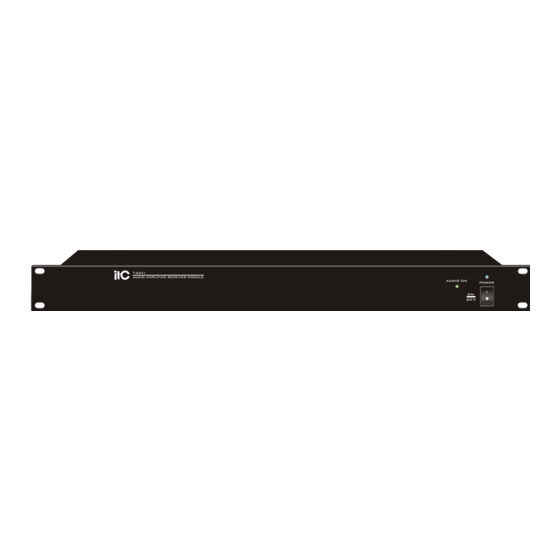

- Page 1 PUBLIC ADDRESS SYSTEM T-6241 AUDIO AMPLIFIER RECEIVER MODULE T-6241 AUDIO AMPLIFIER RECEIVER MODULE AUDIO ON POWER Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. FEATURES ....................... 5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel ......................6 4.2 Rear Panel......................6 5. APPLICATIONS .......................7 6.SPECIFICATIONS ....................8 7.BLOCK DIAGRAM ....................9 8.DIMENSIONAL DIAGRAM ................... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 4 When removing the power cord, be sure to hold its plug to pull. Contact your ITC dealer as to the cleaning. If dust is allowed to accumulate in the unit over a long Do not block the ventilation slots in the unit's cover.
-
Page 5: General Description
2. GENERAL DESCRIPTION The T-6241 series is equiped with audio amplifier receiver module. They are designed to suit all PA system application in schools.home.offices and stores. 3. FEATURES 1. 24V DC (Optional) 2. 0.7V/1V/1.2V audio output connection for amplifier 3. 100V input connection for amplifier... -
Page 6: Nomenclature And Functions
4. NOMENCLATURE AND FUNCTIONS 4.1 FRONT PANEL AUDIO ON POWER 3. POWER 1. AUDIO ON 100V Signal indicator Power indicator 2. POWER SWITCH On top of the opening Power Press the end, power shut down 4.2 REAR PANEL 24VDC OUTPUT 100V INPUT 0.7V 1.0V... -
Page 7: Applications
5. APPLICATIONS REAR PANEL CONNECTIONS... -
Page 8: Specifications
6.SPECIFICATIONS AUDIO AMPLIFIER RECEIVER MODULE MODEL T-6241 AUDIO INPUT 100V 0.7V/1.0V/1.5V AUDIO OUTPUT 100Hz~18KHz(-3dB) FREQUENCY RESPONSE ~220-240V 50/60Hz POWER REQUIREMENTS Specific voltage and frequency values to the machine to prevail in kind.) 484X128X45 DIMENSION(mm) 3.3Kg NET WEIGHT 4.5Kg GROSS WEIGHT... -
Page 9: Block Diagram
7. BLOCK DIAGRAM... -
Page 10: Dimensional Diagram
8. DIMENSIONAL DIAGRAM UNIT:mm AUDIO ON POWER 100V INPUT 1.5V 24VDC OUTPUT 0.7V 1.0V USE ONLY WITHA 250V FUSE AUDIO OUTPUT AUDIO INPUT 24VDC/1A UNIT:mm AUDIO ON POWER Over Over... - Page 11 PUBLIC ADDRESS SYSTEM PUBLIC ADDRESS SYSTEM VersionV0.1...
