- Page 1 PUBLIC ADDRESS SYSTEM T-2080K T-2120K T-2240K PROFESSIONAL STEREO KARAOKE AMPLIFIER Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. PRODUCT DESCRIPTION ................... 5 3. FEATURES ......................5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel ......................6 4.2 Rear Panel......................7 5. USER MANUAL ....................... 8 6. APPLICATIONS ......................11 7. BLOCK DIAGRAM ....................12 8. -
Page 3: Safety Precautions
AC outlet and as doing so may result in fire or electric shock. contact your nearest ITC dealer. Make no further attempt to operate the unit in this condition as this Use the unit only with the voltage specified on the unit. - Page 4 When removing the power cord, be sure to hold its plug to pull. Contact your ITC dealer as to the cleaning. If dust is allowed to accumulate in the unit over a Do not block the ventilation slots in the unit's cover.
-
Page 5: Product Description

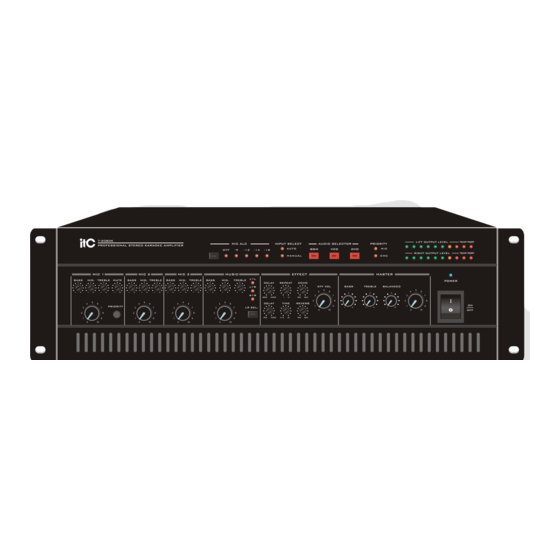

2. PRODUCT DESCRIPTION T-2080K-2120K-2240K are two-channel multimedia amplifier, output power is 2x80W, 2x120W and 2x240W, better for the large scale system, the model is with separate volume control, connect with 4 to 8 ohm speaker , it design with the impeccable protection include short circuit protection, DC output protection, temperature protection, overload protection, also with best fan. -
Page 6: Nomenclature And Functions
4. NOMENCLATURE AND FUNCTIONS 4.1 FRONT PANEL 1 2 3 4 5 6 7 8 9101112 13 14 MIC1 ~ 3 / MUSIC bass potentiometer 16. Left /right channel balance adjustment potentiometer 2. MIC1 ~ 3 / MUSIC channel volume potentiometer 17. -
Page 7: Rear Panel
NOMENCLATURE AND FUNCTIONS 4.2 REAR PANEL 38. Audio input jack (DVD/VCD/BGM), 30. AC power input socket (with fuse box) 31. Vent and fan Input Sensitivity: 350mv 30mv/10k 32. Left/right channel output 39. EMC alarm voice input, Input Sensitivity: 775mV 50mV (connected with impedance speaker) 33. -
Page 8: User Manual
5. USER MANUAL 5.1 Power on and power off Input AC220V 10%, switch is turn on, blue power indicator light up , then the power is turned on. After 3 to 5 seconds, the amplifier is working normally. When switch is turn off, blue power indicator go out , then the power is turned off, all the indicators go out at the same time. - Page 9 USER MANUAL 5.5 MIC volume adjustment "MUSIC" is music potentiometer, control the input level of the music channel; "MIC1~3" is volume potentiometer, control the input level of the microphone; "BASS" is the bass potentiometer, adjust low frequency 65Hz~550Hz; "MID" is the midrange potentiometer, adjust middle frequency 1KHz~3KHz; "TREBLE"...
- Page 10 USER MANUAL 5.9 master volume control "Master Volume" potentiometer, control the master volume of power amp total level. The master volume is recommended not to open the greatest potential to retain 20% of the spare values. "BASS" potentiometer, adjust the low frequency 65Hz~550Hz of power amp. "TREBLE"...
-
Page 11: Applications
6. APPLICATIONS... -
Page 12: Block Diagram
7. BLOCK DIAGRAM... -
Page 13: Specifications
8. SPECIFICATIONS T-2240K T-2080K Model T-2120K 2x80W Output of rated power 2x120W 2x240W Speaker output The input sensitivity and impedance Mic1,2,3: 2.5mV/600 ~775mV/10K (balance input) AUX(KARAOKE): 200mV/10K (unbalance input) DVD: 300mV/10K (unbalance input) VCD: 300mV/10K (unbalance input) BMG: 300mV/10K (unbalance input) -
Page 14: Dimensional Diagram
9. DIMENSIONAL DIAGRAM UNIT :mm UNIT :mm Over Over... - Page 15 PUBLIC ADDRESS SYSTEM VersionV0.1...
