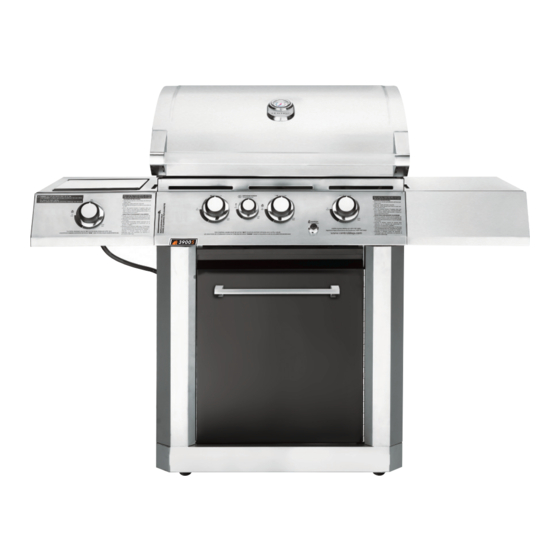

CENTRO 3900S
Assembly Manual
85-3010-6 (G51207) Propane
85-3011-4 (G51210) Natural Gas
LIMITED 5-YEAR WARRANTY
Read and save manual for future reference.
Assemble your grill immediately.
Missing or damaged parts should be
claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support,
please call 1-877-707-5463.
Manual Revision #: 07012009 SA
Advertisement
Related Manuals for Centro 3900S
Summary of Contents for Centro 3900S
- Page 1 CENTRO 3900S Assembly Manual 85-3010-6 (G51207) Propane 85-3011-4 (G51210) Natural Gas LIMITED 5-YEAR WARRANTY Read and save manual for future reference. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. For product inquiries, parts, warranty and troubleshooting support, please call 1-877-707-5463.
-
Page 2: Hardware Pack
H E A V Y A R T I C L E N E E D S 2 T O L I F T THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES To ORDER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.centrobbqs.com. - Page 3 PARTS LIST (PROPANE) FOR 85-3010-6 (G51207) Item Qty. Description Part No. Item Qty. Description Top Lid G512-2900-01 Lid Handle G512-0001-01 Lid Handle End Cap-Left G617-0004-01 Lid Handle End Cap-Right G617-0005-01 Logo Plate G412-0001-01 Thermometer G412-0003-01 Screw for Top Lid G501-0005-01 Lid Bumper G508-0063-01 Burner Box Assembly...
- Page 4 PARTS LIST (NATURAL GAS) FOR 85-3011-4 (G51210) Item Qty. Description Part No. Item Qty. Description Top Lid G512-2900-01 Lid Handle G512-0001-01 Lid Handle End Cap-Left G617-0004-01 Lid Handle End Cap-Right G617-0005-01 Logo Plate G412-0001-01 Thermometer G412-0003-01 Screw for Top Lid G501-0005-01 Lid Bumper G508-0063-01...
-
Page 5: You Will Need
ASSEMBLY INSTRUCTIONS Separate the 2 diff erent types of wheels, 2 locking wheels (EH) and 2 regular wheels (EI). Attach the locking wheels (EH) to the back of the bottom shelf (EG) and the regular wheels (EI) to the front of the bottom shelf (EG). To secure the 4 wheels, hand tighten fi rst. - Page 6 ASSEMBLY INSTRUCTIONS THIS STEP REQUIRES 3 OR MORE PEOPLE. DO NOT ATTEMPT ALONE. EXTREMELY HEAVY. a. Position the top lid and burner box assembly (A and B) onto cart assembly (C) as shown. b. Use the hardware to connect both parts, on the left and right sides, at the three points indicated in Figure B and C.
- Page 7 ASSEMBLY INSTRUCTIONS Attach the left shelf fascia (DB) to the left side shelf Front table (DA). YOU WILL NEED: TIP: To position the left side shelf, insert the two Assemble the right side shelf assembly to the cart assembly, as shown in fi gure B. YOU WILL NEED: ASSEMBLY INSTRUCTIONS hooks on the side shelf assembly into the two...
- Page 8 ASSEMBLY INSTRUCTIONS a. Position the side burner (DD1) through the b. Make sure that the side burner (DD) engages Underside view c. Using the wing nut provided, assemble the YOU WILL NEED: d. Attach the end of the side burner electrode wire Ensure that the wire is pushed in fi rmly.
- Page 9 ASSEMBLY INSTRUCTIONS Place the fl ame tamers (BG) into the burner box. Model may not be exactly as shown. a. Place the cooking grates (BH) into the burner b. Insert the three small positioning rods of the ASSEMBLY INSTRUCTIONS box, as shown in fi gure A. warming rack (BI) into the rear panel of the burner box.
- Page 10 ATTENTION: For your families safety, do not attempt to light this BBQ until you have reviewed pages 4-7 of the CENTRO Safety & Care Manual. All Safety and Leak test MUST BE PERFORMED BY THE END USER, prior to lighting this BBQ.
