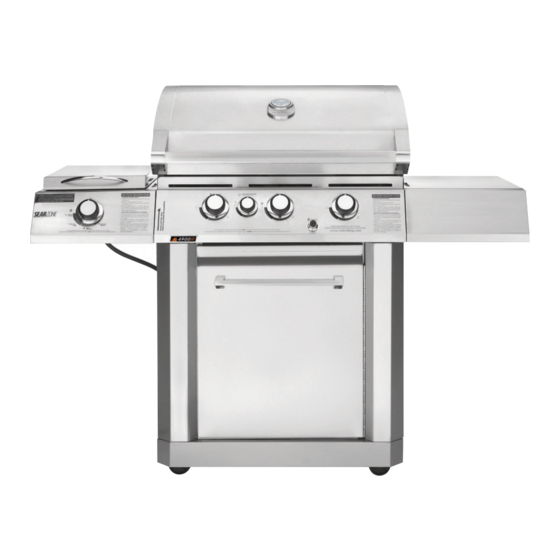

CENTRO 4900IR
Assembly Manual
85-3014-8 (G51208) Propane
85-3015-6 (G51211) Natural Gas
LIMITED 5-YEAR WARRANTY
Read and save manual for future reference.
Assemble your grill immediately.
Missing or damaged parts should be
claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support,
please call 1-877-707-5463.
Manual Revision #: 07012009 SA
Advertisement
Related Manuals for Centro 7012009
Summary of Contents for Centro 7012009
- Page 1 LIMITED 5-YEAR WARRANTY Read and save manual for future reference. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. For product inquiries, parts, warranty and troubleshooting support, please call 1-877-707-5463. Manual Revision #: 07012009 SA...
-
Page 2: Hardware Pack
H E A V Y A R T I C L E N E E D S 2 T O L I F T THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES To ORDER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.centrobbqs.com. - Page 3 PARTS LIST (PROPANE) FOR 85-3014-8 (G51208) Item Qty. Description Part No. Item Qty. Description Top Lid G512-2900-01 Lid Handle G512-0001-01 Lid Handle End Cap-Left G617-0004-01 Lid Handle End Cap-Right G617-0005-01 Logo Plate G412-0001-01 Thermometer G412-0003-01 Screw for Top Lid G501-0005-01 Lid Bumper G508-0063-01 Burner Box Assembly...
- Page 4 PARTS LIST (NATURAL GAS) FOR 85-3015-6 (G51211) Item Qty. Description Part No. Item Qty. Description Top Lid G512-2900-01 Lid Handle G512-0001-01 Lid Handle End Cap-Left G617-0004-01 Lid Handle End Cap-Right G617-0005-01 Logo Plate G412-0001-01 Thermometer G412-0003-01 Screw for Top Lid G501-0005-01 Lid Bumper G508-0063-01...
-
Page 5: You Will Need
ASSEMBLY INSTRUCTIONS Seperate the 2 diff erent types of wheels, 2 locking wheels (EH) and 2 regular wheels (EI). Attach the locking wheels (EH) to the back of the bottom shelf (EG) and the regular wheels (EI) to the front of the bottom shelf (EG). To secure the 4 wheels, hand tighten fi rst. - Page 6 ASSEMBLY INSTRUCTIONS THIS STEP REQUIRES 3 OR MORE PEOPLE. DO NOT ATTEMPT ALONE. EXTREMELY HEAVY. a. Position the top lid and burner box assembly b. Use the hardware to connect both parts, on YOU WILL NEED: Attach the upper back panel (CO) to both the left and right side panels (EA and EB).
- Page 7 ASSEMBLY INSTRUCTIONS a. Attach the left shelf fascia (DB) to the left side shelf Front YOU WILL NEED: b. Assemble the Side shelf wind shield (DG) to the YOU WILL NEED: TIP: To position the left side shelf assembly, insert Assemble the left side shelf assembly to the cart assembly, as shown in fi gure B.
- Page 8 ASSEMBLY INSTRUCTIONS a. Position the Sear Zone burner (DD) through b. Make sure that the Sear Zone burner (DD) en- c. Assemble the Sear Zone burner (DD) to the YOU WILL NEED: d. Feed the Sear Zone electrode wire (DE) from YOU WILL NEED: ASSEMBLY INSTRUCTIONS the opening in the left side shelf (DA).
- Page 9 ASSEMBLY INSTRUCTIONS TIP: Before attempting to assemble the door (EF) a. Hold the door (EF) perpendicular to the BBQ b. Assemble the door (EF) to the right pillar (ED), YOU WILL NEED: b. Assemble the towel bar (EJ) onto door (EF). YOU WILL NEED: ASSEMBLY INSTRUCTIONS to the right pillar (ED), locate the two clasps...
- Page 10 ATTENTION: For your families safety, do not attempt to light this BBQ until you have reviewed pages 4-7 of the CENTRO Safety & Care Manual. All Safety and Leak test MUST BE PERFORMED BY THE END USER, prior to lighting this BBQ.
