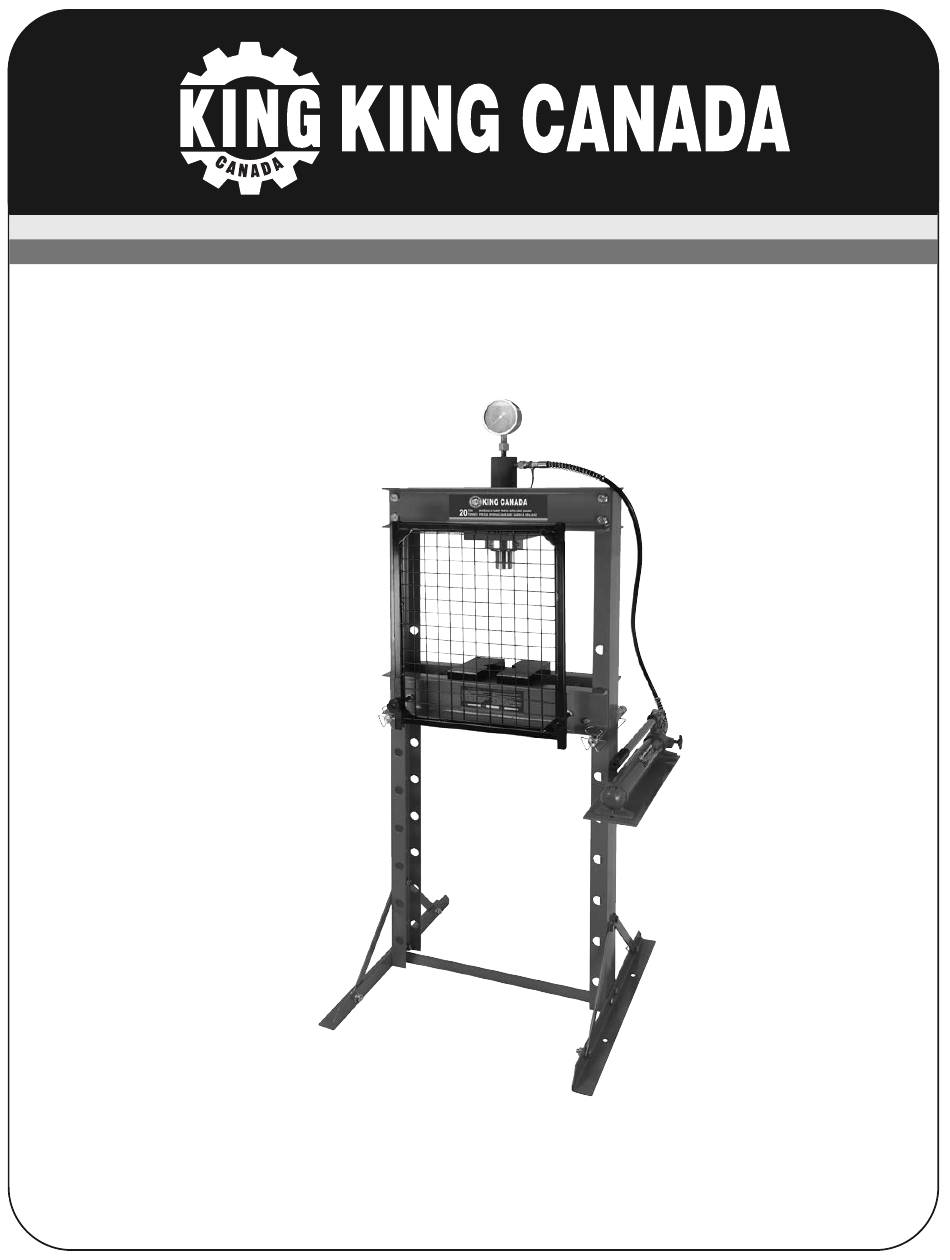

- Page 1 20 TON HYDRAULIC SHOP PRESS WITH GRID GUARD MODEL: KHP-20T-GGN INSTRUCTION MANUAL COPYRIGHT © 2019 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable. - Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS GENERAL SAFETY RULES 1. KNOW YOUR TOOL 8. DON’T OVERREACH. Read and understand the owners manual and labels affixed to Keep proper footing and balance at all times. 9. MAINTAIN TOOL WITH CARE. the tool. Learn its application and limitations as well as its specific potential hazards.
- Page 4 6. Bed frame posts (2). 7. Hydraulic pump. 8. Hydraulic pump release valve. 9. Hydraulic pump handle. 10. Hydraulic pump oil filler nut. 11. Grid guard. MODEL KHP-20T-GGN Maximum capacity 20 Ton Stroke 6-1/4” Working range 0 - 40” Bed width 21-3/8”...
-
Page 5: Before Using For The First Time
ASSEMBLY, OPERATION AND MAINTENANCE ASSEMBLY- Refer to the parts diagram in this manual as a guide to assemble this hydraulic shop press. 1) Attach together one base section (#223) and lower cross bar (#228) to the left post (#221) using hex. bolts (#227), washers (#224), spring washers (#225) and hex. -
Page 6: Parts Diagram
PARTS DIAGRAM MODEL KHP-20T-GGN PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
