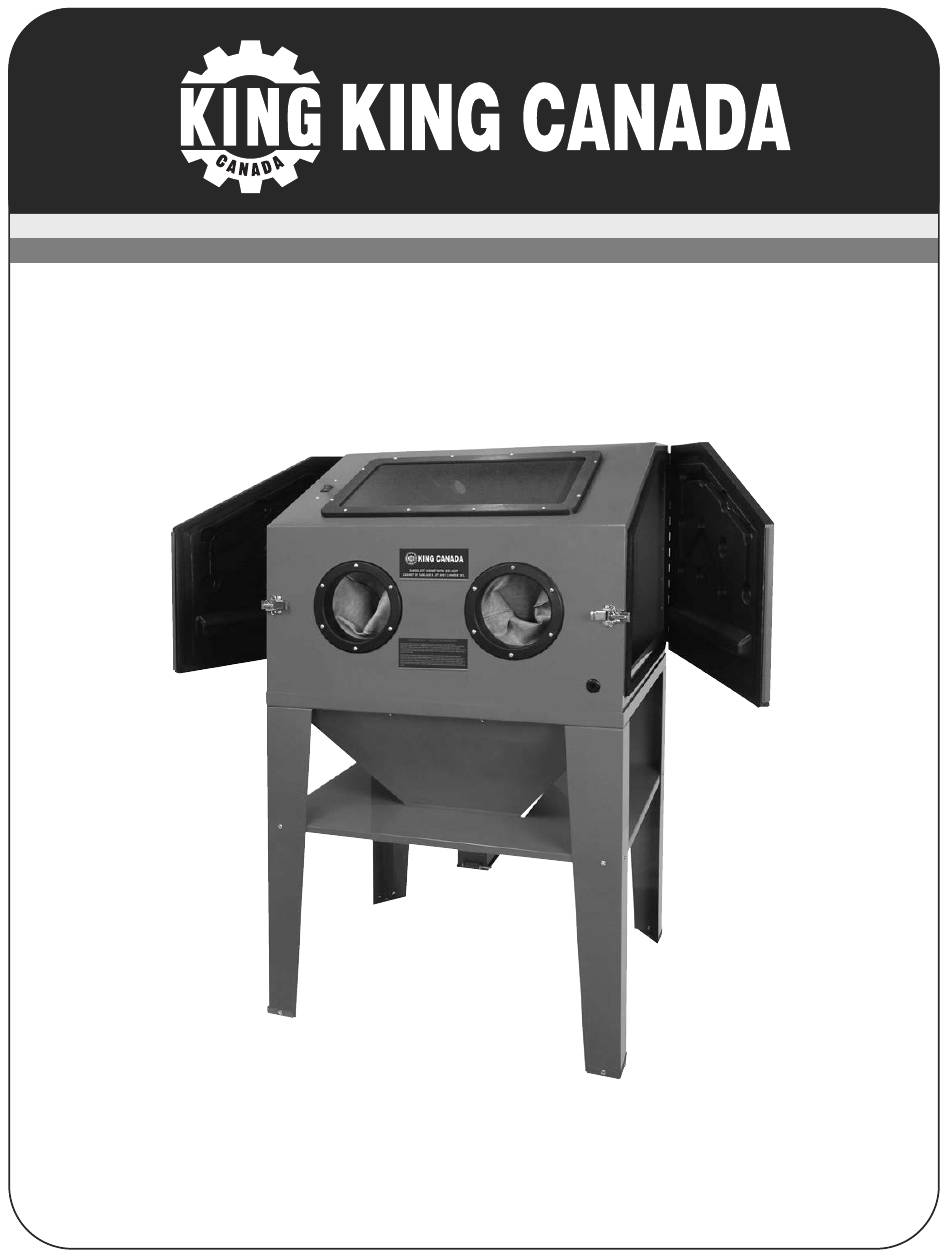

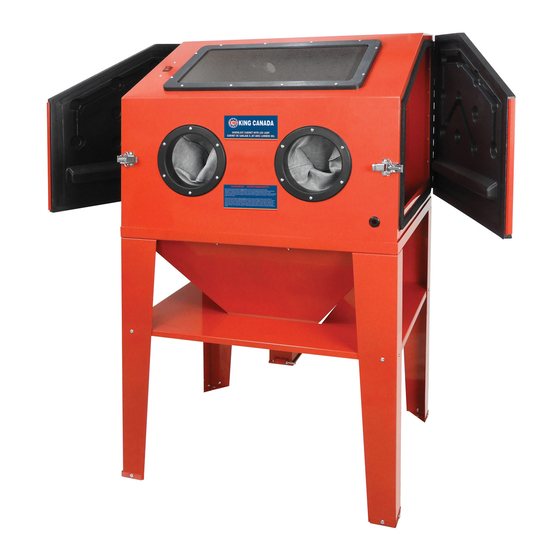

- Page 1 FLOOR MODEL SANDBLAST CABINET WITH LED LIGHT INSTRUCTION MANUAL MODEL: KSB-350-LED COPYRIGHT © 2019 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable.
- Page 3 GENERAL SAFETY INSTRUCTIONS GENERAL SAFETY RULES 1. KNOW YOUR TOOL 8. DON’T OVERREACH. Read and understand the owners manual and labels affixed to Keep proper footing and balance at all times. 9. MAINTAIN TOOL WITH CARE. the tool. Learn its application and limitations as well as its specific potential hazards.
- Page 4 15. 2-1/2” dust port with cap. 7. Right door. 16. LED light power adaptor connector. 8. Door latch (right). 17. Vent. 9. Air hose hole. MODEL KSB-350-LED LED light 110V Maximum operating pressure 116 PSI Required compressor output 15-25 CFM @ 40-80 PSI...
- Page 5 ASSEMBLY UNPACKING Remove all the components and the Sandblast Cabinet from the carton. Empty the contents inside the cabinet. Remove the white protective film on the clear window. ASSEMBLY 1) Position the stand frame (A) Fig.1 with its mounting holes on top on a level surface. Install the 4 legs (B) to the stand frame using only two countersunk head screws and hex.
- Page 6 ASSEMBLY ASSEMBLY 4) Inside the inner lip of the stand frame (A) Fig.5, install the adhesive foam stripes (B) all around as shown. FIGURE 5 5) Position the funnel (A) Fig.6 inside the stand frame as shown. FIGURE 6 6) Position the wire mesh bracket (A) Fig.7 on top of the funnel as shown. FIGURE 7 7) Position the wire mesh (A) Fig.8 over the wire mesh bracket as shown.
- Page 7 ASSEMBLY ASSEMBLY 8) Now the sandblast cabinet gets installed on top of the wire mesh bracket. It is recommended to do this step with the help of another person. Once positioned, the cabinet and all the components installed previously all need to be secured together from the inside of the cabinet using 14 pan head screws (A) Fig.9 and hex.
- Page 8 Reduce moisture in the sandblast media before using again. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
