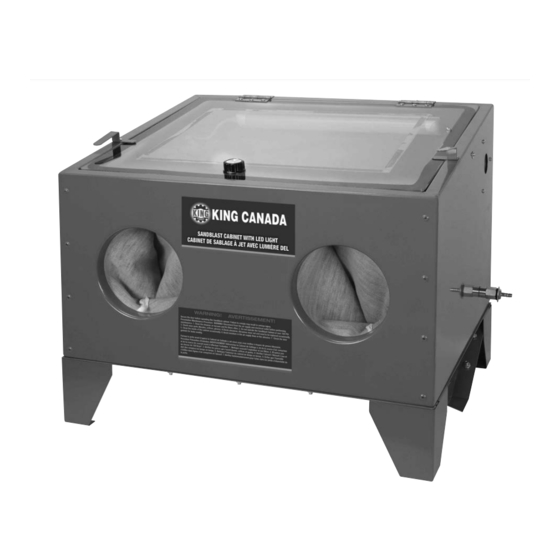

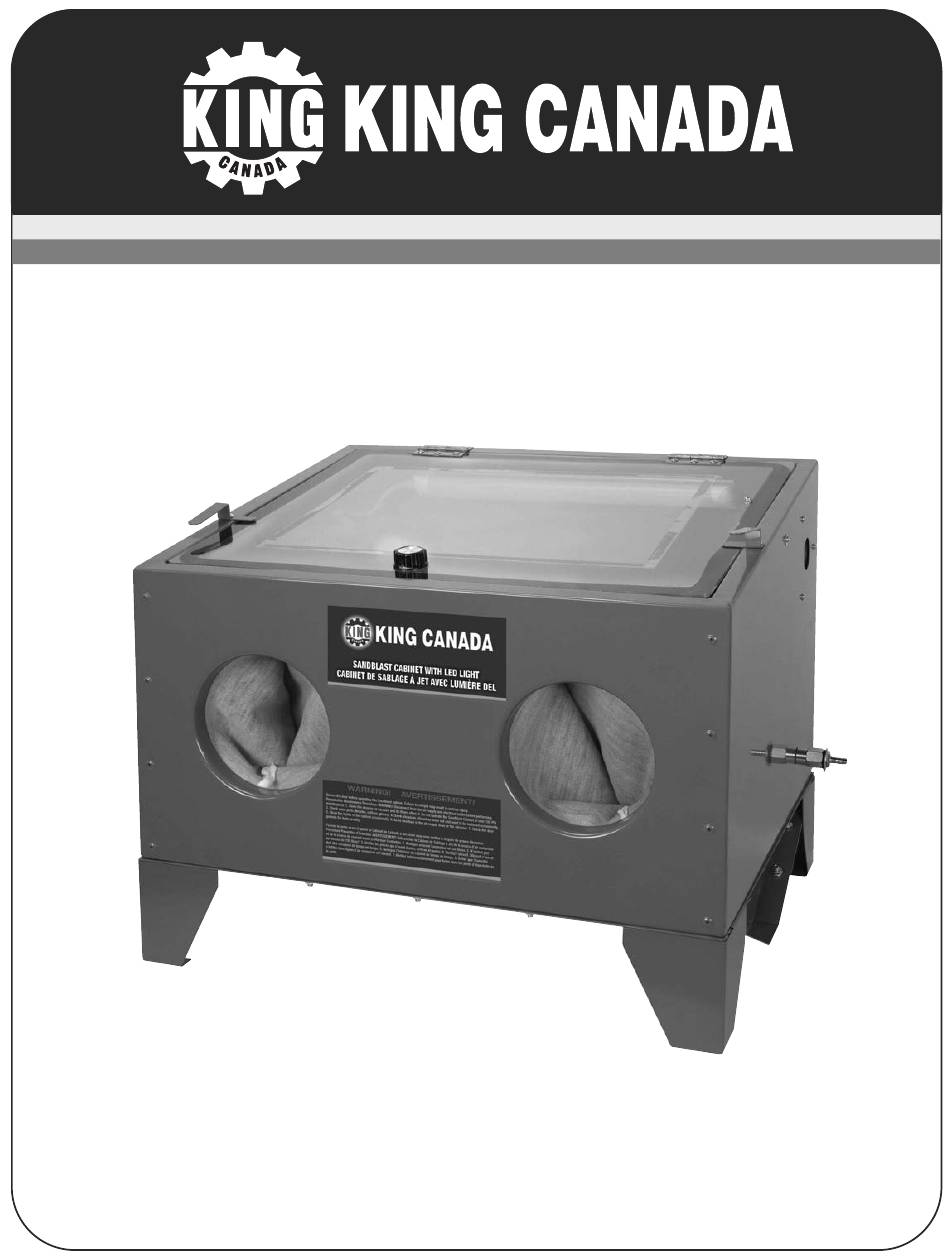

- Page 1 SANDBLAST CABINET WITH LED LIGHT INSTRUCTION MANUAL MODEL: KSB-110N-LED COPYRIGHT © 2019 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable. -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS GENERAL SAFETY RULES 1. KNOW YOUR TOOL 8. DON’T OVERREACH. Read and understand the owners manual and labels affixed to Keep proper footing and balance at all times. 9. MAINTAIN TOOL WITH CARE. the tool. Learn its application and limitations as well as its specific potential hazards. - Page 4 12. Air input hose 6. Air input. 13. Hose clamp (1 of 2) 7. Glove inside cabinet (1 of 2). 14. Sandblast media collecting pipe MODEL KSB-110N-LED 110V LED light Maximum operating pressure 100 PSI Required compressor output 5 CFM @ 80 PSI...
-
Page 5: Assembly And Operation
ASSEMBLY & OPERATION UNPACKING Remove all the components and the Sandblast Cabinet from the carton. Empty the contents inside the cabinet. Remove the white protective film on the clear window. ASSEMBLY 1) Install the air inlet (A) Fig.1 to the right side of the cabinet. It is recommended to install the long end of the fitting outside the cabinet, as shown. -
Page 6: Operation And Maintenance
Cleaning the gun and its nozzle will be required if this happens. Reduce moisture in the sandblast media before using again. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
