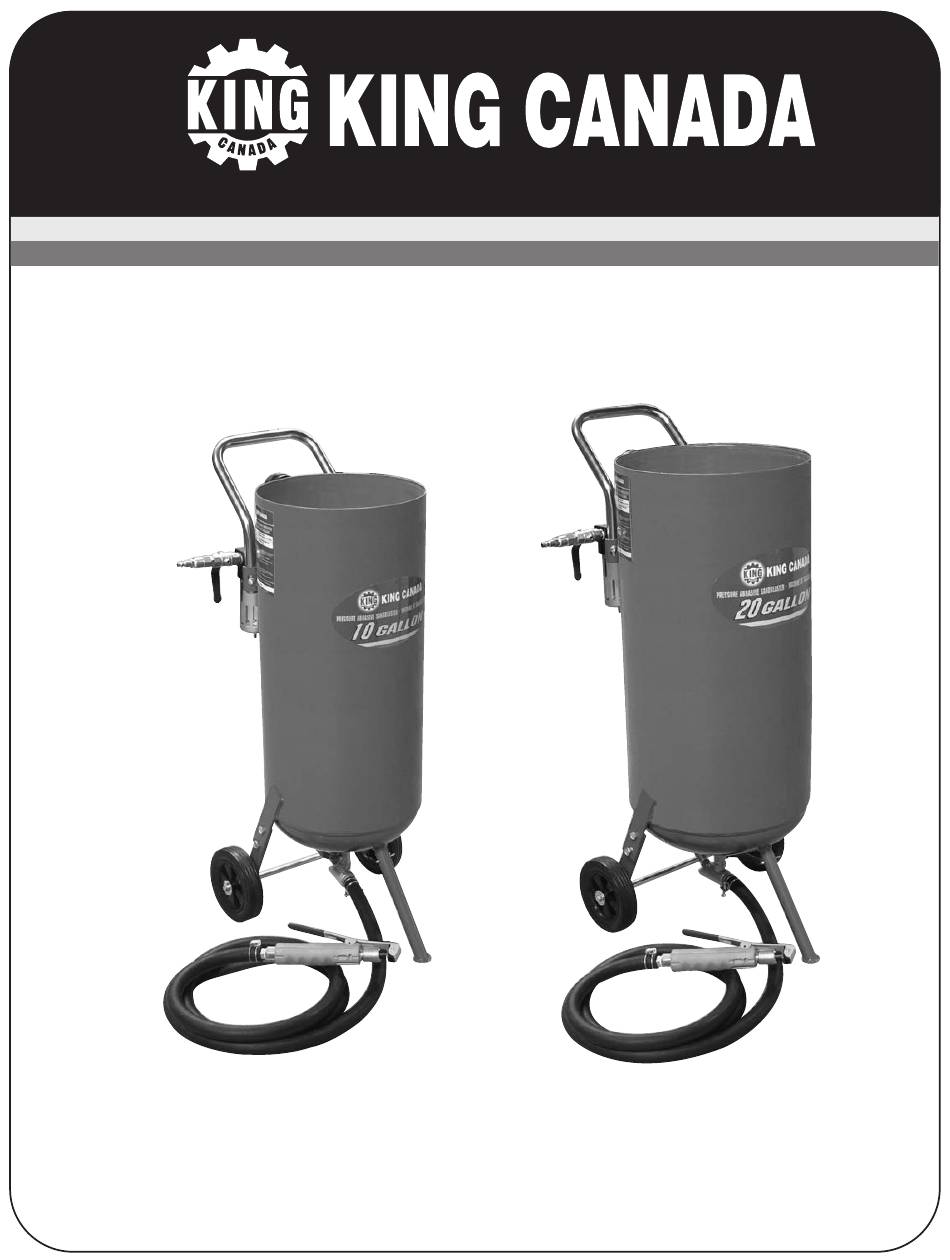

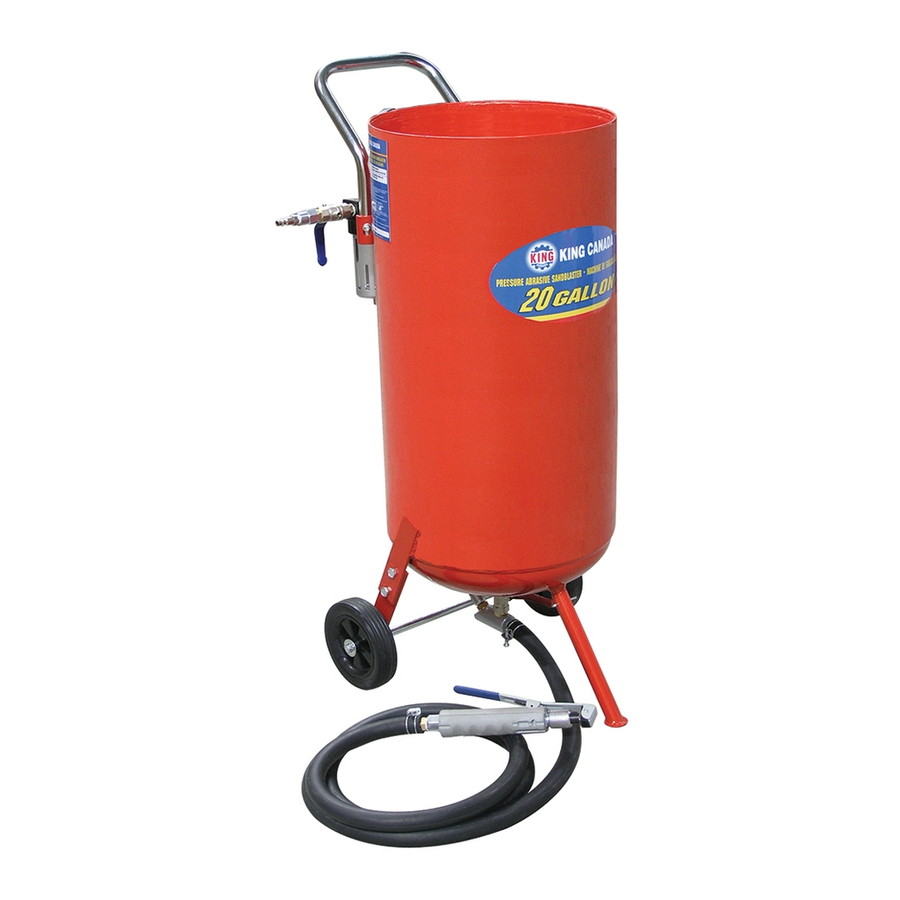

- Page 1 10 & 20 GALLON PRESSURE ABRASIVE SANDBLASTERS MODEL: KSB-10 MODEL: KSB-20 (10 GALLON) (20 GALLON) INSTRUCTION MANUAL COPYRIGHT © 2008 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials.
- Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS 1. KNOW YOUR TOOL 10. DISCONNECT TOOLS. Read and understand the owners manual and labels affixed to Before servicing, when changing accessories or attachments. 11. USE RECOMMENDED ACCESSORIES. the tool. Learn its application and limitations as well as its specific potential hazards.
- Page 4 7. Tank pressure gauge 11. Media cut-off valve 4. Media cut-off valve 8. 1/4” NPT Air inlet connector SANDBLASTER SPECIFICATIONS Model ......................................KSB-10 Operating pressure................................65-120 PSI Air consumption ..................................6-25 CFM Tank size ....................................10 Gallon Maximum amount of abrasive................................40 lbs Recommended air compressor ..............................5 HP Model ......................................KSB-20...
- Page 5 ASSEMBLY UNPACKING Remove all loose parts from the carton. Carefully lift the sandblaster pressure tank from the carton and place it upside down on a level work surface. Remove all other items from the carton and follow all of the following assembly, operation and maintenance instructions in this manual.
- Page 6 ASSEMBLY INSTALLING TRANSPORT HANDLE TO PRESSURE TANK All previous assembly instructions were done with the pressure tank positioned upside down, now it is time to flip it right side up. Locate the transport handle (A) Fig.4 and fix it to both pressure tank handle brackets (B) using a pan head screw, washer and hex.
- Page 7 (A) Fig.8 is in the off position (horizontal) and that the air pressure gauge (B) reads zero as shown in Fig.8. Without causing a hazardous dust cloud, pour the abrasive into the top opening of the tank. With the 10 gallon tank model KSB-10, you can load up to 40 lbs of abrasive, with the 20 gallon tank model KSB-20 you can load up to 80 lbs of abrasive.
- Page 8 OPERATION PRE-OPERATION STEPS AND CONNECTING AIR SUPPLY Once the appropriate nozzle is installed and your abrasive is loaded in the tank, you are now ready to connect the air supply hose to the air inlet and start sandblasting. First make sure the air supply valve (A) Fig.9 and the blast hose air supply valve (B) are in the closed position (horizontal).
