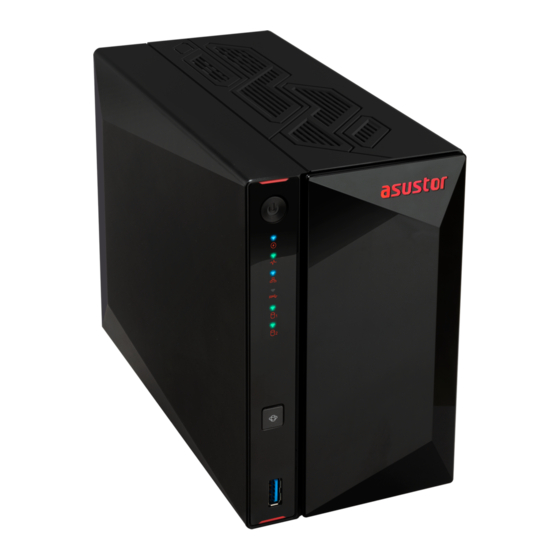

- Page 1 Quick Installation Guide Applicable Models AS5402T / AS5404T Ver.2.3.0903 (2015-3-2) Ver.4.2.0407 (2023-4-7)
-
Page 2: Table Of Contents
Table of Contents NOTICES ..................................3 SAFETY PRECAUTIONS ..............................4 1. PACKAGE CONTENTS ..............................5 2. OPTIONAL ACCESSORIES ............................6 3. HARDWARE INSTALLATION GUIDE ..........................7 ........................... 7 OOLS EEDED FOR NSTALLATION ................................7 NSTALLATION ................................9 ECURING THE OWER NAS ............................ -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models : AS5402T, AS5404T Model Name AS5402T AS5404T Power Cord Adapter RJ45 Network Cable Screws for use with 2.5” Quick Installation Guide... -
Page 6: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 7: Hardware Installation Guide
At least one 2.5 or 3.5 inch SATA hard disk. (For a list of compatible hard disks, please see http://www.asustor.com/service/hd?id=hd) Hard Disk Installation 1. Remove the front panel as shown in the image below. AS5402T AS5404T 2. Using the latch, gently pull the disk tray out of the disk bay. AS5402T AS5404T 3. - Page 8 Secure the disk tray in place by pushing down on the latch. The latch should close easily and snap in with an audible ‘click’. Please make sure that the disk tray is pushed all the way into the disk bay before attempting to secure the latch. AS5402T AS5404T...
-
Page 9: Securing The Power Cord
5. Return the front panel. AS5402T AS5404T Securing the Power Cord Note: You can use the provided cord bracket to secure the power cord in place, if you are concerned about the NAS power cord becoming detached when the NAS is moved. -
Page 10: Upgrading System Memory
Your NAS and memory modules use high precision components and electronic connector technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: ✓ Memory for AS54 series devices may be purchased from local dealers or the online ASUSTOR Accessories Store (http://shop.asustor.com). - Page 11 Do not remove or loosen screws that are not specified to be removed. Parts and Tools Needed Phillips head screwdriver Removing the Cover 1. Shutdown the NAS by selecting [Shut down] from the ADM User Menu. 2. Disconnect all cables and devices connected to the NAS including the power cord. AS5402T AS5404T...
- Page 12 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. AS5402T AS5404T 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis.
-
Page 13: Installing M.2 Ssd
2. Reconnect all cables including the power cord and then start up the NAS. AS5402T AS5404T Installing M.2 SSD M.2 Installation Precautions The AS5402T and AS5404T provide four M.2 SSD slots. For maximum compatibility, click here for a list of compatible M.2 SSDs. Parts and Tools Needed... - Page 14 1. Shutdown the NAS by selecting [Shut down] from the ADM User Menu. 2. Disconnect all cables and devices connected to the NAS including the power cord. AS5402T AS5404T 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration.
- Page 15 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. AS5402T AS5404T Installing M.2 SSDs 1. For the best possible experience, install SSDs in the order as shown in the pictures below.
- Page 16 2. Insert M.2 SSD at an angle, align the notch with the connector and insert the M.2 drive. Ensure M.2 SSD is fully inserted, hold plastic lever and press down on the M.2 SSD until it clips into the slot. AS5402T AS5404T 3.
- Page 17 Replacing the Cover Replace the cover and tighten the three screws that were removed previously. AS5402T AS5404T Reconnect all cables including the power cord and then start up the NAS. AS5402T AS5404T...
-
Page 18: Software Installation Guide
Download Center Installation Windows Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process. - Page 19 Mac Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process.
-
Page 20: Web Installation
Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process. -
Page 21: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. Make sure that your mobile device is connected to the same local network that your NAS is connected to. Next, open AiMaster and then select the icon from the toolbar at the top of the screen. - Page 22 Select your NAS from the list that appears. Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process.
-
Page 23: Appendix
5. Appendix LED Indicators AS5402T Power LED Indicator System Status LED Indicator Network LED Indicator USB LED Indicator Hard Disk LED Indicator AS5404T 1. Power LED Indicator 2. System Status LED Indicator 3. Network LED Indicator 4. USB LED Indicator 5. -
Page 24: Front Panel
Green Hard Disk Flashing Data access in progress Steadily lit Hard disk abnormality Front Panel AS5402T 1. Power Button 2. Infrared Receiver 3. One Touch Backup Button 4. USB 3.2 Gen 2 Port 5. HDD 1 6. HDD 2 AS5404T 1. -
Page 25: Rear Panel
Rear Panel AS5402T 1. USB 3.2 Gen 2 Ports 2. HDMI Port 3. 2.5 Gigabit RJ-45 Ports 4. Reset Button 5. DC Input 6. K-lock 7. System Fan AS5404T 1. USB 3.2 Gen 2 Ports 2. HDMI Port 3. 2.5 Gigabit RJ-45 Ports 4. -
Page 26: Shutting Down Your Nas
2. Hold down the power button for 1.5 seconds. You should be able to hear a “beep” from the system buzzer. Let go of the power button and the NAS will either shut down or enter sleep mode depending on your configuration. AS5402T AS5404T... -
Page 27: Troubleshooting
Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 28 Right-click on [Local Area Connection] and select [Properties]. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties]. Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.1 and the [Subnet mask] to 255.255.0.0 and then click on [OK].
- Page 29 Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer ASUSTOR Customer Service.You are also encouraged to browse through the ASUSTOR...
