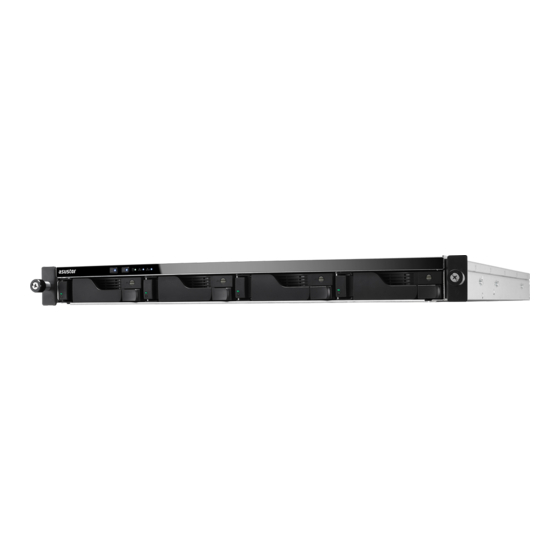

- Page 1 Quick Installation Guide Applicable Models AS6204RD/AS6204RS/AS6212RD Ver.2.3.0903 (2015-3-2) Ver.2.5.0510 (2016-5-10)
-
Page 2: Table Of Contents
Table of Contents Notices ............................ 3 Safety Precautions ........................4 1. Package Contents ......................5 2. Optional Accessories ......................6 3. Hardware Installation Guide ....................7 Tools Needed for Hard Disk Installation ................7 Hard Disk Installation ......................7 Connecting and Powering on the NAS ................9 Upgrading System Memory .................... -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models: AS6204RD, AS6204RS, AS6212RD Model Name AS6212RD AS6204RD/ AS6204RS AS6204RD AS6204RS Power Cord RJ45 Network Cable Screws for use with 3.5” HDD Screws for use with 2.5” HDD Installation CD Quick Start Guide... -
Page 6: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 7: Hardware Installation Guide
At least one 2.5 or 3.5 inch SATA hard disk. (For a list of compatible hard disks, please see http://www.asustor.com/service/hd?id=hd) Hard Disk Installation 1. Press the button on the lower portion of the hard disk tray to release the latch. - Page 8 2.5-inch hard disks and SSD hard disks: Place the hard disk into the area of the disk tray outlined in red (see picture below). Make sure that the mounting holes on the bottom of the hard disk and disk tray are lined up.
-
Page 9: Connecting And Powering On The Nas
5. Once the latch is secure, you can lock it in place using the disk tray lock. Using a flathead screwdriver, turn the lock counterclockwise to lock the latch mechanism. Turning the lock clockwise will unlock it. Note: Disk tray locks can be found on AS62 series devices. Connecting and Powering on the NAS Connect the NAS to its power supply. -
Page 10: Upgrading System Memory
Your NAS and memory modules use high precision components and electronic connector technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: Memory for AS61 and AS62 series devices may be purchased from local dealers or the online ASUSTOR Accessories Store (http://shop.asustor.com). - Page 11 Use a screwdriver that matches the size of the screws. Do not remove or loosen screws that are not specified to be removed. Parts and Tools Needed Phillips head screwdriver Removing the Cover 1. Shutdown the NAS by selecting [Shut down] from the ADM User Menu. 2.
- Page 12 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. Installing Memory When upgrading memory, please note that memory modules of the same size must be used. The maximum supported memory is 8GB combined.
-
Page 13: Rail Kit Installation
2. Using two fingers, carefully push down and then back on the memory module until it clicks into place. You should be able to hear an audible “click”. Replacing the Cover 1. Replace the cover and tighten the three screws that were removed previously. 2. - Page 14 Fully extend the rail assembly by pulling it outward. Press down on the release tab and pull the inner rail out. Separate the inner rail from the outer assembly. Line up the holes on the inner rail with the pegs on the system chassis and push the inner rail all the way in.
- Page 15 Mount the inner rails to the system chassis using the provided mounting screws. Mount the outer rail assembly to your rack. Please note that both the front and back of the outer rail assembly will need to be fastened to the rack with two screws. ...
-
Page 16: Software Installation Guide
There are 4 different installation methods that you can choose from. Please select the method most suitable for you. If you do not have a CD drive, you can go to the download section of the ASUSTOR website (http://www.asustor.com/service/downloads) to download the latest software. - Page 17 Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process.
- Page 18 Insert the installation CD into your computer’s CD drive and then select “Quick Install” from the autorun CD-menu. The installation wizard will install ASUSTOR Control Center onto your computer. At this time you can also choose whether or not you want to install Download Assistant. After ASUSTOR Control Center has been...
-
Page 19: Web Installation
Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process. Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process. -
Page 20: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. AiMaster for Android AiMaster for iOS Make sure that your mobile device is connected to the same local network that your NAS is connected to. - Page 21 Select your NAS from the list that appears. Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process.
-
Page 22: Installation Using A Direct Connection
Installation Using a Direct Connection Troubleshooting Please see section for installation instructions. Shutting Down Your NAS 1. Confirm the function settings for the power button as shown in the graphic below. When the power button is held down for 1.5 seconds you can decide whether to shut down the NAS or have it enter into sleep mode. This setting may be access from within ADM by selecting: [Settings][Hardware] ... - Page 23 2. Hold down the power button for 1.5 seconds. You should be able to hear a “beep” from the system buzzer. Let go of the power button and the NAS will either shut down or enter sleep mode depending on your configuration.
-
Page 24: Appendix
5. Hard Disk LED Indicator *For AS6204RD/AS6204RS/AS6212RD models: When Ethernet cables are connected to [Ethernet Port 1] and [Ethernet Port 2] on the rear panel of the NAS, the first network LED indicator on the front of the NAS will become steadily lit. -
Page 25: Rear Panel
8. Power Supply Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 26 Click on [Change adapter settings] in the left hand panel.
- Page 27 Right-click on [Local Area Connection] and select [Properties]. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties].
- Page 28 Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.1 and the [Subnet mask] to 255.255.0.0 and then click on [OK]. Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer or ASUSTOR Customer Service http://support.asustor.com.You are also encouraged...
