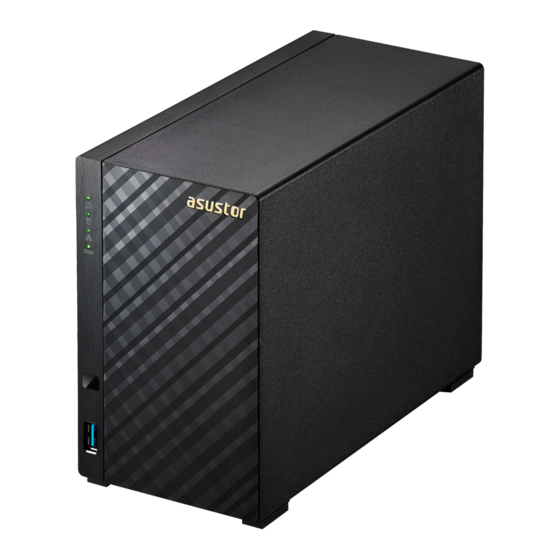

- Page 1 Quick Installation Guide Applicable Models: AS1002T/AS1002Tv2/AS1004T/AS1004T v2 Ver.2.3.0903 (2015-3-2) Ver.3.0.0022(2018-2-22)
-
Page 2: Table Of Contents
Table of Contents Notices ............................ 3 Safety Precautions ........................4 1. Package Contents ......................5 2. Optional Accessories ......................7 3. Hardware Installation Guide ....................8 Tools Needed for Hard Disk Installation ................8 Hard Disk Installation ......................8 Securing the Power Cord....................13 Connecting and Powering on the NAS ................ -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models: AS1002T, AS1002T v2, AS1004, AS1004T v2 Model Name AS1002T / AS1002T v2 AS1004T / AS1004T v2 Power Cord Adapter RJ45 Network Cable Power Cord Bracket... - Page 6 Screws for use with 3.5” HDD Installation CD Quick Start Guide...
-
Page 7: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 8: Hardware Installation Guide
Tools Needed for Hard Disk Installation At least one 3.5 inch SATA hard disk. (For a list of compatible hard disks, please see http://www.asustor.com/service/hd?id=hd) Hard Disk Installation Remove the screws from the rear of the NAS as shown in the graphic below. - Page 9 AS1002T / AS1002T v2 AS1004T / AS1004T v2 Installing 3.5 inch hard disks: Slide the hard disks all the way into the disk bay until they are firmly seated and connected with the SATA connector. For 3.5” drives with 3 screw holes on each side. ...
- Page 10 AS1004T / AS1004T v2 Note: Please insert the hard disk into the HDD 1 slot shown in the graphic in order to have it initialized. For 3.5” drives with 2 screw holes on each side. AS1002T / AS1002T v2 ...
- Page 11 Note: Please insert the hard disk into the HDD 1 slot shown in the graphic in order to have it initialized. Secure each hard disk with the screws provided as shown in the graphic below. For 3.5” drives with 3 screw holes on each side. ...
- Page 12 Note: If you wish to utilize the RAID function, it is recommended that you use hard disks of the same capacity in order to fully utilize the capacity of all hard disks. AS1004T / AS1004T v2 Note: If you wish to utilize the RAID function, it is recommended that you use hard disks of the same capacity in order to fully utilize the capacity of all hard disks.
-
Page 13: Securing The Power Cord
Securing the Power Cord Note: You can use the provided cord bracket to secure the power cord in place, if you are concerned about the NAS power cord becoming detached when the NAS is moved. 1. Take the cord bracket out of the accessories box. 2. -
Page 14: Connecting And Powering On The Nas
AS1004T / AS1004T v2 Connecting and Powering on the NAS Connect the NAS to its power supply. Connect the NAS to your router, switch or hub using an Ethernet cable. Press and hold down the power button located on the back of the device for 1 – 2 seconds until the yellow power LED indicator is lit. -
Page 16: Software Installation Guide
There are 4 different installation methods that you can choose from. Please select the method most suitable for you. If you do not have a CD drive, you can go to the download section of the ASUSTOR website (http://www.asustor.com/service/downloads) to download the latest software. - Page 17 Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process. Mac Users Insert the installation CD into your computer’s CD drive and then select “Quick Install” from the autorun CD-menu.
- Page 18 The installation wizard will install ASUSTOR Control Center onto your computer. At this time you can also choose whether or not you want to install Download Assistant. After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices.
-
Page 19: Web Installation
Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process. -
Page 20: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. AiMaster for Android AiMaster for iOS Make sure that your mobile device is connected to the same local network that your NAS is connected to. - Page 21 Select your NAS from the list that appears. Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process.
-
Page 22: Installation Using A Direct Connection
Installation Using a Direct Connection Please see section for installation instructions. Troubleshooting Shutting Down Your NAS Hold down the power button for 1.5 seconds. You should be able to hear a “beep” from the system buzzer. Let go of the power button and the NAS will either shut down or enter sleep mode depending on your configuration. -
Page 23: Appendix
5.Appendix LED Indicators AS1002T/AS1002T v2/AS1004T/AS1004T v2 1. Power LED Indicator 2. System Status LED Indicator 3. Network LED Indicator 4. Hard Disk LED Indicator Color Description State Indicator Yellow Steadily lit Power on Power Orange Flashes every 10 seconds LED night mode Flashing Powering on Yellow... -
Page 24: Rear Panel
7. System Fan Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 25 Click on [Change adapter settings] in the left hand panel.
- Page 26 Right-click on [Local Area Connection] and select [Properties]. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties].
- Page 27 Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.1 and the [Subnet mask] to 255.255.0.0 and then click on [OK]. Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer or ASUSTOR Customer Service http://support.asustor.com.You are also encouraged...
