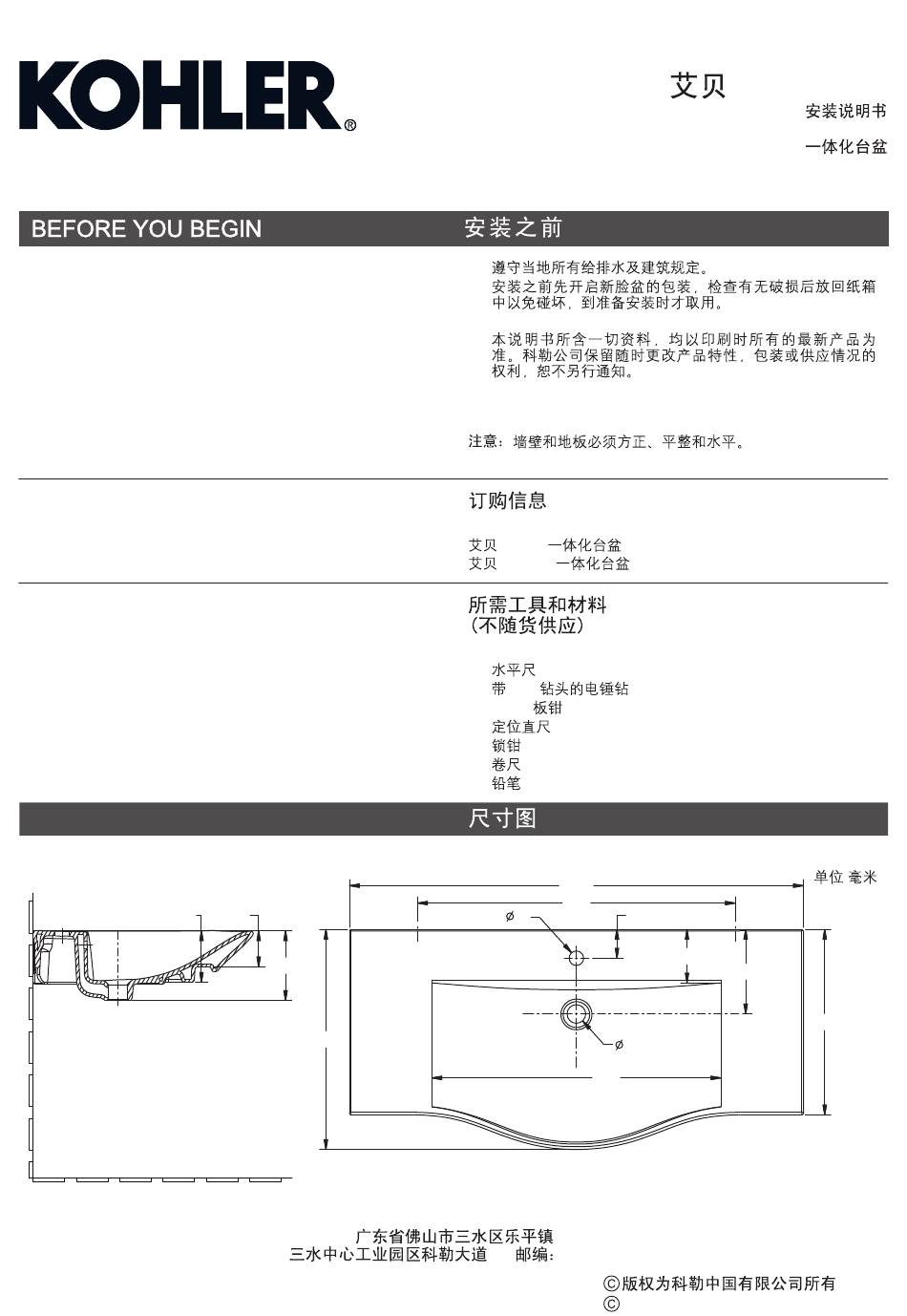

Observe all local plumbing and building codes.
·
Prior to installation, unpack the new lavatory and inspect it
for damage. Return the lavatory to its protective carton
until you are ready to install it.
·
All information in these instructions are based the latest
product information available at the time of publication.
Kohler China reserves the right to make changes in
product characteristics, packaging, or availability at any
time without notice.
IMPORTANT:
Make sure that the wall and floor are square
and plumb to ensure proper installation.
ORDERING INFORMATION
URBANITY 800mm Vanity........................................K-15095T
URBANITY 1100mm Vanity......................................K-15096T
REQUIRED MATERIALS/
(NOT SUPPLIED)
·
Level
·
Drill with
6mm
bit
·
14mm wrench
·
Framing square
·
Channel lock pliers
·
Tape measure
·
Pencil
ROUGHING-IN
125
1130444-T01-A
TOOLS
88
174
536
·
·
·
800mm
1100mm
·
·
6mm
·
14mm
·
·
·
·
K-15096T
1105
769
35
528137
-1-
URBANITY
INSTALLATION INSTRUCTIONS
K-15095T/K-15096T
.............................................K-15095T
...........................................K-15096T
70
130
205
45
700
Copyright Kohler China Ltd., 2009
VANITY TOP
UNIT: mm
:
454
, 2009
Advertisement
Related Manuals for Kohler URBANITY 15096T
Summary of Contents for Kohler URBANITY 15096T
- Page 1 · · All information in these instructions are based the latest product information available at the time of publication. Kohler China reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. IMPORTANT: Make sure that the wall and floor are square and plumb to ensure proper installation.
- Page 2 Note! The lavatory tops must be installed on a cabinet or matching metal stand (refer to Installation and User Guide packed with the cabinet or stand for installation details). Recommend Kohler metal square leg or Kohler bathroom furniture for support or decoration. ·...
- Page 3 URBANITY 800mm Vanity K-15095T Wall Plug 800mm K-15095T Attachment Bolt (x2) Waste Outlet Waste Fig.#3 · · Install the faucet and drain to the lavatory according to the manufacture's instructions. · · Put the sealant around the back wall attached surface of the lav evenly.
- Page 4 Install the Plumbing 1. Install the drain in accordance with the manufacturer s instructions. Caution! Make sure a watertight seal exists on all basin drain connections. Caution! Provide access to the plumbing connections for future plumbing maintenance. 2. Connect the hot and cold water supplies. 3.
