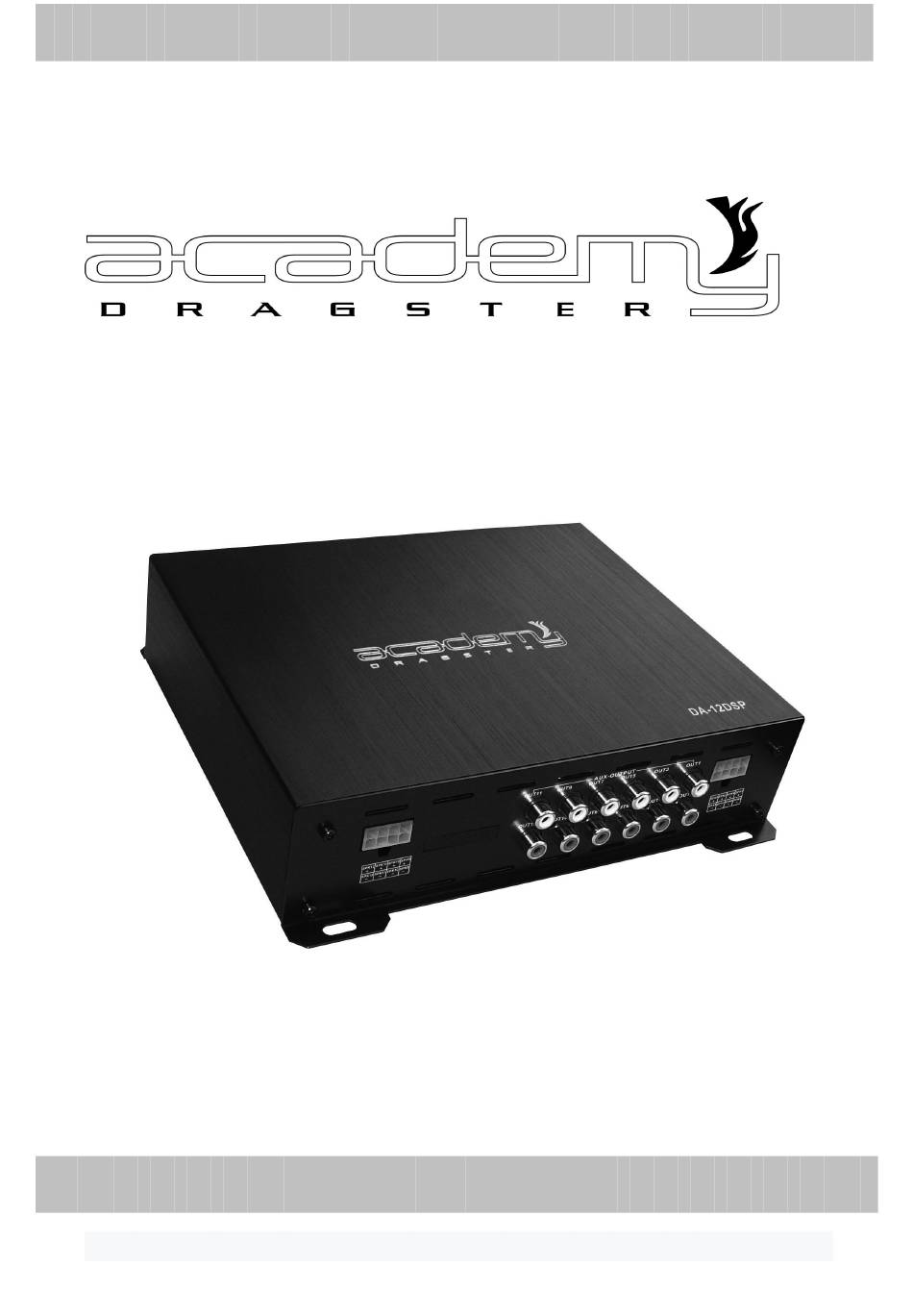

- Page 1 User Manual DA-12DSP SPECIAL DSP AMPLIFIER Please read this manual carefully before using this product and keep it for future reference...
- Page 2 Please contact with professional engineer for checking to avoid accident happen. Packing List For every package including below items, Please noticed retailer and Factory if shortage: DA-12DSP unit User Manual Warranty Card Head Unit Cable 1PC (Option)
-
Page 3: Table Of Contents
Original setting change.............…..…..19 3.4.2 PC save setting ..........…..……..…...23 3.4.3 New setting operation………..…………………….…..…..….…..24 3.5 Choosing Operation...……………………………….……………......…25 3.5.1 Unit firmware update method…….………………..……..….….25 3.5.2 Help information acquisition method………………...……..…..26 3.5.3 Information about the inquiry.………………….…....…..26 3.5.4 Encrypt Setting………………………….……………......26 4. Common trouble shouting....………………..…………………...………..…27 DA-12DSP Special DSP amplifier... - Page 4 Mobile Application Instructions Main volume adjustment Andriod mobile scan Qrcode on gift box to download the application to install DA-12DSP ● The main volume can be adjusted by app. Turn on the unit and plug in external pressing the main volume scale clockwise or counterclockwise by hand.
- Page 5 Equalization settings Click【EQ】to enter EQ interface 1、Click 【 Reset EQ】 to restore the parameters of the 31-band equalizer to the original。 pass-through mode (the equalizer frequency, Q value and gain are restored to their initial values). DA-12DSP Special DSP amplifier...
- Page 6 24dB/Oct 、 30dB/Oct 、 36dB/Oct 、 42dB/Oct 、 48dB/Oct 、OFF. 2 、 Adjust the volume by sliding left and right. Output Signal Function Click [Link] to synchronize the data. 2.Click phase for every output channel: In Phase or Out Phase（0 ゜/180 ゜） DA-12DSP Special DSP amplifier...
- Page 7 Default Value : [MS], can switch to [CM] or [INCH] Mixer settings Click [Mixer] to enter Mixer interface, It can perform 6 high level, 6 AUX, digital left and digital right, Bluetooth left and Bluetooth right mix selection and adjustment. DA-12DSP Special DSP amplifier...
-
Page 8: Features
The mute interface is shown The adjustment range is 0~60. Press in Figure 2-2. and hold the knob to exit the interface and return to the main interface of the controller. Figure 4 Figure 2-1 Figure 2-2 DA-12DSP Special DSP amplifier... - Page 9 5-2. After the call is completed, the interface is automatically exited and to the main interface display. returned to the main interface of the 2. BUTTON OPERTION INSTRUCTIONS . VOLUME CONTROL /MUTE/ESC/DSP PRESET ○ 3. THE CONNECTION DIAGRAM DA-12DSP Special DSP amplifier...
-
Page 10: Audio Specification、Main Audio Signal Process Diagram
1 output 2 output 3 output 4 Output5 output 6 Output7 output 8 output 9 output output output DA-12DSP Special DSP amplifier... -
Page 11: Input And Output Side Panel
10.) Speaker output 11.) Low level RCA output 1.3 Software Introduction DA-12DSP PC software control: (please check 3. Software Operation detail ) 1) Auotmetically detect whatever the hardware is connecting with USB cable, if ready and will connect with head unit autometically. -
Page 12: Function Introduction
Each output channel can be adjusted for phase and time Output phase and delay, parameter range time delay Phase: 0 ゜/180 ゜ Time delay: 0.000-20.0ms，0.00-692cm，0.00-273inch Scene operations Unit can keep 6-style of music scenes by preset. DA-12DSP Special DSP amplifier... -
Page 13: System Classic Connecting Reference
Figure 2.1 this connecting method is for two units input, please refer below: 1. Please use Plug & Play cable to connect original car unit and DA-12DSP for upgrade audio system effects. Please use OUT11 and OUT12 RCA output when Install bass amplifier or subwoofer 2. -
Page 14: Unit Connection
Note: when do not use high level input (only RCA low level input), the toggle switch dial in DC, defined in FL+/FR+/RR+/RL+ arbitrary a all can access REM or ACC input, can be normal to start the machine. DA-12DSP Special DSP amplifier... -
Page 15: Low Level Rca Input/Output
As shown in figure 1.2.1, the "1" indicator bit is the "USB2.0" position. Figure 2.3 Use Random accessories USB cable into this hole on a computer connected to the PC, open tuning software to debug the sound system. DA-12DSP Special DSP amplifier... -
Page 16: Software Operation
DA-12DSP provides only wired USB PC software connection. Wired USB connection: Ensure that DA-12DSP power state, with a USB cable to connect to a computer through the USB interface, the computer will find the new device and automatically install the update equipment, after a few seconds the installation is complete. -
Page 17: Software Interface
User Manual 3.3 Software interface Figure 3.2.2 Software interface DA-12DSP unit divided into the following functional: 1．as shown in figure 3.2.2, "1", input signal selection: high level, Bluetooth, S/PDIF, AUX and Player. 2．as shown in figure 3.2.2 "2", shows the main menu and connection status. -
Page 18: Output Switch
3．Select delay units, which are in milliseconds, centimetres, and inches. The range of milliseconds: 0.000~7.350;Range of mm: 0~254;Range of inches: 0 to 100; 4．DA-12DSP processor output signal path can be any type of configuration freedom to any sound field point and the speaker type. The system defaults to 4.1 full-range passive mode. - Page 19 "empty" (no connection to any speaker , there is no output of), as shown below 3.3.4: Figure 3.3.4 The second step, the channel number beneath each, click on the type drop-down menu box, select the option in the pop-up users locate the type of speaker. Figure 3.3.5 as follows: DA-12DSP Special DSP amplifier...
- Page 20 5．the output delay adjustment, is set in the delay space area to the left of the illustrated adjustment, as follows (Figure 3.3.6), click on the value of the input box next to the corresponding speaker can be entered after the delay value corresponding units. Figure 3.3.6 DA-12DSP Special DSP amplifier...
-
Page 21: Output Signal Equalizer And Crossover Operation
When the parametric equalizer curve, if available in the box below the corresponding input parameter values can be (frequency, Q value, and gain) adjusted in real time will also be revealed at the top (as shown in Figure 3.3.8 parametric equalizer case ). Figure 3.3.8 DA-12DSP Special DSP amplifier... - Page 22 Adjustment range: 20Hz ~ 20KHz. Slope(slope)settings:6dB/Oct,12dB/Oct,18dB/Oct,24dB/Oct,30dB/Oct,36dB/Oct, 42dB/Oct, 48dB/Off/Oct and other 9 options. Note: In 6dB / Oct, there is no type of algorithm, but a common type (displayed as NULL). DA-12DSP Special DSP amplifier...
-
Page 23: Output Signal Funtion Operation
Click this button has been stored in the computer signal output channel sound field configuration file is loaded into the machine. After loading the output profile output channel lock automatically released and left and right channels FBI. When this function button for DA-12DSP Special DSP amplifier... -
Page 24: Setting Introduce
Mixer settings: click "mixer" in the "7" area in Figure 3.2.2, then you can switch to (Figure 3.3.14) the relevant parameter settings for the corresponding adjustment figure 3.3.14 3.4 Setting introduce Figure 3.4.1 DA-12DSP Special DSP amplifier... -
Page 25: Original Setting Change
3. Software Operation User Manual As shown in Figure 3.4.1 DA-12DSP software of the scene in three major types of actions: the machine stored scene data, computer data stored scene and the whole scene data manipulation. 1．the machine data stored scene operation: refers to the scene data is now running... - Page 26 Figure 3.4.3 Figure 3.4.4 2.loading machine preset This feature is to preset scene previously saved machine data (saved as a machine preset) out of tune as the machine is currently running scene. DA-12DSP Special DSP amplifier...
- Page 27 (Figure 3.4.7 "33445566 "but once in the console interface parameters changed, it will become the" Custom "in the name, because this time the machine is running and the data has been loaded set of data that is different). Figure 3.4.7 DA-12DSP Special DSP amplifier...
- Page 28 Step 3: As shown 3.4.8 dialog box, select the location of the user's machine preset number you want to delete (such as Option 3), and then point below the "delete" button, you pop up as shown in Figure 3.4.9 the delete confirmation dialog window. Figure 3.4.9 DA-12DSP Special DSP amplifier...
-
Page 29: Pc Save Setting
Step 2: Click "Save as PC Presets File " will bring up the file after item Save As dialog window (Figure 3.4.11). Figure 3.4.11 step 3: Enter the file name in the pop-up window you want, save point on it. DA-12DSP Special DSP amplifier... -
Page 30: New Setting Operation
This function is to load previously saved on the computer the whole machine to machine data files (data file of the whole machine, including the current job scenario,six groups of preset machine all the scenes, the output channel configuration data DA-12DSP Special DSP amplifier... -
Page 31: Choosing Operation
Figure 3.5.2, the dialog box by clicking the "Browse file" button, found to * .bin extension of the DA-12DSP upgrade file (see the official website of the latest information and download), and then click on the "update" button to upgrade the hardware upgrade schedule began to fill with color, about 60 seconds, the progress bar is full, a hardware upgrade is successful, click on the "Exit"... -
Page 32: Help Information Acquisition Method
In the options menu, click the " Encrypt " option with the mouse, and a message dialog box will pop up, in which you can set the password for encryption. shown in Figure 3.5.3. Figure 3.5.3 DA-12DSP Special DSP amplifier... -
Page 33: Common Trouble Shouting
1. pls check if turn on mute style No voice 2. pls check if input channel is correct? 1. pls check if USB cable is setting correct cannot link USB 2. pls cehck if find name as “ HID-compiling device”in the computer DA-12DSP Special DSP amplifier...
