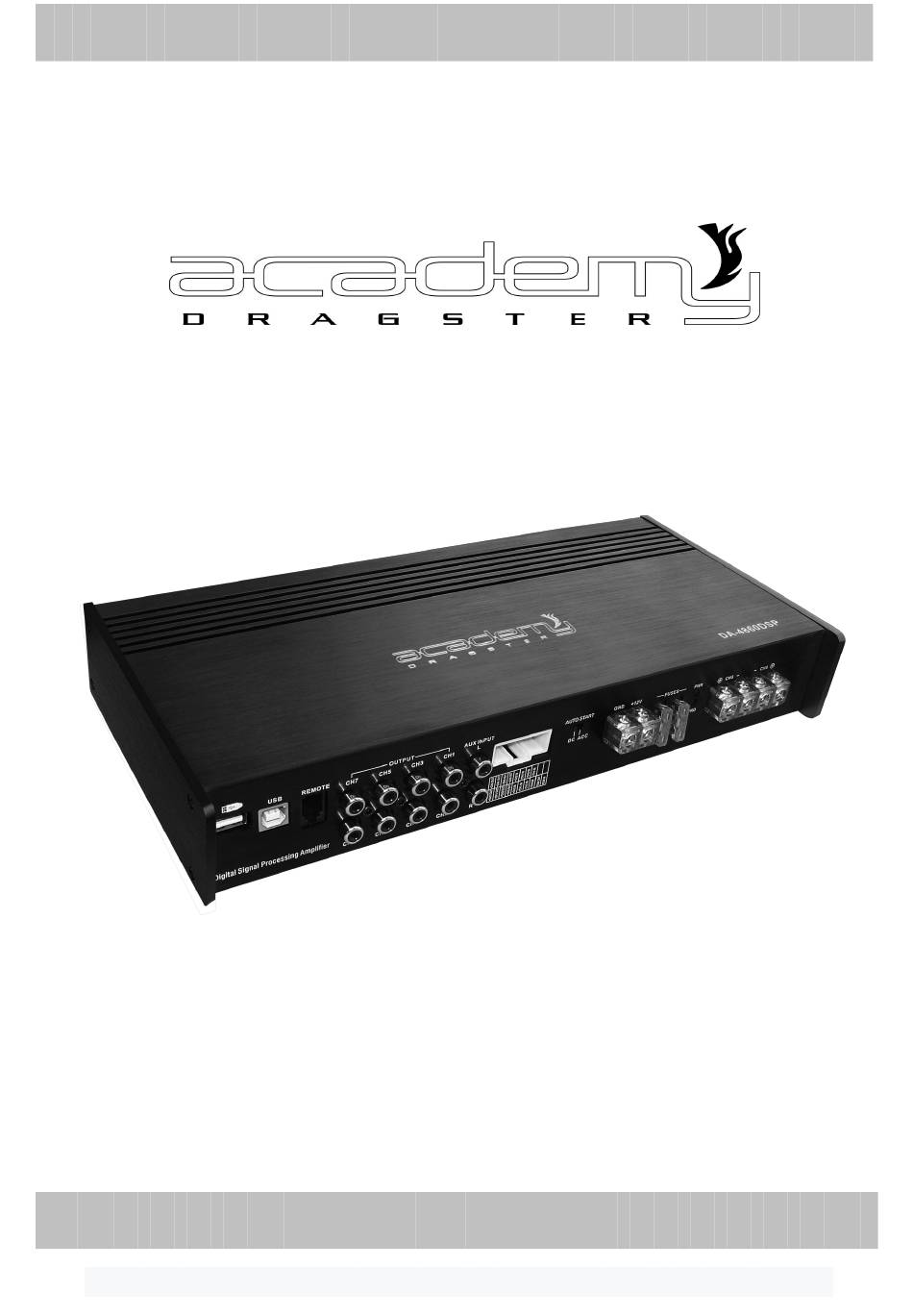

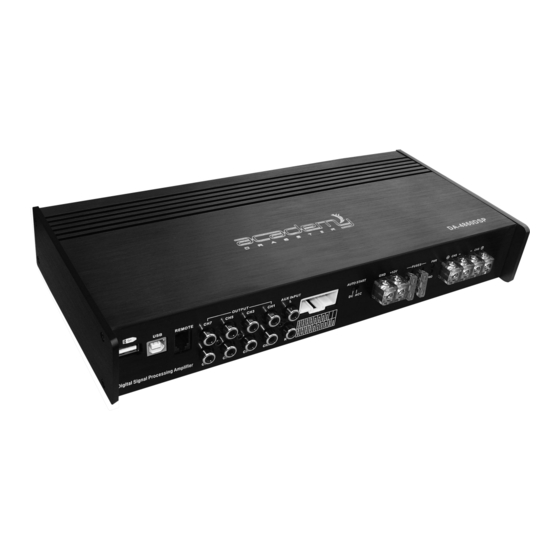

  • Page 1 User Manual DA-4860DSP SPECIAL DSP AMPLIFIER Please read this manual carefully before using this product and keep it for future reference...
  • Page 2 Please contact with professional engineer for checking to avoid accident happen. Packing List For every package including below items, Please noticed retailer and Factory if shortage: DA-4860DSP unit User Manual Warranty Card Head Unit Cable 1PC (Option)

  • Page 3: Table Of Contents

    Original setting change...........…..….20 3.4.2 PC save setting ..........………....…..24 3.4.3 New setting operation………..…………………….…..…...….….25 3.5 Choosing Operation...……………………………….……………......26 3.5.1 Unit firmware update method…….……………….….…..….…26 3.5.2 Help information acquisition method……………….……..….27 3.5.3 Information about the inquiry.………………….…....….27 3.5.4 Encrypt Setting………………………….……………......27 4. Common trouble shouting....………………..……………………..……...28 DA-4860DSP Special DSP amplifier...
  • Page 4 Mobile Application Instructions Main volume adjustment Andriod mobile scan Qrcode on gift box to download the application to install DA-4860DSP ● The main volume can be adjusted by app. Turn on the unit and plug in external pressing the main volume scale clockwise or counterclockwise by hand.
  • Page 5 Setting EQ Output channel Connection Status 1、EQ curve(gain, Q value and frequency) 1、 【 】 Red means not connected； 【 】 green means connected. When the mobile phone is connected to Bluetooth, open the mobile phone software and it will be connected automatically. The Bluetooth symbol turns green.
  • Page 6 Crossover settings Output settings Channel high-low-pass crossover setting 1.Choose from 12 channels to choose from with high-low-pass independent filtering. 2.Output channel volume setting,Click 【 】 Frequency Range: 20Hz~20KHz. Slope the speaker button to mute. selection: 6 dB/Oct 、12dB/Oct 、18dB/Oct 、 24dB/Oct 、...
  • Page 7 Default Value : [MS], can switch to [CM] or [INCH] Mixer settings Click [Mixer] to enter Mixer interface, It can perform 6 high level, 6 AUX, digital left and digital right, Bluetooth left and Bluetooth right mix selection and adjustment. DA-12DSP Special DSP amplifier...

  • Page 8: Features

    CONTROLLER Features: 1.3 inch OLED display  Support for master volume adjustment  Support bass volume adjustment  Support one-button mute  Support audio source switching  Support preset scene call  Interface mode: RJ11  1.CONTROLLER OPERATION INSTRUCTIONS A.Boot Screen C.Input Source Selection The normal connection of the controller Press and hold the button on the main...
  • Page 9 controller. E. Preset Sound Effect Call Press the controller button again to enter the preset sound effect interface. As shown in Figure 5-1, the controller Figure 5-1 Figure 5-2 can display the preset sound effect Note: The controller does not group.

  • Page 10: Audio Specification、Main Audio Signal Process Diagram

    Low level Low level Low level Low level Low level Low level Low level Low level Output 1 Output 2 Output 3 Output 4 Output 5 Output 6 Output 7 Output 8 DA-4860DSP Special DSP amplifier...

  • Page 11: Input And Output Side Panel

    9.) Fuse 10.) Speaker connection 1.3 Software Introduction DA-4860DSP PC software control: (please check 3. Software Operation detail ) 1) Auotmetically detect whatever the hardware is connecting with USB cable, if ready and will connect with head unit autometically. 2) Display resolution over than 1280*760, or else cannot show fully.

  • Page 12: Function Introduction

    Each output channel can be adjusted for phase and time Output phase and delay, parameter range time delay Phase: 0 ゜/180 ゜ Time delay: 0.000-7.35ms，0.00-254cm，0.00-100inch Scene operations Unit can keep 6-style of music scenes by preset. DA-4860DSP Special DSP amplifier...

  • Page 13: System Classic Connecting Reference

    Figure 2.1 this connecting method is for two units input, please refer below: 1. Please use Plug & Play cable to connect original car unit and DA-4860DSP for upgrade audio system effects. Please use OUT5 and OUT6 RCA output when Install bass amplifier or subwoofer 2.

  • Page 14: Unit Connection

    2. System connections User Manual 2.1.1 Speaker connecting reference DA-4860DSP Special DSP amplifier...

  • Page 15: Low Level Rca Input/Output

    CH6 is null, while the default output type of CH7 and CH8 is ultra-low left and ultra-low right, usually external bass amplifier, as bass strengthened. Of course, users can configure their own initiative RCA low level output to complete more high-end divided by two or three-way system. DA-4860DSP Special DSP amplifier...

  • Page 16: Usb2.0 Port

    As shown in figure 1.2.1, the "5" indicator bit is the "USB2.0" position. Figure 2.3 Use Random accessories USB cable into this hole on a computer connected to the PC, open tuning software to debug the sound system. DA-4860DSP Special DSP amplifier...

  • Page 17: Software Operation

    DA-4860DSP provides only wired USB PC software connection. Wired USB connection: Ensure that DA-4860DSP power state, with a USB cable to connect to a computer through the USB interface, the computer will find the new device and automatically install the update equipment, after a few seconds the installation is complete.

  • Page 18: Software Interface

    User Manual 3.3 Software interface Figure 3.2.2 Software interface DA-4860DSP unit divided into the following functional: 1．as shown in figure 3.2.2, "1", input signal selection: high level, Phone, AUX and Player. 2．as shown in figure 3.2.2 "2", shows the main menu and connection status.

  • Page 19: Output Switch

    3．Select delay units, which are in milliseconds, centimetres, and inches. The range of milliseconds: 0.000~7.350;Range of mm: 0~254;Range of inches: 0 to 100; 4．DA-4860DSP processor output signal path can be any type of configuration freedom to any sound field point and the speaker type. The system defaults to 4.1 full-range passive mode.
  • Page 20 "empty" (no connection to any speaker , there is no output of), as shown below 3.3.4: Figure 3.3.4 The second step, the channel number beneath each, click on the type drop-down menu box, select the option in the pop-up users locate the type of speaker. Figure 3.3.5 as follows: DA-4860DSP Special DSP amplifier...
  • Page 21 5．the output delay adjustment, is set in the delay space area to the left of the illustrated adjustment, as follows (Figure 3.3.6), click on the value of the input box next to the corresponding speaker can be entered after the delay value corresponding units. Figure 3.3.6 DA-4860DSP Special DSP amplifier...

  • Page 22: Output Signal Equalizer And Crossover Operation

    Straight balanced: the button shown in Figure 3.3.4, the current channel as long as there is an equalizer in the open state, this button will appear highlighted in green state, indicating that you can click this button to make all the equalizer DA-4860DSP Special DSP amplifier...
  • Page 23 Adjustment range: 20Hz ~ 20KHz. Slope(slope)settings:6dB/Oct,12dB/Oct,18dB/Oct,24dB/Oct,30dB/Oct,36dB/Oct, 42dB/Oct, 48dB/Off/Oct and other 9 options. Note: In 6dB / Oct, there is no type of algorithm, but a common type (displayed as NULL). DA-4860DSP Special DSP amplifier...

  • Page 24: Output Signal Function Operation

    FBI mute, phase, space and delay are not the FBI. .) in the locked FBI, the item associated tone has an FBI logo be displayed. DA-4860DSP Special DSP amplifier...

  • Page 25: Setting Introduce

    Mixer settings: click "mixer" in the "7" area in Figure 3.2.2, then you can switch to (Figure 3.3.14) the relevant parameter settings for the corresponding adjustment figure 3.3.14 3.4 Setting introduce Figure 3.4.1 DA-4860DSP Special DSP amplifier...

  • Page 26: Original Setting Change

    3. Software Operation User Manual As shown in Figure 3.4.1 DA-4860DSP software of the scene in three major types of actions: the machine stored scene data, computer data stored scene and the whole scene data manipulation. 1．the machine data stored scene operation: refers to the scene data is now running...
  • Page 27 Figure 3.4.3 Figure 3.4.4 2.loading machine preset This feature is to preset scene previously saved machine data (saved as a machine preset) out of tune as the machine is currently running scene. DA-4860DSP Special DSP amplifier...
  • Page 28 (Figure 3.4.7 "33445566 "but once in the console interface parameters changed, it will become the" Custom "in the name, because this time the machine is running and the data has been loaded set of data that is different). Figure 3.4.7 DA-4860DSP Special DSP amplifier...
  • Page 29 Step 3: As shown 3.4.8 dialog box, select the location of the user's machine preset number you want to delete (such as Option 3), and then point below the "delete" button, you pop up as shown in Figure 3.4.9 the delete confirmation dialog window. Figure 3.4.9 DA-4860DSP Special DSP amplifier...

  • Page 30: Pc Save Setting

    Step 2: Click "Save as PC Presets File " will bring up the file after item Save As dialog window (Figure 3.4.11). Figure 3.4.11 step 3: Enter the file name in the pop-up window you want, save point on it. 2.loading scene files on your computer DA-4860DSP Special DSP amplifier...

  • Page 31: New Setting Operation

    That is, the previous overall good debugging machine data copied to now coupled machines. DA-4860DSP Special DSP amplifier...

  • Page 32: Choosing Operation

    Figure 3.5.2, the dialog box by clicking the "Browse file" button, found to * .bin extension of the DA-4860DSP upgrade file (see the official website of the latest information and download), and then click on the "update" button to upgrade the hardware upgrade schedule began to fill with color, about 60 seconds, the progress bar is full, a hardware upgrade is successful, click on the "Exit"...

  • Page 33: Help Information Acquisition Method

    In the options menu, click the " Encrypt " option with the mouse, and a message dialog box will pop up, in which you can set the password for encryption. shown in Figure 3.5.3. Figure 3.5.3 DA-4860DSP Special DSP amplifier...

  • Page 34: Common Trouble Shouting

    1. pls check if turn on mute style No voice 2. pls check if input channel is correct? 1. pls check if USB cable is setting correct cannot link USB 2. pls cehck if find name as “ HID-compiling device”in the computer DA-4860DSP Special DSP amplifier...
