Summary of Contents for Academy Dragster DAD-100.4AB
-

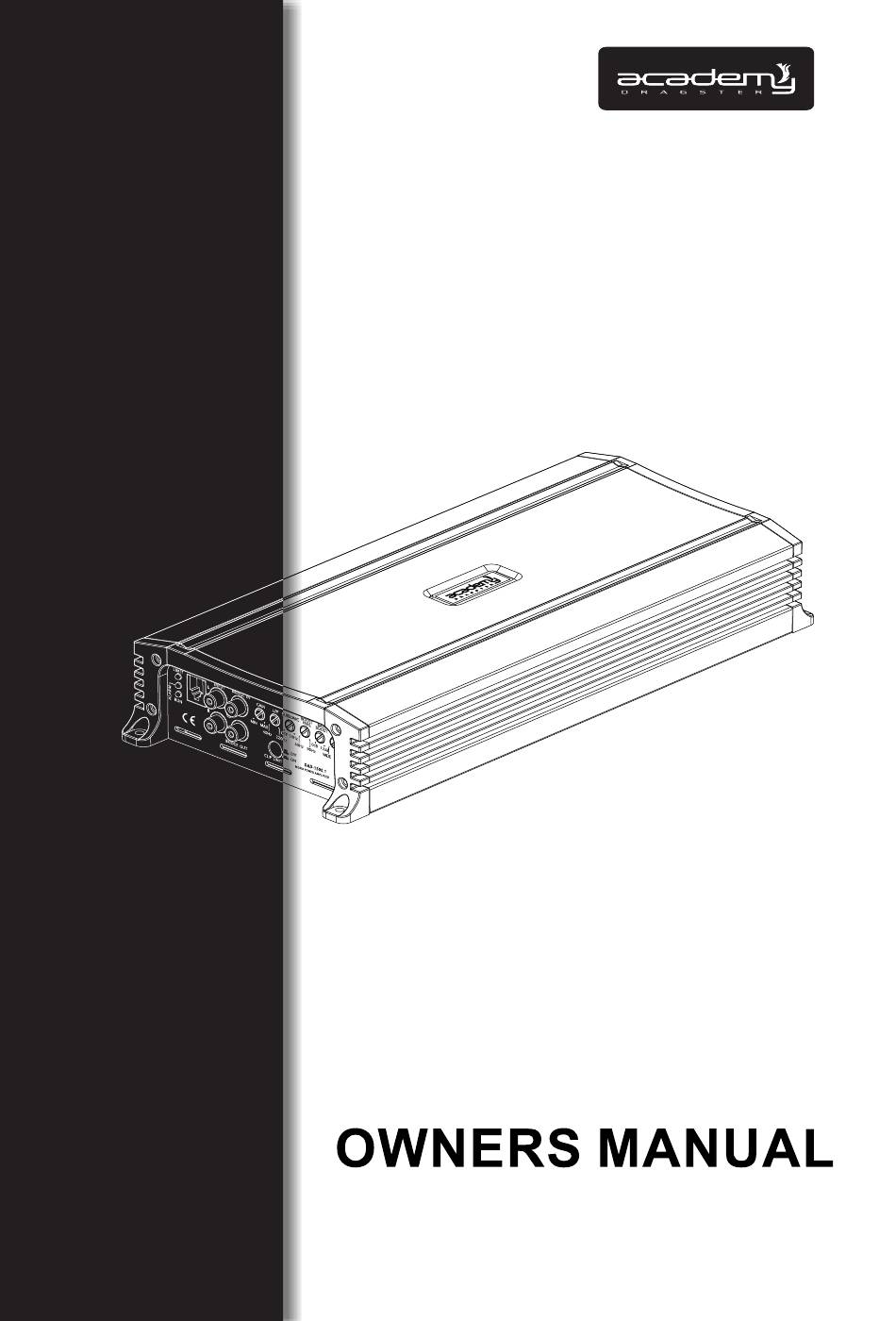

Page 1: Table Of Contents
DAD-100.4AB DAD-200.4 DAD-180.6 DAD-2000.5 DAD-1000.1 DAD-1500.1... - Page 3 FEATURES Hi Fi High Power class AB automotive amplifier (DAD-100.4AB only) High efficiency, Energy-saving digital automotive amplifier High Power, Compact Size MCU Power Management High / Low Level Input Switch Auto Turn - on / off Functions High Reliability Full Mosfet Design...
-
Page 4: Dad-100.4Ab Dad-200.4
PANEL LAYOUT DAD-100.4AB/DAD-200.4 DAD-200.4 4 CHANNEL CLASS-D POWER AMPLIFIER 13 12 DAD-180.6... -
Page 5: Dad-2000.5
DAD-2000.5 DAD-2000.5 5 Channel Power Amplifier BRIDGED INPUT INPUT CH1/2 CH3/4 LEVEL GAIN GAIN PRE IN SPK IN Audio Offset 200Hz 200Hz INPUT BASS LEVEL GAIN BOOST REMOTE PRE IN 40Hz 200Hz SPK IN 50Hz 12dB DAD-1000.1 19 20... -
Page 6: Dad-1500.1
PANEL LAYOUT DAD-1500.1 DAD-1500.1 1. SPEAKERS Connect speakers/subwoofers to these terminals. Be sure to check wire for proper polarity. Never connect the speaker cables to chassis ground. 2. +12 Volt Power Connect this terminal through a FUSE or CIRCUIT BREAKER to the positive terminal of the vehicle battery or the positive terminal of an isolated audio system battery. -
Page 7: Bass Boost
200Hz. 14. INPUT SELECT This control is used to select how many inputs the amplifier uses, two or four inputs (DAD-100.4AB, DAD-200.4 only ), four or six inputs (DAD-180.6 only). For DAD-100.4AB/DAD-200.4, when set to 4CH, the CH1&2 and CH3&4 need to input stereo signals separately. When set to 2CH, the amplifier only needs to input 1 group of stereo sound into CH1&2. -
Page 8: Connecting The Amplifier
This RCA output send out bridge signal to another same model amplifier in bridging configuration. All the functions will be adjusted by the master amplifier. CONNECTING THE AMPLIFIER Select cable and fuse according to the following table. MODEL DAD-100.4AB DAD-200.4 DAD-2000.5 DAD-180.6 DAD-1000.1 DAD-1500.1... -
Page 9: Wiring Diagram
WIRING DIAGRAM DAD-1000.1/DAD-1500.1 (One woofer load) DAD-1500.1 Remote Bass Level Control Source Unit 1Ohm Minimum DAD-1000.1/DAD-1500.1 (Two woofer load) DAD-1500.1 Remote Bass Level Control 2Ohm Minimum Source Unit 2Ohm Minimum... - Page 10 DAD-1500.1 (Bridged mode) Remote Bass Level Control Amp # 1 Amp # 1 MASTER MASTER DAD-1500.1 Source Unit Amp # 2 Amp # 2 SLAVE SLAVE DAD-1500.1 IMPORTANT When bridging two amplifiers you should use same model amplifiers. Please make sure the negative speaker terminal of two amplifiers are connected by the same gauge cables as the positive terminal being used.
- Page 11 DAD100.4AB/DAD-200.4 (Four-channel mode) DAD-200.4 4 CHANNEL CLASS-D POWER AMPLIFIER 2-Ohm to 4-Ohm 2-Ohm to 4-Ohm RCA LOW LEVEL or SPEAKER HIGH LEVEL signals via Adapter CROSSOVER CROSSOVER 2-Ohm to 4-Ohm 2-Ohm to 4-Ohm Source Unit CROSSOVER CROSSOVER DAD100.4AB/DAD-200.4 (Three-channel mode) 2-Ohm to 4-Ohm 2-Ohm to 4-Ohm CROSSOVER...
- Page 12 DAD-180.6 wiring Six-channel mode DAD-180.6 wiring Three-channel mode...
- Page 13 DAD-2000.5 (Five-channel mode) 2-Ohm to 4-Ohm 2-Ohm to 4-Ohm 2-0hm to 8-0hm CROSSOVER CROSSOVER DAD-2000.5 5 Channel Power Amplifier BRIDGED 2-Ohm to 4-Ohm 2-Ohm to 4-Ohm RCA LOW LEVEL or SPEAKER HIGH LEVEL signals via Adapter CROSSOVER CROSSOVER Source Unit DAD-2000.5 (Three-channel mode) 4-Ohm to 8-Ohm 2-Ohm to 8-Ohm...
-
Page 14: Troubleshooting
TROUBLE SHOOTING Symptom Possible Remedy Check to make sure you have a good ground connection. Amplifier Check that there is battery power on the (+)terminal . will not Check all fuses, replace if necessary . power up Make sure that the Protection LED is not illuminated. Check for short circuits on speaker leads.
